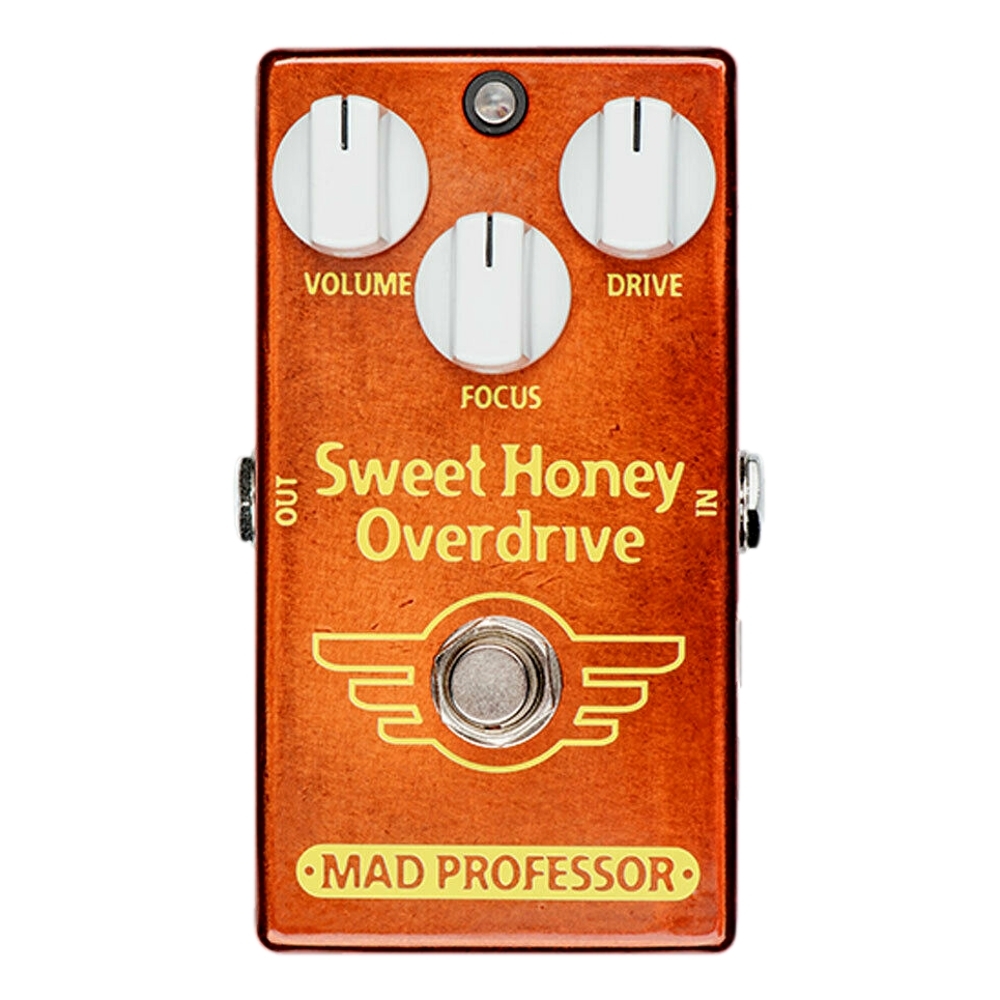

MP Sweet Honey Overdrive

A touch sensitive low gain overdrive pedal. It is designed to overdrive distorted amplifiers and give dynamically controlled light overdrive on clean sounds.

Specs

Controls
• Volume : Sets the output volume.
• Drive : Controls the amount of overdrive.
• Focus : Controls how easily the circuit distorts as well as adjusting overall EQ. Turning CCW gives less distortion and a mellow effect, turning CW gives a slight treble boost and earlier distortion. Good starting point is 11 o’clock.

Electrical Specification
• Input impedance : 260K
• Output impedance : 25K Ohm’s
• Supply voltage range : 7,5 to 18VDC
• Current consumption : 5 mA at 9VDC
• Complete bypass (true bypass) True bypass or buffered (switchable inside the pedal)

Power Requirements
• 6F22 9V battery or DC eliminator 2.1 mm plug center negative and positive sleeve.
