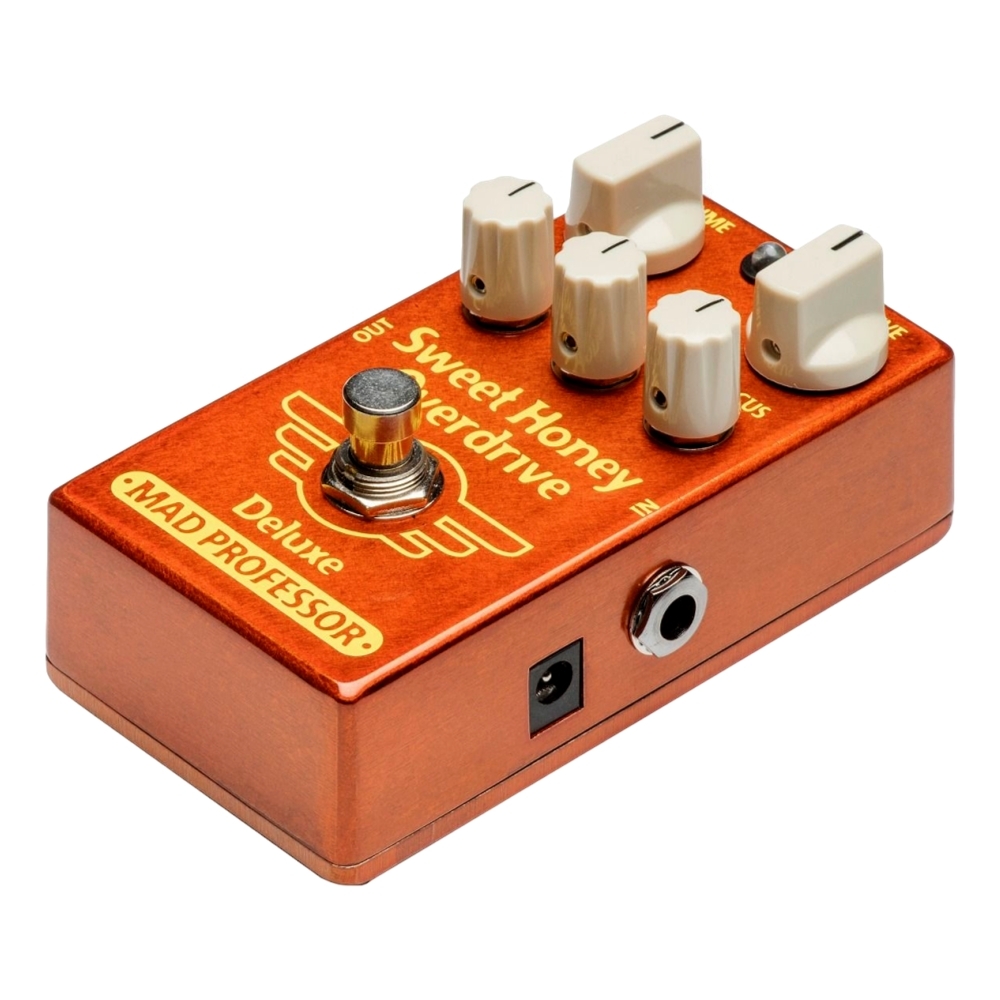

MP Sweet Honey Overdrive

Features

• A super touch sensitive, medium gain amplifier like overdrive pedal with added controls for more versatile guitar tone
• Designed to overdrive distorted amplifiers and give dynamically controlled low to medium gain tones with clean amplifiers.Our unique focus control allows you to adjust the feel and dynamics of the pedal as well as the overall EQ.

Specs

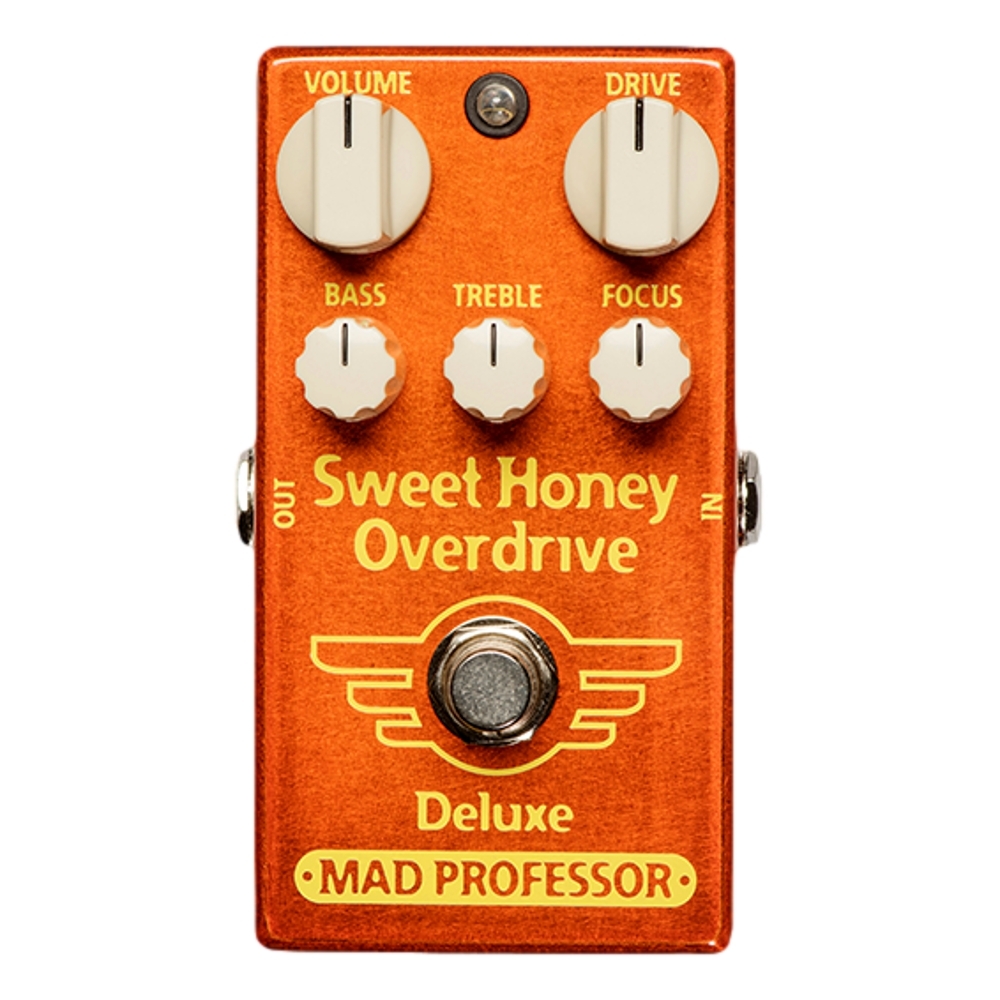

Controls
• Volume: Sets the output volume.
• Drive: Controls the amount of overdrive.
• Treble: Post distortion, it cuts and/or boosts the treble.
• Bass: Pre-distortion, it sets how the bass and low mids are distorted.
• Focus: Controls how easily the circuit distorts as well as adjusting overall eQ. Turning CCW gives less distortion and a mellower effect, turning CW gives a slight treble boost and earlier distortion. A good starting point is 11 o’clock.

Electrical
• Supply voltage range: 7.5 to 18VDC
• Current consumption: 6 mA at 9VDC
• Input impedance: 390K Ohms
• Output impedance: 25K Ohms
• Complete bypass (true bypass)

Power Requirements
• 6F22 9V battery or DC eliminator 2.1 mm plug center negative and positive sleeve.
