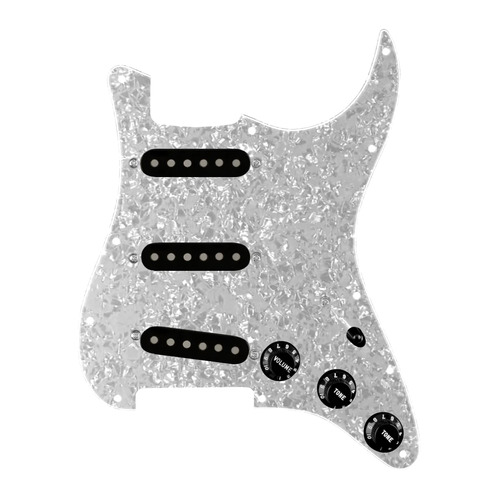

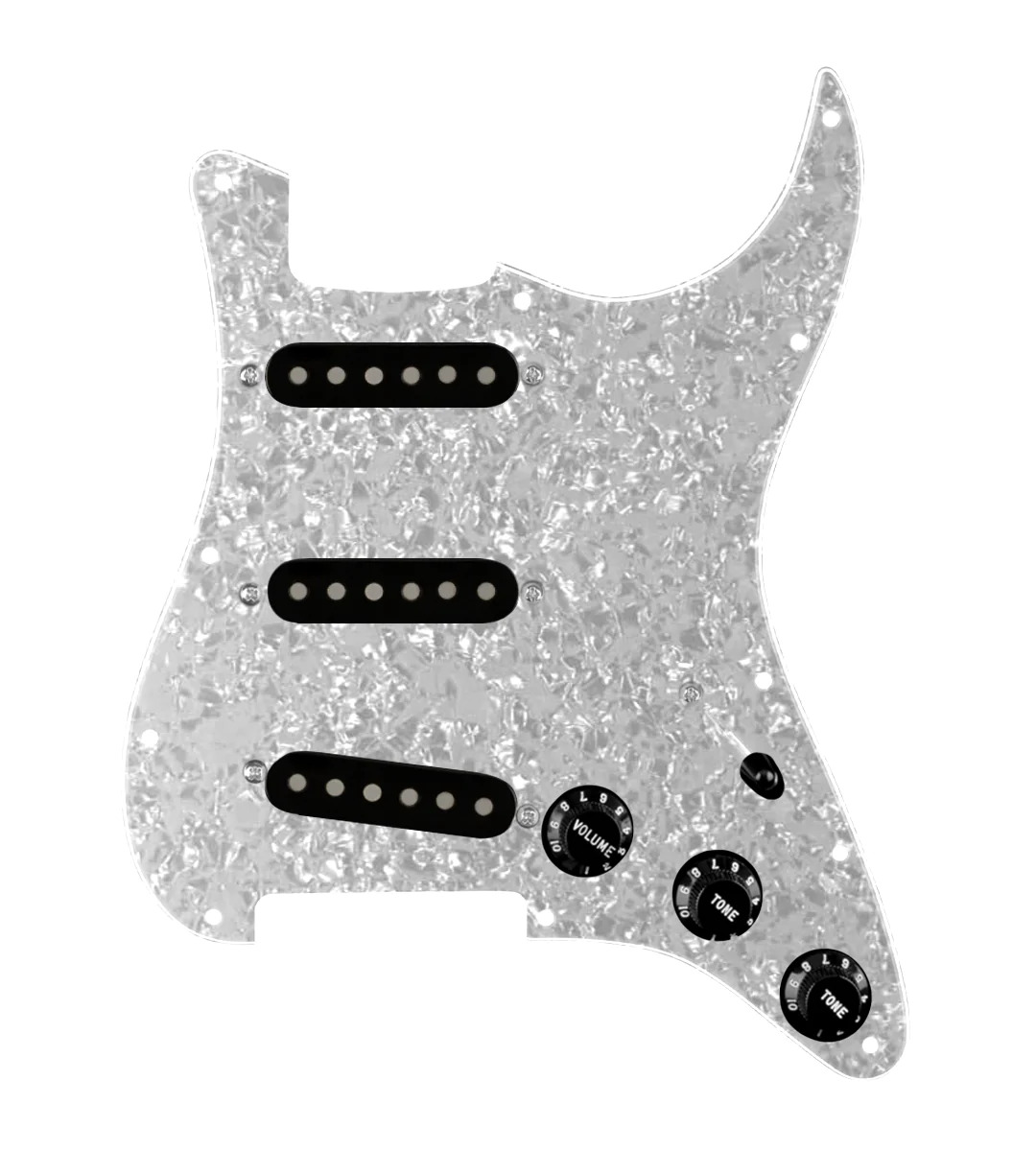

920D Custom Texas Grit Loaded Pickguard for Stratocaster
A Fully Loaded Pickguard for Your Strat
Our SSS Loaded Pickguard for Stratocasters® has everything you need to give your guitar a massive upgrade. Everything - including the pickups - is pre-wired and ready to go. A short while after you get the package in the mail, your guitar will sound better than it ever has.
920D Custom - Texas Grit Single Coil Pickups for Stratocaster
Our Texas Grit Pickups are a step up in output, from our Texas Vintage Pickups. However, they retain all of the fabulous tone that make our Texas Vintages so special. Texas Grit pickups offer increased output, sparkling highs, tight bass and a smooth, warm tone.
Specification | Value |
DC Resistance (Bridge) |
9.8k Ω |
DC Resistance (Middle) |
9.8k Ω |
DC Resistance (Neck) |
9.8k Ω |
Inductance (Bridge) |
3.0h |
Inductance (Middle) |
3.0h |
Inductance (Neck) |
3.0h |
Magnets |
AlNiCo V |
Wire |
Vintage Cloth Wire |
Bobbins |
Vintage Fiber Bobbins |
Hand-Built In The U.S.A.
All 920D Custom creations are hand-built by experienced technicians at our shop in Greenbrier, Arkansas. We treat your new gear like it's going into one of our own guitars. Every millimeter of wire is cut precisely, every solder joint is perfectly smooth and symmetrical, and every bend is purposeful and direct. We hold everything to a tremendous level of quality because we know the smallest details matter and we take great pride in our work.
tratocaster® HSS 5-Way Super Switch Wiring Harness Upgrade
Our S5W-HSS harness is designed for guitars with a full sized humbucker in the bridge position. It features a 5-way super switch that automatically splits the humbucker, when combined with the middle pickup (position 2). It also allows the single coil pickups to "see" 250K volume control while the humbucker "sees" 500K volume control. This wiring harness is a must-have for your HSS.
Components
- 1 - 920D Custom 450G Series 250K Pot by CTS
- 2 - 920D Custom 450G Series 500K Pots by CTS
- 1 - 5-Way Super Switch
- 1 - .022 Orange Drop Capacitor by Sprague Electric
- 1 - .047 Orange Drop Capacitor by Sprague Electric
- 1 - 680pF Ceramic Capacitor (Treble Bleed)
- 1 - 150K Resistor (Treble Bleed)
- 2 - 470K Resistors (Single Coil Pickups)
- 1 - Pure Tone Output Jack
- 920D Custom Signature Wiring by Gavitt Wire
Switch Positions
- Bridge
- Bridge / Middle
- Middle
- Middle / Neck
- Neck
SKU | SLPG-TGRT-B-WPPG-S5W |
Brand | 920D |
Unit Of Measure | ea |
