Alpha 500KA Audio Taper Push Pull Pot

Alpha 500KA Audio Taper Push Pull Pot

Original price was: $15.00.Current price is: $13.50.



FAST
Delivery



EASY
Returns



IN HOUSE
Repairs

Out of stock

afterpay

zip

paypal

Pick-up from store - FREE
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.

Description
Additional information

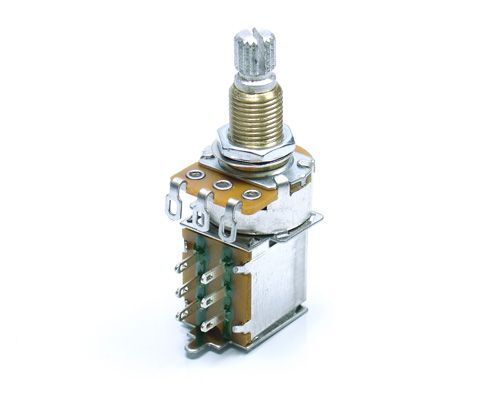

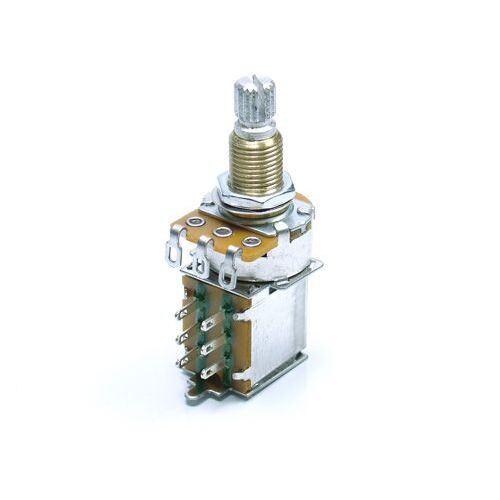

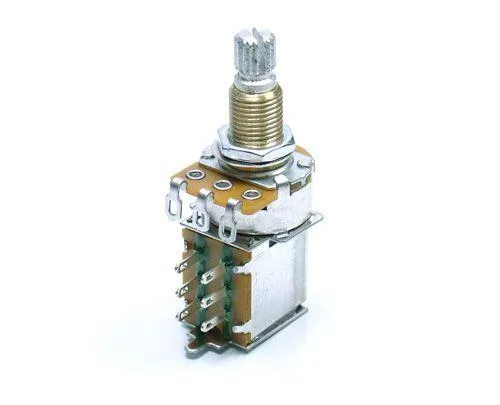

Alpha 500k Metric Thread Audio Taper 'Push Pull' Pot. Used to control pickup phasing series/parallel switching coil-taps and more.

- Metric thread: M8 x .75
- 7.8mm diameter brass threaded collar (import size, smaller than USA spec versions).
- 18 spline aluminium split shaft (coarse).
- Includes 1 x nut, 1 x dress washer.

Dimensions:

- 46mm overall length.
- 23mm width.
- The brass threaded collar is 9.5mm long.
- Total length of the shaft to the top of the spline is 18mm.
- Split shaft diameter : 6mm.

Additional information

Weight	0.15 kg
type	POTENTIOMETER
