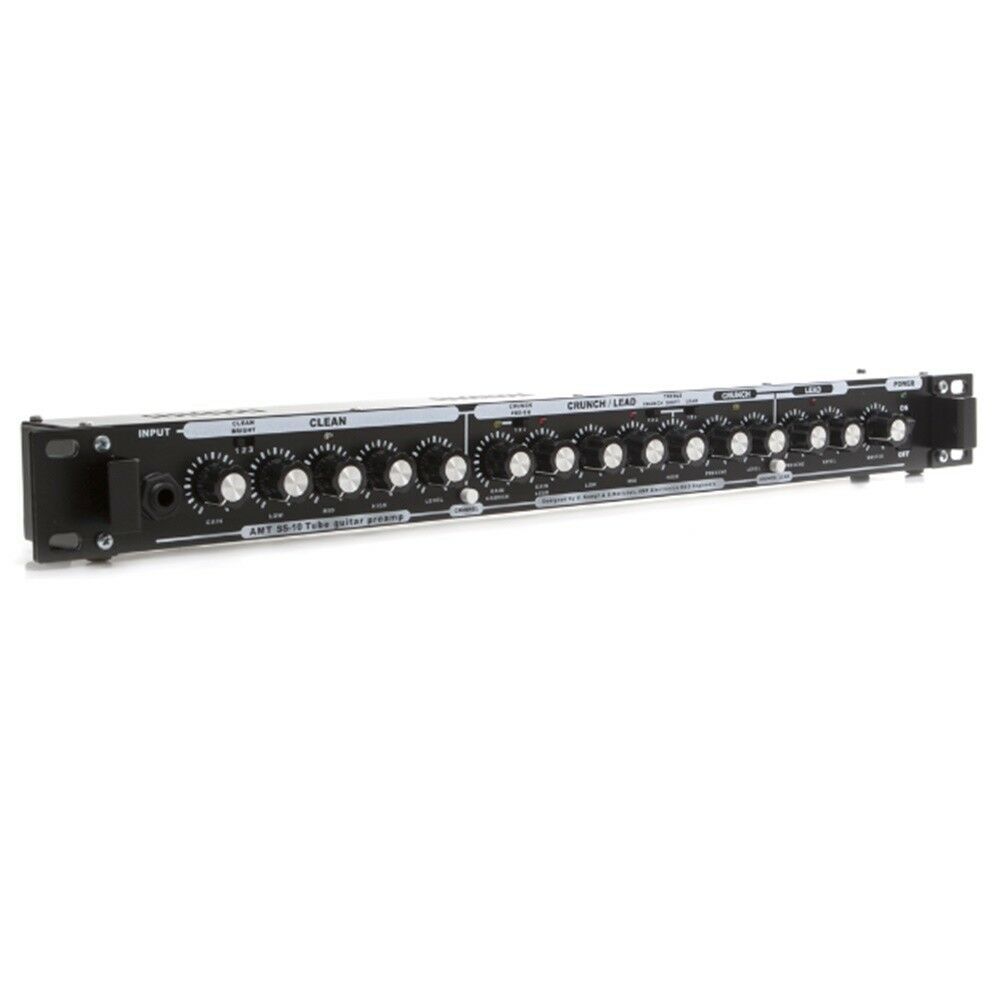

SS-10 - ProStudio Series Rackmount Tube Guitar Preamp



• Completely tube based 4-stage preamplification (2 x 12AX7) which enables you to obtain a wide range of sounds.

• Aggressive modern metal to classic 1980s sounds, to overdriven blues, to chunky crunchy rhythm, to super saturated screaming instrumental lead tones.

• Super-slim 1-rackspace unit only 3.5 inches deep.

• Mount in your studio cabinet or even on your pedalboard.

• SS-10 is separated into 3 individual channels: Clean, Crunch, and Lead.

• Each of the channels may be accessed and switched via the red selector buttons or also by the optional AMT FS-2 foot switch for hands free operation.

• Each channel is designed with is own gain and level controls, which makes fine tuning extremely easy; and a final master volume control to adjust the total overall output db of the unit.

• Has three outputs; Amp Out, Cab Sim Out, and Headphones Out for easy monitoring in the studio.

• Guitar signal input jack on both the front and back of the unit, and also an FX loop Send and Return with level knob.



Clean Channel

• Will provide you with anything from smooth warm driven tube sounds, to bright and shimmering clean tones.

• 3 tone control knobs Low, Mid, and High; and also by help of the special EQ adjustment switch.

• Offers 3 unique tone stacks, tone can be even further modified with the control knobs.



Crunch Channel

• Used for those semi-clean to mean sounds.

• Blues overdrive, classic rock drive, and vintage 80s hair metal crunch; all easily dialed in on the SS-10's Crunch channel.

• Controls of the Crunch channel include Gain, Level, Low, Mid, High, Presence, and a 3 position selectable Treble Shift switch.



Lead Channel

• For those mean to EXTREME+ guitar tones.

• Blistering, screaming, pure tube metal distortion powerhouse.

• Lead also provides control over Gain, Level, Low, Mid, High, Presence, and has a Treble Shift switch.

• Perfect for aggressive guitarists and drop tuners.



Specifications



• Tubes: 12AX7 (ECC-83) x 2 (EH Stock Tubes)

• Input Impedance Rear Panel: 1MOhm

• Input Sensitivity Rear Panel: -10dB

• Input Impedance Front Panel: 1MOhm

• Input Sensitivity Front Panel: -20dB

• Output Impedance: 10kOhm

• Headphone Output: 10kOhm at .125 W

• Power Voltage: 12vDC (-)center

• Power Consumption: 600mA or .6A
