The new II series adds a handful of great new features to the standard version I series.

AMT has added a third output jack for the ultimate in routing flexibility.
The Legend II series includes a speaker simulated cab output (for recording), a preamp output (for routing to a power amp), and a drive output (for using in front of a combo amp or head).
All three of these outputs can be used simultaneously! Use the different outputs for recording direct and micing at the same time, run different effects through different outputs, or record three DAW tracks all at once.
The routing and recording options are endless.
The Legend II series of pedals are a studios engineers dream come true.

Another feature added to the II series, is the clean level gain knob, and clean volume boost switch (used only when pedal is in bypass mode).
This feature can be used in either of two different ways. 1) As a bypass buffer to maintain proper signal strength through long pedal chains, or 2) As a 2-channel style preamp.

When used as a bypass buffer/booster with other pedals in the signal chain, the user is able to dial in the amount of buffer gain that is added to the output signal.
The higher the level of the clean level knob, the stronger the buffered output.
This is helpful with long cable runs where signal may be lost/degraded, or even useful for adding that extra kick of boost to your amp.
Keeping the knob at 1 o'clock keeps the signal at normal unbuffered level.
The second example is using the Legend II pedal as a 2-channel preamp, where the bypass signal will be the clean tone and the overdrive channel will be the engaged tone.
By adjusting the clean level knob and by engaging the boost button, the clean signal will be comparable in dB level to the overdrive channel; thus turning the single pedal into a switchable 2-channel preamp.

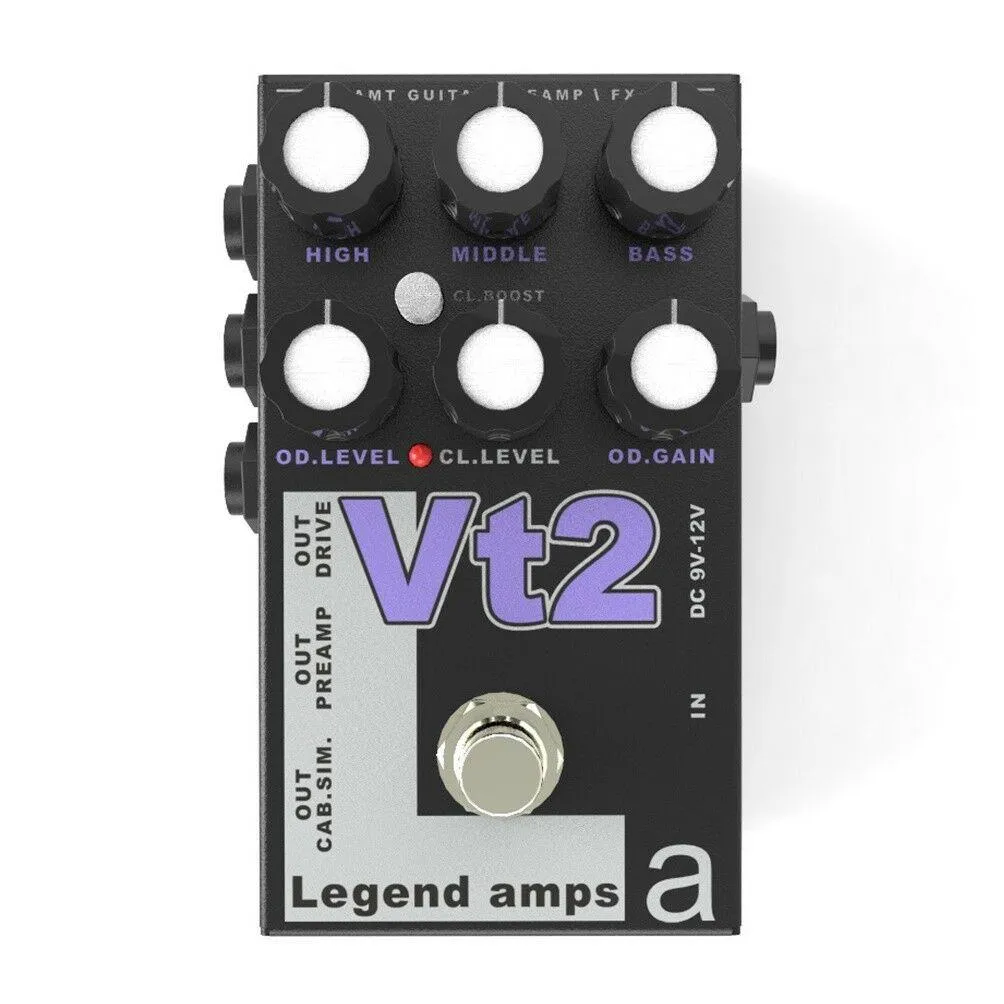

CONTROLS:
- OD LEVEL adjusts the overall loudness of the pedal output
- OD GAIN adjusts the amount of distortion and drive
- HIGH controls the amount of high frequency in the signal
- MIDDLE controls the amount of mid frequency in the signal
- BASS controls the amount of bass frequency in the signal
- CL LEVEL adjusts the buffer output of the bypassed signal, 1 o'clock positioning represents standard -10dB level
- CL BOOST SWITCH engages a boost of clean signal up to +8dB when the pedal is bypassed, making the pedal a 2-channel preamp
FEATURES:
- Three outputs (CAB SIM OUT, PREAMP OUT, DRIVE OUT)
- Simultaneous use of all three outputs at once
- Optional clean level and clean boost controls when bypassed (only with CAB SIM OUT and PREAMP OUT)
- LED indicator when effect is engaged

SPECIFICATIONS:
- 9-12v DC power negative center (-), adapter or battery
- Low power consumption
- Small size: 110 x 62 x 58 mm

* VT2 of the Legend Amp Series II represents the response, characteristics, gain, and tonal nuances similar to that of VHT Amplifiers.
