Key Features:
  • 75W High Intensity White LED
  • 11 or 13 DMX channels
  • DMX and Stand-alone mode
  • Master/slave synchronization
  • Sound activated with adjustable sensitivity
  • Auto mode
  • Beam angle 12°
  • Gobo Wheel: 6x metal gobos + open (interchangeable)
  • Gobo functions: gobo shake and gobo rotation
  • 8 Colours + open
  • Rotatable 3 facet prism
  • Motorized focus
  • 0-100% Electronic Dimmer
  • User-selectable pan and tilt
  • Strobe: 1-11Hz
  • Automatic pan/tilt correction
  • Reset function
  • Control panel with LCD display

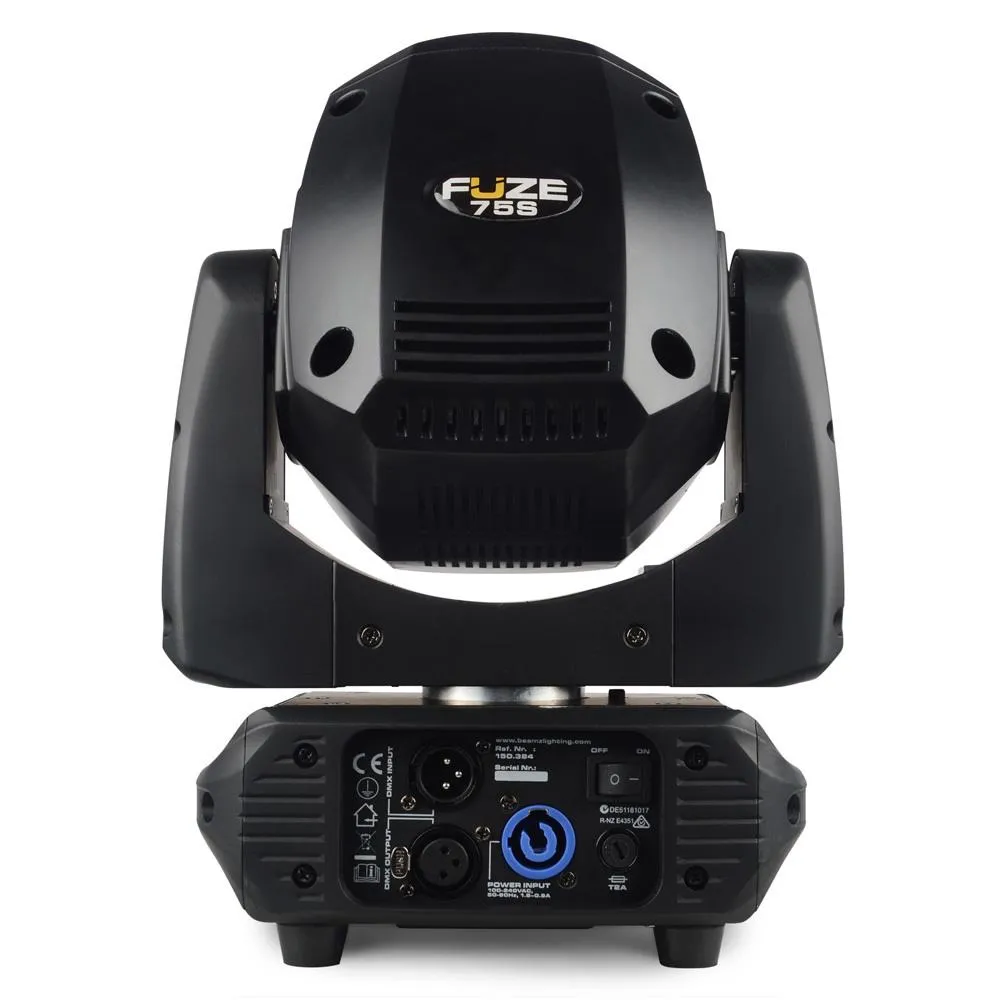

  • DMX in/output via 3-pin XLR
  • Powerconnector input
  • Quick lock omega clamp included
  • DMX cable included
  • Powerconnector cable and safety cord included

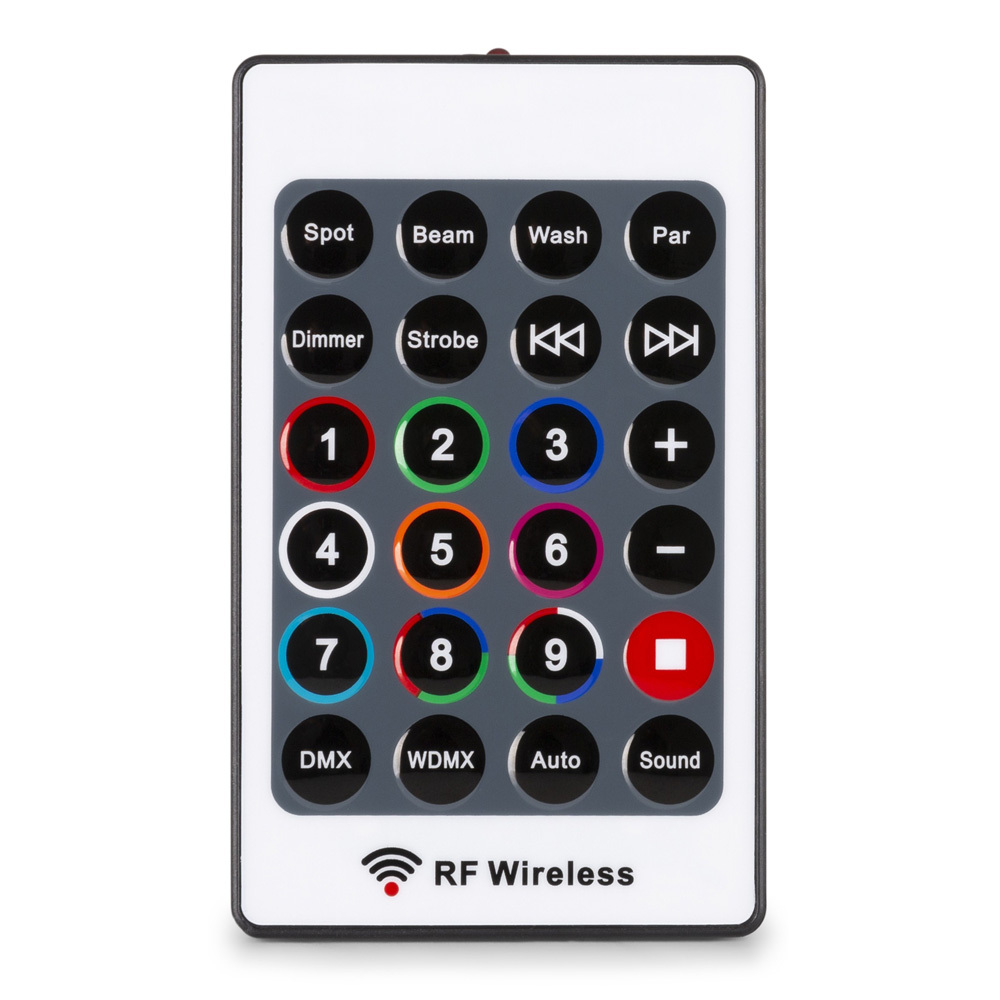

  • Included remote control

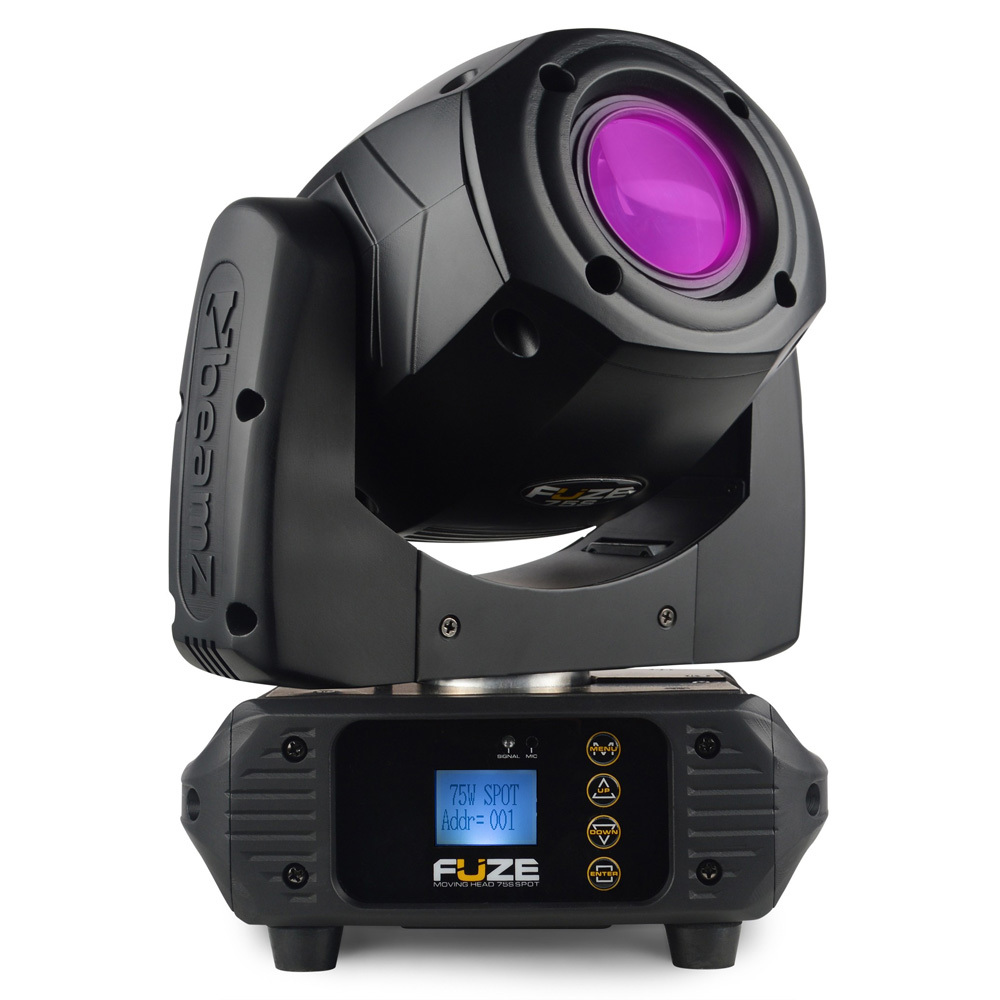

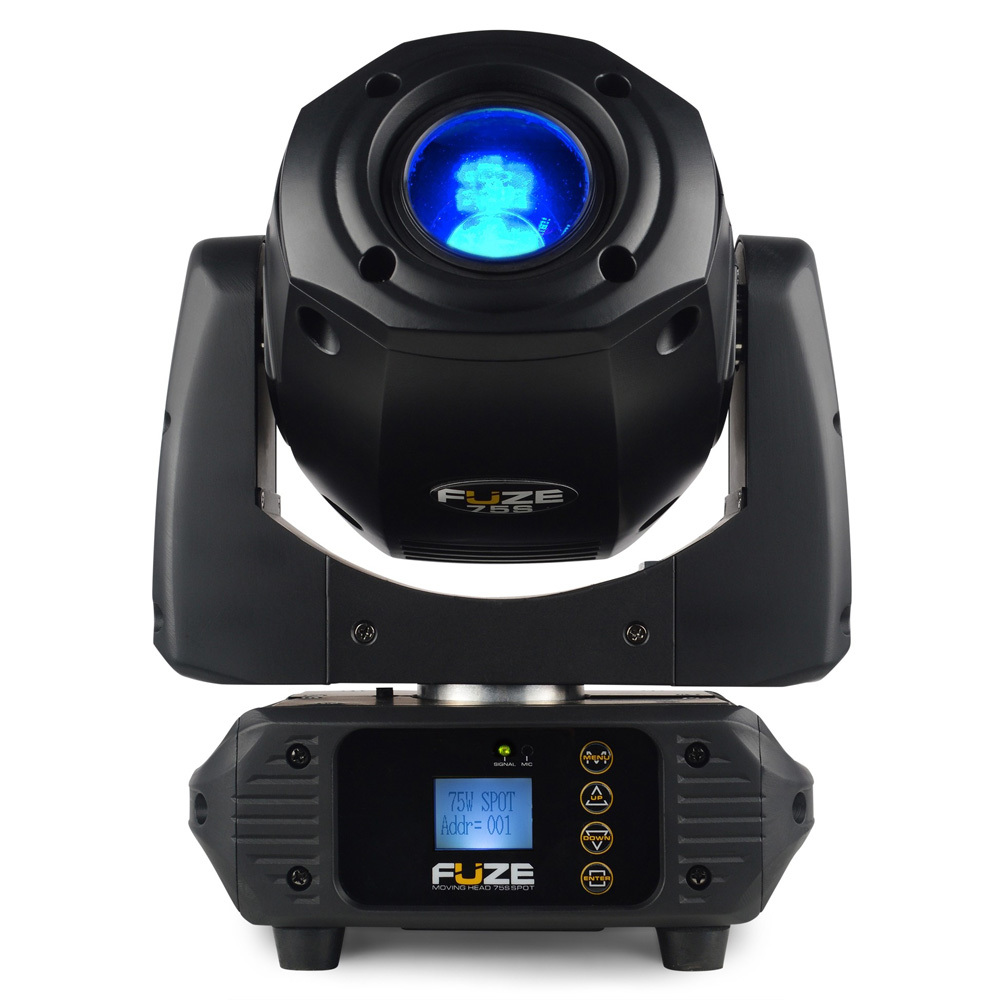

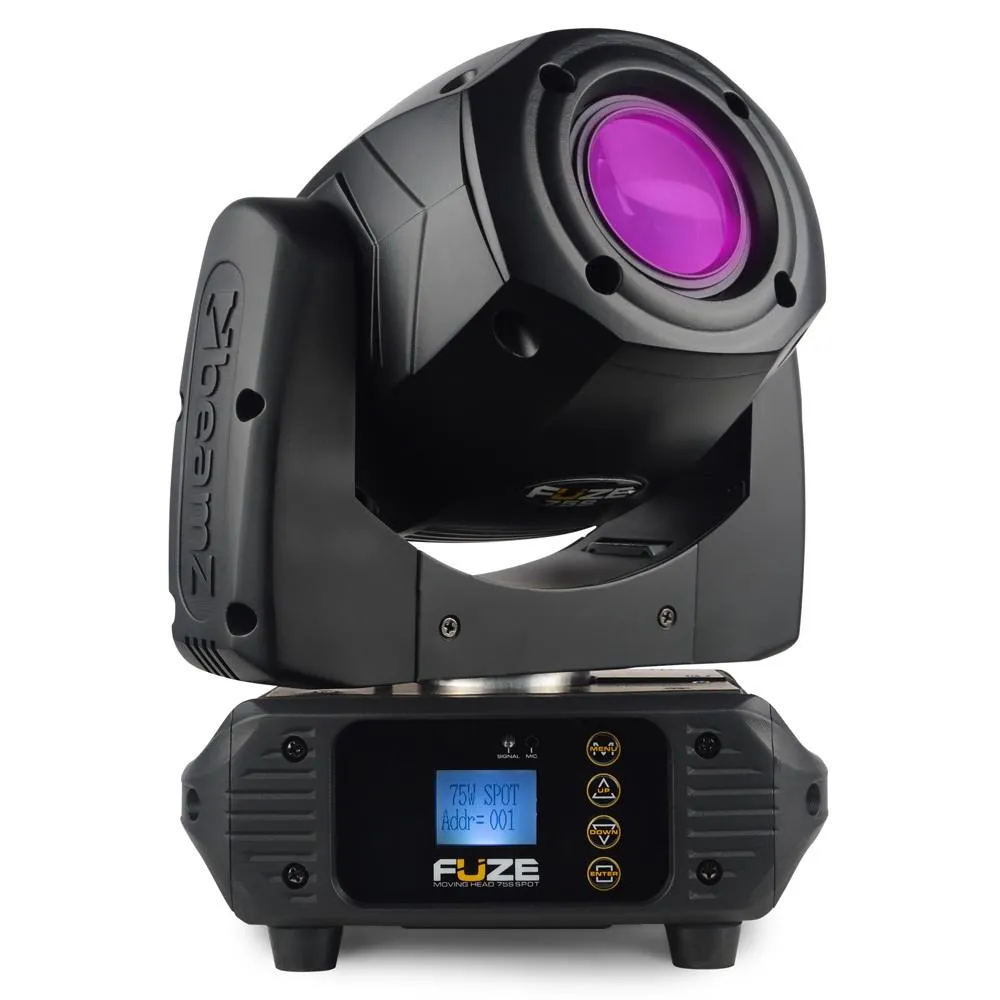

The Fuze75S Spot LED Moving Head is a lightweight and compact moving head featuring a powerful 75W LED. It produces sharp, light-coloured beams that can be customised using the colour and gobo wheels. The Fuze75S also features a 3-facet prism that splits the beam for great effects and to cover larger areas. Operation via DMX, Auto mode with exiting built-in light shows, Sound Active Mode or linked in Master/Slave mode. Perfect for lighting designers, DJs, bands, clubs, bars and installations where small footprint and low weight is critical.

Technical Data



Light source Single colour LED
LED colours White
LED power 75W
Quantity of LEDs 1
Colour wheel 8 colours + open
Dispersion 12°
Illuminance 70.000lx@1m
Pan Range 630°
Tilt Range 270°
Rotating gobos: Quantity 6
Gobo shake Yes
Interchangeable gobos Yes
Gobo dimensions 15.98mm
Prisma 1 3 Facet
Flash rate per second 1 – 11Hz
Modes Automatic programs, DMX, Manual, Master/Slave
Sound to light mode Yes
DMX channels 11, 13
DMX connector 3-pin XLR
Display LCD
IP rating IP20
Cooling Temperature controlled fan
Power Plug Power-connector
Power consumption 1.6 – 0.8A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 245 x 230 x 290mm
Weight 5.3kg
Accessories DMX cable, Mounting bracket, Power cable, Remote control, Safety cord
SKU FUZE75S
Brand BEAMZ
Shipping Weight 2.3000kg
Shipping Width 0.305m
Shipping Height 0.080m
Shipping Length 0.260m
