Key Features:

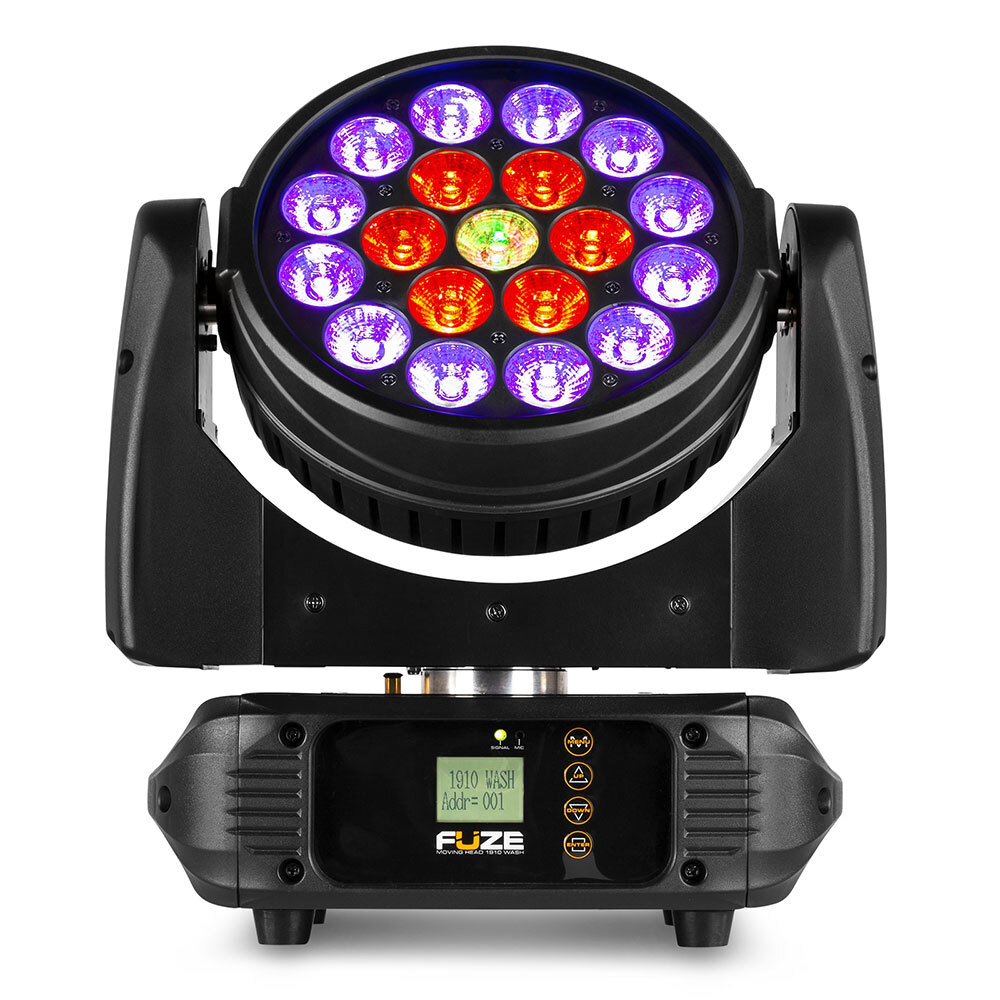

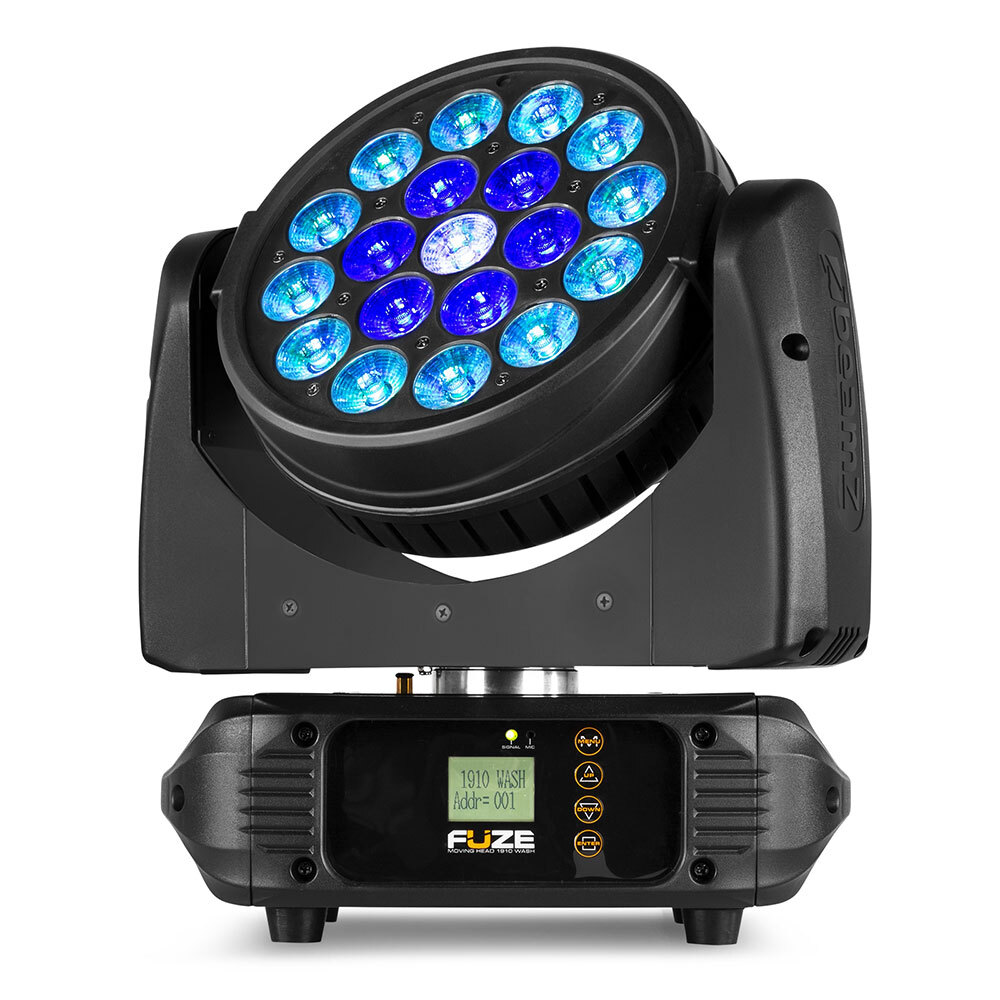

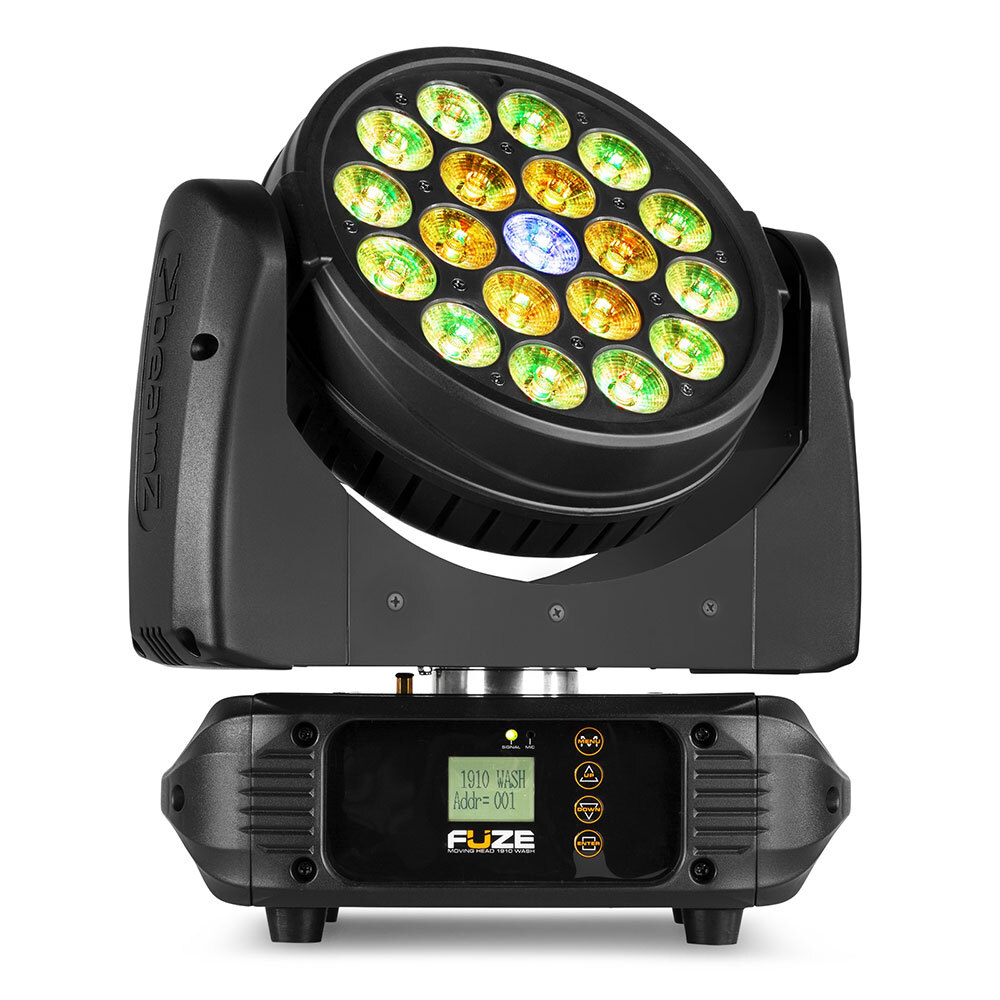

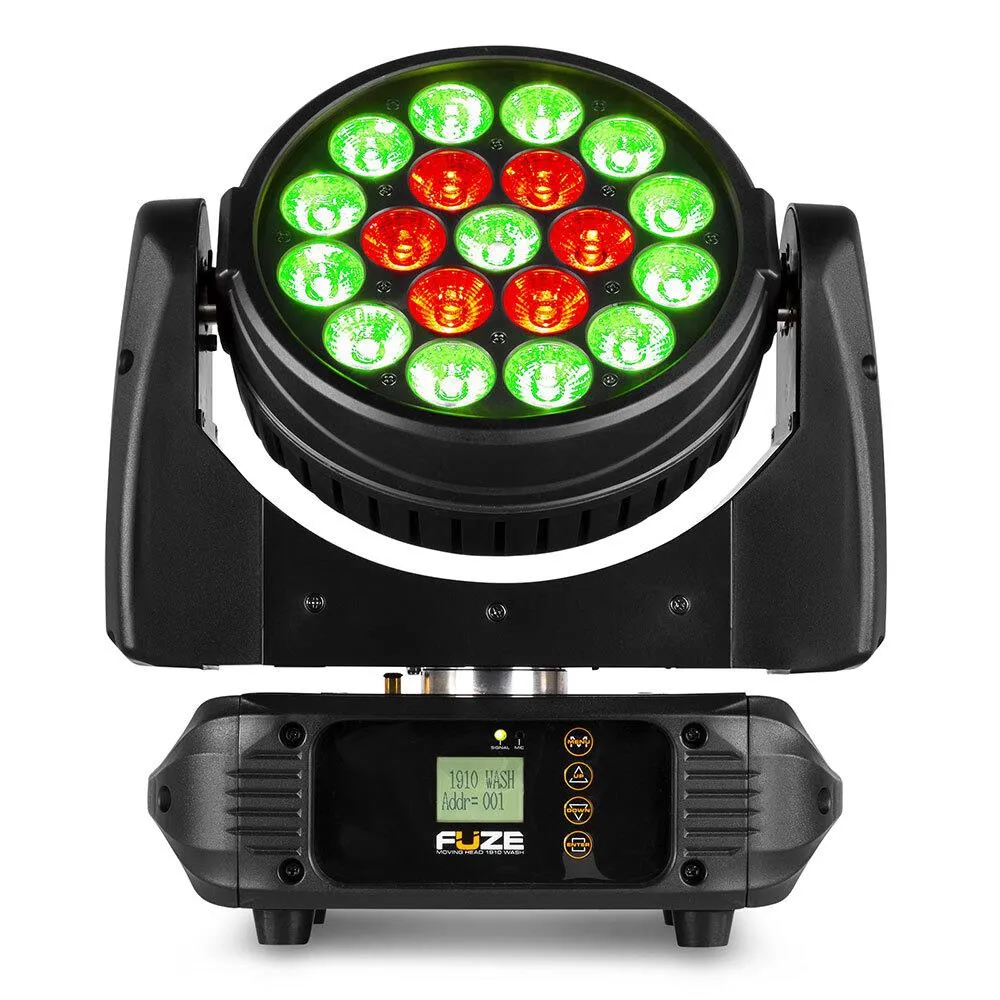

  • Compact LED moving head wash with motorized zoom
  • 19x 10W 4-in-1 (RGBW) LEDs
  • Linear colour temperature 2800K-8000K
  • 3 circle ring LED controllable for eye candy effects
  • DMX, Auto, Sound and Stand-alone mode
  • Master/slave synchronization
  • Quick release omega style brackets included for installation and rigging

The Fuze series consists of a series of compact moving heads equipped with a powerful LED light source that guarantees impressive colour washes and stunning visual effects. Exact positioning is possible through 16-bit movement resolution (540-degree pan and 180-degree tilt). These fixtures are designed in a compact housing and are ideal for lighting designers, DJs, bands, clubs, bars and installations where small footprint and low weight is critical. It can be controlled by DMX, with sound activation or used in standalone mode with the Master/Slave function.

Technical Data



Light source 19 x 10W (4-in-1) LED
LED colours Red, Green, Blue, White
Colour temperature 2700K – 8000K
Beam angle: 20°°
Field angle: 35°
Illuminance 26,000 lx @ 1m
Pan Range 540°
Tilt Range 180°
Flash rate per second 1 – 21Hz
Modes Automatic programs, Sound Active, DMX, Manual, Master/Slave
DMX channels 21, 45
DMX connector 3-pin XLR
Display LCD
Cooling Temperature controlled fan
Power plug Power-connector
Power consumption 1.66 – 0.81A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 270 x 310 x 360 mm
Weight 5.65 kg
Accessories DMX cable, Mounting bracket, Power cable, Safety cord



SKU FUZE1910
Brand BEAMZ
Shipping Weight 2.3000kg
Shipping Width 0.305m
Shipping Height 0.080m
Shipping Length 0.260m
