Key Features:
  • 24x 6W 6-in-1 LEDs
  • RGBAW-UV colour mixing
  • 8 separate controllable sections
  • Pre-programmed shows
  • 17 auto mode programs
  • Sound activated
  • 8, 11, 20, 36 or 74 DMX channels
  • DMX and Stand-alone mode
  • Master/slave function

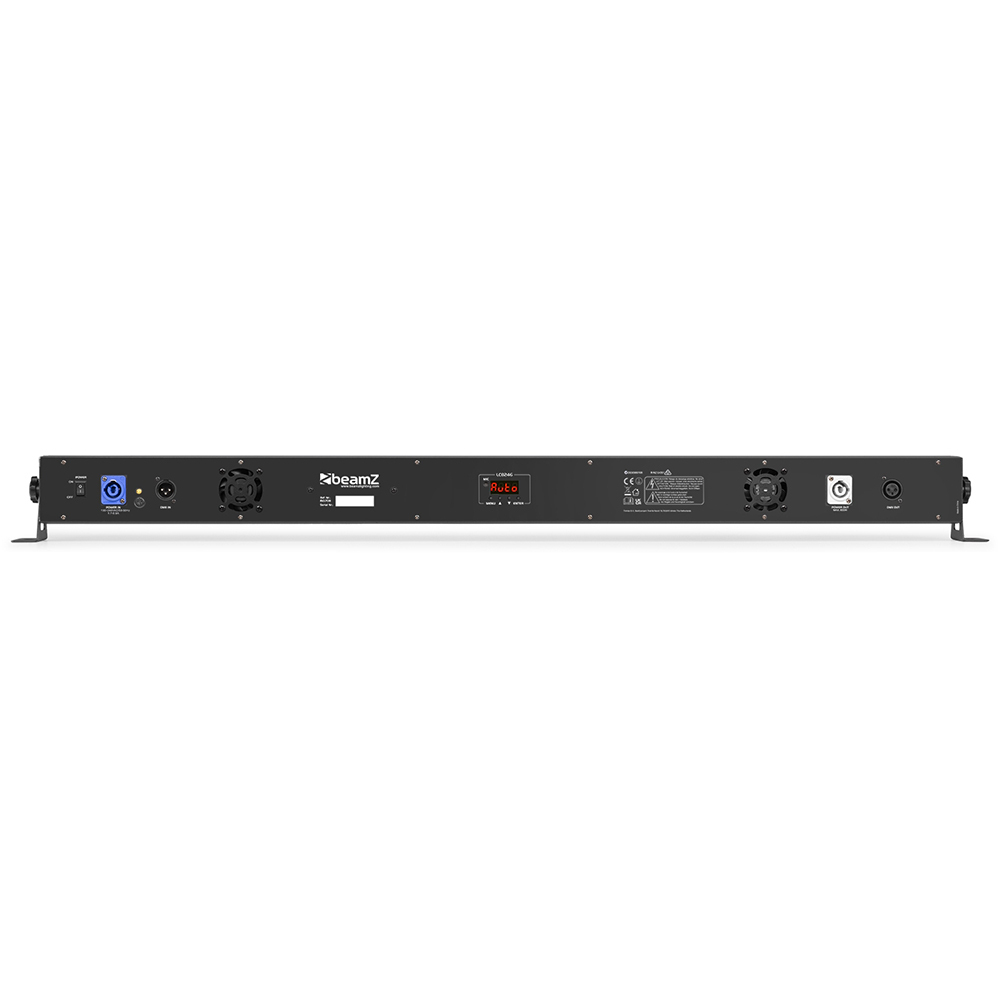

  • DMX in/output via 3-pin XLR
  • Control panel with LED display

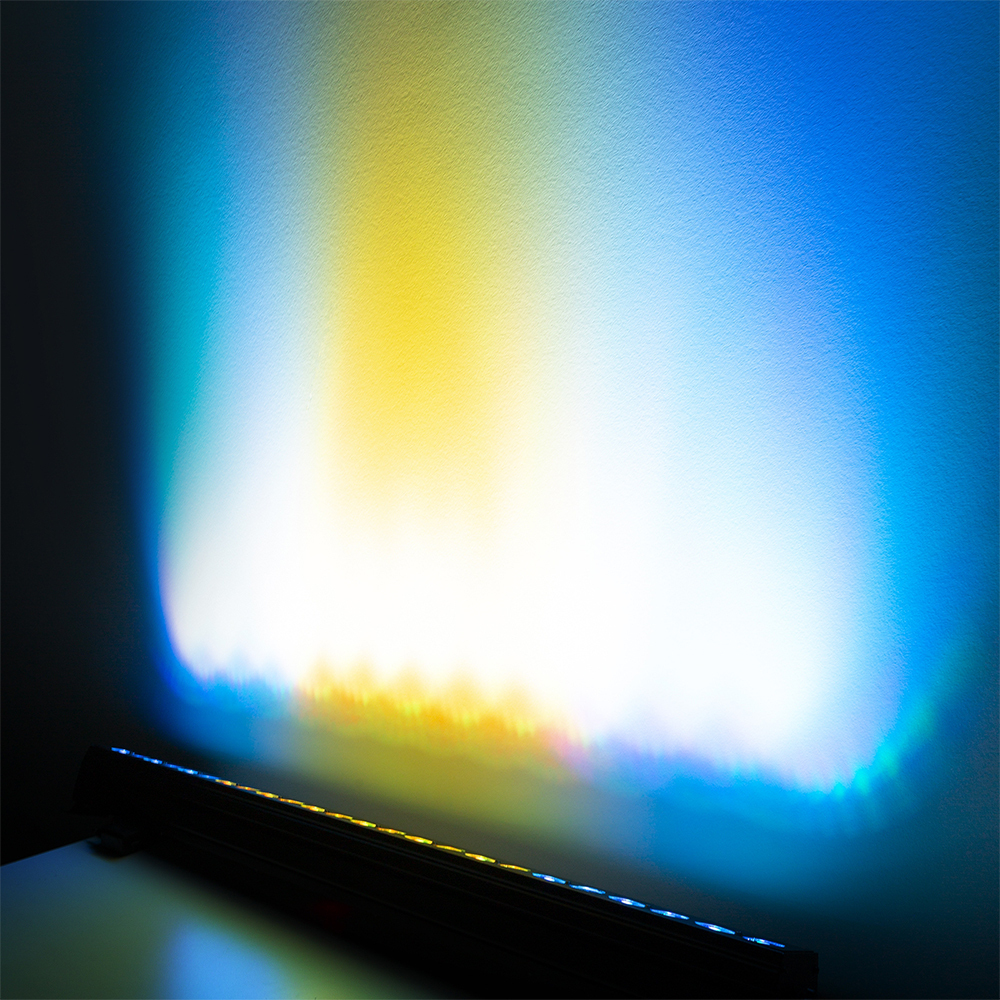

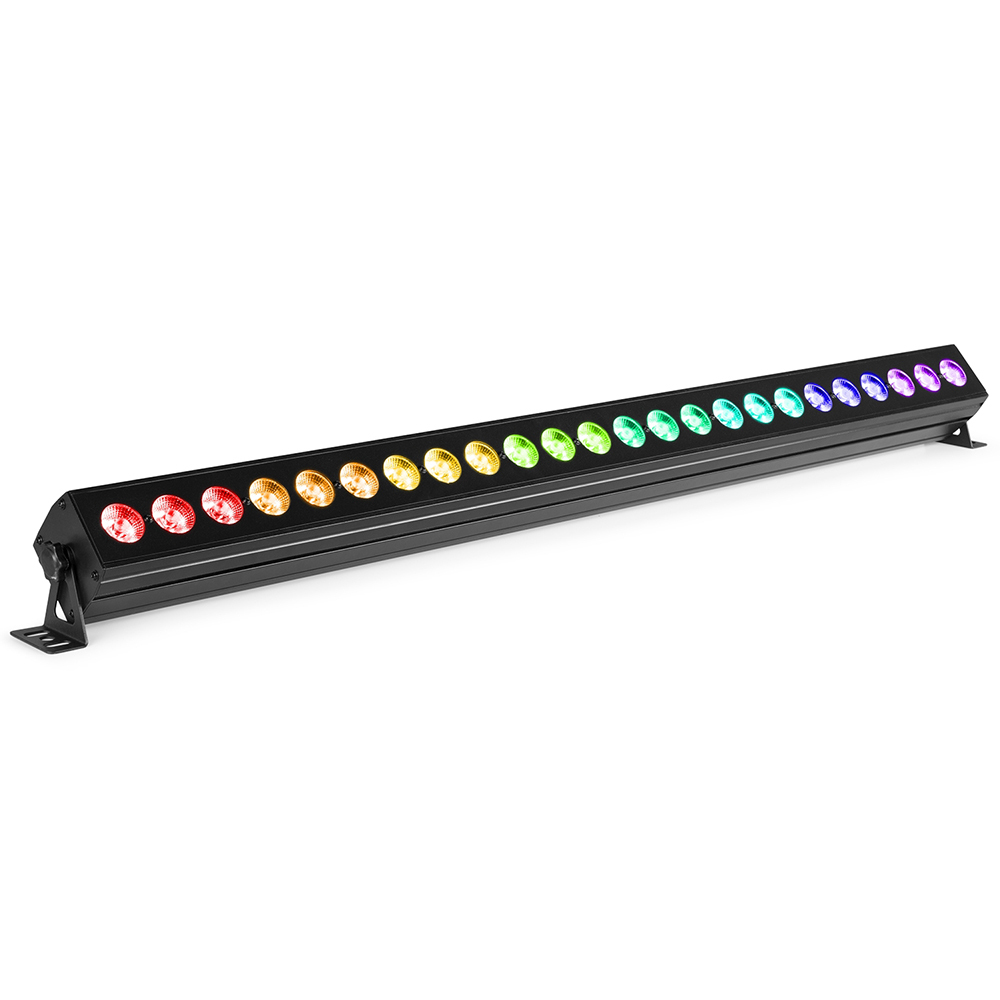

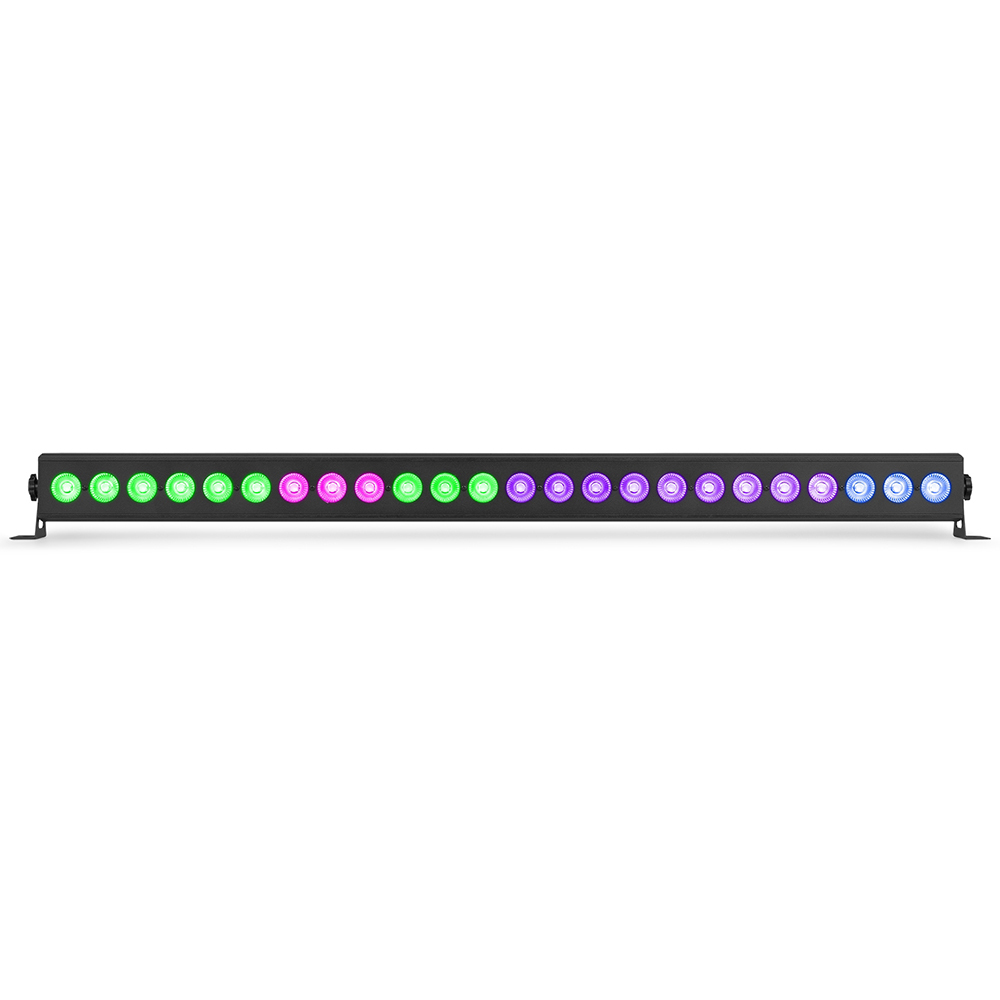

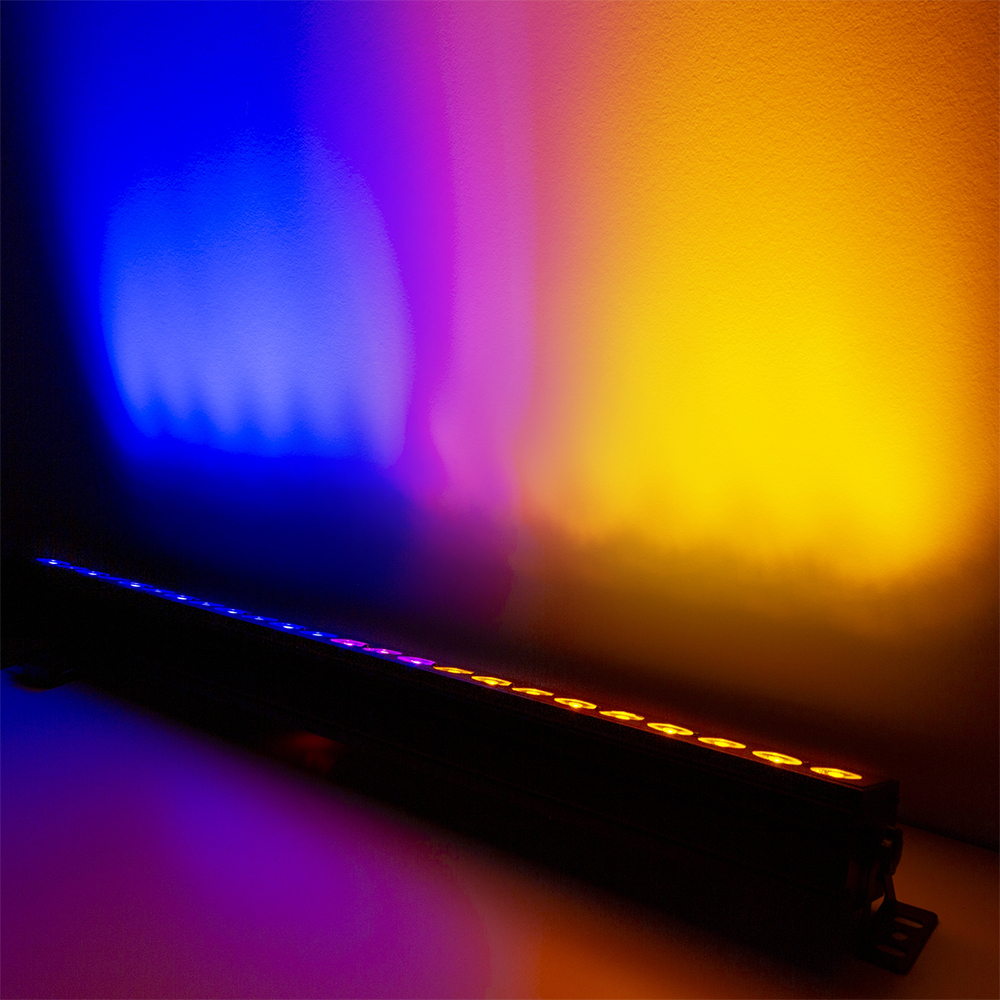

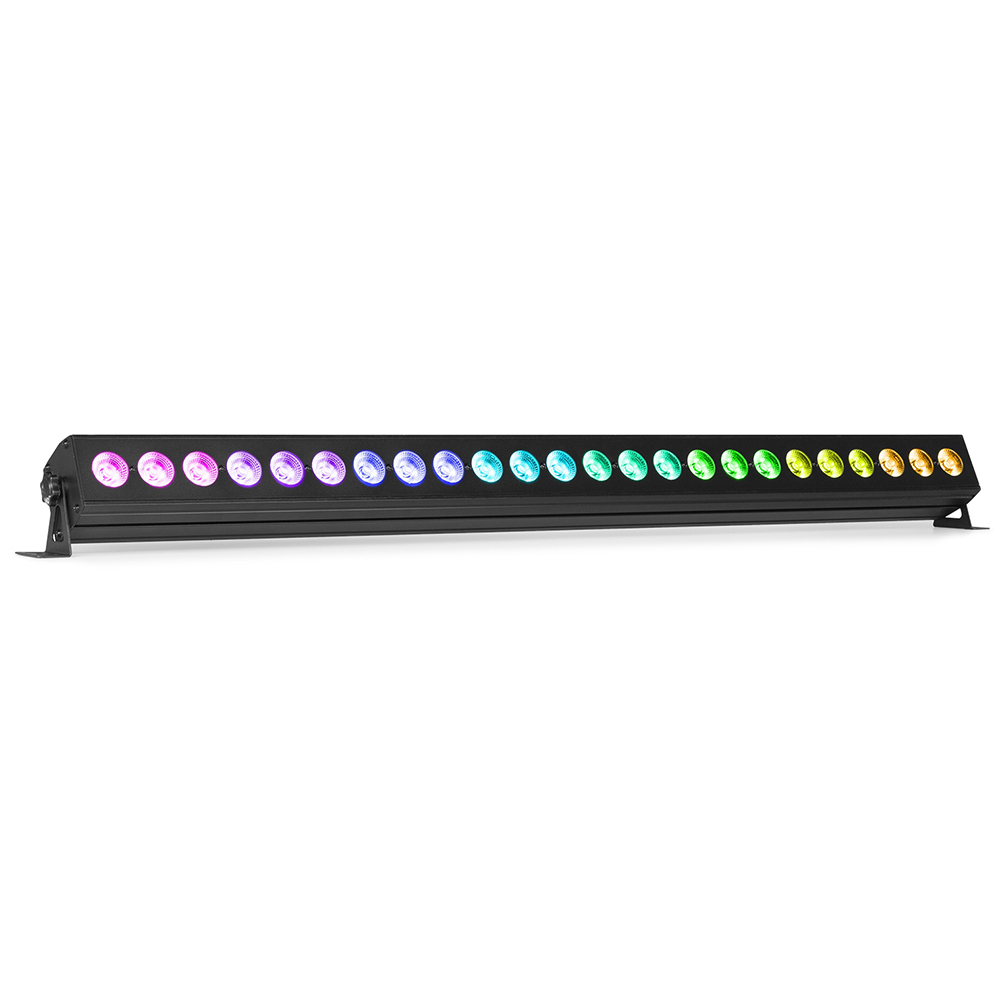

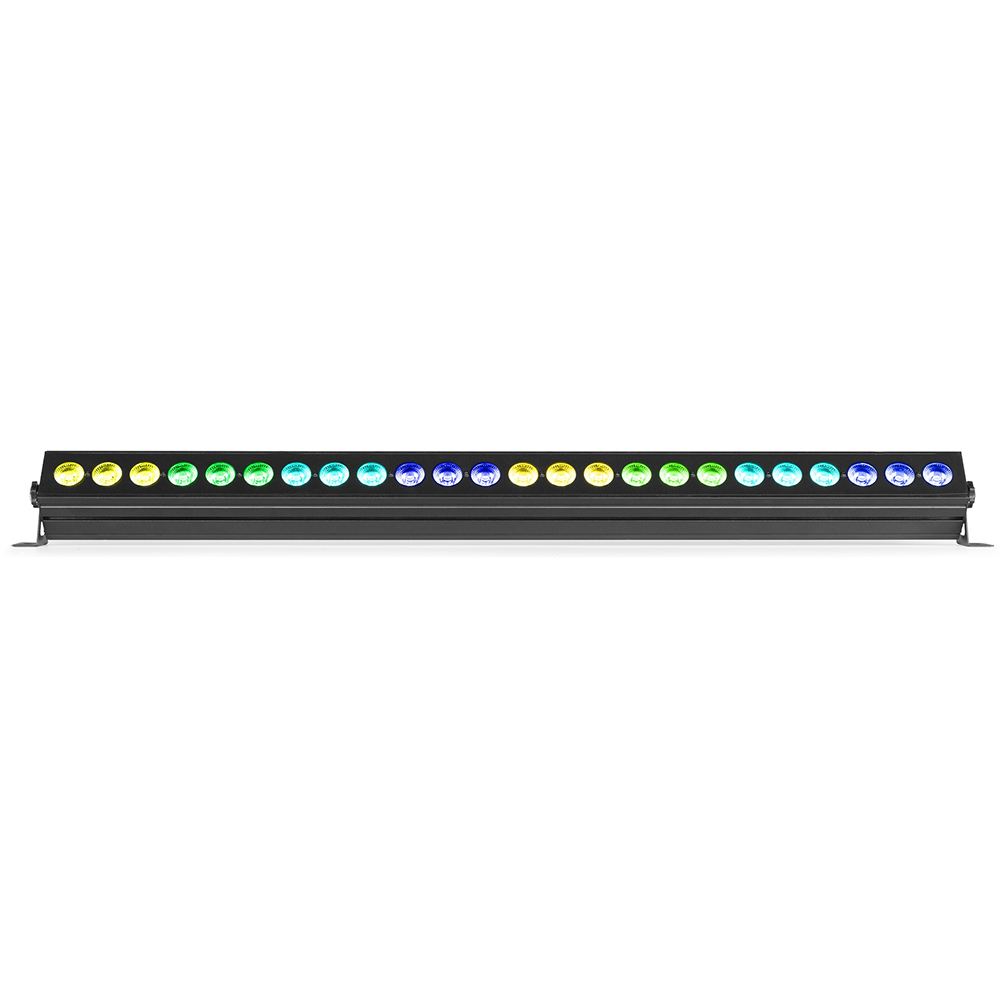

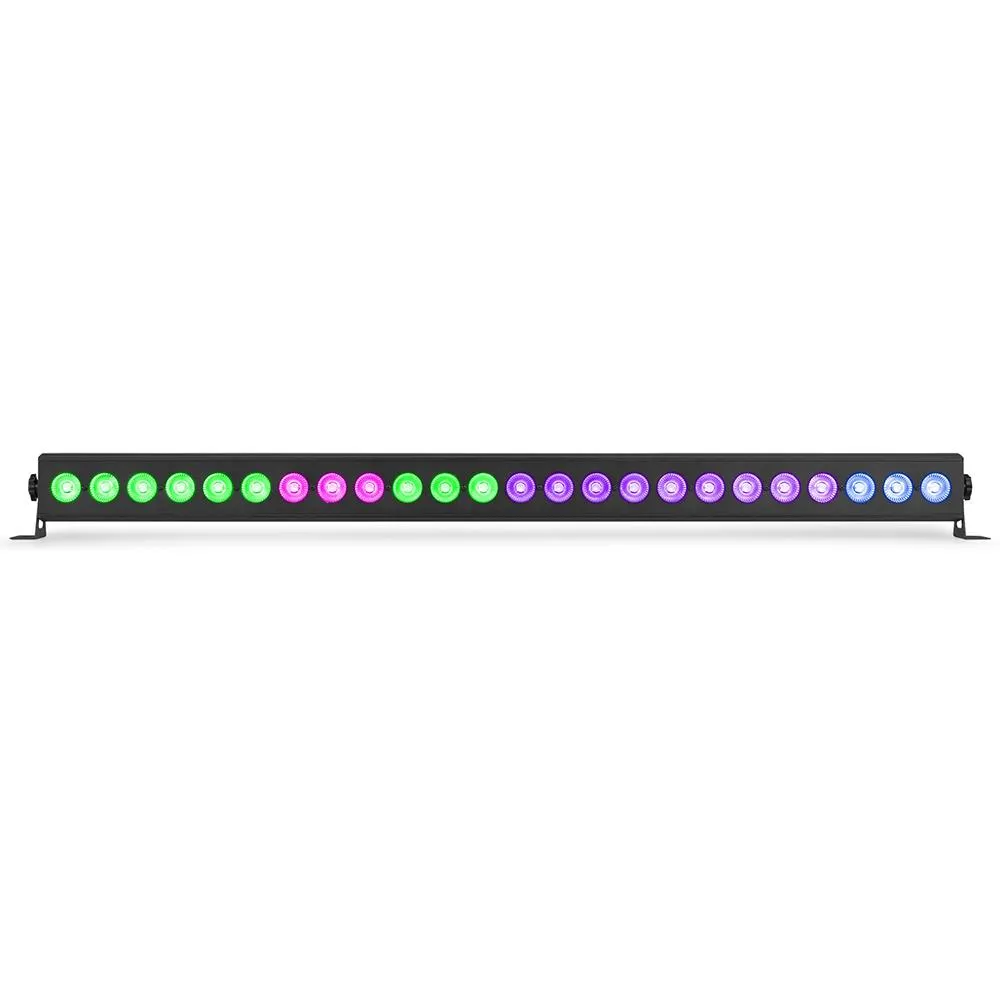

The LCB246 is a LED bar equipped with 24x 6W pieces RGBAW-UV LEDs. The LEDs are divided into 8 individually controllable sections of 3 LEDs each. While using the fixture in stand-alone mode there are pre-programmed shows that you can run automatically or sound activated, pick from the pre-set colour macros or create your own mixture of colours in RGBAW-UV mode. The extra power output enables you to simply link the power of multiple units together into a single socket.

Technical Data



Supplied features Master/Slave mode
Light source 6-in-1 LED
LED colours Red, Green, Blue, Amber, White, Ultra Violet
LED power 6W
Quantity of LEDs 24
Beam angle 20
Field angle 33
Illuminance 5.675 lx @ 1m
Flash rate per second 1 – 20Hz
DMX channels 8, 11, 20, 36, 74
DMX connector 3-pin XLR
Modes Automatic programs, DMX, Manual, Master/Slave
Daisy chain Yes (max. 8 bars)
IP rating IP20
Cooling Temperature controlled fan
Display LED
Power plug Power-connector
Power consumption 1.70 – 0.90A
Power supply 100-240VAC 50/60Hz
Dimensions (L x W x H) 1010 x 75 x 76mm
Weight 3,65
Accessories Mounting bracket, Power cable



SKU LCB246
Brand BEAMZ
Shipping Weight 3.6700kg
Shipping Width 0.185m
Shipping Height 0.160m
Shipping Length 0.185m
