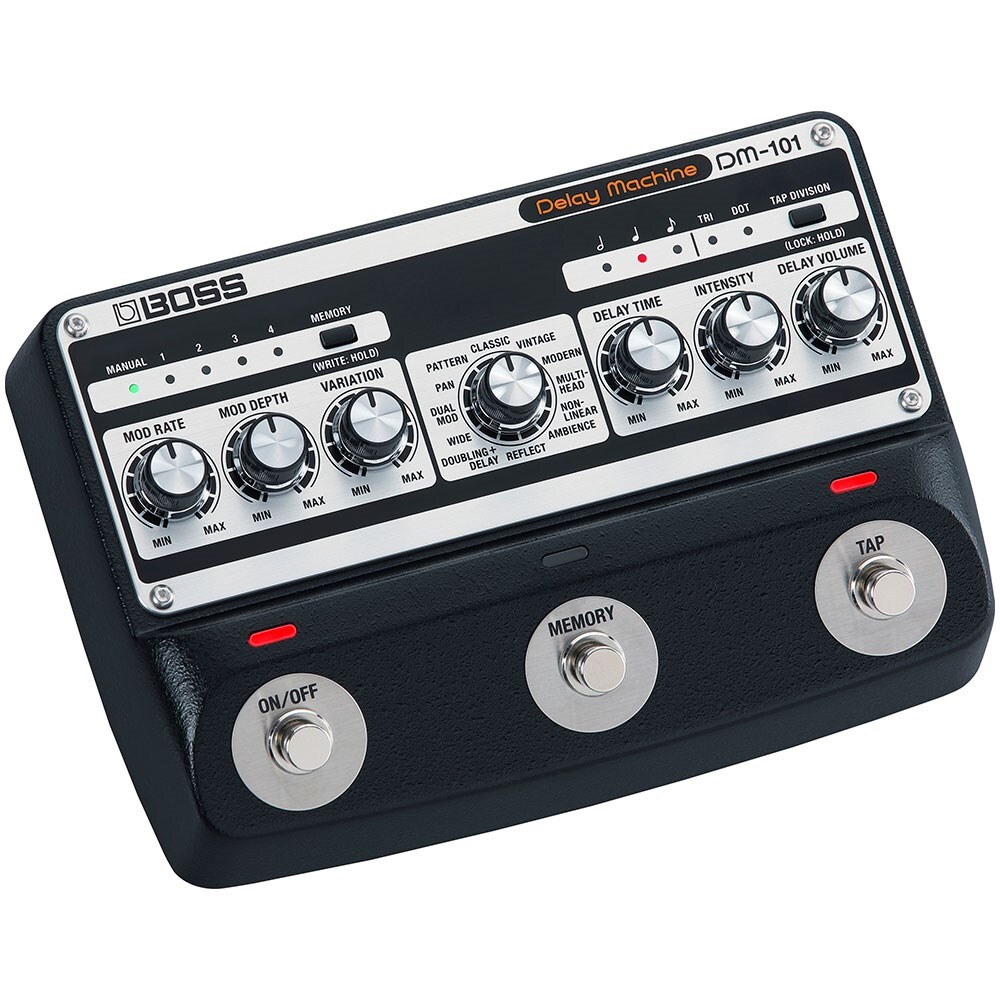

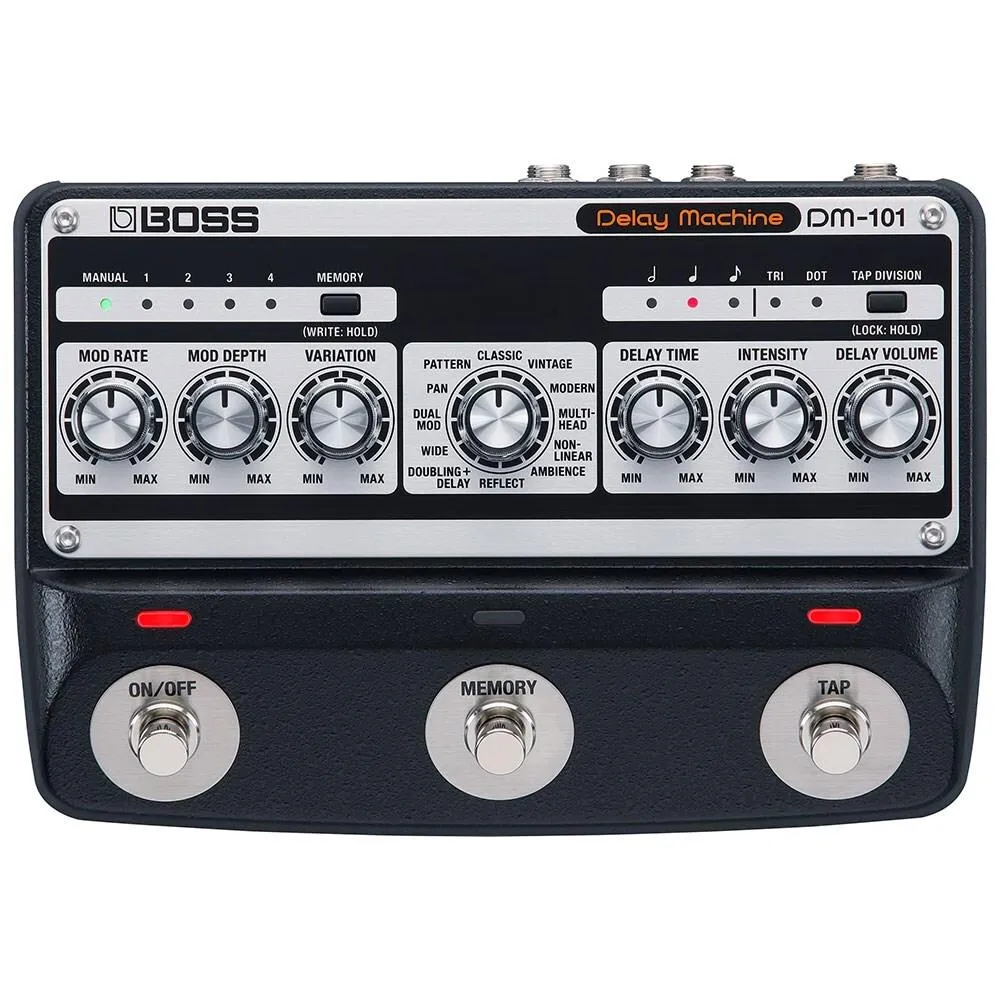

Classic sound meets modern power with the DM-101 Delay Machine, the ultimate analog delay. Driven by eight BBDs under smart CPU control, this inspiring pedal delivers 12 unique modes, stereo operation, and a wide array of tonal colours, all while maintaining 100 percent analog signal processing throughout. And with 127 user memories, tap tempo, carryover, MIDI, and more, the DM-101 brings you the features and versatility of an advanced digital pedal—but with the vibrant, characterful sound that’s only possible with authentic analog BBD circuitry.

The DM-101 takes the analog delay where it’s never gone before, providing access to cleaner sounds and extended delay times alongside traditional tones. To achieve this versatility, we used eight 2048-stage BBDs instead of the more common 4096-stage BBD. By finely tuning the behaviour of these smaller BBDs with targeted CPU control, we can realise a far greater range of sound while retaining all the desirable analog characteristics that players love about their favourite BBD stomps.

The DM-101 flows effortlessly between gritty vintage echoes and modern analog delay tones with extended high-frequency clarity. Multiple internal circuit elements are switched to define each of the 12 modes, including the number of active BBDs and their connection order, low-pass filter settings, and clocking rates. Twisting the Variation knob cycles through parameters unique to the different modes. And you can always drive delays into saturated self-oscillation by cranking the Intensity knob.

A major benefit of the DM-101’s CPU control is the ability to realise sophisticated stereo sounds not available with other BBD analog delays. For example, Pan mode routes each BBD and its feedback loop to alternate points in the stereo field, while Dual Mod shifts the modulation phase for each output to generate a wide, spacious delay effect. Six of the 12 modes support stereo operation, providing everything from short reverb-like sounds and expansive modulated delays to pattern delays for intense rhythmic effects.

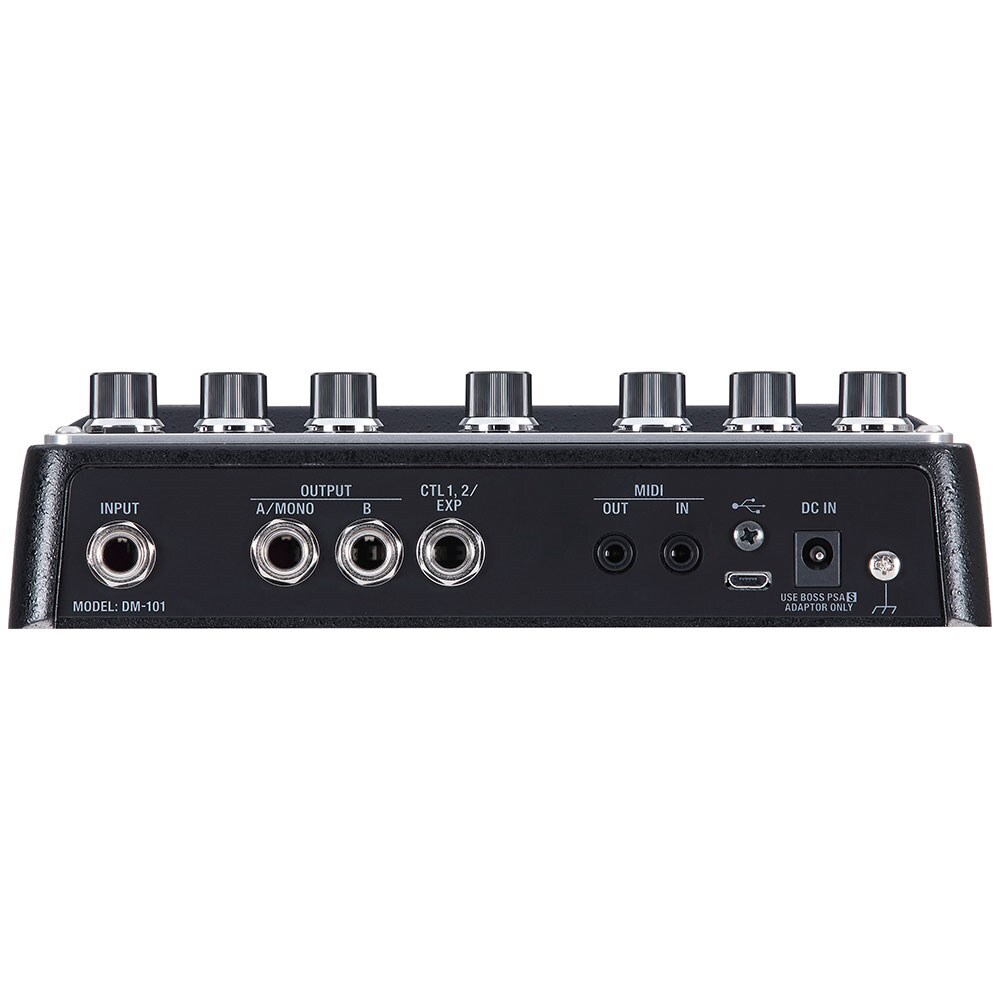

The DM-101 offers all the creative benefits you expect from an advanced delay pedal. Tap tempo and note subdivisions are available with most modes, and there’s carryover for maintaining repeats when the effect is bypassed. You can store and recall favourite setups with four onboard memories and connect up to two footswitches or an expression pedal for extended real-time control. MIDI I/O takes things further, providing remote access to 127 user memories, MIDI sync, and more. The audio outputs are set for blended operation by default, but they can be easily reconfigured for wet/dry rigs and wet-only parallel setups.

Features

• The ultimate analog delay pedal realised with advanced BOSS technology
• Fully analog BBD audio circuitry shaped by precision digital CPU control
• Warm, saturated, and highly musical tone
• Twelve modes deliver a wide range of mono and stereo delay textures, created using up to eight internal BBDs
• Stereo output with flexible signal routing options
• Adjustable modulation rate and depth with dedicated knobs
• Variation knob for controlling multiple parameters that are unique to each mode
• Selectable carryover for maintaining delay trails when the effect is bypassed
• MIDI I/O on mini TRS connectors
• Tap tempo function and tap division switch for creating rhythmic delays
• Four onboard memories plus the current panel settings
• 127 user memories accessible via MIDI program change
• Expandable control via external footswitches, an expression pedal, or MIDI
