Boss XS-1 Compact Poly Shifter Guitar Pedal

Boss XS-1 Compact Poly Shifter Guitar Pedal

★★★★★ 4.9 Stars — Over 1,500 Google Reviews

Original price was: $415.00.Current price is: $379.00.

FAST
Delivery

EASY
Returns

IN HOUSE
Repairs

Buy Now

2 in stock

✨ This item qualifies for AU Free Shipping!

Pick-up from store - FREE
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.

International Shipping
Please proceed to checkout to see international rates and avalability.

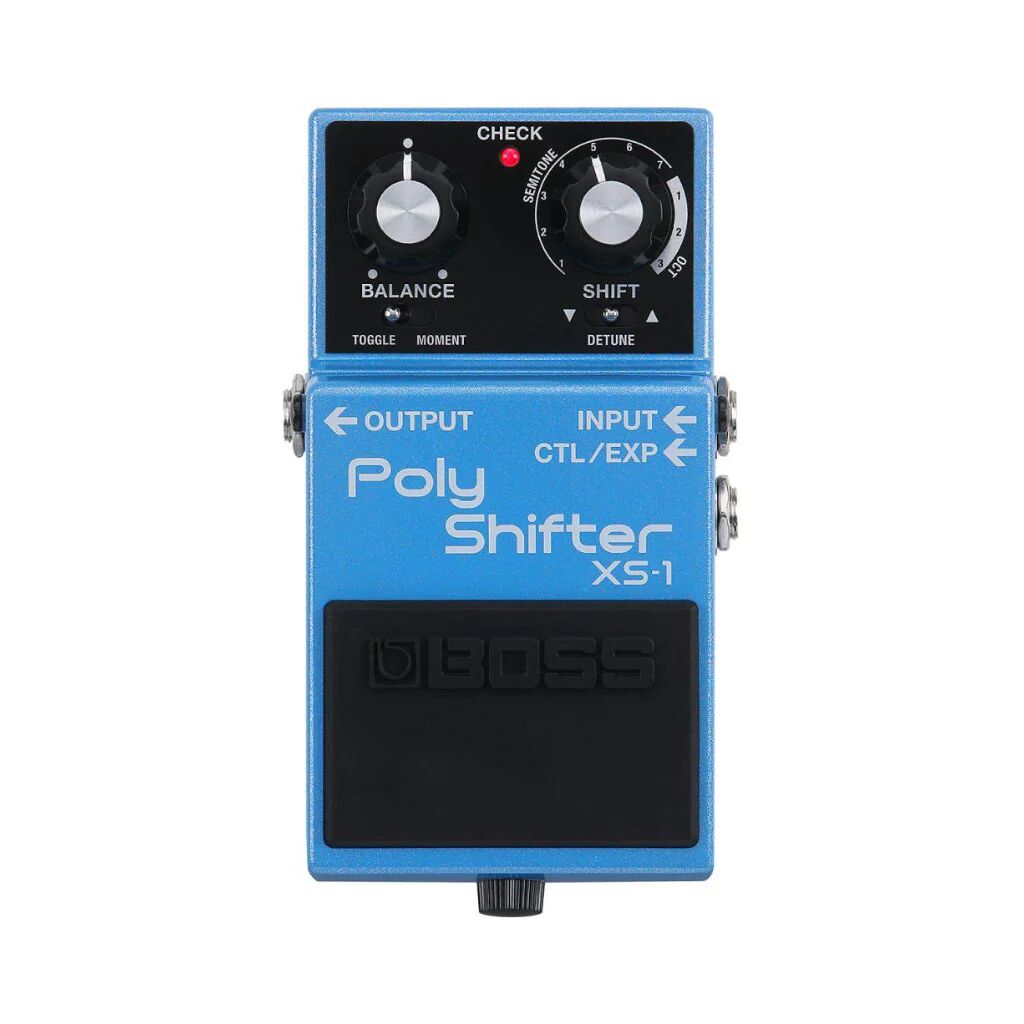

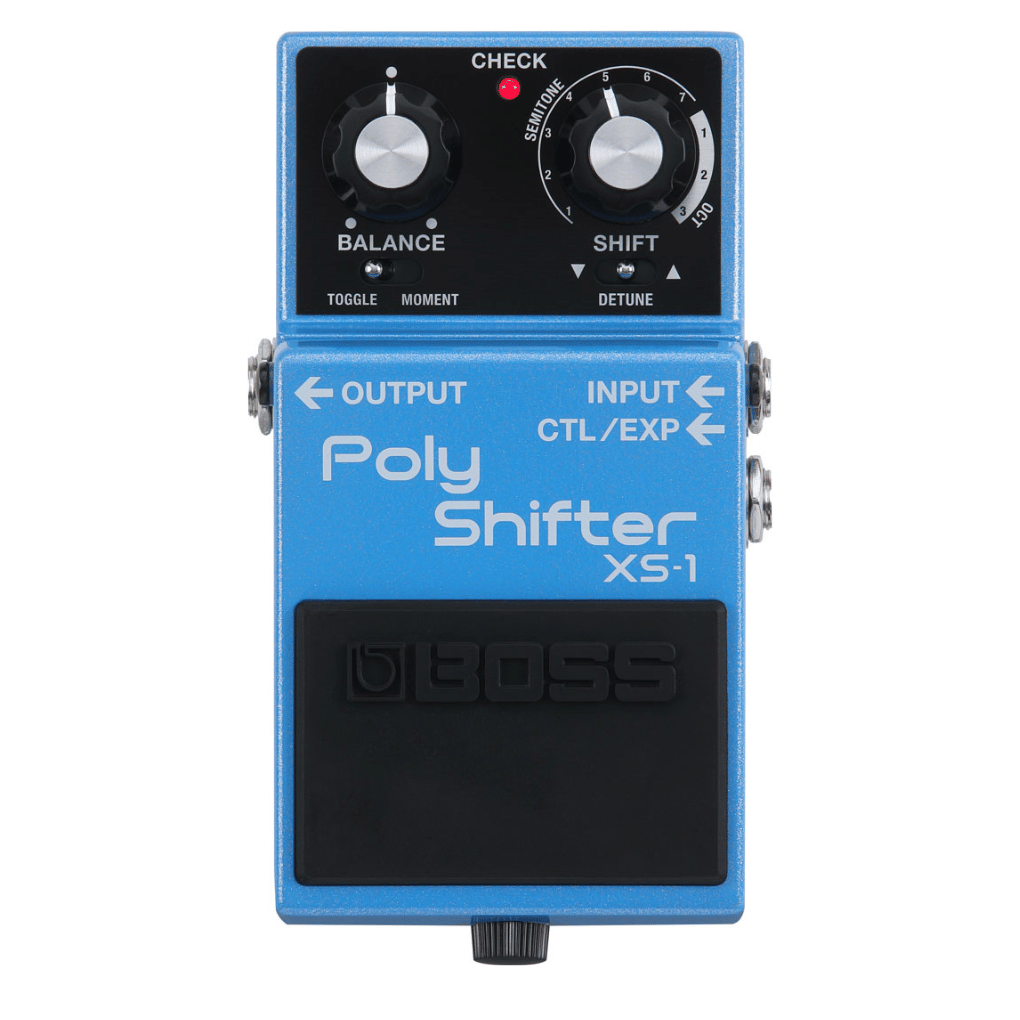

BOSS XS-1 Compact Poly Shifter Pitch Shifting Pedal

Perform instant tuning changes, pitch bends, and octave layering without switching instruments with the BOSS XS-1 Compact Poly Shifter. Powered by next-generation BOSS DSP algorithms, the XS-1 delivers polyphonic tracking with ultra-low latency and tone preservation across the entire fretboard. Whether you need drop-tuning transposition, virtual capo emulation, rich doubling, or massive ±3 octave pitch sweeps, the XS-1 packs complete polyphonic command into the iconic, road-tested BOSS compact pedal chassis.

Angkor Music Technical Evaluation: Polyphonic DSP Engine & Signal Processing

Polyphonic pitch shifters often suffer from latency, warble, or tone degradation when processing complex chords. The BOSS XS-1 overcomes this through a **24-bit AD (with Adaptive Focus) and 32-bit DA engine operating at 48kHz**. This platform maintains note separation across dense chord voicings and fast single-note runs. Featuring a **1 MΩ input impedance** and **1 kΩ output impedance**, it connects seamlessly into guitar and bass pedalboards, active/passive pickup chains, or amplifier FX loops without loading down your signal.

E-E-A-T Performance Standards: Rig Integration & Power Management

At Angkor Music, our pedal technicians bench-test all digital modulation and pitch processors before dispatch. Power Supply Requirement: The XS-1 requires a standard 9V DC center-negative power supply drawing approximately 100–120mA. Expression & External Switch Control: The CTL/EXP TRS jack allows direct connection of external footswitches (such as the BOSS FS-6/FS-7) for instant mode switching or an expression pedal (Roland EV-5 / BOSS EV-30) for continuous pitch bending.

Shop All Pitch & Octave Pedals →

Technical Specifications

  • Brand: BOSS
  • Model: XS-1 Compact Poly Shifter
  • Pedal Type: Polyphonic Pitch Shifter / Transposer
  • Pitch Shift Range: Up to ±7 Semitones and ±3 Octaves
  • AD/DA Conversion: 24-bit AD + AF method / 32-bit DA
  • Sampling Frequency: 48 kHz
  • Controls: Balance Knob, Shift Knob, Mode Switch, Shift Direction Switch
  • Switch Modes: Latching (Toggle) or Momentary Operation
  • Bypass: Premium Buffered Bypass
  • Inputs: 1 x 1/4" Instrument Jack (1 MΩ)
  • Outputs: 1 x 1/4" Main Output Jack (1 kΩ)
  • Expression / Control Input: 1 x 1/4" TRS Jack (External Footswitch / Expression Pedal)
  • Current Draw: ~100mA – 120mA
  • Power Source: 9V DC Center-Negative AC Adaptor (sold separately) or 9V Battery
  • Dimensions (W x D x H): 73 mm x 129 mm x 59 mm
  • Weight: Approx. 0.4 kg

What's In The Box Product Contents

  • Pedal: 1 x BOSS XS-1 Compact Poly Shifter Pedal
  • Battery: 1 x 9V Alkaline Battery
  • Documentation: Owner's Manual & Safety Leaflets

Key Product Features

  • Next-Generation BOSS Polyphonic Algorithm: Delivers clean, artifact-free pitch tracking across chords, arpeggios, and lightning-fast lead runs.
  • Expansive Pitch Transposition: Instant drop tuning, capo shifting, and extreme pitch jumps spanning ±7 semitones to ±3 full octaves.
  • Balance Control for Parallel Harmonies: Seamlessly blend dry signal with shifted pitch to create thick 12-string effects, octave doubling, or parallel harmonies.
  • Detune Mode for Rich Doubling: Fine-tuned detune setting adds dimensional width and chorus-like thickness to your tone.
  • Flexible Footswitch Operation: Switch between standard latching (on/off toggle) and momentary engagement for selective pitch accents during live solos.
  • External Control Ready: Plug in dual footswitches (FS-6/FS-7) for preset access or an expression pedal for real-time pitch-bend whammy effects.
  • Bulletproof Compact Housing: Built inside BOSS's legendary roadworthy steel enclosure with classic buffered bypass.

Frequently Asked Questions

Can the BOSS XS-1 handle bass guitar and low drop-tunings?
Yes. The XS-1 polyphonic DSP engine is optimized for both electric guitar and bass guitar, tracking low-frequency fundamental notes without tracking delay or low-end loss.

Can I use an expression pedal with the BOSS XS-1 for pitch bending?
Yes. Connecting an expression pedal (like the BOSS EV-30 or Roland EV-5) into the CTL/EXP jack turns the XS-1 into a continuous real-time pitch bender.

What is the difference between setting the BALANCE knob wet vs blended?
Setting Balance to 100% wet replaces your original guitar pitch completely (ideal for drop tunings and capo shifts). Blending in the dry signal creates 12-string chime, harmony layers, and sub-octave textures.
