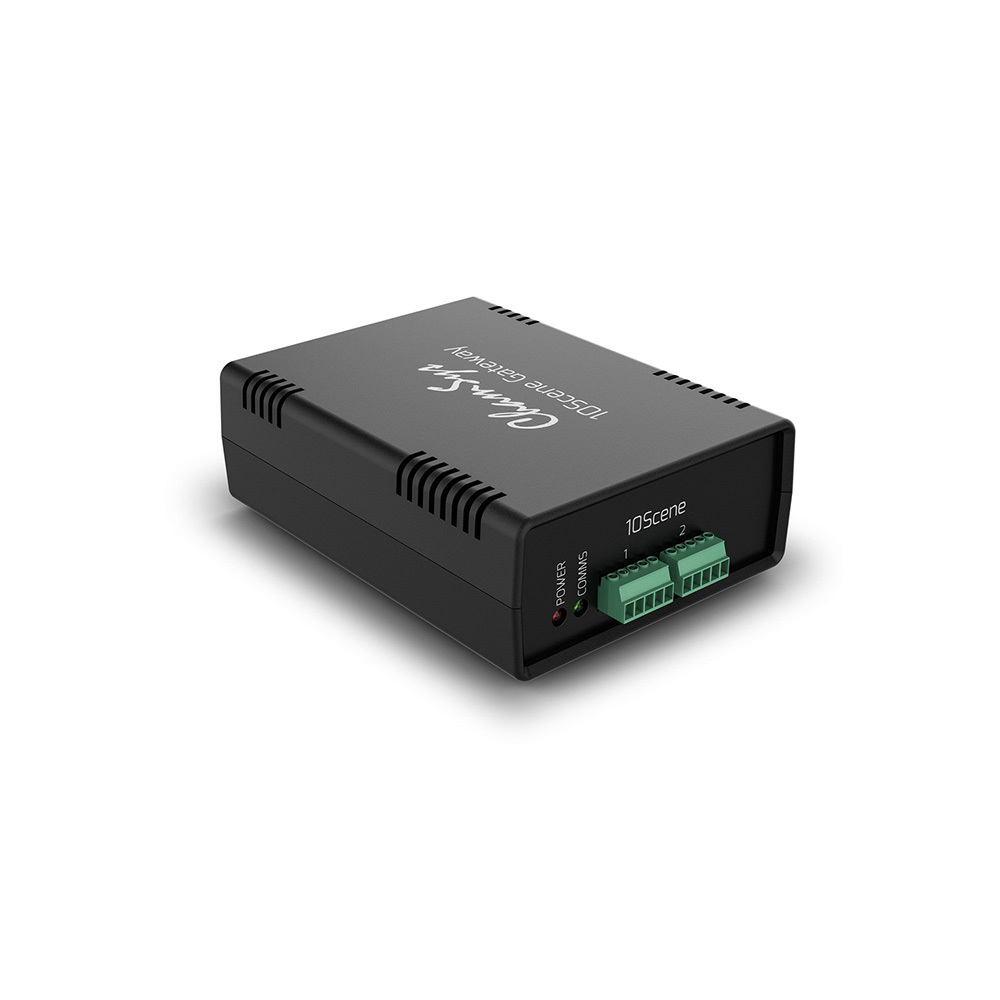

ChamSys SnakeSys 10Scene Gateway
SKU: SNAKESYS-10GATE
WAS $899.00
NOW $849.00
SAVE 6%!
Calculate Shipping :
Standard Shipping - FREE
Express Shipping - $16.50
Express International Shipping - $61.60
Pick-up from store - FREE
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.
Share This Item :
Key Features:
- Two 10Scene ports
- Connection for up to 20 wall plates
- One Network port
- Powered via 12V external power supply (included) or PoE
- Compatibile with both MagicQ & QuickQ systems
10Scene Gateway is the interface to connect between 10Scene wall plates and MagicQ/QuickQ systems. Converting from the 10Scene to ChamSys remote protocol, allowing 10Scene Wall plates to integrate with MagicQ & QuickQ consoles.
With two 10Scene ports allowing upto 20 10Scene Wall plates to be connected to it, the Gateway interface is the perfect solution for adding user friendly and simple remote control to installations.
The gateway interface can be powered via external power supply or via PoE.
Technical Data
| 10Scene Ports: | 2 |
|---|---|
| Max Supported 10Scene Wall Plates: | 20 |
| Contact Trigger Inputs: | 2 |
| Network Port: | 1 |
| PoE Voltage Supported: | 37-57v |
| PoE Supported Types: | 802.3af Type1, 802.3at Type 2, 802.3bt Type 3 and 4 |
| Dimensions: | 133 x 88 x 45 mm |
| Weight: | 0.175 kg |
| SKU | SNAKESYS-10GATE |
| Brand | AVE |
| Shipping Weight | 2.3000kg |
| Shipping Width | 0.305m |
| Shipping Height | 0.080m |
| Shipping Length | 0.260m |
