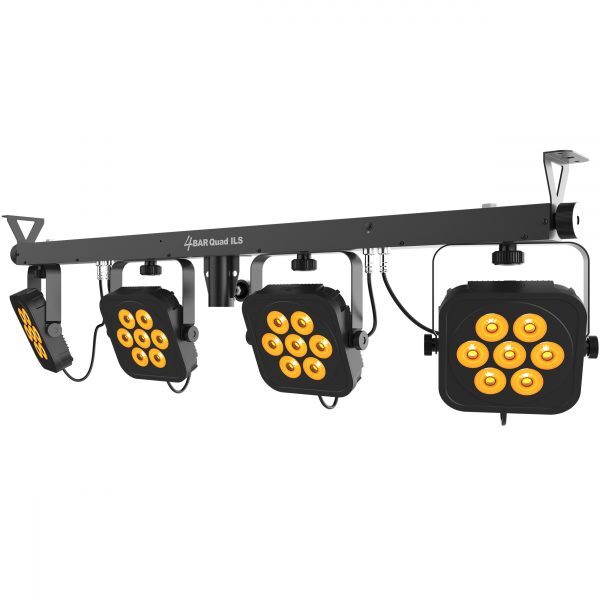

Chauvet DJ 4Bar Quad ILS Wash Lighting Set
Original price was: $999.00.$899.00Current price is: $899.00.
FAST
Delivery
EASY
Returns
IN HOUSE
Repairs
10 in stock



Pick-up from store - FREE
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.
Key Features:
- Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
- ILS compatibility for use in the ILS ecosystem
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
- Out of the box wireless control with included footswitch or optional IRC-6 controller

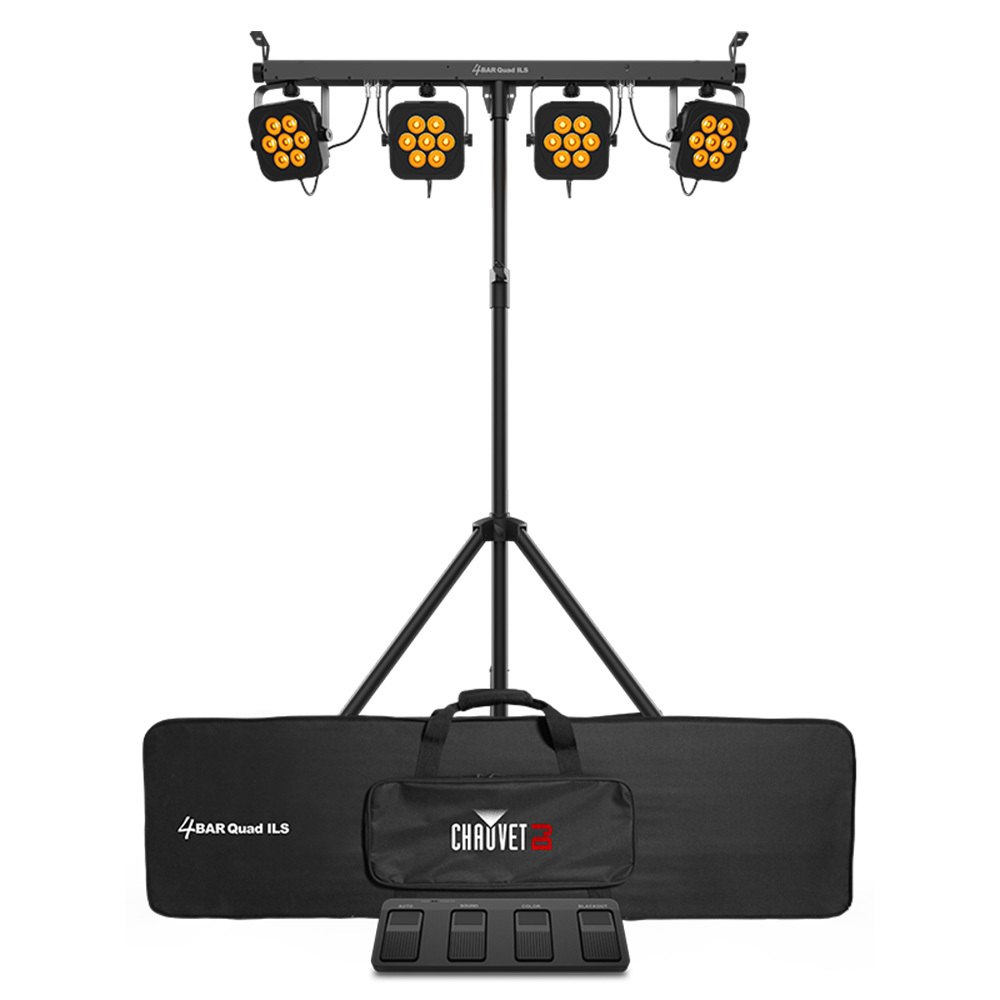

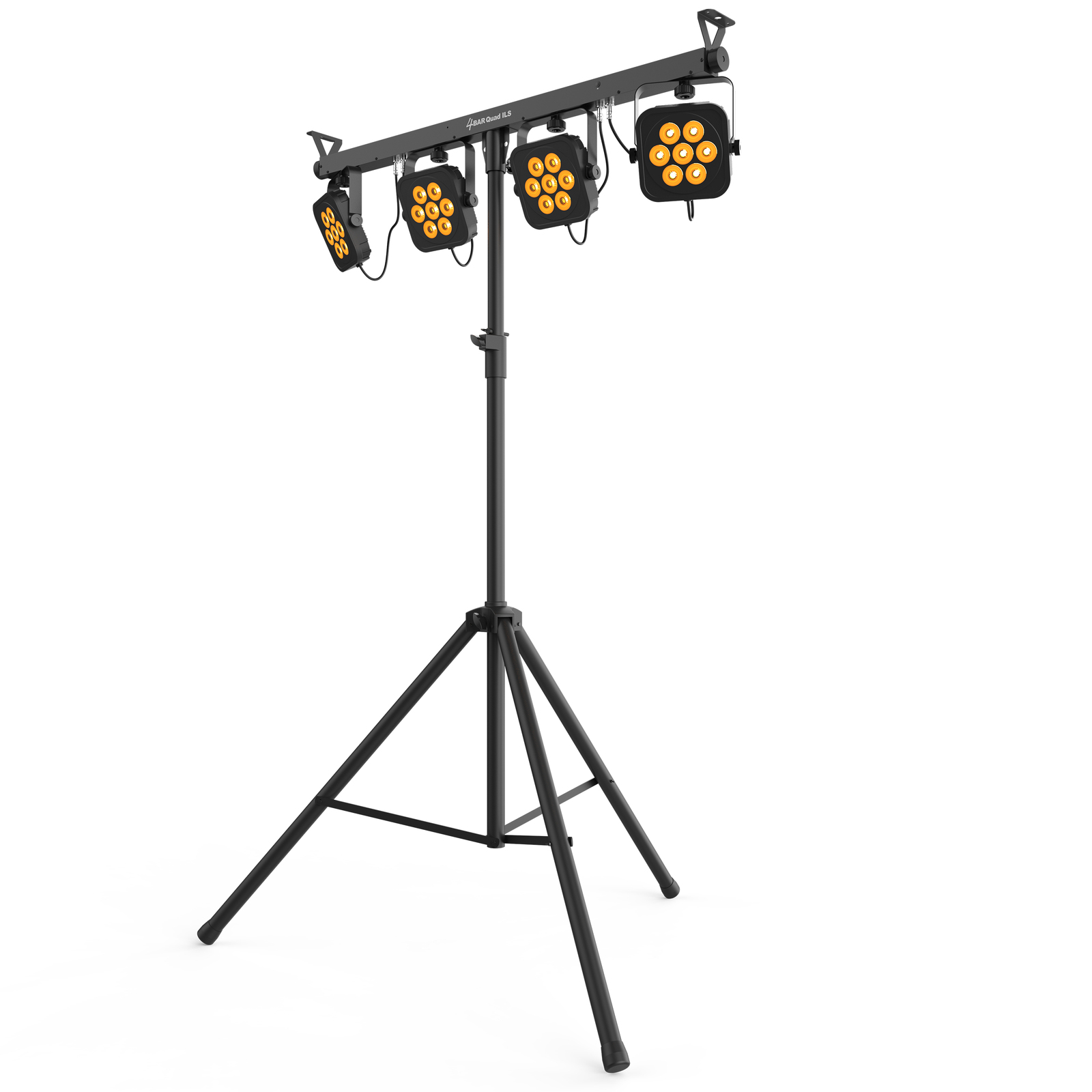

- Easily set up and tear down in minutes with the included tripod stand and carrying bags
- D-Fi™ USB compatibility for wireless Master/Slave or DMX control
- Achieve total room or stage coverage with 4 individually adjustable heads
- Increase mounting options by safely mounting to truss using built-in bolts
The Chauvet DJ 4BARQUADILS is a complete wash lighting solution fitted with high-intensity quad-colour (RGBA) LEDs. In fact, it can be controlled wirelessly out of the box via the included footswitch or optional IRC-6 controller.
But for real convenient control, utilise the 4BARQUADILS’s compatibility with the Integrated Lighting System (ILS). Specifically, it makes creating coordinated light shows across an unlimited number of different fixture types easy and fast. Therefore, you will have more control, in a way thats easier than ever.
Above all, the 4BARQUADILS generates natural, warm colour temperatures with punchy ambers. Also, it can generate a broad spectrum of colours and achieve a great total area coverage.
Furthermore, the 4BAR Quad ILS is compatible with D-Fi USB for wireless Master/Slave or DMX programming. Also, included is a convenient tripod and carry bag are for effortless setup and quick tear-down. The 4BAR Quad ILS safely attaches to truss with built-in bolts, easily increasing mounting options.
Technical Data
| DMX Channels: | 4, 6 or 19 |
|---|---|
| DMX Connectors: | 3-pin XLR |
| Light Source: | 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy |
| Strobe Rate: | 0 to 20 Hz |
| Beam Angle: | 14° |
| Field Angle: | 23° |
| Illuminance: | 2,353 lux @ 2 m (per pod) |
| Input Voltage: | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current: | 78 W, 0.6 A @ 230 V, 50 Hz |
| Weight: | 5.5 kg |
| Size: | 1186 x 50.8 x 305 mm |
| Approvals: | CE, RoHS, UKCA |
| Operating Frequency (D-Fi): | 2.412 to 2.484 GHz |
| Operating Frequency (foot switch): | 433 MHz |
| Max Unobstructed Distance (foot switch): | 30.5 m |
| Footswitch battery: | 9 V |
| Stand Height: | 2.2 m |
| Fits Tripod Sizes: | 36.80 mm |
| Bracket Mounting Hole: | M10 (1.5 mm pitch) |
| Weight (Controller): | 0.6 kg |
| Size (Controller): | 419 x 132 x 38 mm |
| Optional Controllers: | IRC-6, D-Fi USB |
