Key Features:
  • Compact effect par with multiple technologies in a single fixture
  • RGB+UV in outer ring for increased color mixing and effects
  • Separate control of center LED, outer ring and SMD strobes for dynamic effects
  • Mutable zones allow for spectacular effects
  • SMD strobe ring adds strobe effects to any setup big or small
  • Compatible with IRC-6 for improved control over the built-in functions
  • Generate eye-catching effects with sound-activated and automated programs
  • Power linking saves time setting up

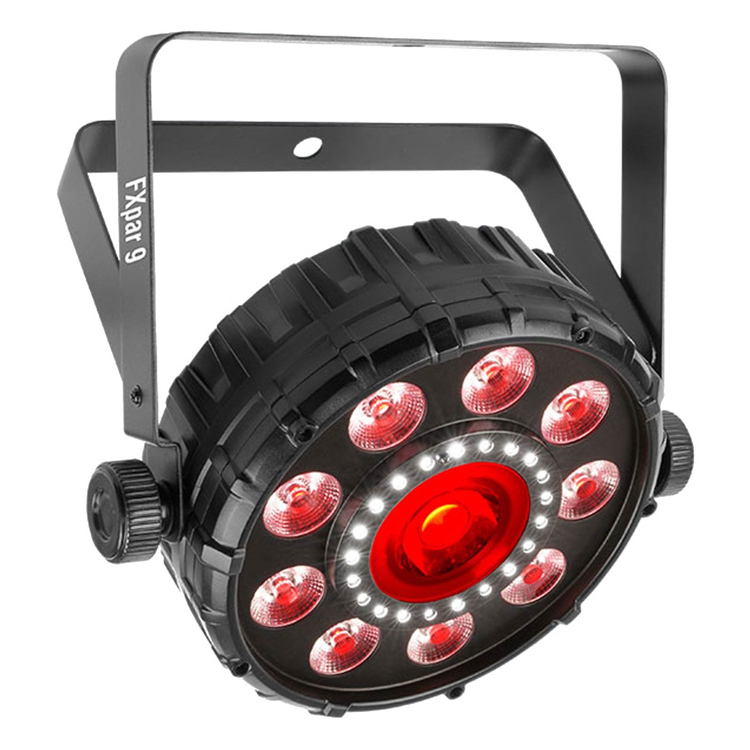

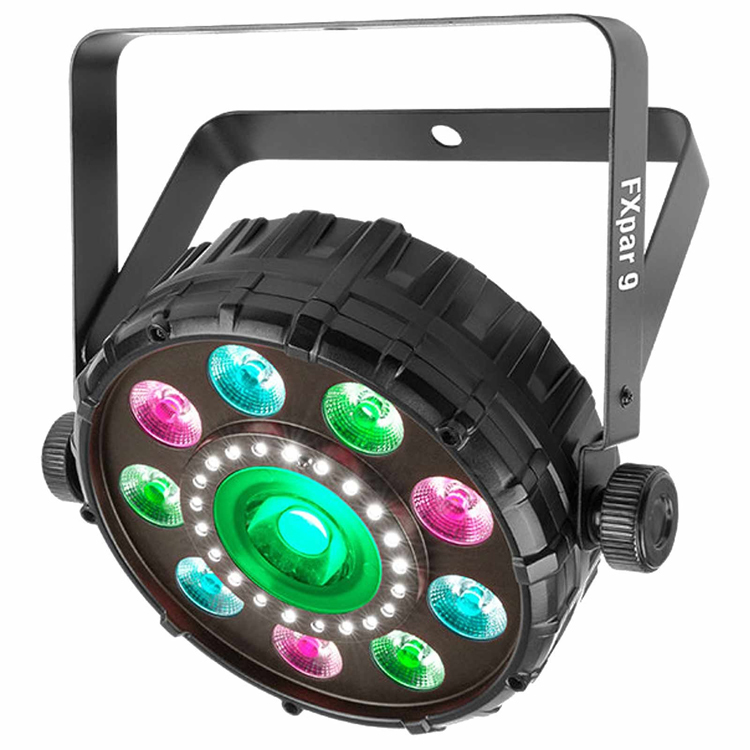

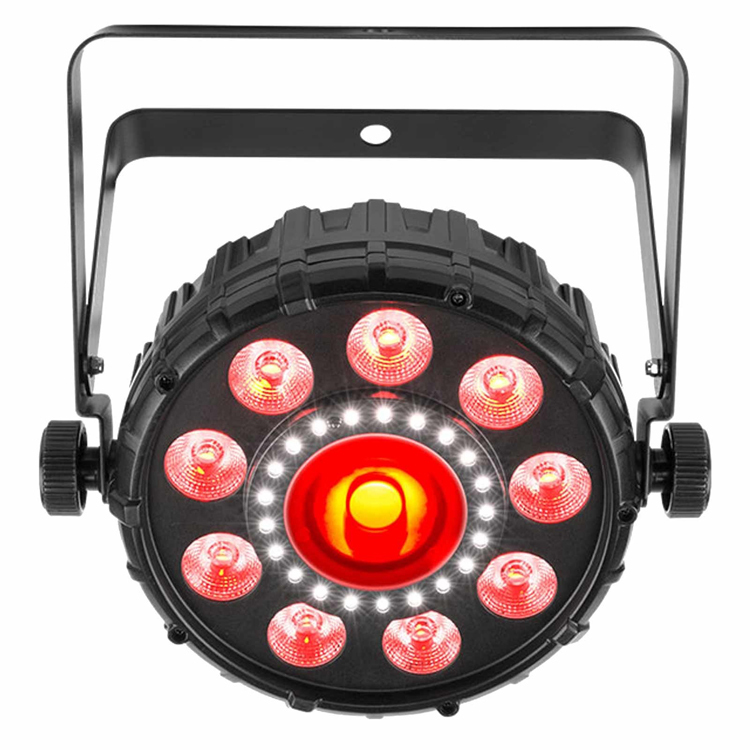

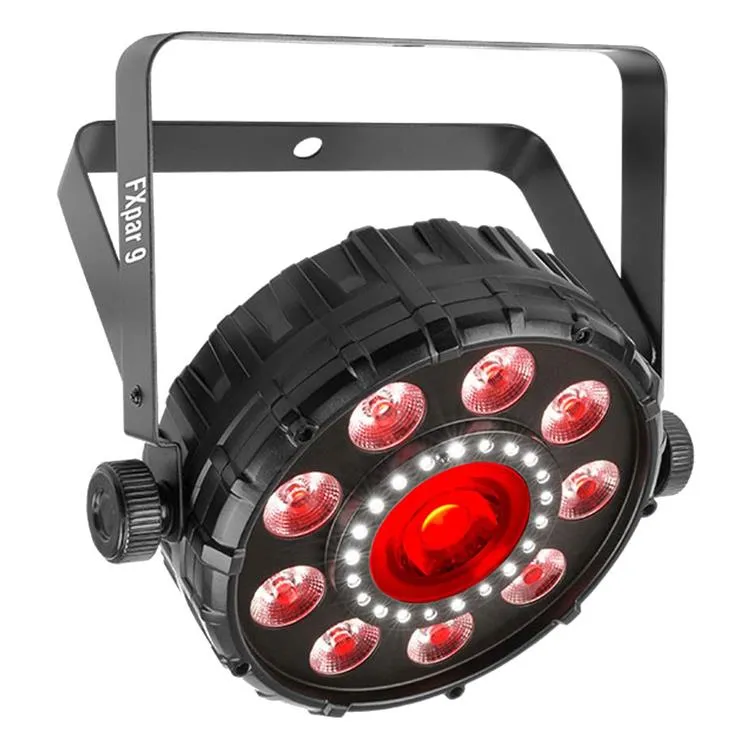

FXpar 9 is a dynamic and compact multi-effect fixture. It has an outer ring of RGB+UV LEDs, a center LED, and SMD strobes, each featuring separate control.  Mutable zones allow for spectacular effects via DMX. Sound activation, automated programs or easy control via the optional IRC-6 remote also let you easily achieve eye-catching effects. Save time setting up with power linking.

Technical Data



DMX Channels: 2, 6, 9 or 22 / 23 (version 2 only)

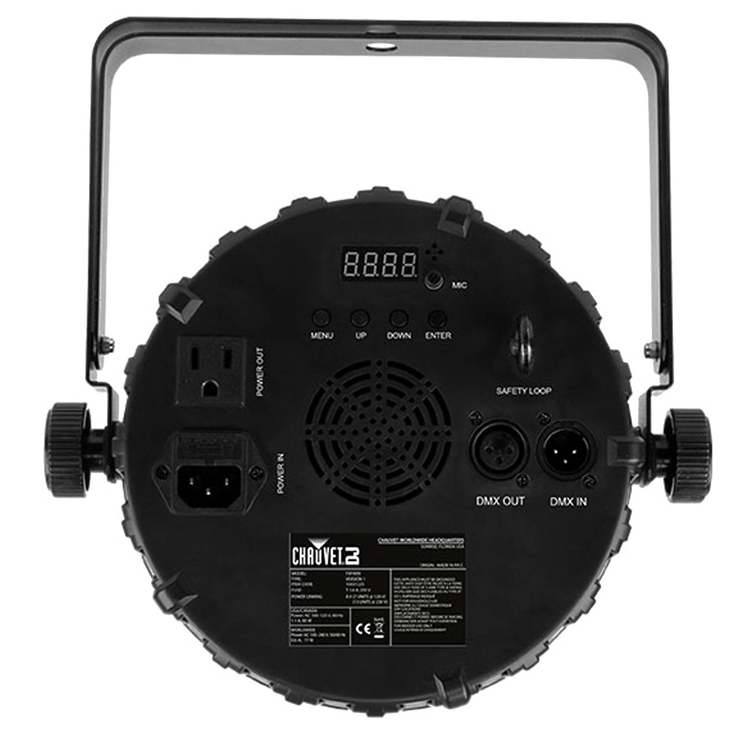

DMX Connectors: 3-pin XLR
Light Source: (outside): 9 LEDs (quad-color RGB+UV) 4 W, (1.4 A), 50,000 hours life expectancy
(center): 1 LED (tri-color RGB COB) 18.4 W, (2 A), 50,000 hours life expectancy
(strobe): 21 LEDs (cool white SMDs) 0.5 W, (0.2 A), 50,000 hours life expectancy
Strobe Rate: 0 to 16.4 Hz
Beam Angle: 25°
Field Angle: 45°
Illuminance: 1450 lux @ 2 m
Power Linking: 13 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 77 W, 0.6 A @ 230 V, 50 Hz
Weight: 1.6 kg
Size: 279 x 275 x 74 mm
Approvals: CE
Optional Controllers: IRC – 6
SKU FXPAR9
Brand Chauvet
Shipping Weight 0.7000kg
Shipping Width 0.185m
Shipping Height 0.160m
Shipping Length 0.185m
