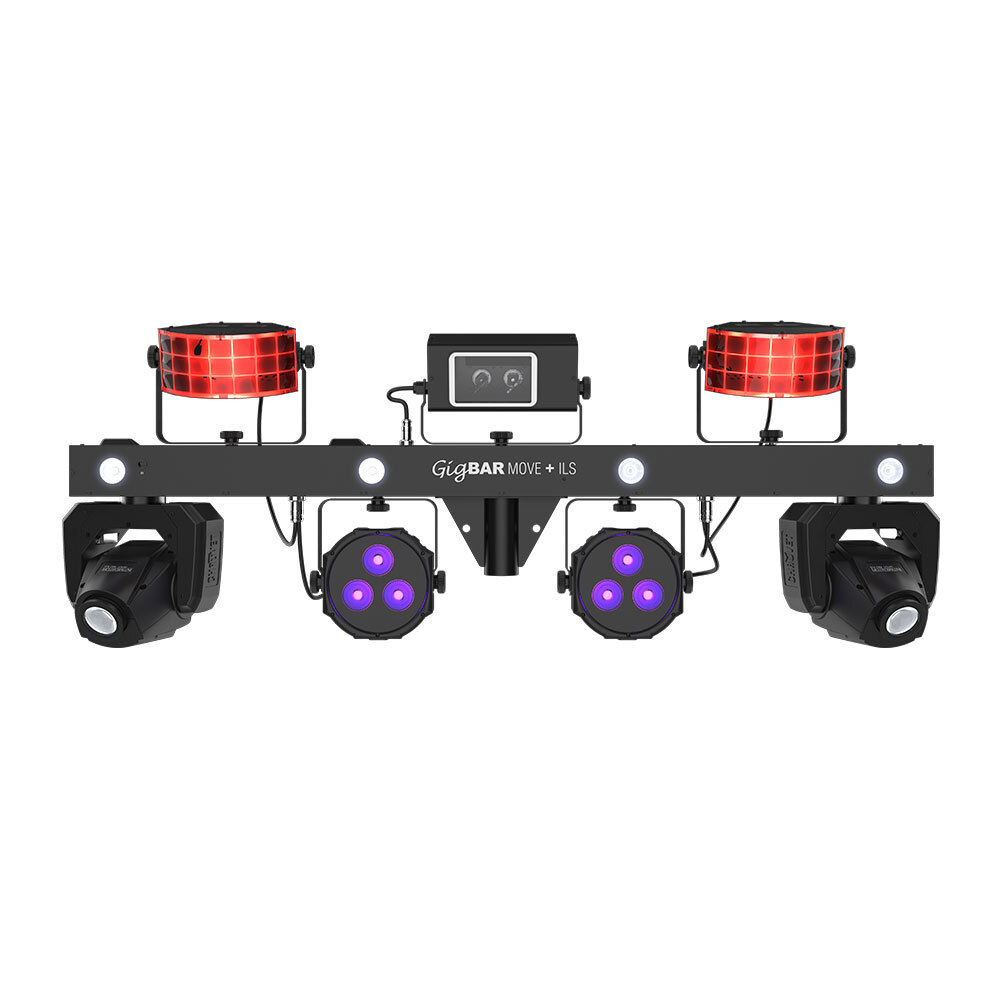

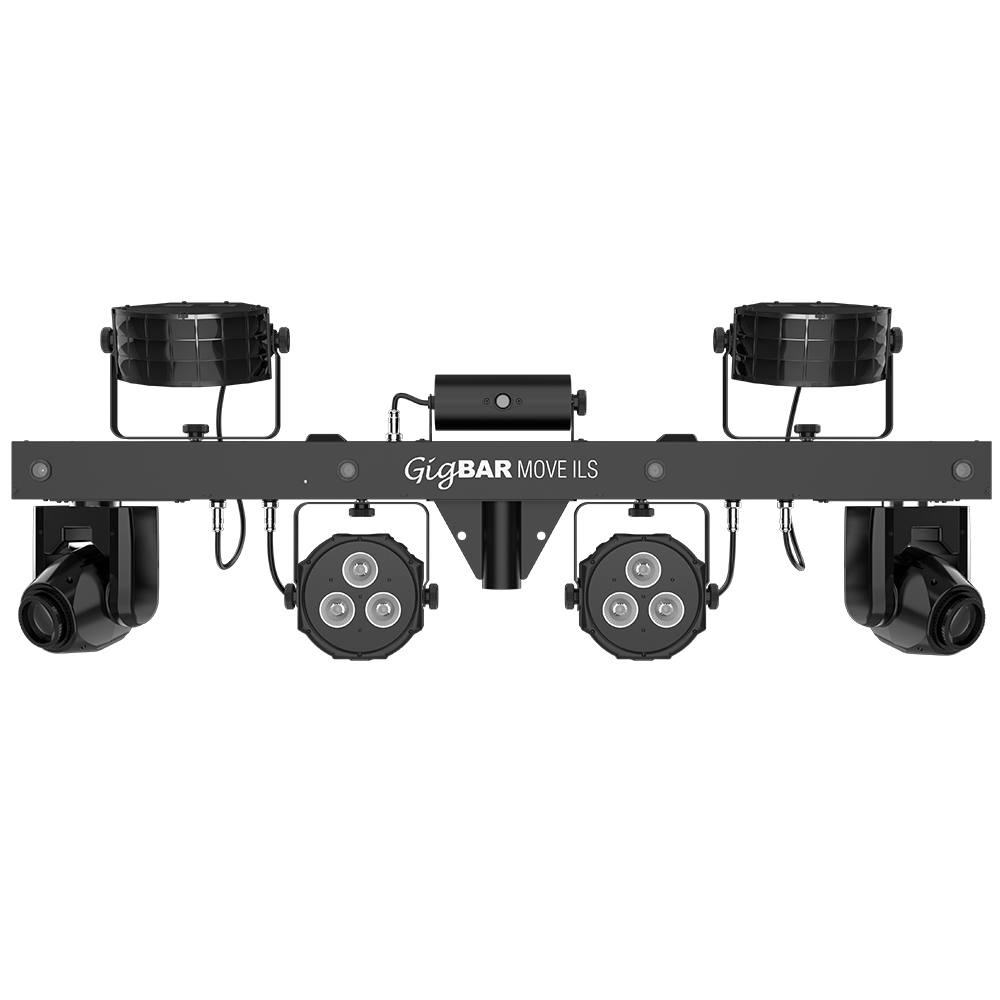

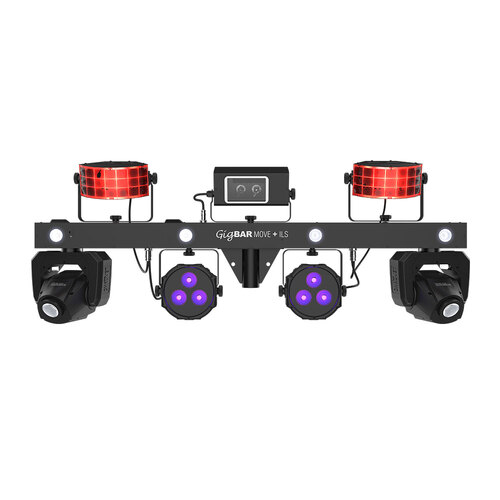

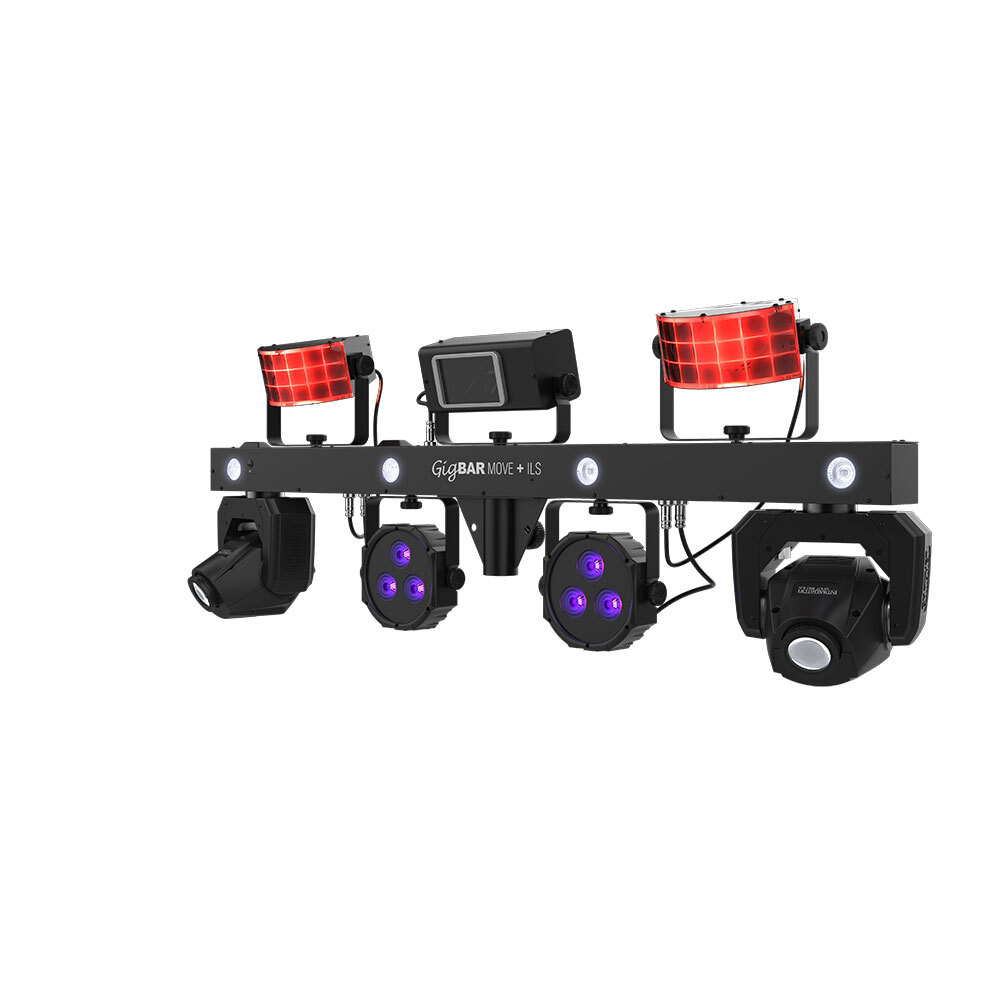

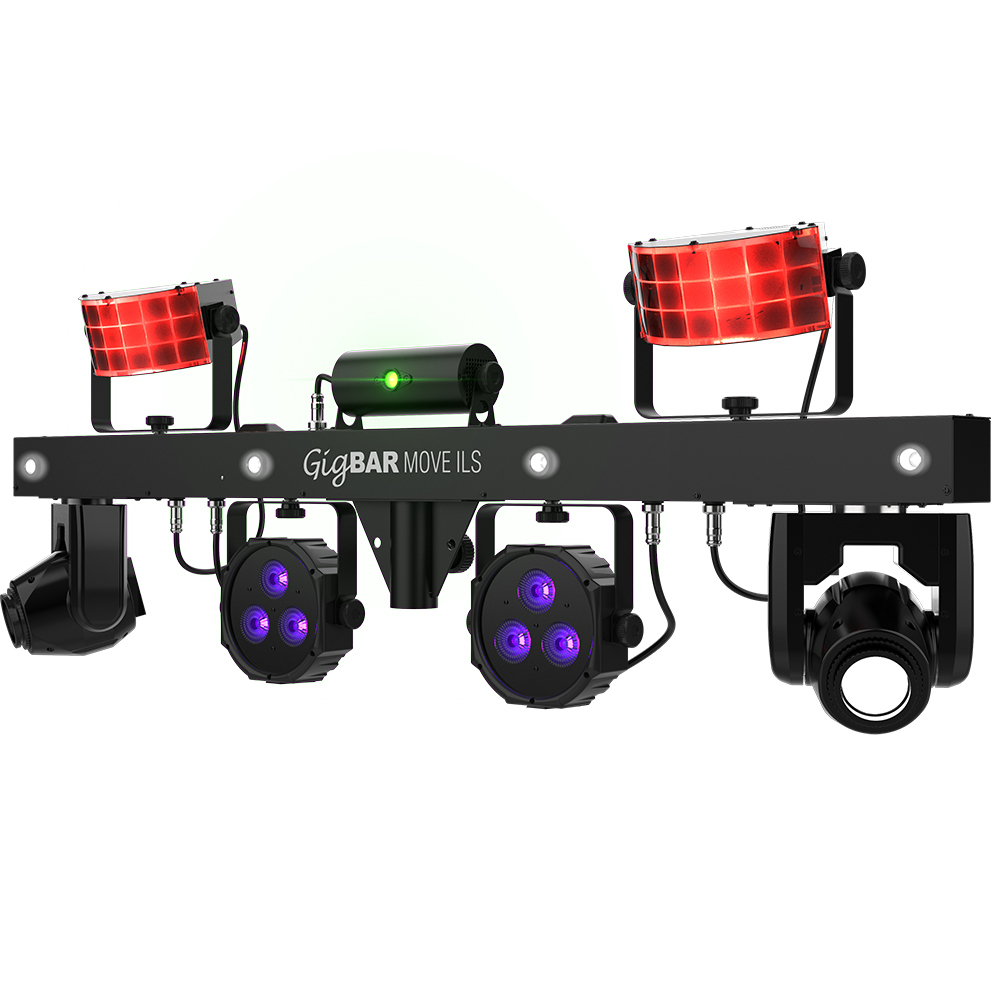

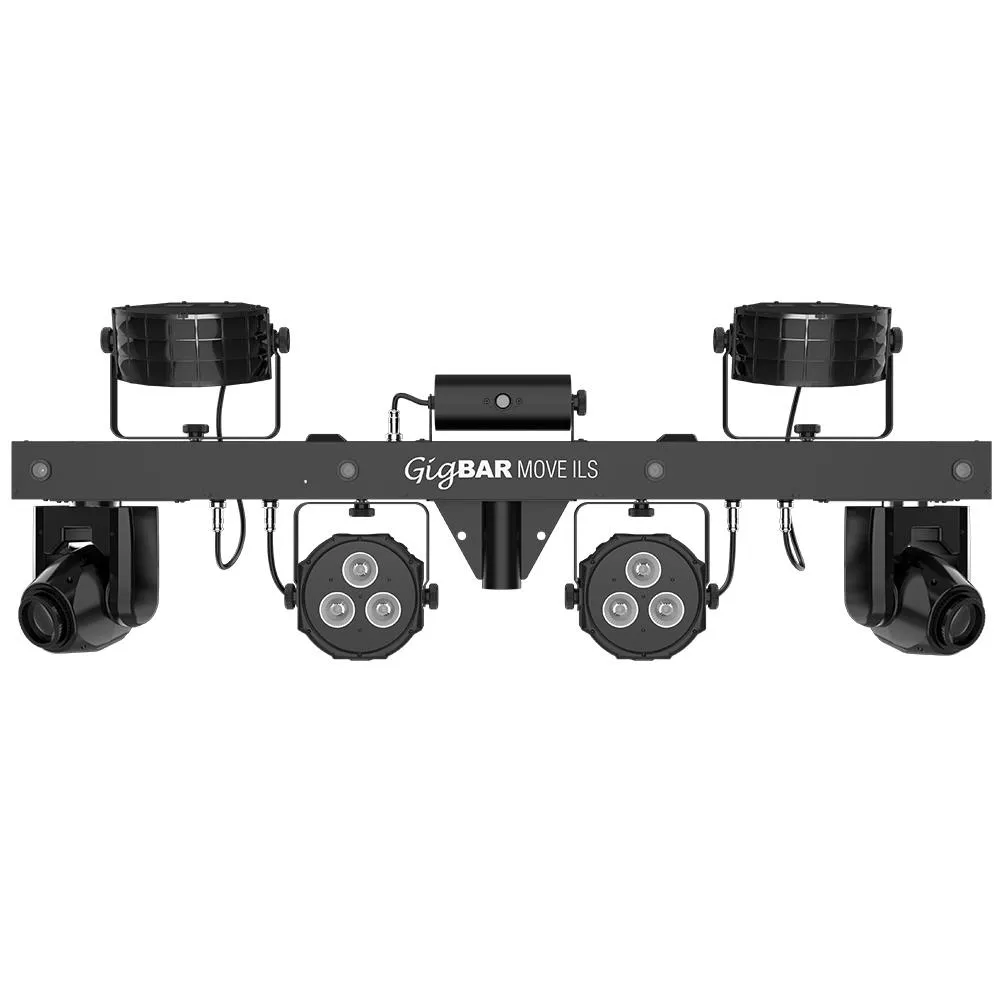

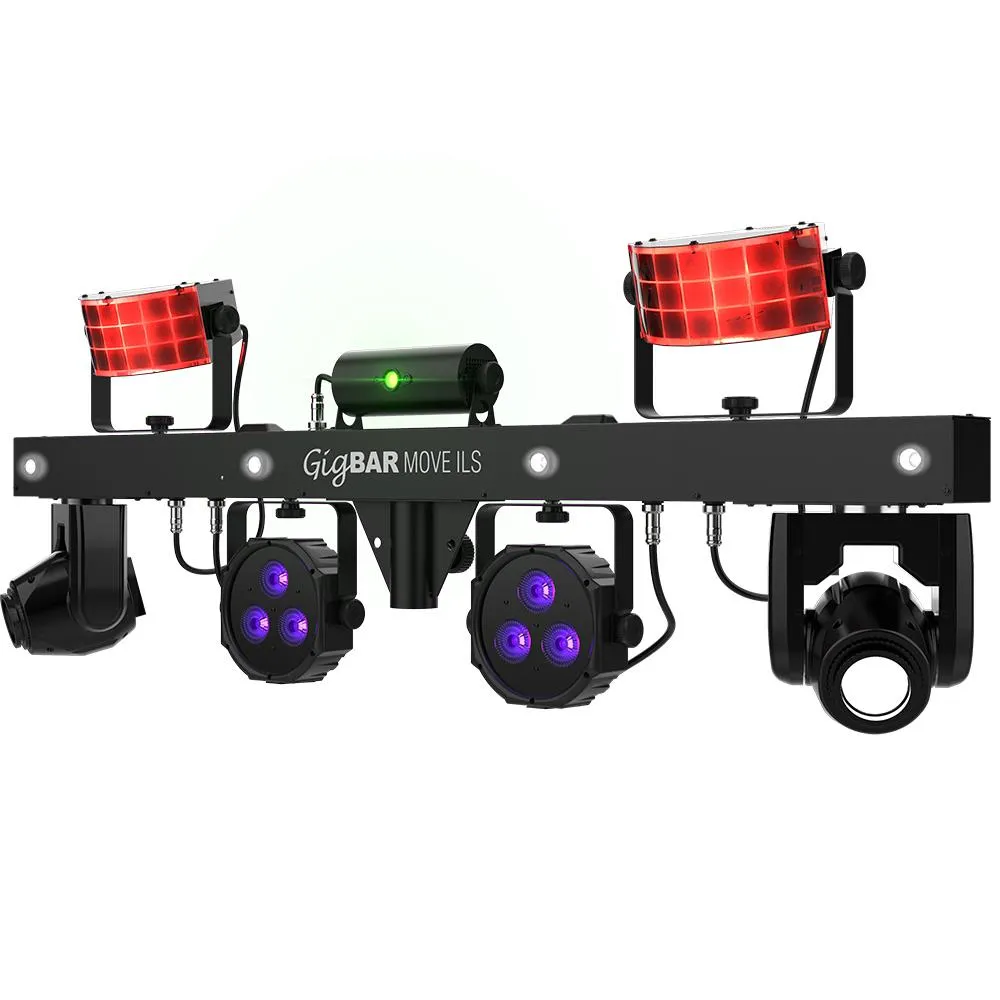

• 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
  • Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
  • Separate color and gobo wheels allow for creative programming
  • Totem Mode keeps the moving heads focused on the dance floor

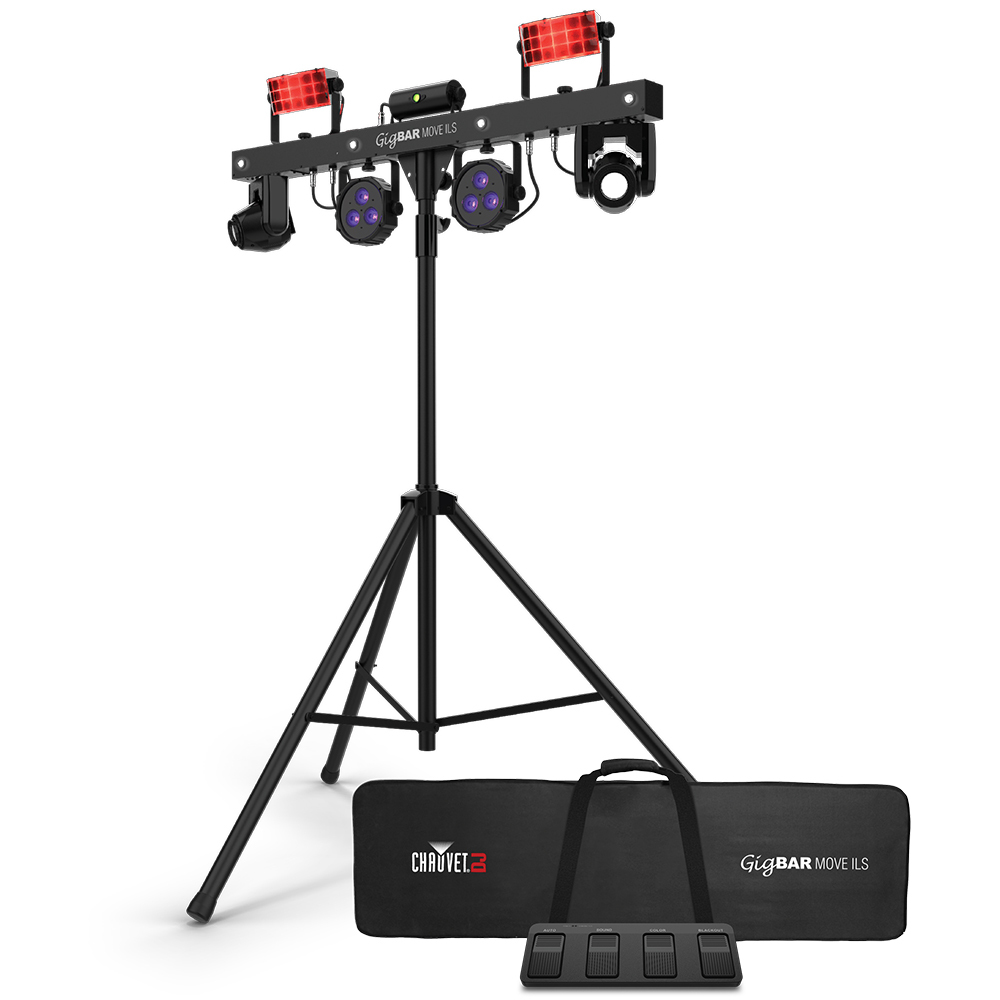

  • System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
  • Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
  • Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch

The future of easy lighting synchronization is here with GigBAR Move + ILS. This powerful member of the GigBAR family controls the Integrated Lighting System (ILS), the dynamic lighting technology that provides an advanced, coordinated light show across multiple fixture types. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects. GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit! The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick seBienvenue dans letup.

Technical Data



DMX Channels: 3, 28, or 50
Colors: Moving head: 9 + open, split colors, continuous scroll
Gobos: Moving head: 9 + open, continuous scroll
Light Source: Pars: 3 LEDs (hex color RGBAW+UV) 6 W (2 A)
Strobe: 4 LEDs (cool white) 5 W (1.2 A)
Derby: 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A)
Moving head: 1 LED (cool white) 32 W, (3 A)
Laser: 638 nm/30mW (red) laser diode, 520nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
Strobe Rate: 0 to 30 Hz
Stand Height: 1.5 to 2.5 m
Beam Angle: Moving head: 17°
Pars: 22°
Strobe: 30°
Coverage Angle: Derby: 131°
Laser: 93°
Illuminance: Pars: 1,205 lux @ 2 m (per par)
Moving head: 5,140 lux @ 2 m (per head)
Strobe: 130 lux @ 2 m
Footswitch Max Unobstructed Distance: 30.5 m
Optional Controllers: RF
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Weight (bar only): 14 kg
Size: 1100 x 144 x 449 mm



SKU GIGBAR-MOVEPLUSILS
Brand Chauvet
Shipping Weight 4.8000kg
Shipping Width 0.185m
Shipping Height 0.160m
Shipping Length 0.185m
