A Pedal Power Supply that can Power Both AC and DC Pedals!

Does your rig rely on both AC and DC power? Then the CIOKS AC10 Pedal Power Supply will be a perfect fit! This power supply offers 10 outlets in six isolated sections with more than enough juice to power your hungriest pedals. You get a total of six DC outlets in addition to four AC outlets with different voltage options. Before the power is delivered through the outlets, the CIOKS AC10 first filters the power through its shielded toroidal transformer, ensuring your pedals get the cleanest, quietest power possible. To keep you on top everything, each outlet has a nearby metering LED to monitor each effect's power status in the chain. The CIOKS AC10 comes complete with 17 Flex cables and mounting hardware for Pedaltrain and Temple Audio Pedalboards. Get a versatile power supply you can rely upon with the CIOKS AC10.

Advanced LED monitoring keeps you on top of everything

The CIOKS AC10 is jam-packed with advanced LED monitoring. Individual status LEDs on each outlet remain lit under normal conditions, dim when you reach the upper limits of the outlet’s voltage, and shut off upon overload. A global status LED inside the CIOKS logo’s “O” warns you if you exceed the unit’s power limit.

Included Flex cables:

• 8 x Standard Flex Type 1 — 5.5mm/2.1mm center-negative DC plug, black
• 1 x Standard Flex Type 2 — 5.5mm/2.1mm center-positive DC plug, red
• 2 x Standard Flex Type 4 — 5.5mm/2.5mm center-positive DC plug, green
• 1 x Standard Flex Type 5 — 3.5mm tip positive jack plug, black
• 1 x Standard Flex Type 6 — 9-volt battery clip, black
• 1 x Standard Flex Type 7 — 2-pin DIN plug, blue
• 1 x Split Flex Type 1 — powers two pedals from one outlet, black
• 1 x Stack Flex Type 1 — adds voltages of two outlets, white/black

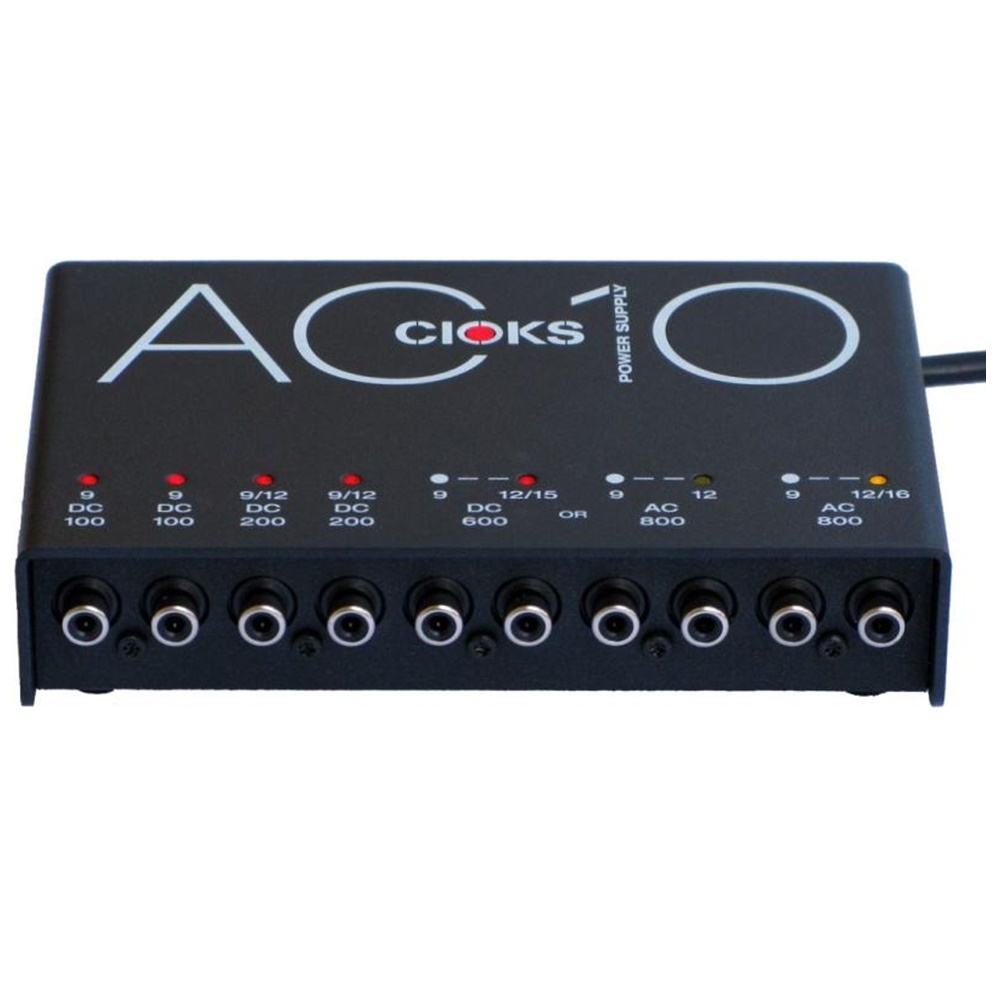

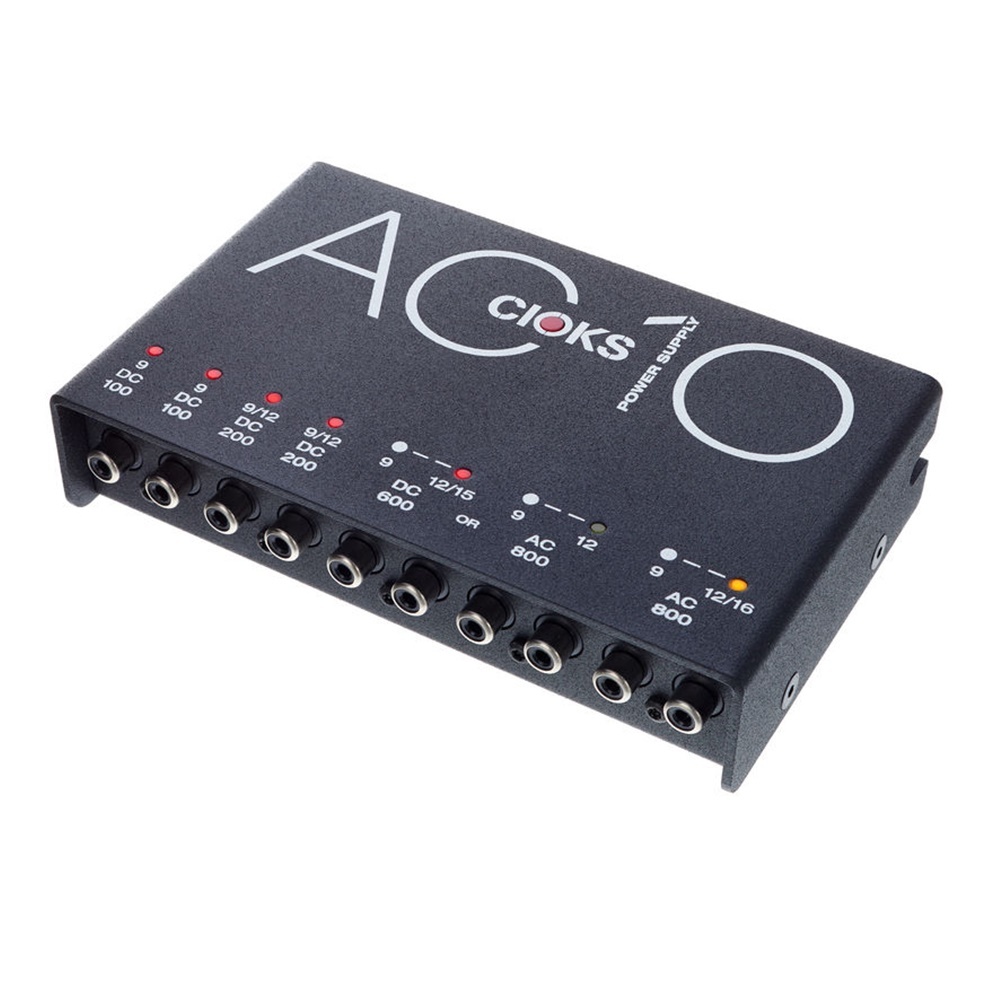

CIOKS AC10 Pedal Power Supply

• 10-outlet DC/AC pedal power supply
• 6 DC outlets power 9, 12, and 15-volt DC effects pedals
• 4 AC outlets power 9, 12, and 16-volt AC effects pedals
• 2-stage switch-mode design includes low-noise multi-stage filtering
• Advanced LED monitoring alerts you to the status of each outlet
• 120-volt or 230-volt power input allows you to take your power supply to most countries
• Includes mounting hardware for Pedaltrain and Temple Audio boards
• Comes with 17 Flex cables for powering most pedals
• Compatible with CIOKS GRIP for drill-free Pedaltrain mounting (CIOKS GRIP sold separately)

Tech Specs

• Type:Pedalboard Isolated Power Supply
• Inputs:120V/230V AC IEC C6 cable (included)
• Outputs:2 x 9V DC 100mA, 2 x 9V/12V DC 200mA, 2 x 9V or 12V/15V DC 600mA, 2 x 9V/12V AC 800mA, 2 x 9V or 12V/16V AC 800mA
• Maximum Output Current:1.2A DC, 800mA AC
• Connectivity:RCA Female Jacks (Cioks power cables recommended)
• Height:1.37"
• Width:6.22"
• Depth:3.85"
• Weight:2.4 lbs.
• Manufacturer Part Number:CIO-AC10
