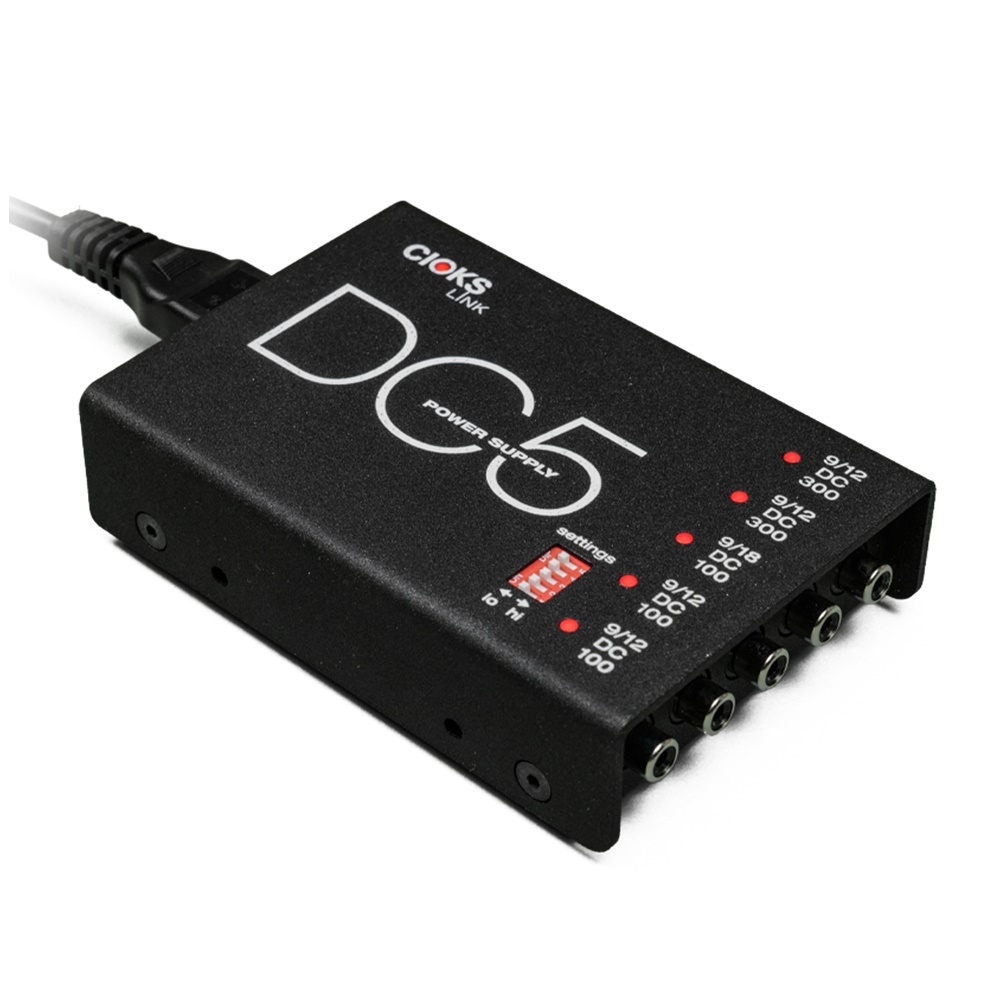

DC5 link is a professional, small and very flat power supply for effect pedals with 5 isolated outlets. Being only 31mm high, it fits under the smallest Pedaltrain board models PT-nano or PT-mini. It offers voltages 9, 12 or 18V and has a total output current of 900mA. The top two switchable 9 or 12V outlets can power any two Strymon, Eventide or other two medium to high current pedals. The middle outlet in 18V setting can power one or two dirt pedals, Pigtronix, MXR or other 18V pedals. The bottom two outlets configurable to either 9 or 12V can power two or even more standard low current pedals when used with Split Flex or 3-way daisy chain Flex. In 12V setting using Stack Flex, they'll power a 24V pedal. If needed, all 5 isolated outlets will give you 9V DC in the default position of the settings switch.

Features:

5 isolated outlets with 9, 12 or 18V

total output current of 900mA

two powerful outlets, 300mA each

one outlet configurable to 18V

high efficiency toroidal transformer

short circuit protection of all outlets

advanced LED monitoring of each outlet

120 or 230V mains voltage operation

detachable mains power cord

with CIOKS unique mains link feature, DC5 easily adds 5 extra isolated outlets to another link power supply

10 Flex cables included

Split Flex included

super flat design, fits under Pedaltrain PT-nano or PT-mini

mounts easily to pedal boards

Specifications:

Outlet 1-2: 9 or 12V DC / 100mA each

Outlet 3: 9 or 18V DC / 100mA

Outlet 4-5: 9 or 12V DC / 300mA each

Size: 130x88x31mm (excl. detachable rubber feet)

Weight: 0,7kg

Warranty period: 5 years worldwide
