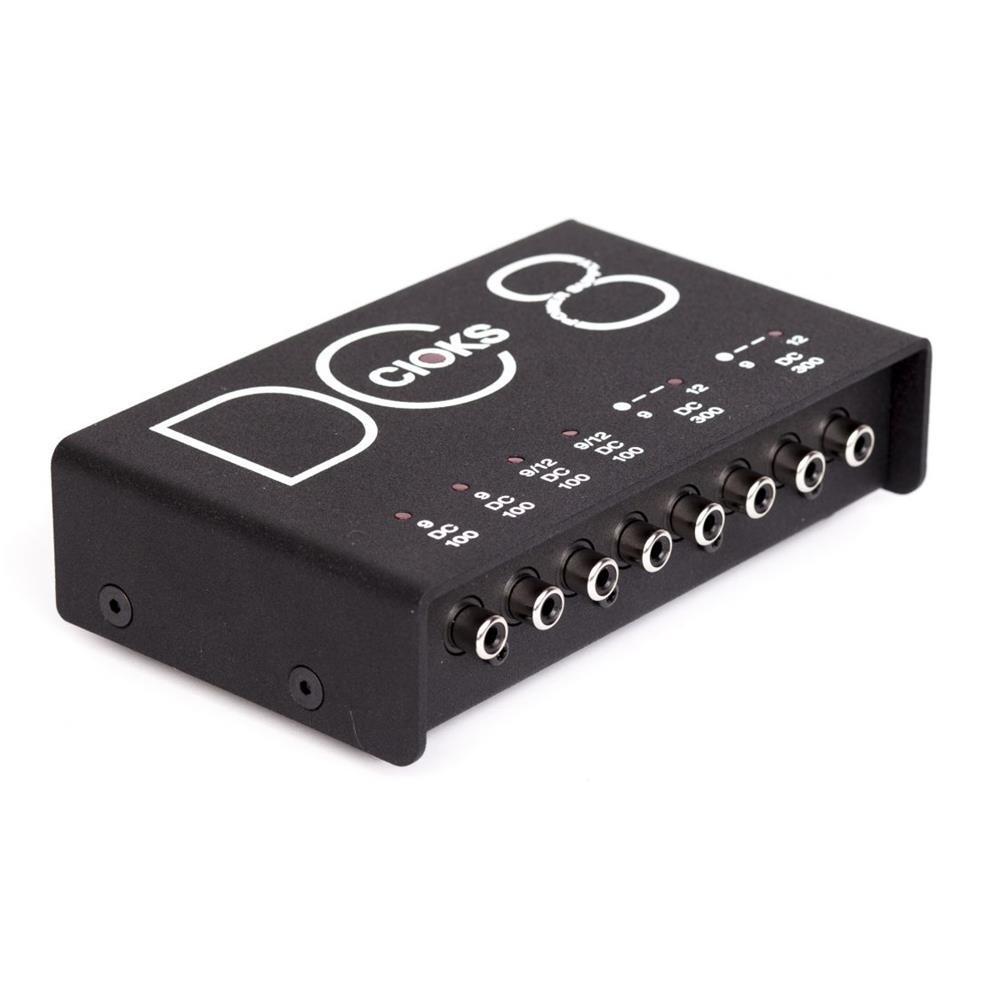

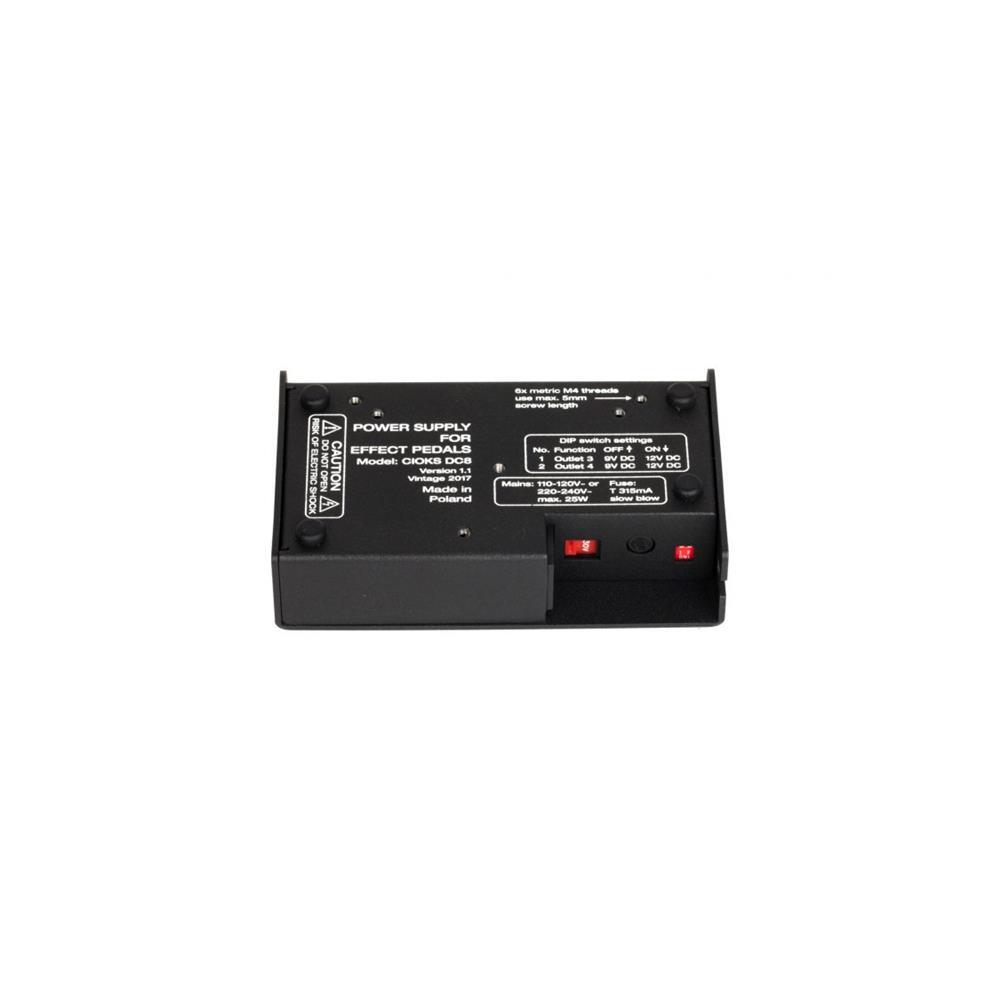

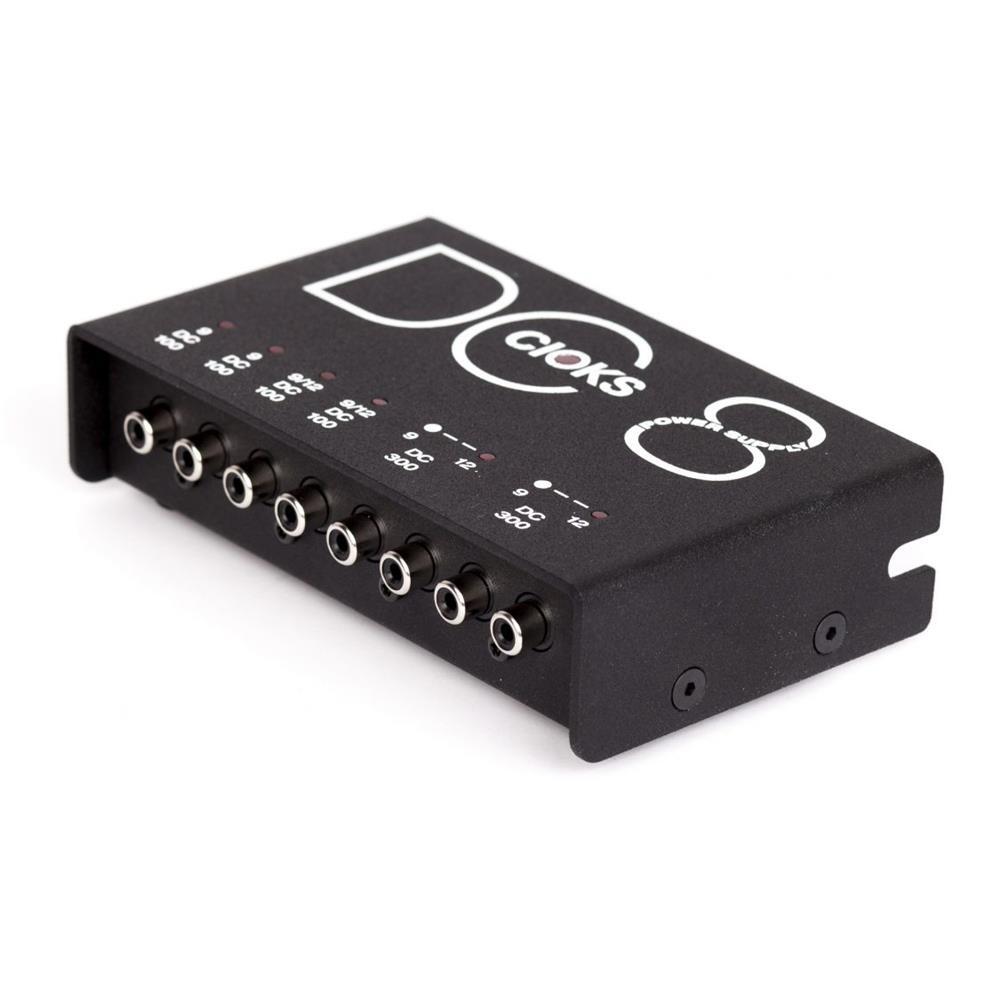

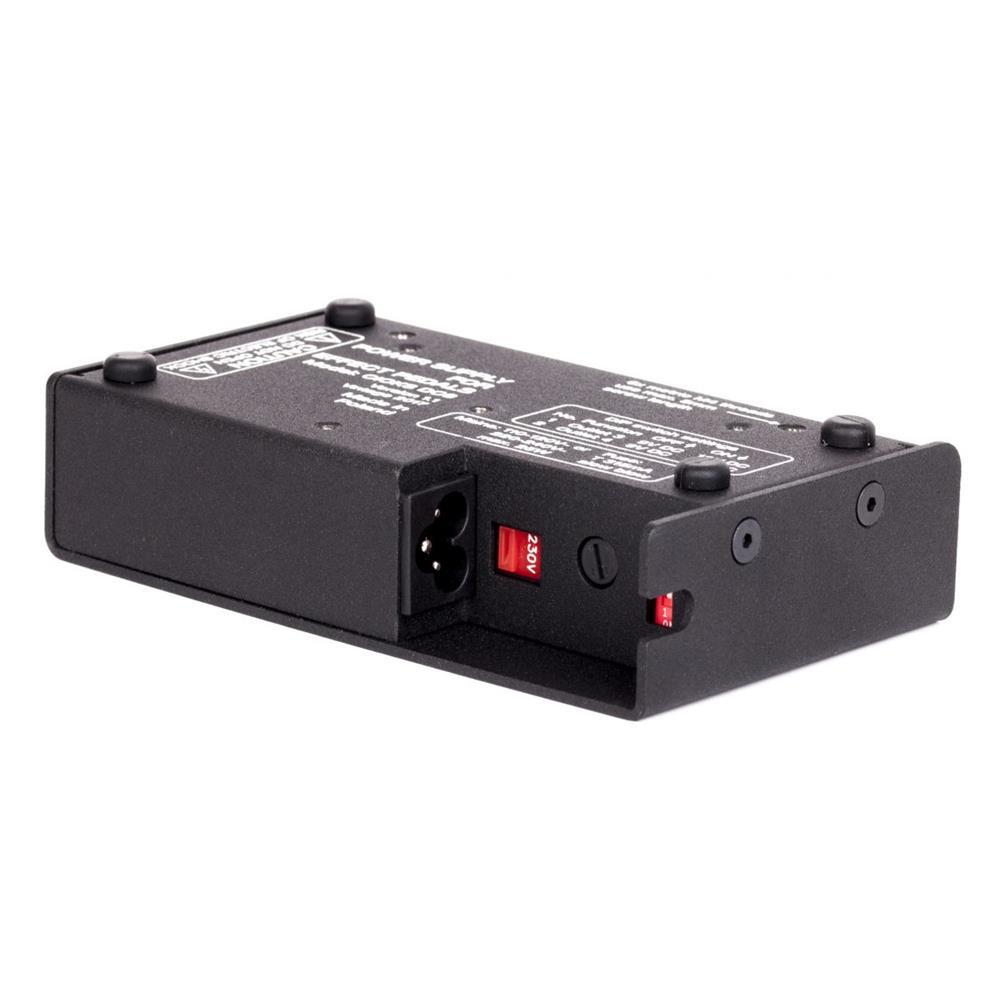

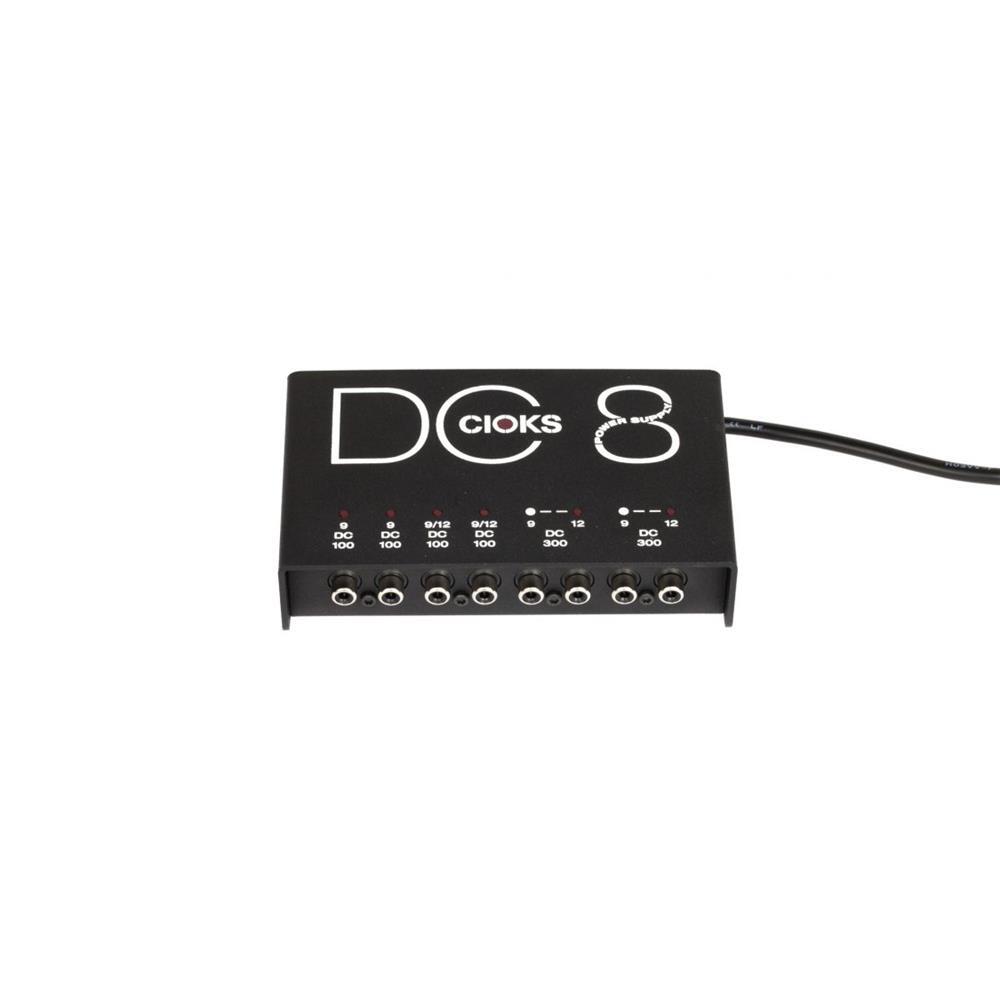

DC8 is a professional medium sized multi-output power supply for effect pedals. It has 8 regulated and well-filtered DC outlets configured in 6 isolated sections. With a total of 1.000mA it’s a perfect solution for small or medium size rigs with pedals only using a DC power source. Its two powerful sections with 300mA each will power pedals like tc Nova or Helicon, Eventides, Strymons, BOSS twins, digital EHX pedals or other which draw a higher current than 100mA. The first 4 isolated outlets offering 4x100mA are ideal for 9 or 12V pedals needing less than 100mA. Combined with the included Stack Flex the DC8 will also power your 18V pedal.

Features

• 8 outlets configured in 6 isolated sections
• high efficiency toroidal transformer
• 2 powerful DC sections with 300mA each
• short circuit protection of all outlets
• advanced LED monitoring of each section
• 120 or 230V mains voltage operation
• a total of 11 Flex cables included
• Split Flex for powering two pedals of one outlet included
• Stack Flex for powering an 18V pedal included
• compatible with Pedaltrain and Temple Audio pedalboards
• a mounting bracket and all pedalboard mounting hardware included

Specifications

• Outlet 1-2: 9V DC / 100mA each
• Outlet 3-4: 9 or 12V DC / 100mA each
• Outlet 5-6: 9 and 12V DC / 300mA
• Outlet 7-8: 9 and 12V DC / 300mA
• Size: 146x88x35mm (excl. rubber feet)
• Weight: 0,9kg

What's in the box?

• CIOKS DC8 power supply
• Mains power cord
• 11 Flex cables:Type 1 – black with 5,5/2,1mm centre negative DC plug x5
• Type 2 – red with 5,5/2,1mm centre positive DC plug x1
• Type 4 – green with 5,5/2,5mm centre positive DC plug x1
• Type 5 – black with 3,5mm tip positive Jack plug x1
• Type 6 – black with 9V battery clip x1
• Split Flex type 1 – black, powers two pedals of a single outlet x1
• Stack Flex type 1 – white/black, adds voltages of two outlets x1
• Pedalboard mounting hardware: mounting bracket, screws, washers, stand-off and a hex key
• Manual
• Product sheet (drill guide)
• Flex guide

Why choose a CIOKS power supply?

• CIOKS is of the first and only companies in the world which specializes in high-end power supplies for effects pedals. 27 years and still going strong!
• Handmade and designed in Europe
• 5-year warranty against manufacturing defects
• Failure rate is less than one in a thousand
• Short circuit protection of all outlets
• Super-rugged construction which can withstand the rigors of touring
• Isolated outputs and balanced power on all models
• Switchable between 120V and 230V
• Advanced LED monitoring on each outlet – CIOKS is the only company to offer this feature
• Ultra-flexible – CIOKS products can power different pedals with a multitude of different mA and voltage requirements as well as AC pedals (select models)
• The CIOKS range caters to everyone from beginners to seasoned touring professionals
• Link-feature (selected products) allows the users to expand their power supply solution in case they need more outlets
• Fits underneath a wide selection of PedalTrain and Temple Audio boards
• All models come with a selection of Flex cables included in different lengths to ensure the ultimate flexibility in pedal board layout.
• Wide selection of Flex cables, including voltage doublers and mA doublers
• RCA connections for the strongest mechanical connection between the power supply outlet and the Flex cable
