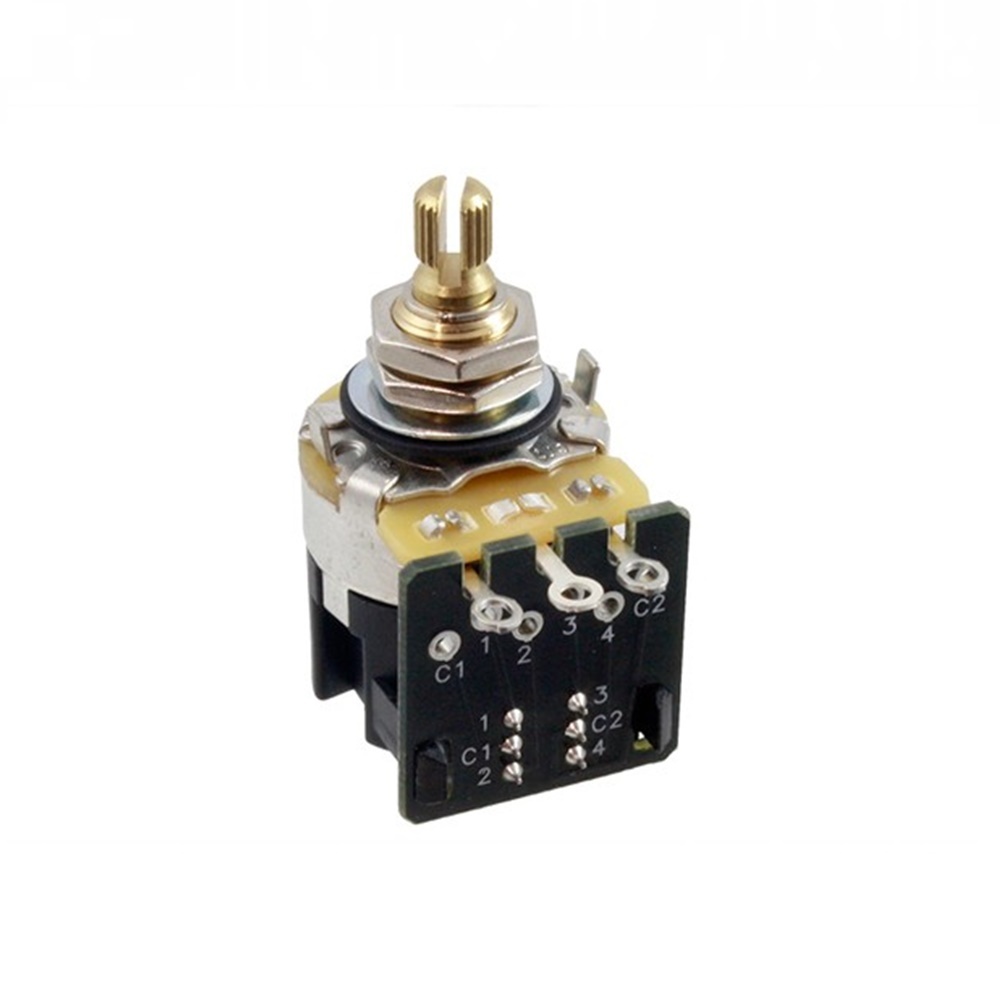

CTS 500k CTS Audio Taper Push Pull Pot – Short Shaft

CTS 500k CTS Audio Taper Push Pull Pot - Short Shaft
CTS 500k CTS Audio Taper Push Pull Pot - Short Shaft - Image 2

Original price was: $31.00.Current price is: $28.00.

FAST
Delivery

EASY
Returns

IN HOUSE
Repairs

1 in stock

Check AU Shipping Cost

Pick-up from store - FREE
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.

International Shipping
Please proceed to checkout to see international rates and avalability.

CTS 500k Audio Taper Push Pull Pot - US Thread and 24 Spline. Includes Nuts, Lock Washer and Dress Washer. Used to control pickup phasing series/parallel switching coil-taps and more.

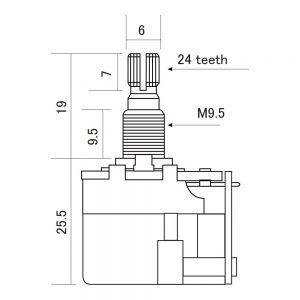

The threaded portion on the shaft is 10mm long. Diameter of the threaded portion of the shaft is 3/8" (9.5mm). Diameter of the Split Shaft / Spline is 6mm.
Requires 1" (25mm) cavity depth.



Additional information

Weight 0.15 kg
type

POTENTIOMETER
