CTS 500k CTS Precision Audio Taper Pot – Split Shaft

Original price was: $23.00.Current price is: $21.00.



FAST
Delivery



EASY
Returns



IN HOUSE
Repairs

4 in stock

Pick-up from store - FREE
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.

Description
Additional information

Top Quality Potentiometers

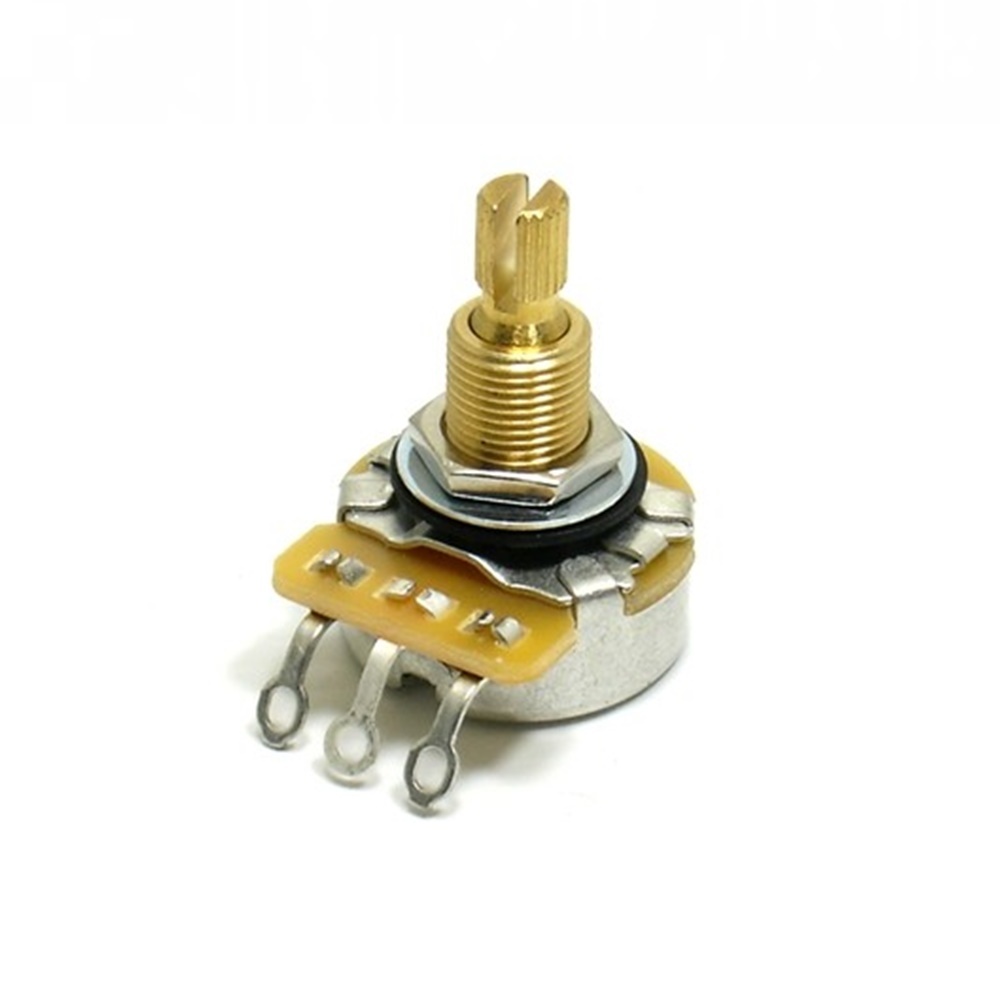

Custom CTS 'USA spec' 500K Precision Audio Taper Pot.

The CTS precision audio taper gives you smoother and more accurate response than you'll get with economy pots. Features longer life brass shaft and tighter resistance tolerance.

Specs:

- USA spec thread: 3/8" x 32.
- 3/8" (9.5mm) diameter brass threaded collar.
- 24 spline (fine) brass split shaft.
- Includes 1 x nut, 1 x dress washer and 1 x lock washer.

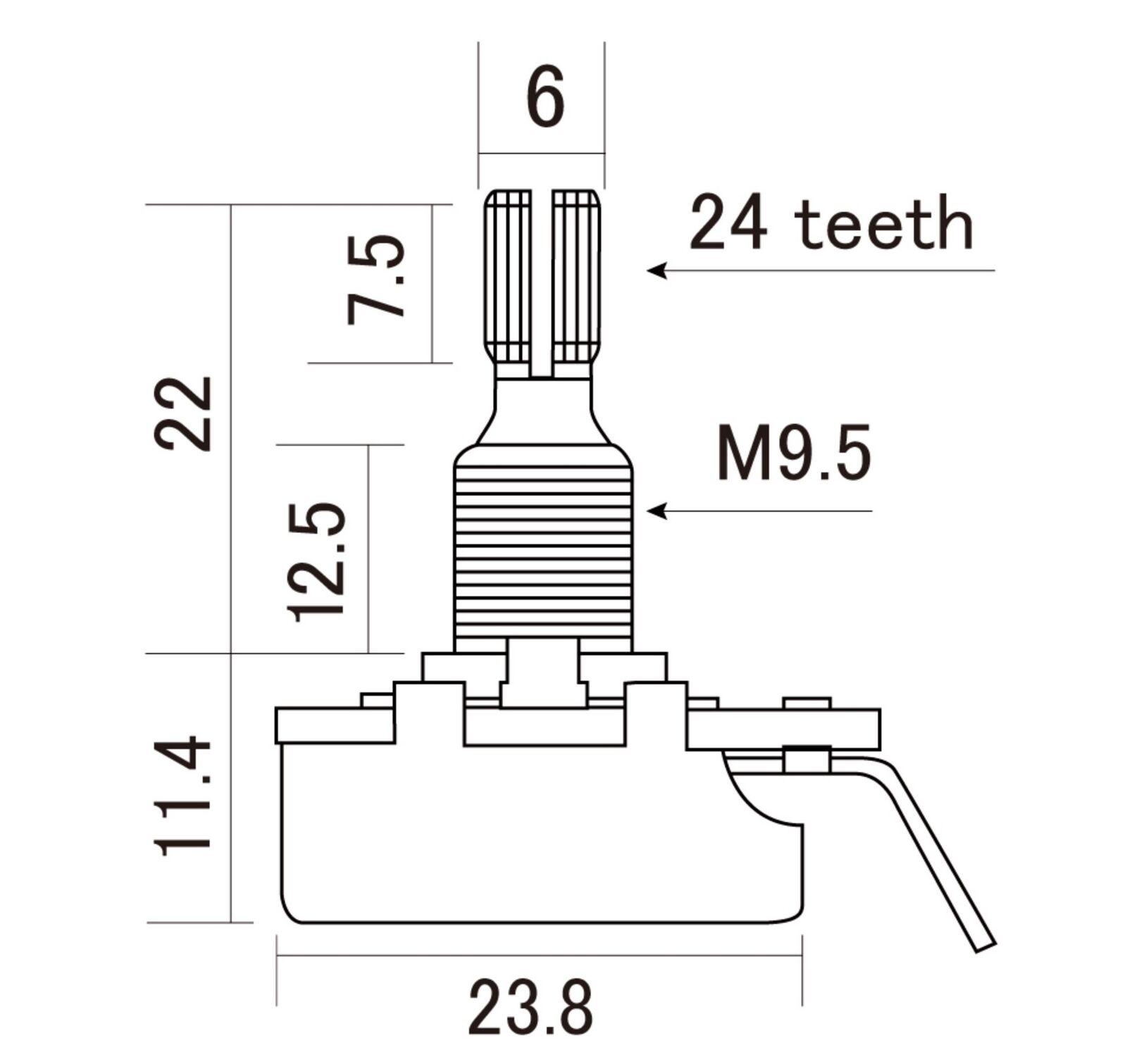

Dimensions:

- The brass threaded collar is 12.5mm long.
- Total length of the shaft to the top of the spline is 22.2mm.
- Split shaft diameter : 6mm.
- Pot casing diameter : 24mm.

Which pot value should you choose?

500K pots are standard controls for humbuckers, and 250Ks are usually used for single-coil pickups. A 250K gives a slightly warmer tone than a 500K, and bleeds off some of the high frequencies to ground.
