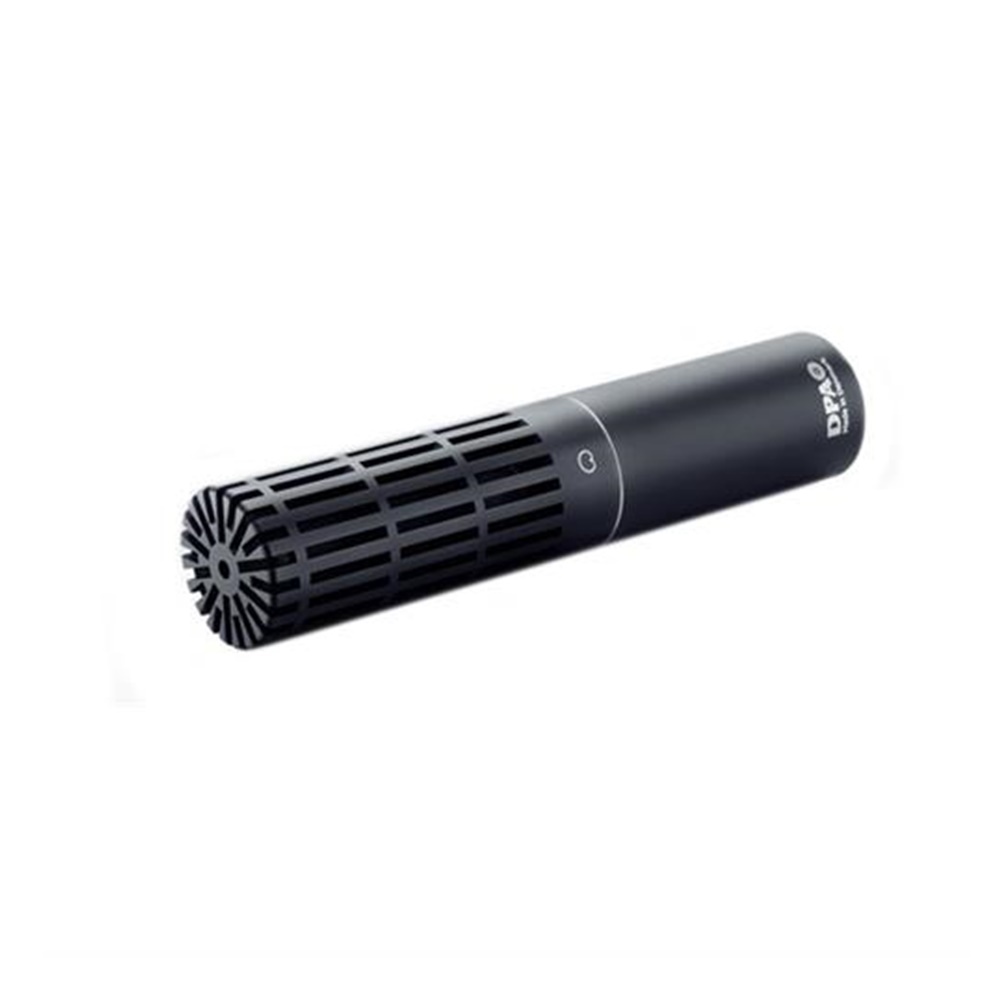

DPA d:dicate 2011C Compact Twin Diaphragm Cardioid Mic Demo C/w warranty
Ex Display Mic, in as new condition comes with DPA full warranty
Distinctive, well-balanced sound
- Blends clarity, richness and dynamics
- Twin Diaphragm Capsule Technology
- Advanced Interference Tube Technology
- Superb stage separation and level control
- Modular flexibility
The d:dicate™ 2011 Twin Diaphragm Cardioid Mic is a directional microphone. The distinctive sound of this microphone is well balanced. It bridges the gap between the extreme sound quality of the d:dicate™ Recording Microphone Series and our well-known d:screet™ Miniature Microphone Series.
Two opposite-facing miniature capsules are custom rebuilt inside this microphone. They are placed into a double-diaphragm, one-capsule composition. This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area. These capsules provide fast impulse response and large frequency bandwidth. The capsules are loaded to the supreme d:dicate™ Microphone series preamps, which gives the sound more air and precision.
Specifications
Directional pattern | Cardioid |
Principle of operation | Pressure gradient, with interference tube |
Cartridge type | Pre-polarized condenser, Twin Diaphragm Capsule |
Frequency range | 20 Hz - 20 kHz |
Frequency range, ±2 dB, at 30 cm (11.8 in) | 50 Hz - 17 kHz with 3 dB soft boost at 12 kHz |
Sensitivity, nominal, ±2 dB at 1 kHz | 10 mV/Pa; -40 dB re. 1 V/Pa |
Equivalent noise level, A-weighted | Typ. 20 dB(A) re. 20 µPa (max. 23 dB(A)) |
Equivalent noise level, ITU-R BS.468-4 | Typ. 33 dB (max. 36 dB) |
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) | Typ. 74 dB(A) |
Total harmonic distortion (THD) | < 1% up to 137 dB SPL peak |
Dynamic range | Typ. 117 dB |
Max. SPL, peak before clipping | 146 dB |
Switchable attenuator, filters etc. | 0 dB / -20 dB |
Output impedance | 100 Ω |
Minimum load impedance | 2 kΩ |
Cable drive capability | 100 m (328 ft) |
Output balance principle | Impedance balancing with Active Drive |
Common mode rejection ratio (CMRR) | > 50 dB |
Power supply (for full performance) | 48 V Phantom power (± 4 V) |
Current consumption | 2.8 mA |
Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
Color | Matte black |
Weight | 64 g (2.3 oz) |
Microphone diameter | 19 mm (0.75 in) |
Microphone length | 92 mm (3.6 in) |
Maximum output voltage, RMS | > 4 V |
Polarity | +V at pin 2 for positive sound pressure |
Temperature range | -40°C to 45°C (-40°F to 113°F) |
Relative humidity (RH) | Up to 90% |
SKU | DP-2011C |
Barcode # | 5713055005375 |
Brand | DPA |
Unit Of Measure | ea |
