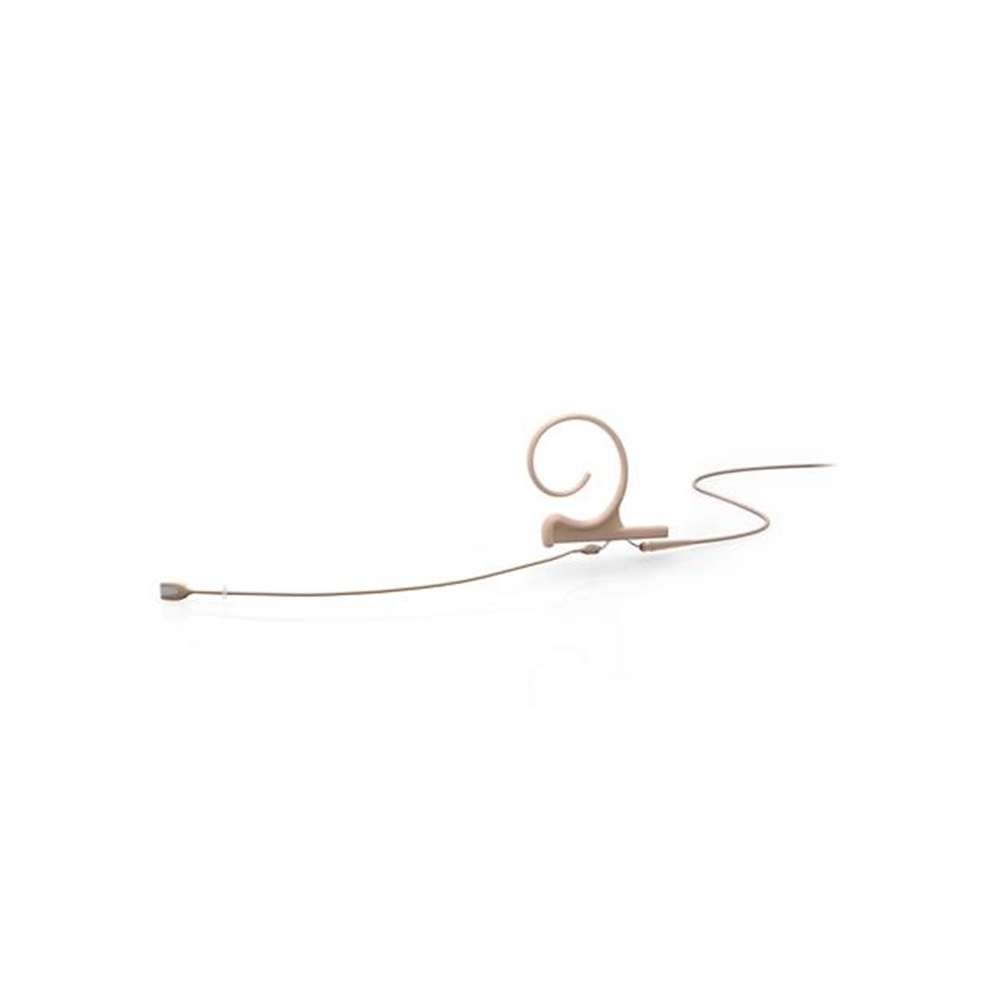

DPA d:fineƒ?½ 4188 Slim Directional Flex Earset Mic, 120 mm Boom, Beige, MicroDot
SKU: DP-FIDF00
WAS $702.53
NOW $632.28
SAVE 10%!
Calculate Shipping :
Standard Shipping - FREE
Express Shipping - $16.50
Express International Shipping - $61.60
Pick-up from store - FREE
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.
Share This Item :
Ex Display Mic, comes with DPA full warranty
Legendary sound - flexible headset
- Pristine audio quality
- Lightweight and flexible
- Easy mounting to the left or right
- Minimal visual impact
- Resistant to humidity
- Flexible adapter system fits most professional wireless systems
Specifications
| Directional characteristics: | Cardioid |
| Principle of operation: | Pressure gradient |
| Cartridge type: | Pre-polarized condenser |
| Frequency range: | 20 Hz - 20 kHz |
| Frequency range, ± 2 dB, Near field 2-3 cm (0.8-1.2 in): | 100 Hz - 20 kHz with 3 dB soft boost at 8 - 20 kHz |
| Sensitivity, nominal, ± 3 dB at 1 kHz: | 6 mV/Pa; -44 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted: | Typ. 28 dB(A) re. 20 µPa (max. 30 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4: | Typ. 40 dB (max. 42 dB) |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): | Typ. 66 dB(A) |
| Total Harmonic Distortion (THD): | -1 % up to 123 dB SPL peak; -1 % up to 120 dB SPL RMS sine |
| Dynamic range: | Typ. 95 dB |
| Max. SPL, peak before clipping: | 144 dB |
| Output impedance: | From MicroDot: 30 - 40 ohm. From DAD6001-BC: 100 ohm |
| Cable drive capability: | Up to 300 m (984 ft) with DAD6001-BC XLR adapter |
| Output balance principle: | Signal balanced with DAD6001-BC XLR adapter |
| Common Mode Rejection Ratio (CMRR): | +60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR adapter |
| Power supply (for full performance): | Min. 5 V to max. 50 V through DPA adapter for wireless systems; 48 V phantom power +/- 4 |
| V with DAD6001-BC XLR adapter | |
| Current consumption: | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR adapter. |
| Connector: | MicroDot |
| Weight | |
| Microphone boom: | 0.8 g (0.03 oz) |
| Earhook: | 1.1 g (0.04 oz) |
| Cable: | 6.6 g (0.23 oz) |
| Total: | 8.5 g (0.30 oz). |
| Microphone head size (h x w x d): | 9.5 x 5.3 x 2.9 mm (0.37 x 0.21 x 0.11 in) |
| Capsule diameter: | 5.4 mm (0.2 in) |
| Mic boom length: | 120 mm (4.7 in) |
| Cable length: | 1.3 m (4.3 ft) |
| Cable color: | beige |
| Cable diameter: | 1.6 mm (0.06 in) |
| Polarity: | +V at MicroDot pin for positive sound pressure (and pin 2 on DAD6001-BC XLR adapter) |
| Electro Magnetic Compatibility (EMC): | Fully compatible |
| Temperature range: | -40 °C to 45 °C (-40 °F to 113 °F) |
| Relative Humidity (RH): | Up to 90% |
| SKU | DP-FIDF00 |
| Brand | DPA |
| Unit Of Measure | ea |
