Ex Display Mic, comes with DPA full  warranty

Our toughest miniature microphones

  • The most rugged and reliable version of DPA miniatures
  • Stainless steel housing, heavy-duty strain relief and thick cable
  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Sturdy but small for flexible and easy concealment
  • Modular adapter system fits most professional wireless systems

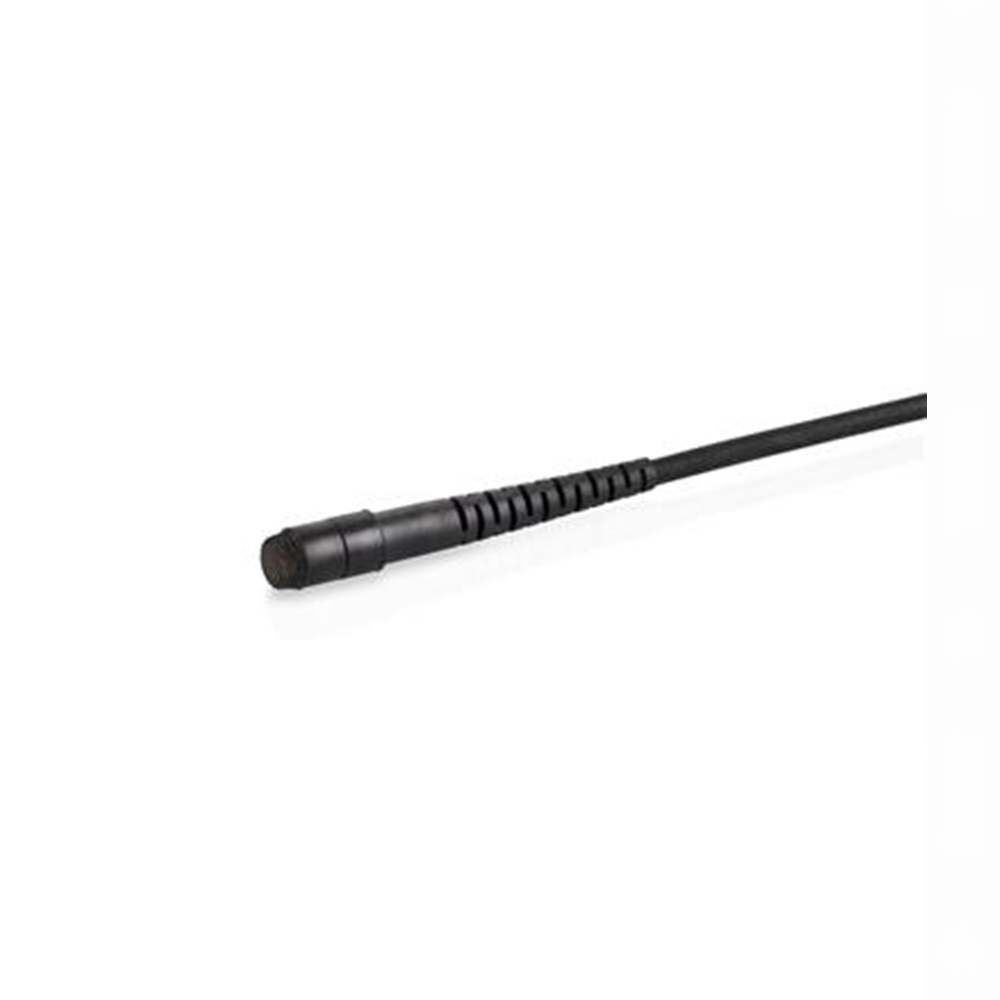

Made for situations where you require maximum security and where the visual size of the mic is less important. The d:screet™ Heavy Duty Mic Series features a stainless steel housing, a heavy-duty cable relief and a thick 2.2 mm (0.09 in) cable. d:screet™ Heavy Duty microphones are a more robust version of the original mics they are based upon.



Directional characteristics: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser element with vertical diaphragm
Frequency range, ± 2 dB: Soft boost grid: 20 Hz – 20 kHz, 3 dB soft boost at 8 – 20 kHz. High boost grid: 20 Hz – 20 kHz, 10 dB boost at 12 kHz.
Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equiv. noise level ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 71 dB(A)



Total harmonic distortion (THD): < 1 % THD up to 123 dB SPL peak; < 1 % THD up to 120 dB SPL RMS sine
Dynamic range: Typ. 100 dB
Max. SPL, peak before clipping: 134 dB
Output impedance: 30 – 40 ohm
Cable drive capability: Up to 300 m (984 ft)
Power supply: For wireless For wireless systems: Min. 5 V – max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance.
Connector: MicroDot



Color: Black,
Microphone weight: 7.5 g (0.26 oz) incl. cable and MicroDot connector
Microphone diameter: 5.4 mm (0.21 in)
Microphone length: 12.7 mm (0.5 in)
Cable length: 1.8 m (5.9 ft)
Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
Relative Humidity (RH): Up t 90%
SKU DP-SCO60B00-H
Barcode # 5713055012519
Brand DPA
Unit Of Measure ea
