Ex Display Mic, comes with DPA full  warranty

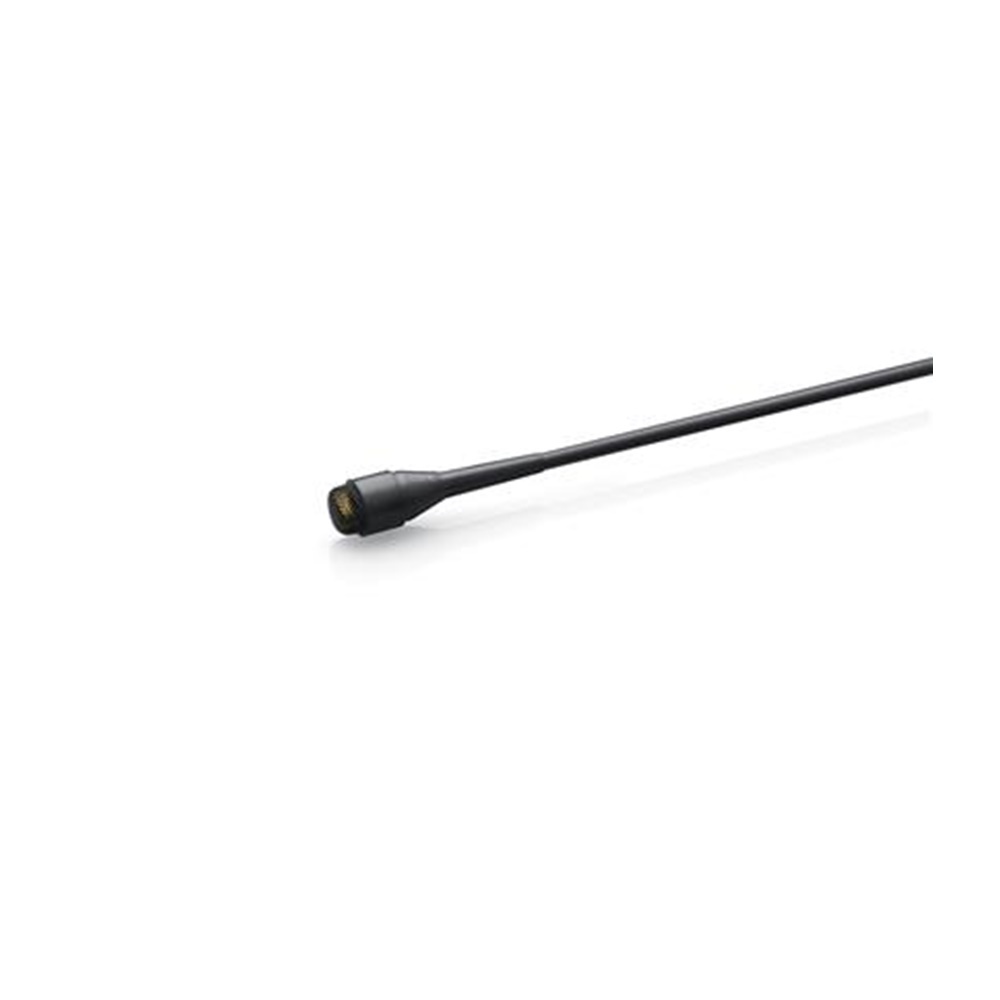

d:screet™ 4060 Series Miniature Omnidirectional Microphone

Microphone Configuration

SOUND PRESSURE LEVEL (SPL)

  • Normal SPL (4060/4160/4660)

AMPLIFIER TECHNOLOGY

  • CORE by DPA

COLOR

  • Black

TERMINATION

  • MicroDot (for use with detachable connectors)

WIRED OR WIRELESS

  • Microdot Only

ACCESSORIES

    • High boost grid
    • Soft boost grid



Big sound - small footprint

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems
  •



This microphone is small in size, but mighty in flexibility. Due to its miniature size, it exhibits an exceptionally accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. The omnidirectional pattern also makes it less sensitive to handling noise as well as pop and wind noise.

We originally designed this microphone for use with wireless systems in theaters but today it is one of the most loved mics for television and film applications as well. It is especially suited for capturing speech in all of its nuances and can be used to close-mike a wide range of instruments. This microphone handles sound pressure levels up to 134 dB before clipping occurs. This mic is well suited for applications where the sound source is more remote or damped and you need to have a good balance signal versus noise.


Specifications

Directional pattern Omnidirectional
Principle of operation Pressure
Cartridge type Pre-polarized condenser
Frequency range 20 Hz - 20 kHz
Frequency range, ±2 dB Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz 20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 35 dB (max. 38 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 71 dB(A)
Total harmonic distortion (THD) - Legacy < 1% THD up to 123 dB SPL peak; < 1% THD up to 120 dB SPL RMS sine
Total harmonic distortion (THD) - CORE < 1% THD up to 129 dB SPL peak
Dynamic range - Legacy Typ. 100 dB
Dynamic range - CORE Typ. 106 dB
Max. SPL, peak before clipping 134 dB
Output impedance 30 - 40 Ω
Cable drive capability Up to 300 m (984 ft)
Power supply (for full performance) For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance
Connector MicroDot
Color Black, beige, brown or white
Weight 7.5 g (0.26 oz) incl. Cable and MicroDot connector
Microphone diameter 5.4 mm (0.21 in)
Microphone length 12.7 mm (0.5 in)
Cable length 1.8 m (5.9 ft)
Polarity Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
SKU DP-4060-OC-B00
Brand DPA
Unit Of Measure ea
