Speech intelligibility - low noise

  • Outstanding audio quality
  • Wireless podium mic capability
  • Highly directional – very isolated
  • High rejection of radio frequency interference
  • Sleek Scandinavian design

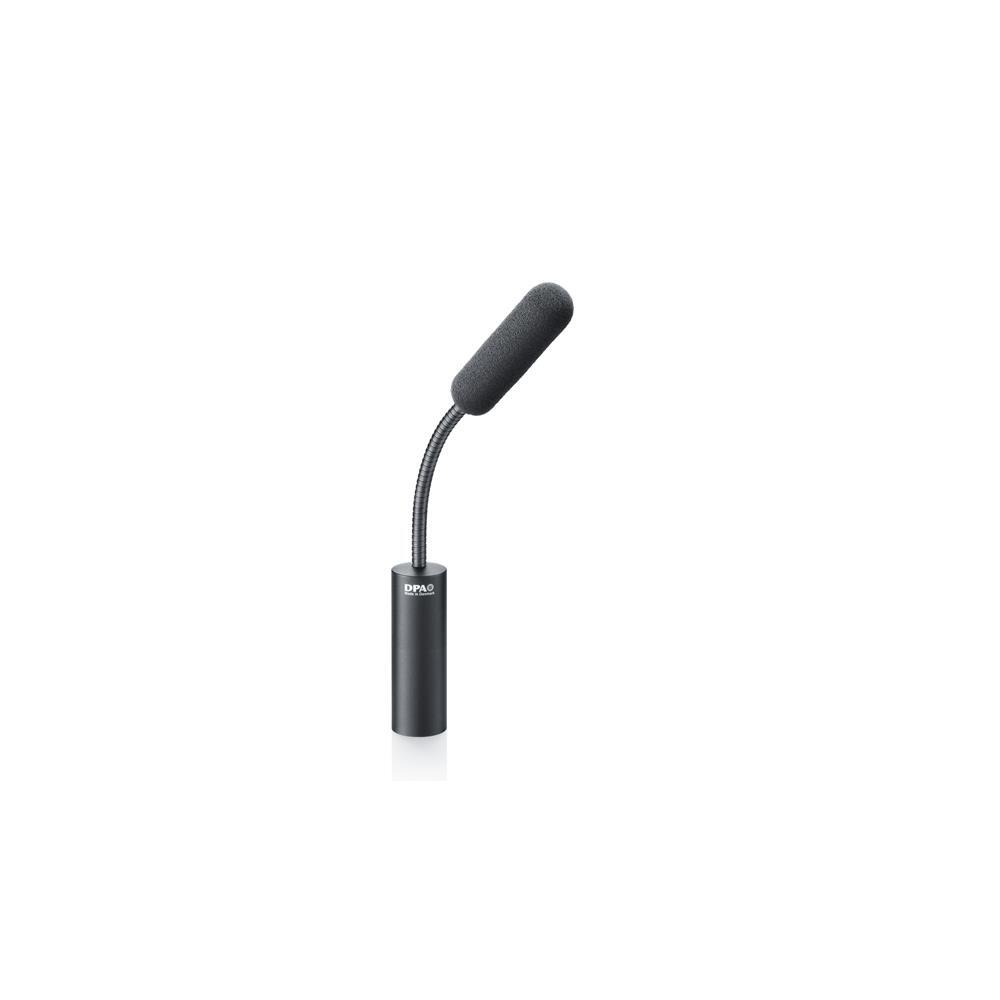

DPA gooseneck microphones have quickly become a very popular choice for podium mics as well as for conference room usage as either tabletop or ceiling mount.


Specifications


Directional characteristics: Supercardioid
Principle of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz – 20 kHz
Frequency range, ± 2 dB, 20 cm (7.9 in) distance: 100 Hz – 15 kHz with 3 dB diffuse field boost at 8-15 kHz.
Permanent 2nd order low-cut filter (-3 dB at 80 Hz)
Sensitivity, nominal, ± 3 dB at 1 kHz: 16 mV/Pa; -36 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): 71 dB(A)
Total Harmonic Distortion (THD): <1 % up to 125 dB SPL peak
Total Harmonic Distortion (THD): <1 % up to 122 dB SPL RMS sine
Dynamic range: Typ. 102 dB
Max. SPL, peak before clipping: 136 dB
Output impedance: 100 Ω
Minimum load impedance: 2 kΩ
Cable drive capability: Up to 300 m (984 ft)
Output balance principle: Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR): > 50 dB
Power supply (for full performance): 48 V phantom power ± 4 V
Current consumption: 3.5 mA
Connector: XLR-M
Polarity: +V at pin 2 for positive sound pressure
Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
SKU DP-SC4098-BX15
Brand DPA
Unit Of Measure ea
