The DuGyte MX 5CM is the first single cable, AC powered Pedalboard Connection System developed for use with pedal boards like Helix, Fractal and Boss, to name a few or AC Mains connected DC isolated power supplies like the Voodoo Labs, Viper, Zuma etc.

Each DuGyte MX 5CM contains Humbuster cable technology* in the Amp, and Effects Loop Return channels allowing for 4 or even 5 cable method connection configurations, but using just one cable. Another great feature of all MX Series products is the inclusion of AC ground isolation. Only available in the MX Series, the AC Ground isolation ensures there is no ‘extra or added’ noise from ground loops or bad ground issues within the AC power supply to your pedalboard.

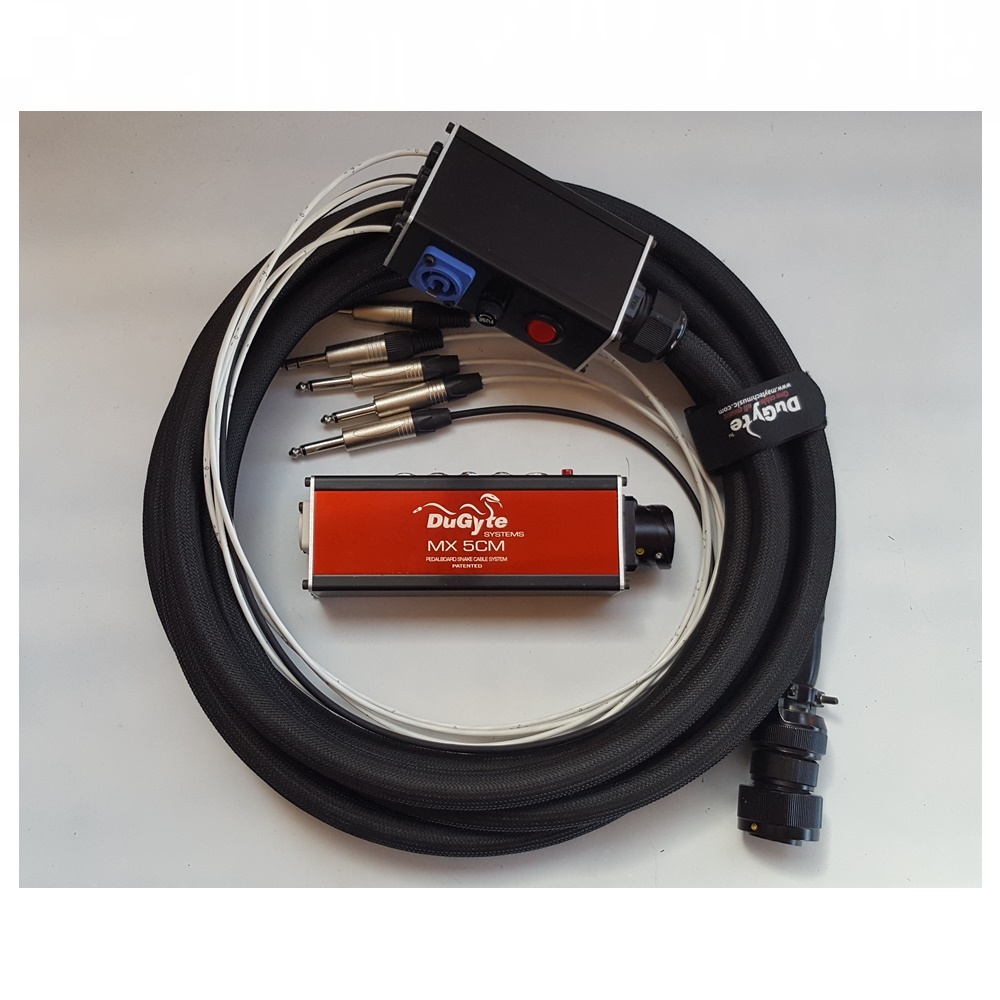

MX 5CM System Components

1. Pedalboard Junction Box
2. All-In-One Cable & Cable Box
3. PowerCon AC Mains Input Cable
4. PowerCon AC Mains Output Cable

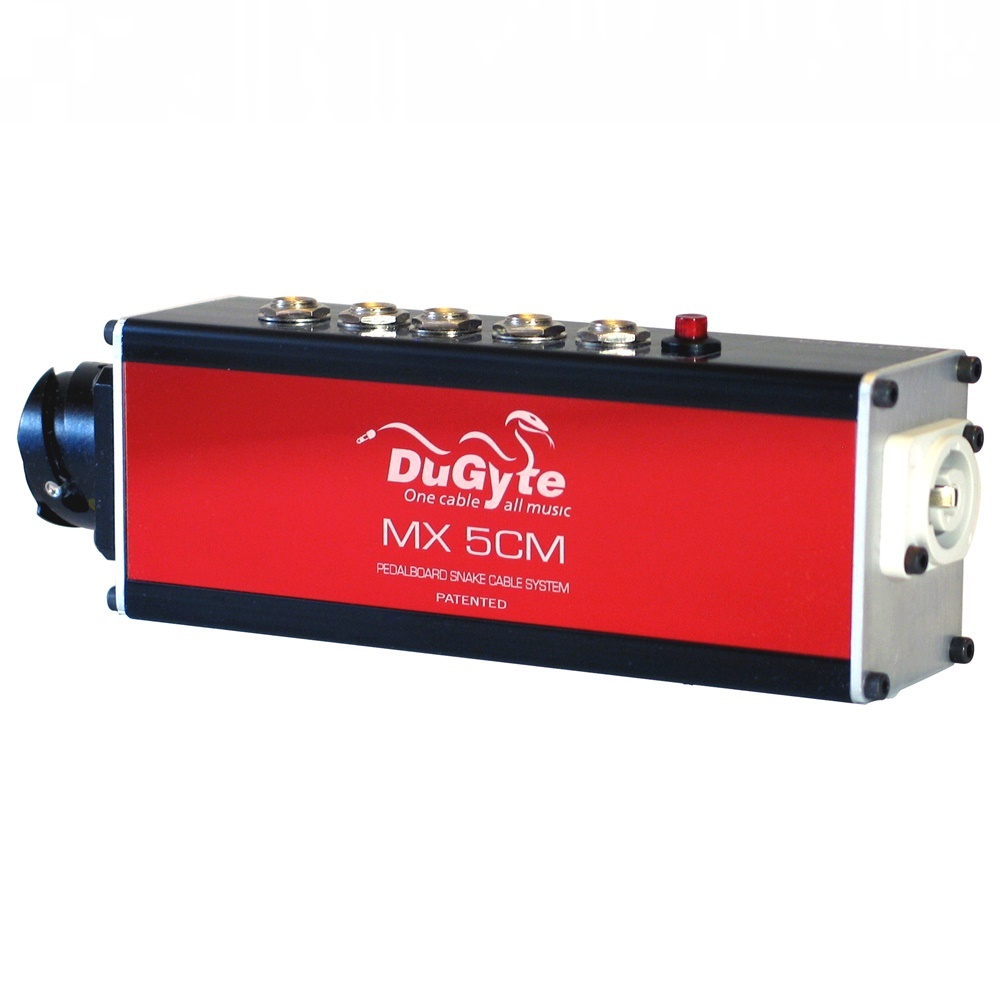

MX 5CM Pedalboard Junction Box

• Five (5) Audio Signal Inputs
• Ground Lift Switch
• PowerCon (Grey) AC Mains Output Receptacle

MX 5CM Cable Box

• Five (5) Audio Signal Cables
• PowerCon (Blue) AC Mains Input Receptacle
• On/Off Power Switch
• Power Fuse

The MX 5CM All-In-One cable contains multiple mono (including Humbuster) and stereo signal lines and a 100/240 VAC 50/60Hz power line that uses PowerCon connectors for a safe, secure connection. Each 5CM Cable is braided for extra external protection. [Note: * Humbuster cable technology is a trademark of Fractal Audio]

MX 5CM Pedalboard Junction Box

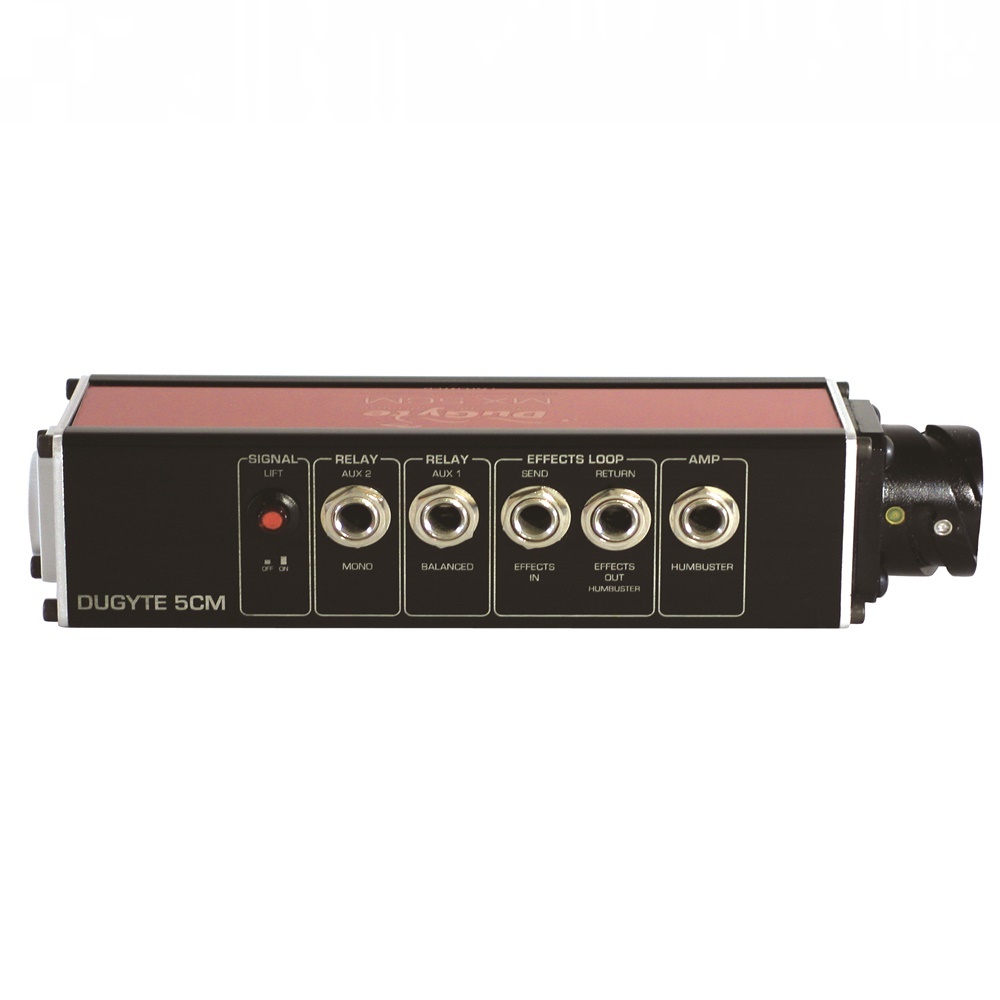

Signal Sockets

• Amp – Mono Jack – Input to amplifier (Humbuster line*)
• Effects Loop Return -Mono Jack – Effects input to amplifier (Humbuster line*)
• Effects Loop Send – Mono Jack – Effects output from amplifier
• Relay Aux-1 – Stereo Jack – for Footswitch or Other Input/Output
• Relay Aux-2 -Mono Jack – Wireless Loop back or Other Input/Output
• Ground Lift Switch – Ground lift for amp line

Power Connections

• PowerCon Receptacle [Grey Type] – Mains Output Cable to IEC Input of multi-effects system or AC/DC power supply.

MX 5CM Cable Box

Signal Connections

• Amp – Mono Plug – Input to amplifier (Humbuster Cable*)
• Effects Loop Return – Mono Plug – Effects input to amplifier (Humbuster cable*)
• Effects Loop Send – Mono Plug – Effects output from amplifier
• Relay Aux-1 – Stereo Plug – for Footswitch or Other Input/Output
• Relay Aux-2 – Mono Plug – Wireless Loopback or Other Input/Output

Power Connections

• PowerCon Receptacle [Blue Type] – for connecting mains power into the system.
• Power On/Off switch

[Note: * Humbuster cable technology is a trademark of Fractal Audio]

DuGyte Cable Channels & Connections

DuGyte All-In-One Cable Loom

PVC jacketed snake cable consisting of 24 AWG stranded bare annealed copper, polypropylene insulated signal channels individually shielded and jacketed. Single AC Mains Power channel with multi-conductor 14 AWG stranded bare copper , PVC insulated and individually shielded.

1. Signal Lines
   • Conductor
     • AWG Size and Stranding: 24 AWG 7 strands 32 AWG
     • Material: Bare annealed copper
   • Insulation Material: Polypropylene
   • Shield: Aluminum/polyester tape and 24 AWG 7/32 tinned copper drain wire
   • Pair Jacket Material: White polyvinyl chloride
2. AC Power Line
   • Conductor
     • AWG Size and Stranding: 14 AWG 19 strands
     • Material: Bare annealed copper
   • Insulation Material: Polyvinyl chloride
   • Shield: Aluminum/polyester tape and 18 AWG 7 strand tinned copper drain wire
3. Cable Assembly
   • Jacket Material: Matte polyvinyl chloride
   • Jacket Color: Black
4. Electrical Specifications
   • Capacitance @ 1 kHz:
     • Between conductors: 25 pF/ft.
     • Conductor to shield: 45 pF/ft.
   • Characteristic Impedance: 60 ohms nominal
   • Resistance at 20C: 24.5 ohms/1000 ft.
