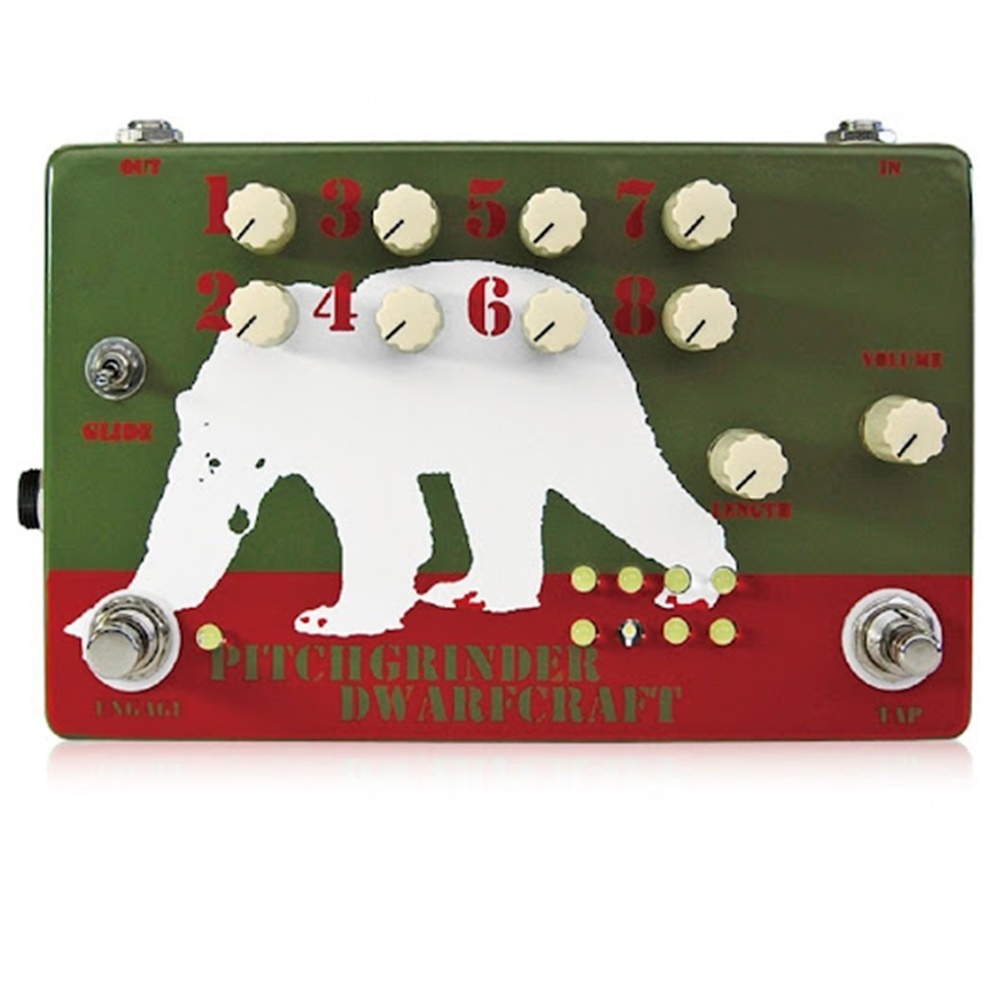

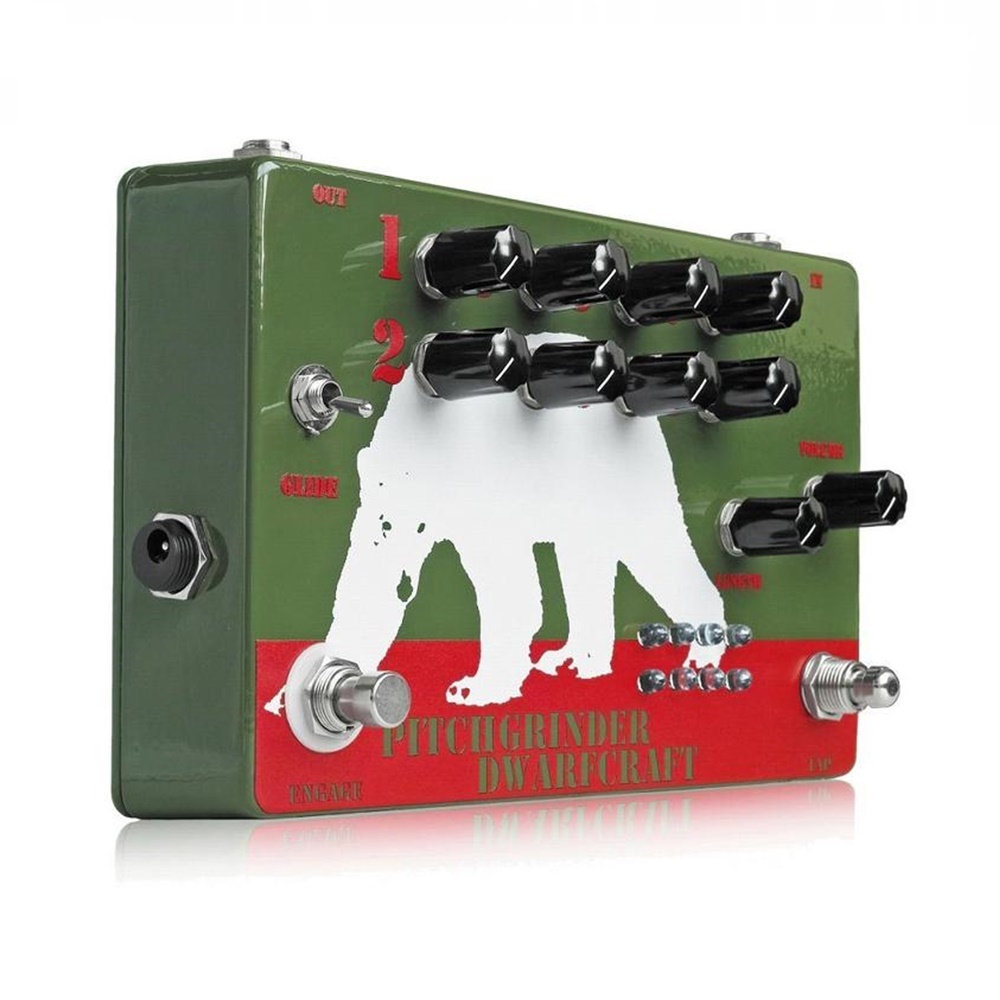

Dwarfcraft Pitch Grinder - 8 Step / 8-Bit Sequenced Pitch Shifter Pedal

The Dwarfcraft Devices Pitch Grinder is a sequenced pitch shifter that breaks down your guitar’s input into a lo-fi, 8-bit signal, and then converts it into a sequence of up to eight user tunable tones. It is perfect for use creating low-fi arpeggios. Each stage in the segment has a control knob that lets you select a discrete shift in your guitar’s signal from one octave below the note you play to two octaves above. The Length control determines how many equally timed stages you string together, from one to eight, with one dedicated LED per stage indicating when each is active. Use the Engage footswitch to start the effect and step on the Tap Tempo footswitch to set your timing. Hold the Tap switch down to hold on any single stage, when you let go the segment will resume its cycle from that stage on. Select a segment of only one stage for a low-fi drone, and use the Tap switch to cycle to the next stage. The Glide switch activates a fluid ascending or descending glide toward the next note in the sequence. The Dwarfcraft Pitchgrinder is wired for 9vDC operation only.

Features:
• 8 - Pitch Shift Controls
• 8 - LED Segment Indicators
• 8 - Bit Signal Conversion
• Length Control
• Volume Control
• Tap Tempo
• Engage/Bypass Switch
• 3-Position Glide Switch
• 7.75” (19.68 cm) x 4.875” (12.38 cm) x 2.25” (5.71 cm)
• 9vDC Operation (No Battery)
