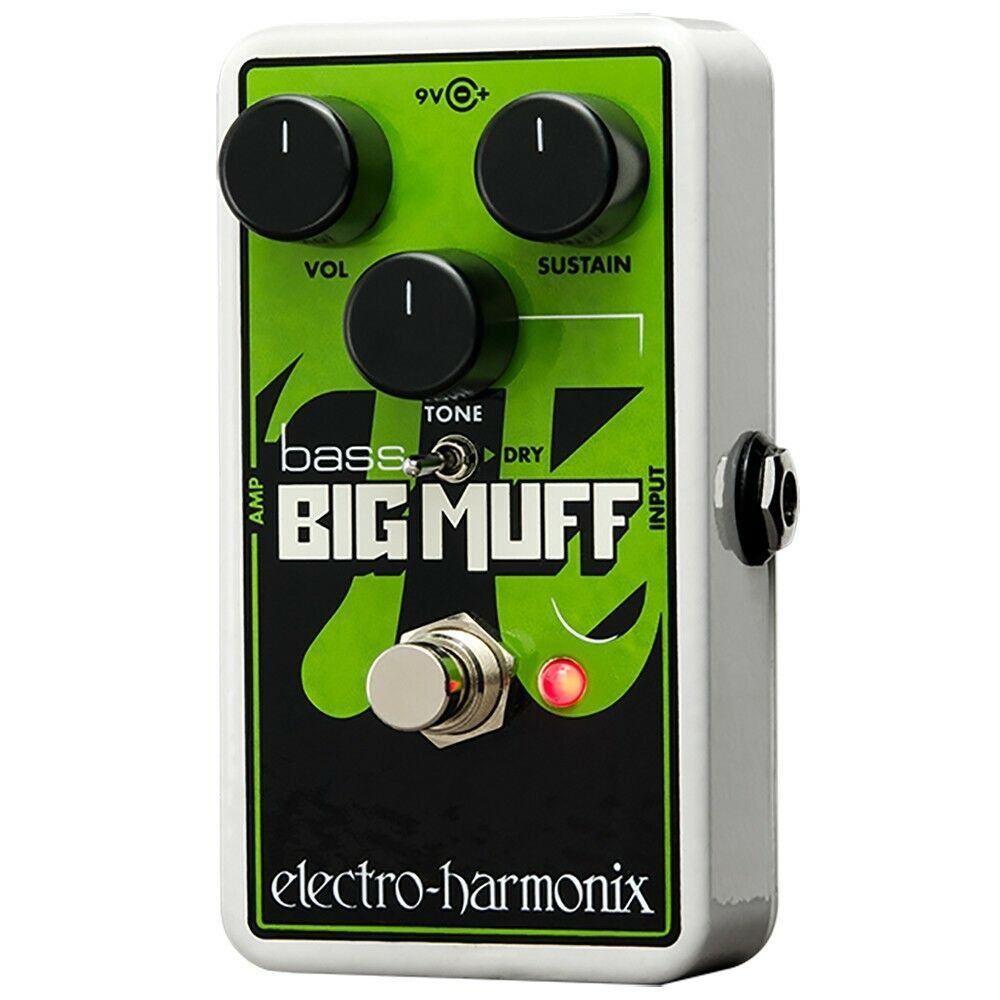

Electro-Harmonix Nano Bass Big Muff Distortion Pedal

Anchor your low end with the legendary, crushing grit that has defined rock, metal, and electronic bass lines for decades. The Electro-Harmonix Nano Bass Big Muff Distortion Pedal packs the unmistakable, thunderous roar of the full-sized Bass Big Muff into a compact, pedalboard-friendly nano footprint. Inspired by the iconic "battle-tank green" Russian Big Muff circuit, this pedal is custom-voiced to deliver everything from a subtle, harmonically rich overdrive to a massive, wall-of-fuzz saturation—all while keeping your low frequency response tight, punchy, and clear.

Angkor Music Technical Evaluation: Russian-Voiced Gain Structure & Low-End Conservation

Traditional guitar fuzz circuits often clip the lower frequencies, which can cause bass guitars to sound thin or get lost in a live band mix. The Nano Bass Big Muff solves this with a specialized internal gain structure based on vintage green Russian parameters, featuring optimized input filtering that allows deep bass frequencies to pass through unclipped. By managing your drive with the interactive Sustain, Tone, and Volume controls, you can dial in precise harmonic saturation without sacrificing the fundamental sub-bass punch needed to lock in with the kick drum.

E-E-A-T Studio Routing: Dry Switch Parallel Blending & Mechanical True Bypass

At Angkor Music, our pro-audio specialists highly recommend the Nano Bass Big Muff for both live touring rigs and studio tracking. Dry Parallel Mix Switch: Flipping this toggle blends your unaffected, clean bass signal at unity level directly with the fuzz circuit. This preserves your natural note definition and picking attack, even under extreme distortion. True Bypass Switching: When the pedal is switched off, mechanical true bypass routing ensures your direct instrument signal passes through with zero tone sucking or high-frequency loss.

Shop All Effects Pedals →

Technical Specifications

  • Brand: Electro-Harmonix (EHX)
  • Model Portfolio: Nano Distortion Series
  • Circuitry Architecture: Pure Analog Fuzz / Overdrive
  • Sonic Voicing Profile: Vintage Green Russian Big Muff Architecture
  • Bypass Switching Mode: Mechanical True Bypass Hardware
  • Control Parameters: Volume (Output Level), Tone (High-Cut Filtering), Sustain (Fuzz Gain / Compression Amount)
  • Signal Routing Hardware: 2-Position Dry Mix Toggle Switch (On / Off)
  • Chassis Enclosure: Heavy-Duty Rugged Die-Cast Zinc Housing
  • Audio Connections: 1/4-Inch Mono Input, 1/4-Inch Mono Output
  • Power Specifications: 9VDC Center-Negative Barrel Jack or 9V Internal Battery Power
  • Current Draw Rating: 4mA at 9VDC
  • Included Accessories: 1 x Heavy-Duty 9-Volt Factory Battery
  • Physical Dimensions: 4.5 x 2.75 x 2.1 Inches (114mm x 70mm x 53mm)

What's In The Box Product Contents

  • Core Device: 1 x Electro-Harmonix Nano Bass Big Muff Pedal
  • Factory Battery: 1 x Heavy-Duty Carbon-Zinc 9V Battery
  • Documentation: 1 x Official Electro-Harmonix Bass Big Muff User Instructional Guide Sheet

Key Product Features

  • Iconic Green Russian Voicing: Delivers the legendary, smooth low-end growl and woody mid-range characteristic of vintage Russian fuzz circuits.
  • Dedicated Dry Mix Switch: Blends your dry bass signal at unity gain with the distortion to maintain natural string attack and low-end clarity.
  • Interactive Tone Shaping: The classic 3-knob layout (Sustain, Tone, Volume) lets you easily shape your sound from a gritty overdrive to a saturated fuzz.
  • High-Fidelity True Bypass: Keeps your raw signal path completely untouched and transparent when the pedal is disengaged.
  • Compact Nano Footprint: Saves valuable pedalboard space while providing the exact same tonal power as its full-sized counterpart.
  • Tour-Ready Build: Housed in a rugged, die-cast chassis designed to handle heavy stage use and regular touring.

Frequently Asked Questions

How exactly does the Dry switch help preserve low-end definition in a live mix?
When you click the Dry switch to the "On" position, the pedal splits your incoming bass signal into two parallel paths. One path goes through the classic Big Muff fuzz circuit, while the other bypasses the distortion entirely, delivering your clean signal at unity gain. By mixing your unaffected clean low end with the fuzzy top end, your bass keeps its solid punch and definition, ensuring your notes remain clear and powerful even through heavy distortion.

Can this Nano Bass Big Muff pedal be used effectively on standard electric guitars?
Yes, it works beautifully on standard electric guitars. Because this pedal is optimized to retain low frequencies, guitarists often use it to achieve a deeper, thicker fuzz sound than a standard guitar Big Muff can provide. It is a fantastic choice for drop-tuned guitars, seven-string instruments, stoner rock riffing, or doom metal styles where a heavy low-end response is essential.

What type of power supply should I use if I want to run this pedal without batteries?
The Nano Bass Big Muff runs on a standard 9VDC center-negative power supply barrel connection, drawing a very low 4mA of current. It can be powered by standard multi-pedal power chains or isolated power outputs. To ensure clean performance and eliminate any unwanted background hum, we recommend using a high-quality, regulated AC power supply or an isolated power brick line.



Additional information

Weight 0.30 kg
