EMG DG20 David Gilmour Pre-Wired Pickguard Black – Black pickups

EMG DG20 David Gilmour Pre-Wired Pickguard Black - Black pickups
EMG DG20 David Gilmour Pre-Wired Pickguard Black - Black pickups - Image 2

Original price was: $639.00.Current price is: $549.00.

FAST
Delivery

EASY
Returns

IN HOUSE
Repairs

2 in stock (can be backordered)

✨ This item qualifies for AU Free Shipping!

Pick-up from store - FREE
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.

International Shipping
Please proceed to checkout to see international rates and avalability.

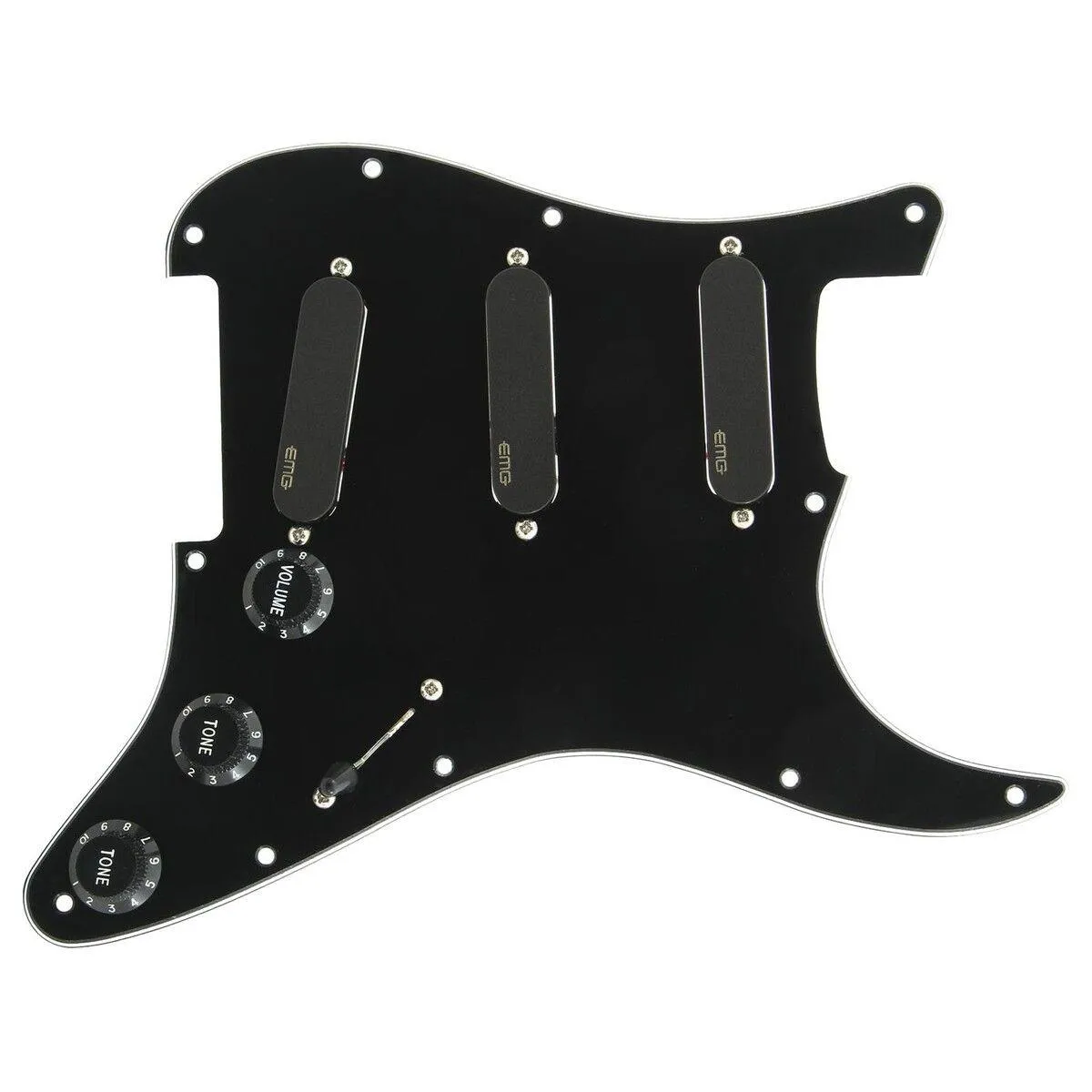

EMG DG20 David Gilmour Signature Pre-Wired Stratocaster Pickguard Assembly - Black

Unlock the legendary, soaring guitar tones that defined generations of progressive rock. The EMG DG20 David Gilmour Signature Pickguard System brings the exact sonic architecture of David's iconic red Stratocaster directly to your instrument. This premium, fully loaded drop-in system features three black-cover EMG SA active single-coil pickups integrated with an advanced dual-engine active equalization network. Mounted to a sleek, 11-hole All-Black pickguard template with matching black knobs, this system delivers the pristine clarity, liquid-smooth overdrive, and immense soundstage heard throughout Pink Floyd's historic tours and solo records.

Angkor Music Technical Evaluation: Alnico V Core Architecture & Dual active EQ Processing

The timeless performance voice of the DG20 system builds upon three EMG SA active single-coils loaded with premium Alnico V bar magnets. These continuous bar magnets provide linear, balanced output across the strings, preventing signal dropouts during extreme pitch bends. Instead of traditional passive tone pots, the DG20 utilizes two powerful processing networks: the SPC (Strat Presence Control) and the EXG Guitar Expander. The SPC functions as a mid-range expander, fatlining the single-coils into muscular, humbucker-like textures with rolled-off highs—perfect for sustaining slide work and soaring leads. This works alongside the EXG Expander, which simultaneously lifts the bass and treble shelving points while scooping out muddy mids, resulting in a glassy, hi-fi transparency that lets your clean tracks slice directly through complex studio mixes.

E-E-A-T: 100% Pre-Wired Bench Convenience & Complete Solderless Drop-In Integration

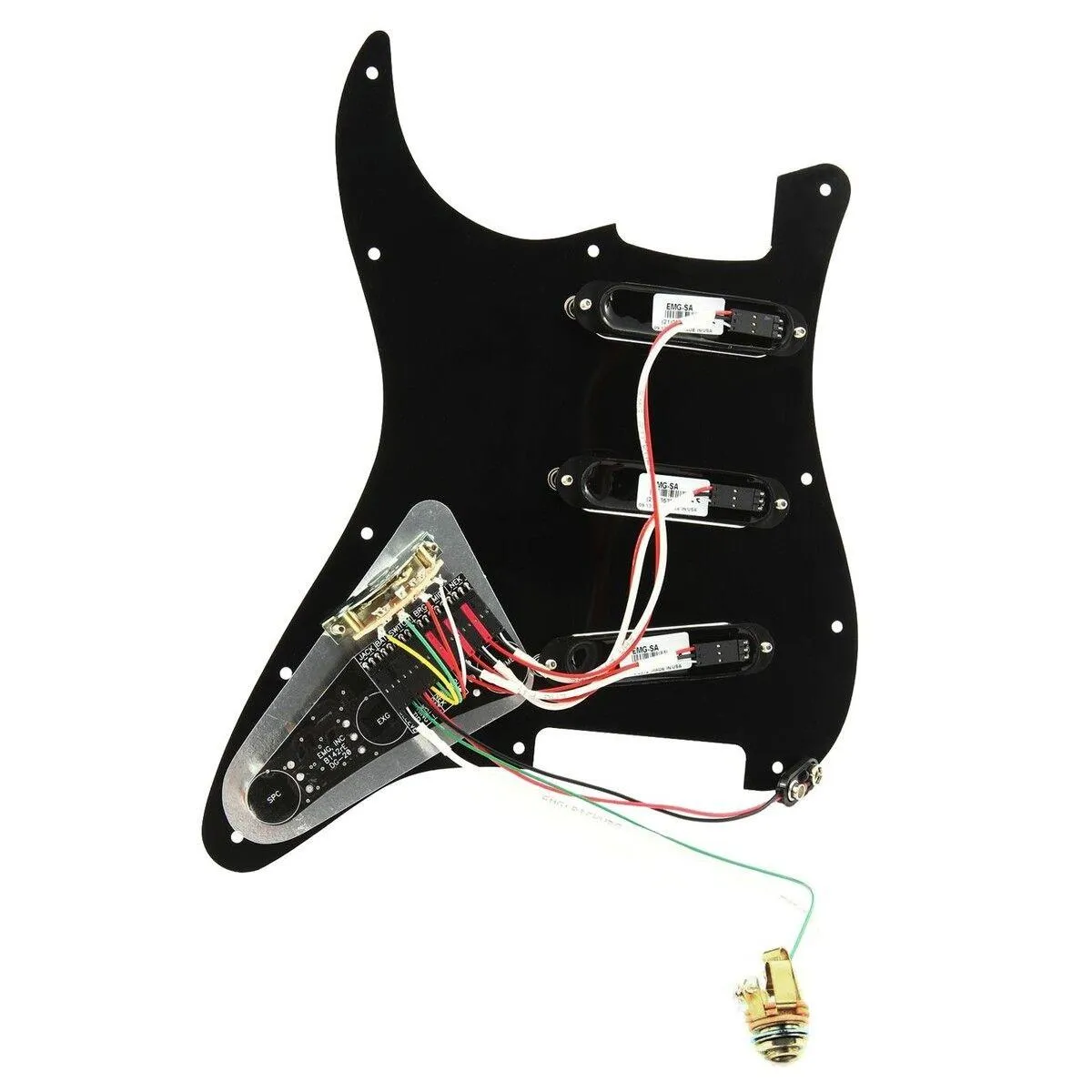

At Angkor Music, we advocate for tour-grade hardware enhancements that minimize complicated workbench modifications. The EMG DG20 package arrives completely pre-wired and pre-mounted to the pickguard face out of the box. Featuring EMG's proprietary solderless connectivity ecosystem, you can swap out your guitar's entire electronics cavity cleanly at your own desk. Simply link your output jack and ground lines into the quick-connect header blocks, drop the guard down into place, and enjoy zero ground loops and hum-free execution under extreme high-gain staging.

Shop All Guitar Pickups →

Technical Specifications

  • Brand: EMG Pickups
  • Model: DG20 David Gilmour Signature System
  • Configuration Type: SSS Pre-Wired Pickguard Kit
  • Pickguard Format: Standard 11-Hole Stratocaster Template
  • Pickup Model: 3 x EMG SA Active Single-Coils
  • Magnet Core Material: High-Grade Alnico V Bar Magnets
  • On-Board Audio Shapers: SPC Presence Control, EXG Guitar Expander
  • Output Character: Bright, Airy Top End, Creamy Mid-range Warmth, Full Bass Response
  • Noise Mitigation: Low-Impedance Preamped Coils with Internal Shielding (Virtually Noiseless)
  • Wiring Configuration: 100% Quick-Connect Solderless Wiring Harness
  • Color Aesthetic: Black Pickguard, Black Pickup Covers, Black Control Knobs
  • Condition: Brand New

On-Board Processing Control Breakdown

  • Master Volume Dial: Controls master active output signal attenuation across all 5 switch selections.
  • EXG Guitar Expander: Acts like an amp-style graphic equalizer. Simultaneously boosts low and high frequencies while scooping mid-range to prevent mud and maximize clean punch.
  • SPC Presence Control: Often called the "fat control," this circuit punches up mid-band gain and rolls back highs to transform lean single-coils into high-output dual-coil humbucker voices.

Key Product Features

  • Authentic Gilmour Chime: Delivers the distinct, expressive, and creamy midrange bloom utilized across classic Pink Floyd recordings and solo performances.
  • Perfect Balance String Bends: Continuous Alnico V bar magnet core preserves uniform volume levels during extreme note-stretching.
  • Advanced Multi-Voiced Flexibility: Allows you to shift seamlessly from traditional transparent clean twangs to raunchy, high-gain sustaining lead solos.
  • Zero Solder Bench Prep: Completely pre-wired array allows you to overhaul your old Stratocaster assembly safely without a hot soldering iron.
  • Total Hum Suppression: Onboard low-impedance active preamps scrub away neon-light hum, single-coil 60-cycle buzz, and studio ground loops.

Frequently Asked Questions

Will this pre-wired 11-hole pickguard fit directly onto import or vintage re-issue Strats?
The DG20 system uses a standard US-spec modern 11-hole layout pattern. While it drops straight onto most American Standard and Mexican Player Stratocasters, some import guitars, Japanese reissues, or Squier models may have slightly staggered screw positions. If an individual hole is misaligned, a luthier can easily fill and re-drill the small wood mount point under the pickguard margin without altering the visible body face.

How long does the active 9V battery last inside the DG20 pickguard assembly?
Thanks to the highly efficient draw of EMG's internal active preamps and tone-shaping modules, a standard 9-volt alkaline battery provides up to 3,000 hours of actual playing performance. To prevent slow voltage drain when your instrument is resting on a stage stand or inside its hardshell case, always remember to pull your 1/4" guitar cable out of the output jack to disconnect the active battery circuit loop.

Does this kit replace my existing passive tone knobs with something different?
Yes. Traditional Stratocasters use a standard master volume and two independent passive tone controls. The pre-wired DG20 layout updates this to a high-utility master active volume pot, an active EXG Guitar Expander control knob, and an active SPC Presence Control knob, giving you active equalization mastery directly on your guitar body face.



Additional information

Weight 2.00 kg
type

Single coil pickup
Active/passive

Active
