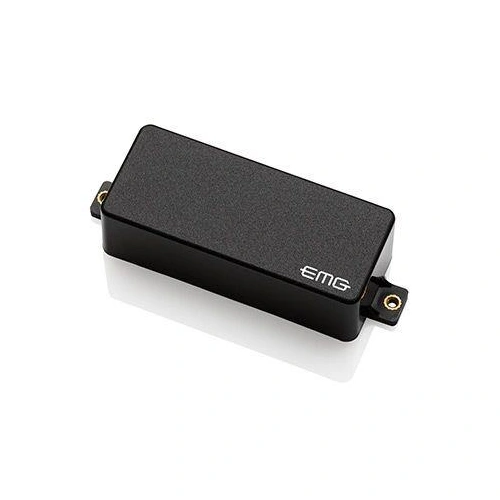

EMG M786 Mini Humbucker Active M80 and M60 Electric Guitar Pickup Set Black

M86 Pickup Set Black

M-80

The Mini-Humbucking Pickup has always been the orphan child of the Passive Humbucking world. It’s too bad because it has the nice attribute of a narrow aperture but has always lacked in the “gain” department because it just isn’t a big enough profile to work with.

So, we gave the Mini-H a slight makeover, keeping the small dual-coil aperture but using a group of new magnetic structures not just to give it what it’s been missing, but adding a whole slew of models. We also added a new preamp design that is quieter and has plenty of headroom.

The M-80 is just that. 1/8th of a stick of Dynamite. Ceramic magnet with 2 steel bars. But not too much gain to be overwhelming. Just the right amount of gain to have a nice breakup with an edge.
A true rocker.

Keep in mind that all the Mini-H Pickups have a narrow string width sense and isn’t suitable in the bridge position of Floyd Rose equipped guitars. It was designed for the Gibson Tune-o-matic bridge width, and so it shall remain. The maximum string width should be about 2 inches (51mm).
See the individual data sheets for exact magnetic width, or string spacing on the M-72 Set.

No need for string grounding, so no shock hazard. Low-impedance output so you can sound the same through a cable as well as wireless. and on top of that a 2 pickup system only requires 1.3 Milli-Amps of 9 Volt battery power.

In the Box

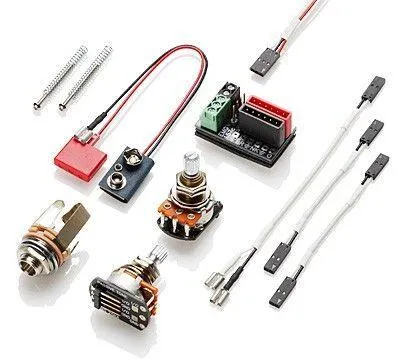

Package Includes EMG'S Exclusive Solderless Install System:

• 1 25k Volume Pot
• 1 25k Tone Pot
• 1 Battery Bus
• 1 Stereo Output Jack
• 1 Two Pickup In/Out Bus
• 1 Pair Mounting Screws And Springs
• 1 Pickup Cable
• 2 Connect Cables
• 1 Output Cable
• 1 Battery Cable

M-60

The Mini-Humbucking Pickup has always been the orphan child of the Passive Humbucking world. It’s too bad because it has the nice attribute of a narrow aperture but has always lacked in the “gain” department because it just isn’t a big enough profile to work with.

So, we gave the Mini-H a slight makeover, keeping the small dual-coil aperture but using a group of new magnetic structures not just to give it what it’s been missing, but adding a whole slew of models. We also added a new preamp design that is quieter and has plenty of headroom.

The M-60 is Dual-Coil but we call it the “BFSC” (Big Fat Single Coil). Made with Two Ceramic Bar magnets (shortened to keep the magnetic field lower) it has a real clean tone, but fatter than a single coil. A great pickup in the fingerboard position of any guitar.

Keep in mind that all the Mini-H Pickups have a narrow string width sense and isn’t suitable in the bridge position of Floyd Rose equipped guitars. It was designed for the Gibson Tune-o-matic bridge width, and so it shall remain. The maximum string width should be about 2 inches (51mm).
See the individual data sheets for exact magnetic width, or string spacing on the M-72 Set.

No need for string grounding, so no shock hazard. Low-impedance output so you can sound the same through a cable as well as wireless. and on top of that a 2 pickup system only requires 1.3 Milli-Amps of 9 Volt battery power.

In the Box
Package Includes EMG'S Exclusive Solderless Install System:

• 1 25K Volume Pot
• 1 25K Tone Pot
• 1 Battery Bus
• 1 Stereo Output Jack
• 1 Two Pickup In/Out Bus
• 1 Pair Mounting Screws And Springs
• 1 Pickup Cable
• 2 Connect Cables
• 1 Output Cable
• 1 Battery Cable
