The Eminence Cannabis Rex™ guitar speaker lets your laid-back style come through. Clean and full, with lots of body and sparkle. Smokey smooth with high-end definition. Country, Jazz or Classical guitarists take notice.

Series   Patriots

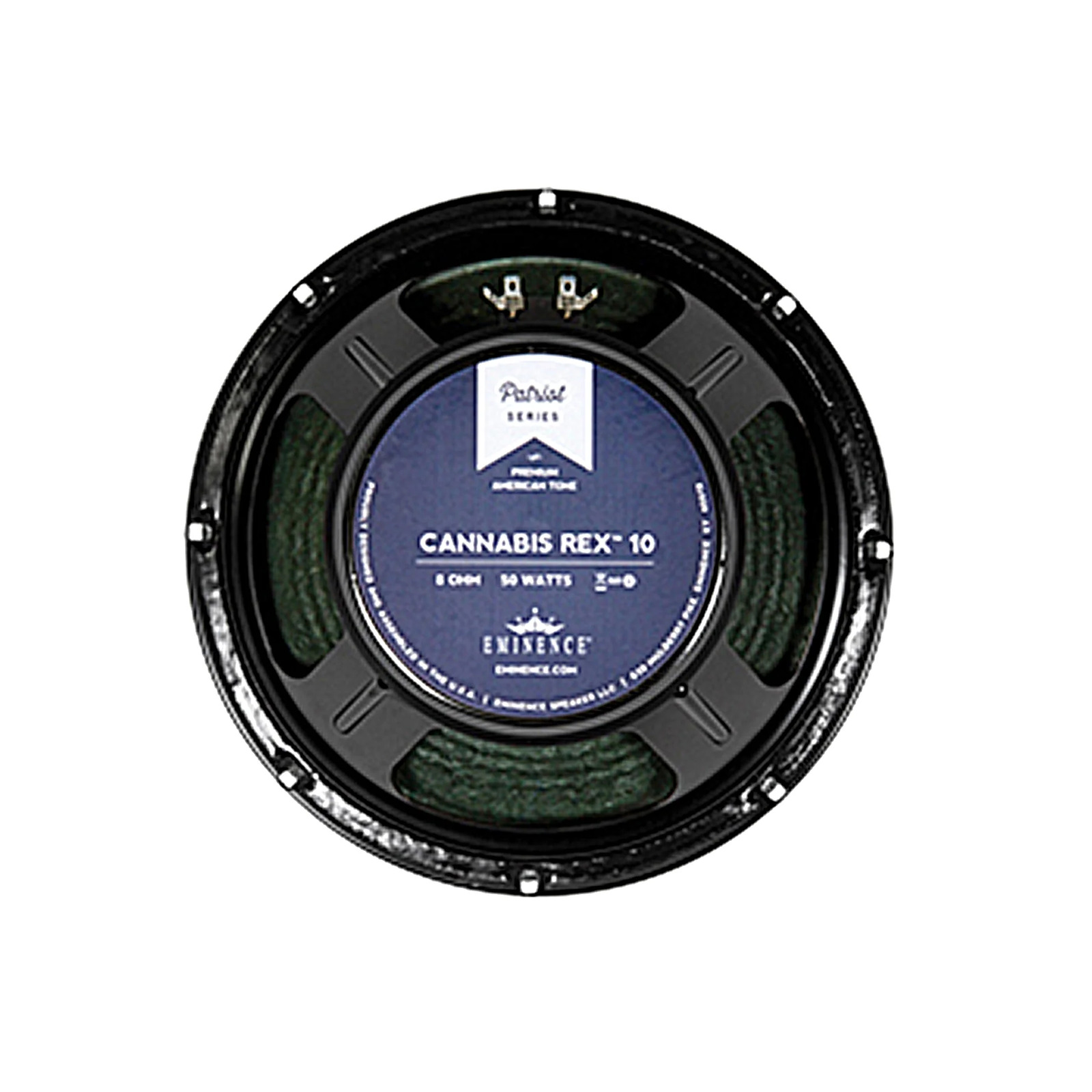

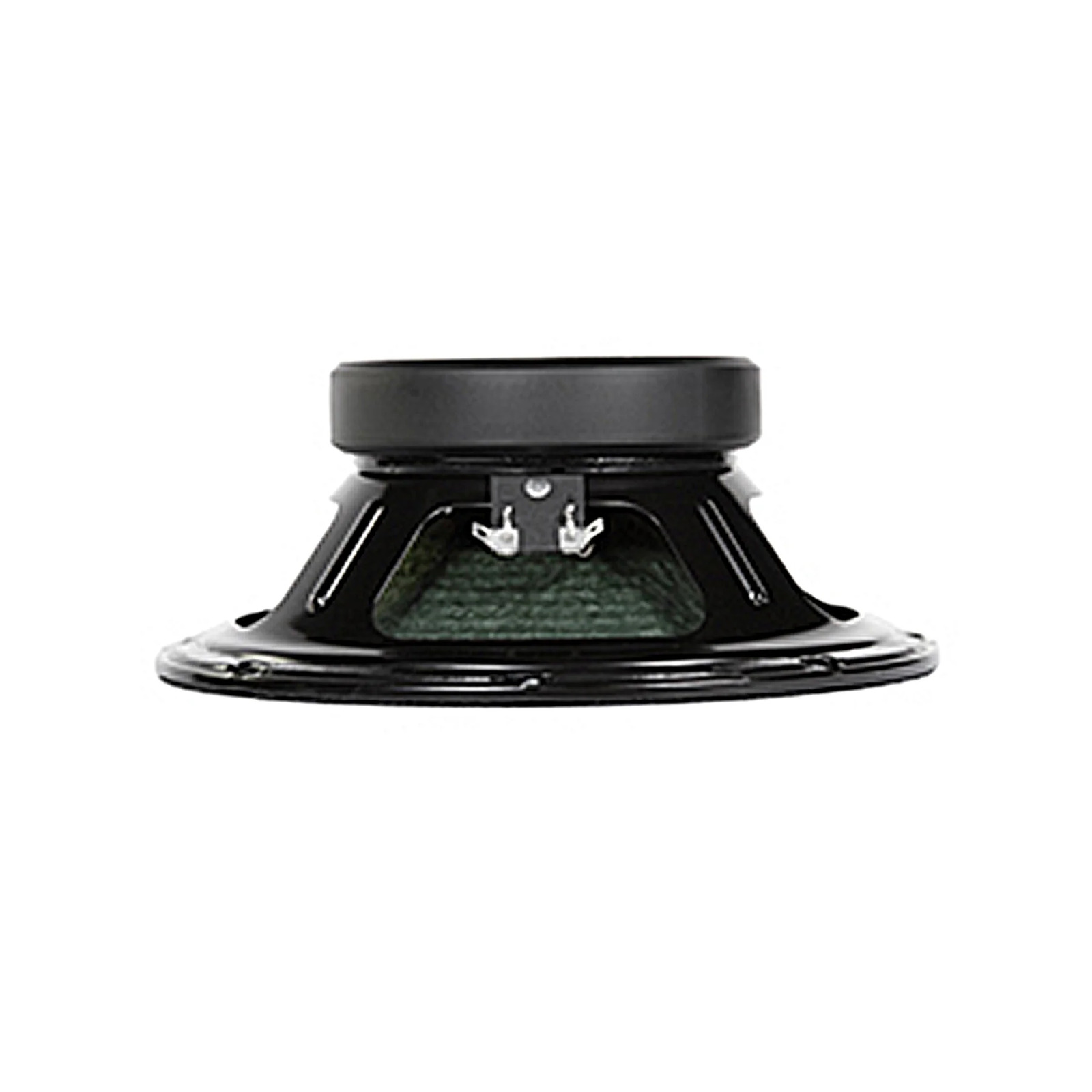

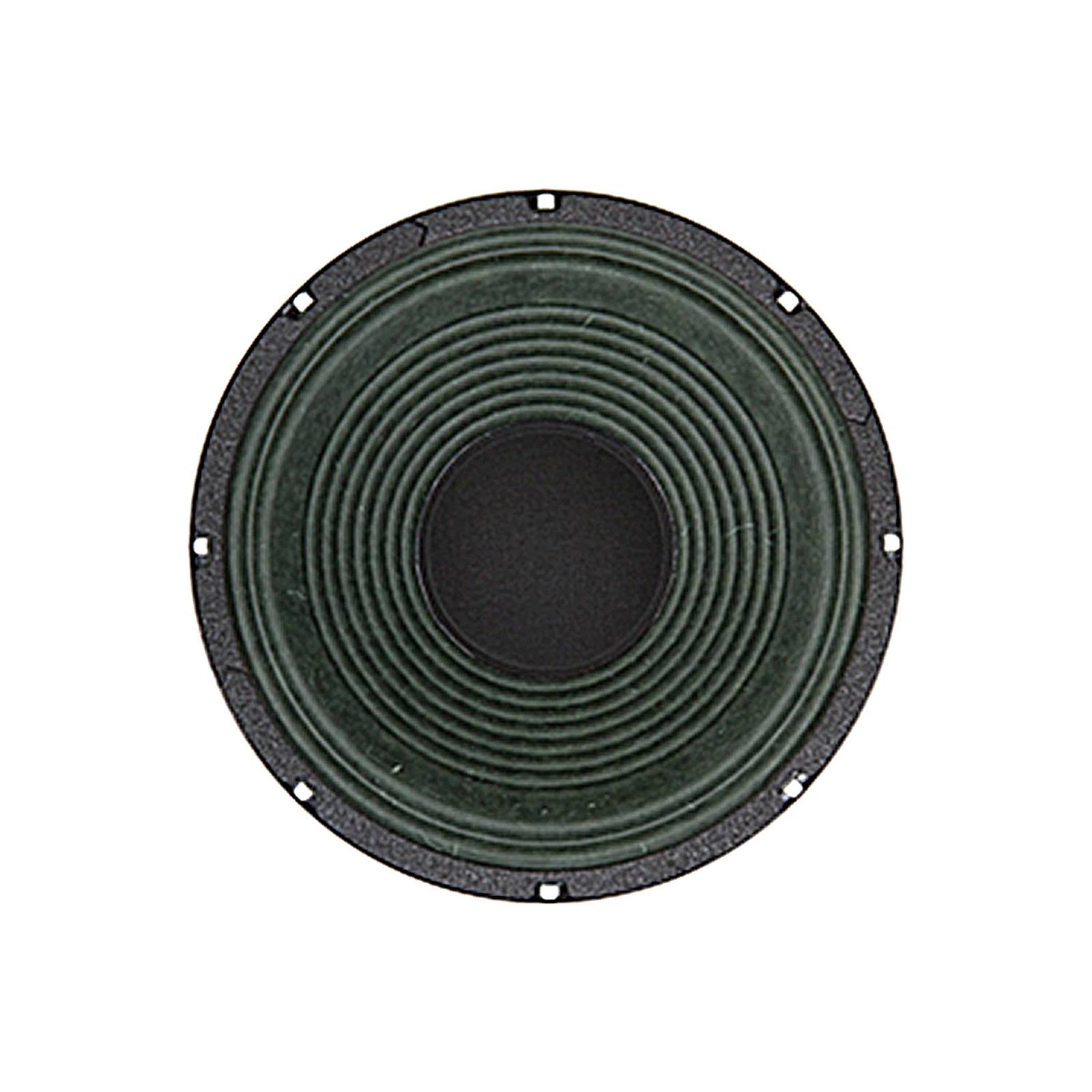

Model   Cannabis Rex™ 10
Application   10" Open or Closed Back
Configuration   1, 2, or 4x10"
Low End Response   Aggressive
Low End Shape   Fat/Round
Mid-Range Response   Moderate
Mid-Range Shape   Warm
High-End Response   Moderate
Volume/Power   Louder
Overall Coloration*   A highly requested 10" version of Cannabis Rex.  It's warm, smooth, clean, and full just like its big brother.  Great to tame a bright amp and/or guitar.
Break-up Modes   Slow
Power Range   Up to 50 watts
Instrument*   Lead/Rhythm Guitar
Genre of Music*   Country, Jazz, Classical
SPECIFICATION
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power N/A
Watts 50 W
Resonance 130 Hz
Usable Frequency Range 80 Hz - 5.3 kHz
Sensitivity* 99.3 dB
Magnet Weight 38 oz.
Gap Height 0.313", 8 mm
Voice Coil Diameter 1.75", 44 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 130 Hz
DC Resistance (Re) 6.35 Ω
Coil Inductance (Le) 0.49m H
Mechanical Q (Qms) 15.4
Electromagnetic Q (Qes) 0.6
Total Q (Qts) 0.58
Compliance Equivalent Volume (Vas) 13.02 liters / 0.46 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 0 cc
Mechanical Compliance of Suspension (Cms) 0.07 mm/N
BL Product (BL) 13.16 T-M
Diaphragm Mass Inc. Airload (MMs) 20 grams
Efficiency Bandwidth Product (EBP) 216
Maximum Linear Excursion (Xmax) 0.79 mm
Surface Area of Cone (Sd) 366.1 cm2
Maximum Mechanical Limit (Xlim) 0 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented N/a
Driver Volume Displaced 0.039 cu.ft. / 1.1 liters
Overall Diameter 10.11", 256.8 mm
Baffle Hole Diameter 9.13", 231.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.23", 5.8mm
Mounting Holes B.C.D. 9.6", 243.8mm
Depth 4", 101.6 mm
Net Weight 7.3 lbs, 3.31 kg
Shipping Weight 8.4 lbs, 3.81 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Paper former
Magnet Composition Ferrite magnet
Core Details Non-vented core

Basket Materials Pressed steel basket
Cone Composition Hemp paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Zurette dust cap



SKU CANNABISREX10
Brand EMINENCE
Unit Of Measure ea
