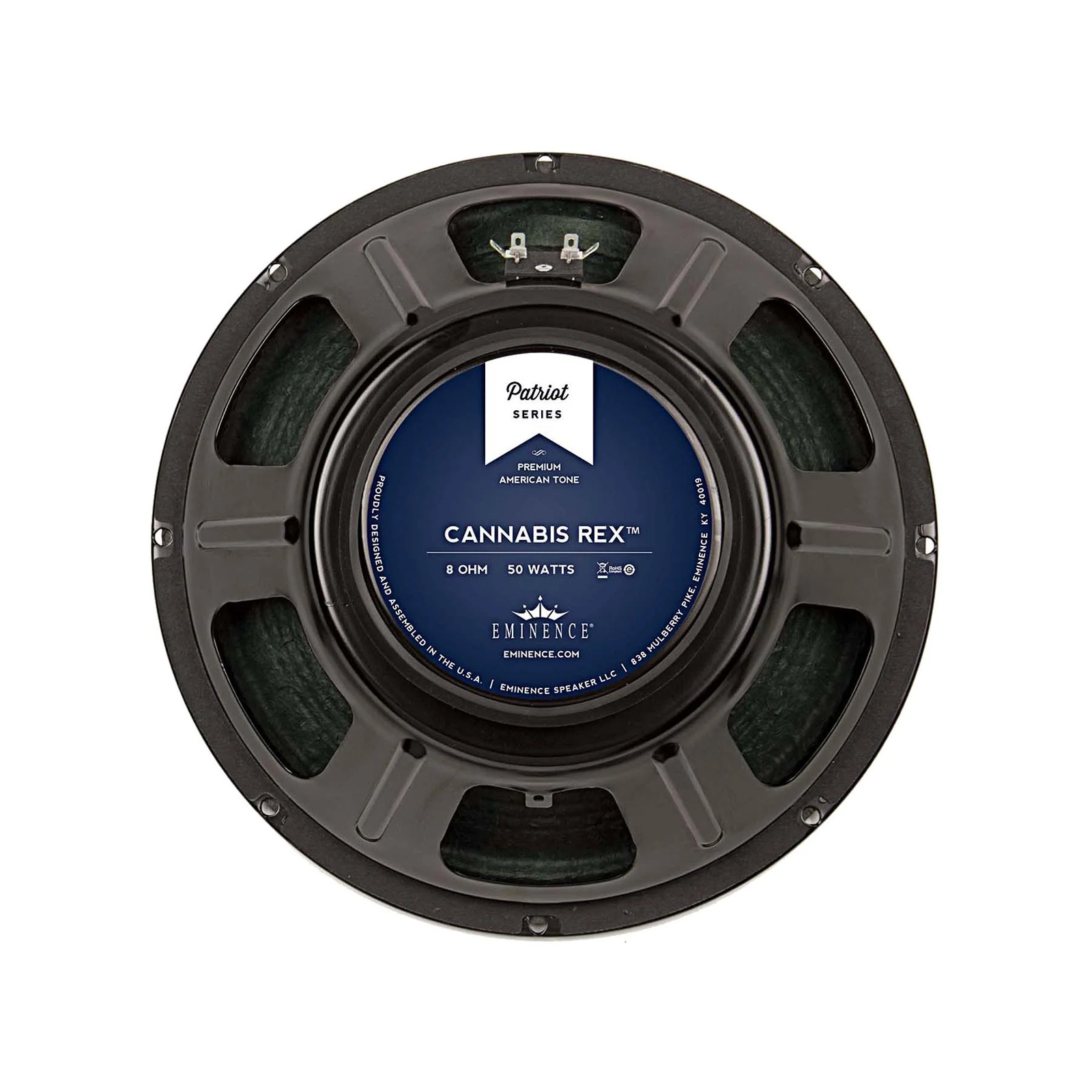

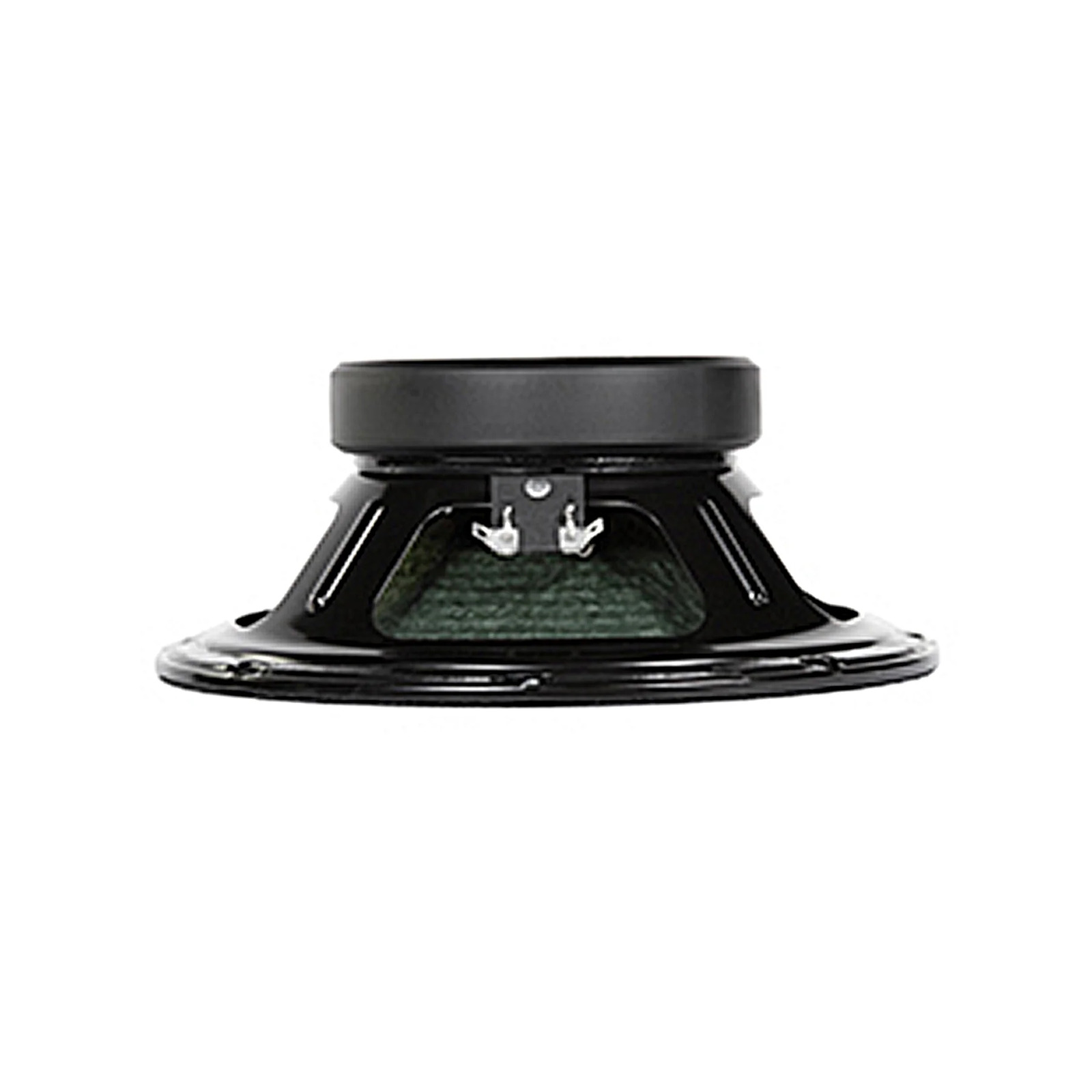

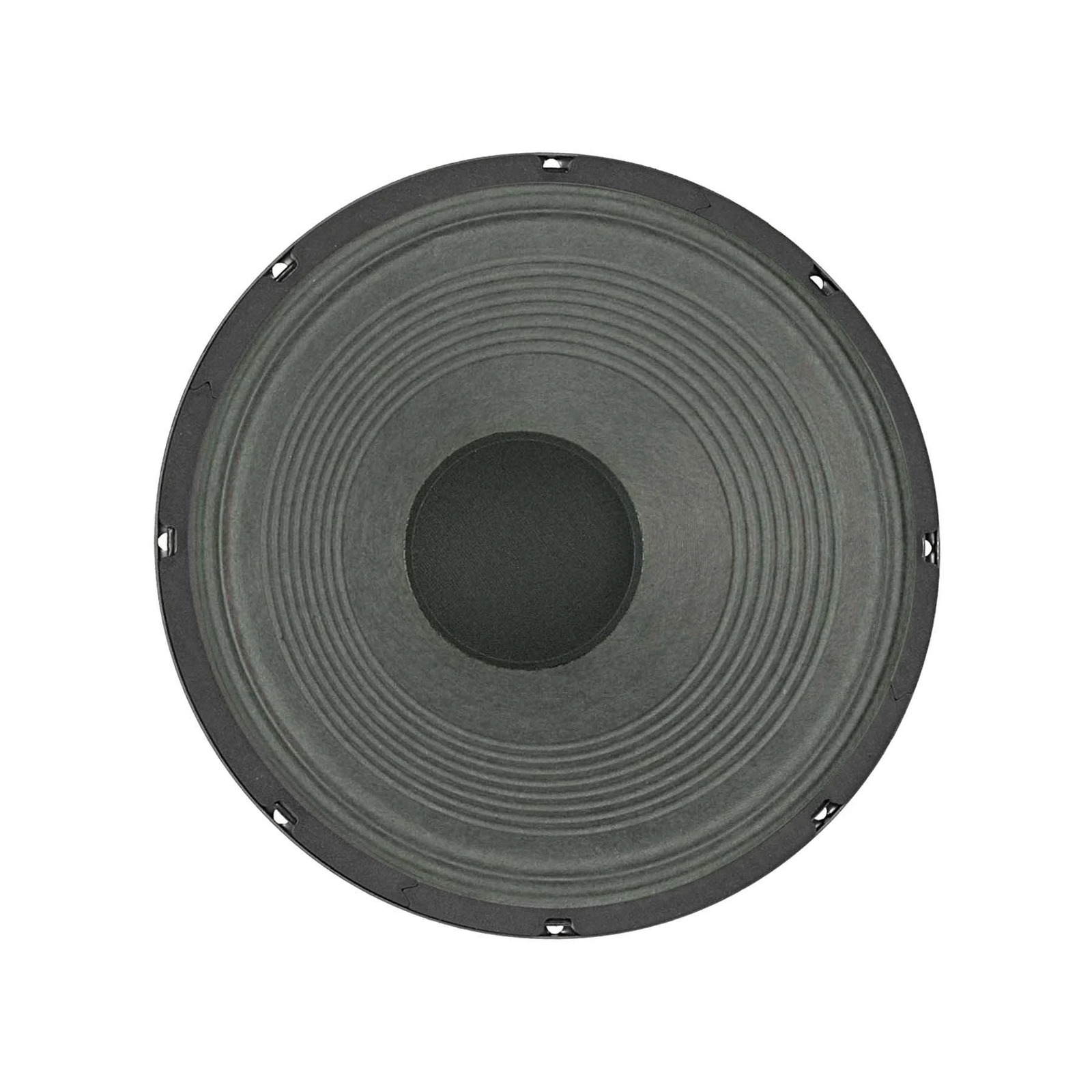

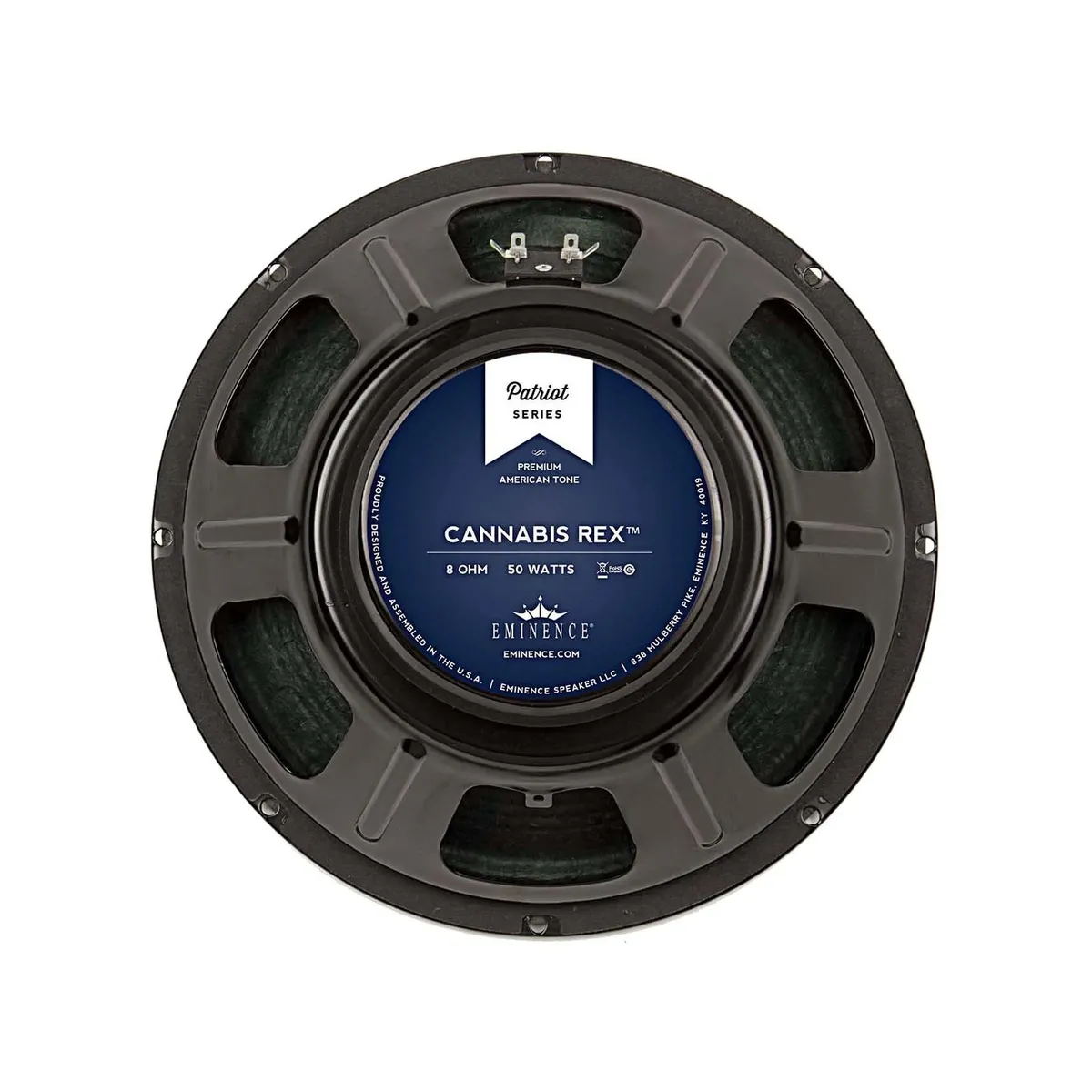

Eminence CANNABIS REX™ 12" Lead / Rhythm Guitar Speaker- American - 50w 8 ohm
SKU: CANNABISREX
WAS $349.00
NOW $299.00
SAVE 14%!
Calculate Shipping :
Standard Shipping - $20.00
Express International Shipping - $61.60
Express Shipping - $200.00
Pick-up from store - FREE
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.
Share This Item :
The Eminence Cannabis Rex™ guitar speaker lets your laid-back style come through. Clean and full, with lots of body and sparkle. Smokey smooth with high-end definition. Country, Jazz or Classical guitarists take notice.
| Series | Patriots | |
| Model | Cannabis Rex™ | |
| Application | 12" Open or Closed Back | |
| Configuration | 1, 2, or 4 X 12" | |
| Low End Response | Aggressive | |
| Low End Shape | Fat/Round | |
| Mid-Range Response | Moderate | |
| Mid-Range Shape | Warm | |
| High-End Response | Moderate | |
| Volume/Power | Loudest | |
| Overall Coloration* | Clean and full, with lots of body and sparkle. Smokey smooth with high-end definition. | |
| Break-up Modes | Slow | |
| Power Range | Up to 50 watts | |
| Instrument* | Lead/Rhythm Guitar, Acoustic Guitar, Keyboard | |
| Genre of Music* | Country, Jazz, Classical |
| SPECIFICATION | |||
| Nominal Basket Diameter | 12", 305 mm | ||
| Nominal Impedance* | 8 Ω | ||
| Power Rating* | |||
| Program Power | N/A | ||
| Watts | 50 W | ||
| Resonance | 96 Hz | ||
| Usable Frequency Range | 80 Hz - 4.5 kHz | ||
| Sensitivity* | 101.8 dB | ||
| Magnet Weight | 38 oz. | ||
| Gap Height | 0.312", 7.9 mm | ||
| Voice Coil Diameter | 1.75", 44 mm | ||
| THIELE & SMALL PARAMETERS | |||
| Resonant Frequency (fs) | 96 Hz | ||
| DC Resistance (Re) | 6.56 Ω | ||
| Coil Inductance (Le) | 0.44m H | ||
| Mechanical Q (Qms) | 9.28 | ||
| Electromagnetic Q (Qes) | 0.69 | ||
| Total Q (Qts) | 0.64 | ||
| Compliance Equivalent Volume (Vas) | 45.48 liters / 1.61 cu.ft. | ||
| Peak Diaphragm Displacement Volume (Vd) | 44.7 cc | ||
| Mechanical Compliance of Suspension (Cms) | 0.11 mm/N | ||
| BL Product (BL) | 11.8 T-M | ||
| Diaphragm Mass Inc. Airload (MMs) | 24 grams | ||
| Efficiency Bandwidth Product (EBP) | 139 | ||
| Maximum Linear Excursion (Xmax) | 0.8 mm | ||
| Surface Area of Cone (Sd) | 532.4 cm2 | ||
| Maximum Mechanical Limit (Xlim) | N/A | ||
| MOUNTING INFORMATION | |||
| Recommended Enclosure Volume | |||
| Sealed | Acceptable | ||
| Vented | Acceptable | ||
| Driver Volume Displaced | 0.071 cu.ft. / 2 liters | ||
| Overall Diameter | 12.03", 305.6 mm | ||
| Baffle Hole Diameter | 11.07", 281.2 mm | ||
| Front Sealing Gasket | Yes | ||
| Rear Sealing Gasket | Yes | ||
| Mounting Holes Diameter | 0.25", 6.4mm | ||
| Mounting Holes B.C.D. | 11.59", 294.4mm | ||
| Depth | 5.1", 129.5 mm | ||
| Net Weight | 8.2 lbs, 3.72 kg | ||
| Shipping Weight | 9.8 lbs, 4.45 kgs | ||
| MATERIALS OF CONSTRUCTION | |||
| Coil Construction | Copper voice coil | ||
| Coil Former | Paper former | ||
| Magnet Composition | Ferrite magnet | ||
| Core Details | Non-vented core | ||
| Basket Materials | Pressed steel basket | ||
| Cone Composition | Hemp paper cone | ||
| Cone Edge Composition | Paper cone edge | ||
| Dust Cap Composition | Zurette dust cap | ||
| SKU | CANNABISREX |
| Brand | EMINENCE |
| Unit Of Measure | ea |
