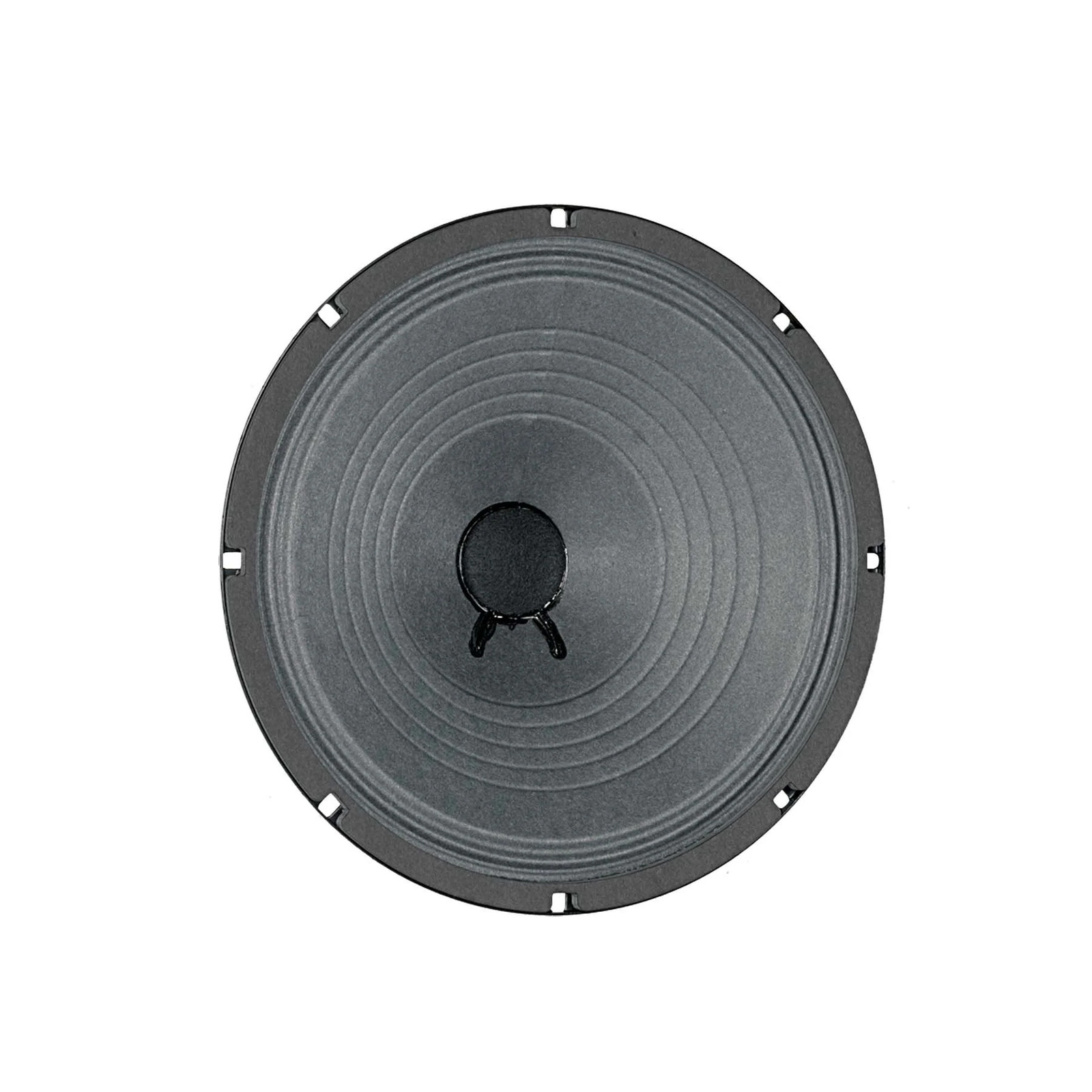

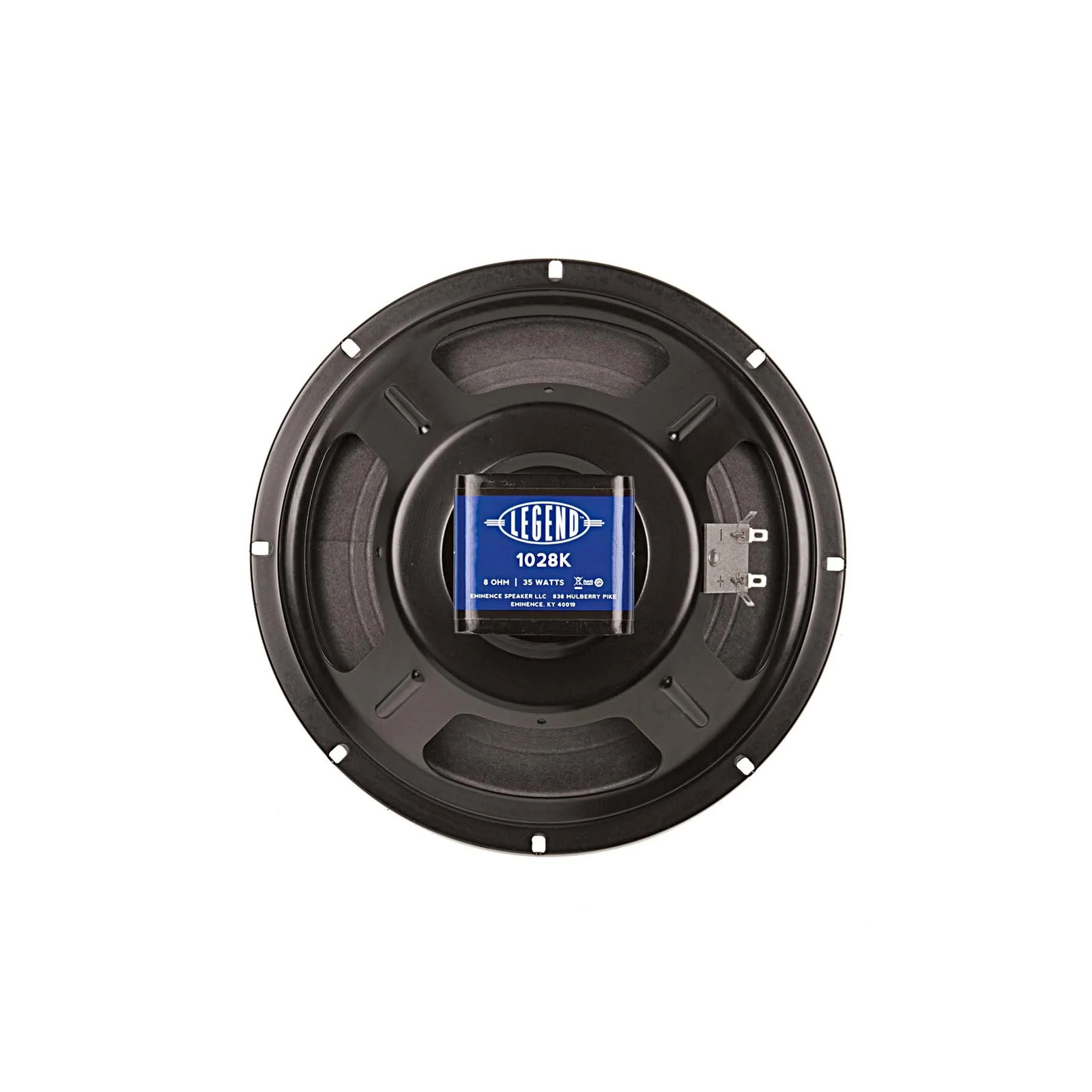

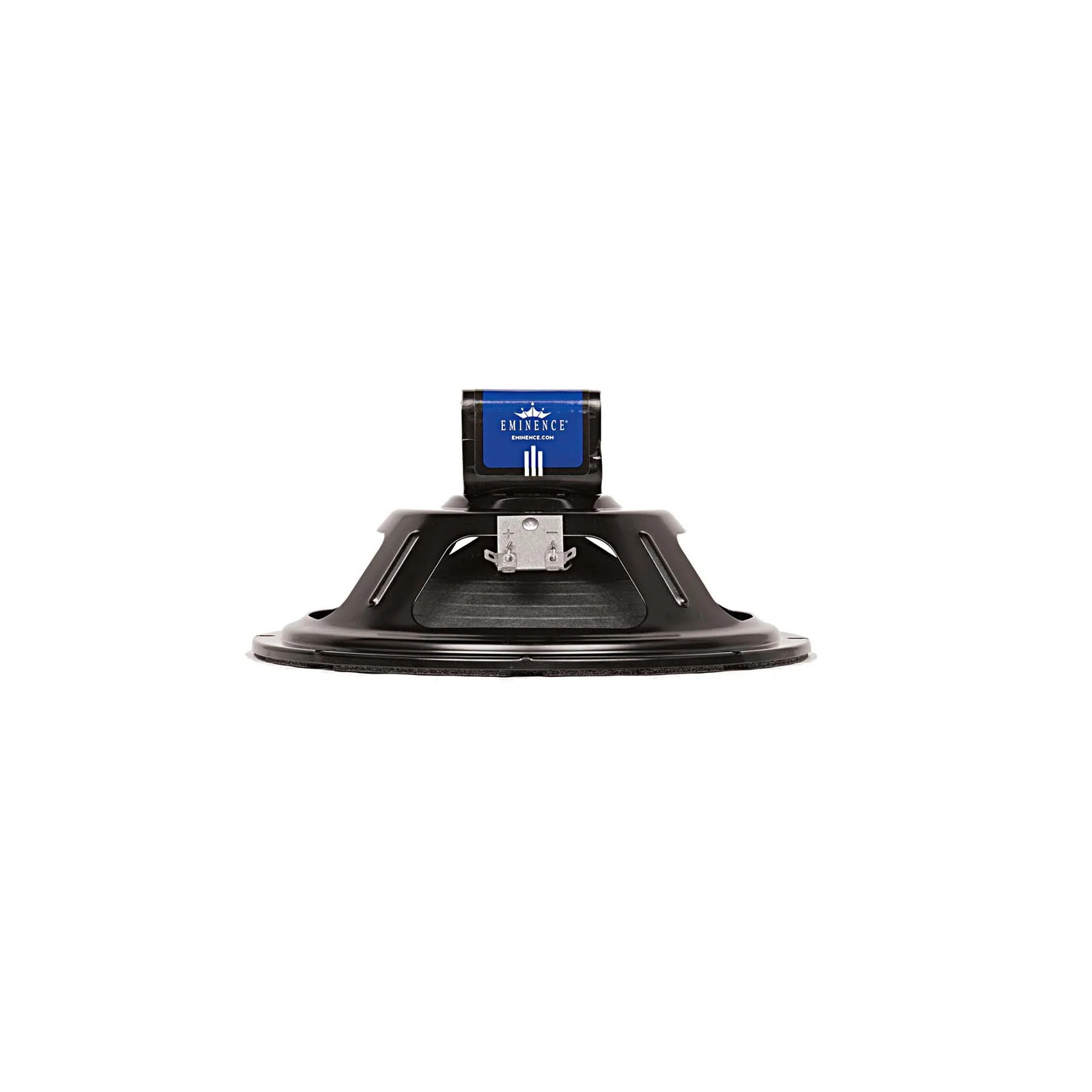

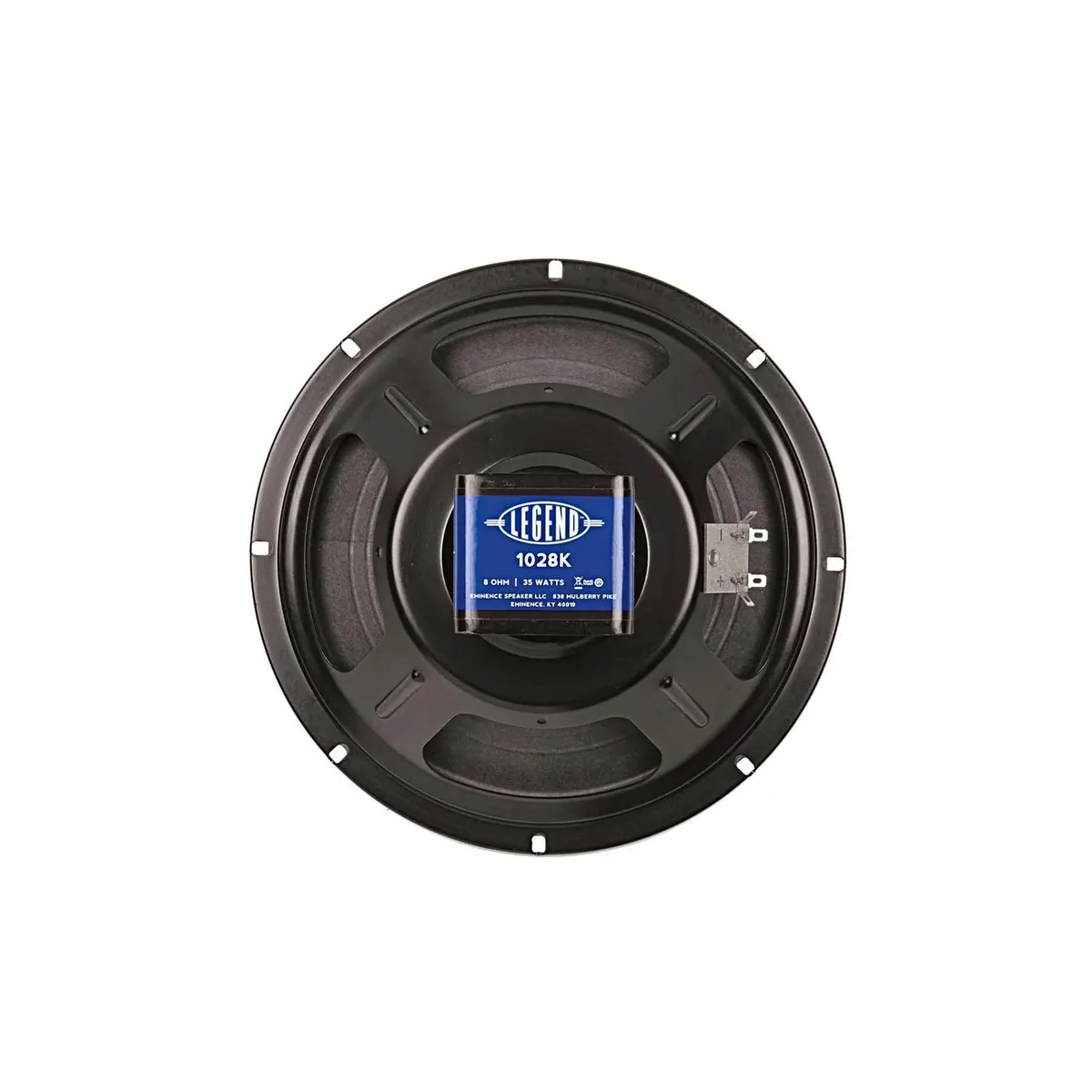

The Eminence Legend 1028K guitar speaker is a classic stage fixture. Vintage American tone with moderate, but tight, percussive lows and extended highs. Hard-working under the bright lights.

SPECIFICATIONNominal Basket Diameter10", 254 mmNominal Impedance*8 ΩPower Rating*Program PowerN/AWatts35 WResonance95 HzUsable Frequency Range100 Hz - 5 kHzSensitivity*97.4 dBMagnet Weight6 oz.Gap Height0.25", 6.4 mmVoice Coil Diameter1", 25 mmTHIELE & SMALL PARAMETERSResonant Frequency (fs)95 HzDC Resistance (Re)5.8 ΩCoil Inductance (Le)0.51m HMechanical Q (Qms)17.96Electromagnetic Q (Qes)1.61Total Q (Qts)1.47Compliance Equivalent Volume (Vas)31.5 liters / 1.11 cu.ft.Peak Diaphragm Displacement Volume (Vd)72.4 ccMechanical Compliance of Suspension (Cms)0.19 mm/NBL Product (BL)5.7 T-MDiaphragm Mass Inc. Airload (MMs)15 gramsEfficiency Bandwidth Product (EBP)59Maximum Linear Excursion (Xmax)2.1 mmSurface Area of Cone (Sd)344.9 cm2Maximum Mechanical Limit (Xlim)N/AMOUNTING INFORMATIONRecommended Enclosure VolumeSealedAcceptableVentedAcceptableDriver Volume Displaced0.027 cu.ft. / 0.77 litersOverall Diameter10.11", 256.8 mmBaffle Hole Diameter9.13", 231.9 mmFront Sealing GasketYesRear Sealing GasketN/AMounting Holes Diameter0.22", 5.6mmMounting Holes B.C.D.9.6", 243.8mmDepth4.8", 121.9 mmNet Weight2.9 lbs, 1.32 kgShipping Weight4 lbs, 1.81 kgsMATERIALS OF CONSTRUCTIONCoil ConstructionCopper voice coilCoil FormerPolyimide formerMagnet CompositionAlnico magnetCore DetailsNon-vented core  Basket MaterialsPressed steel basketCone CompositionPaper coneCone Edge CompositionPaper cone edgeDust Cap CompositionSolid composition felt dust cap
