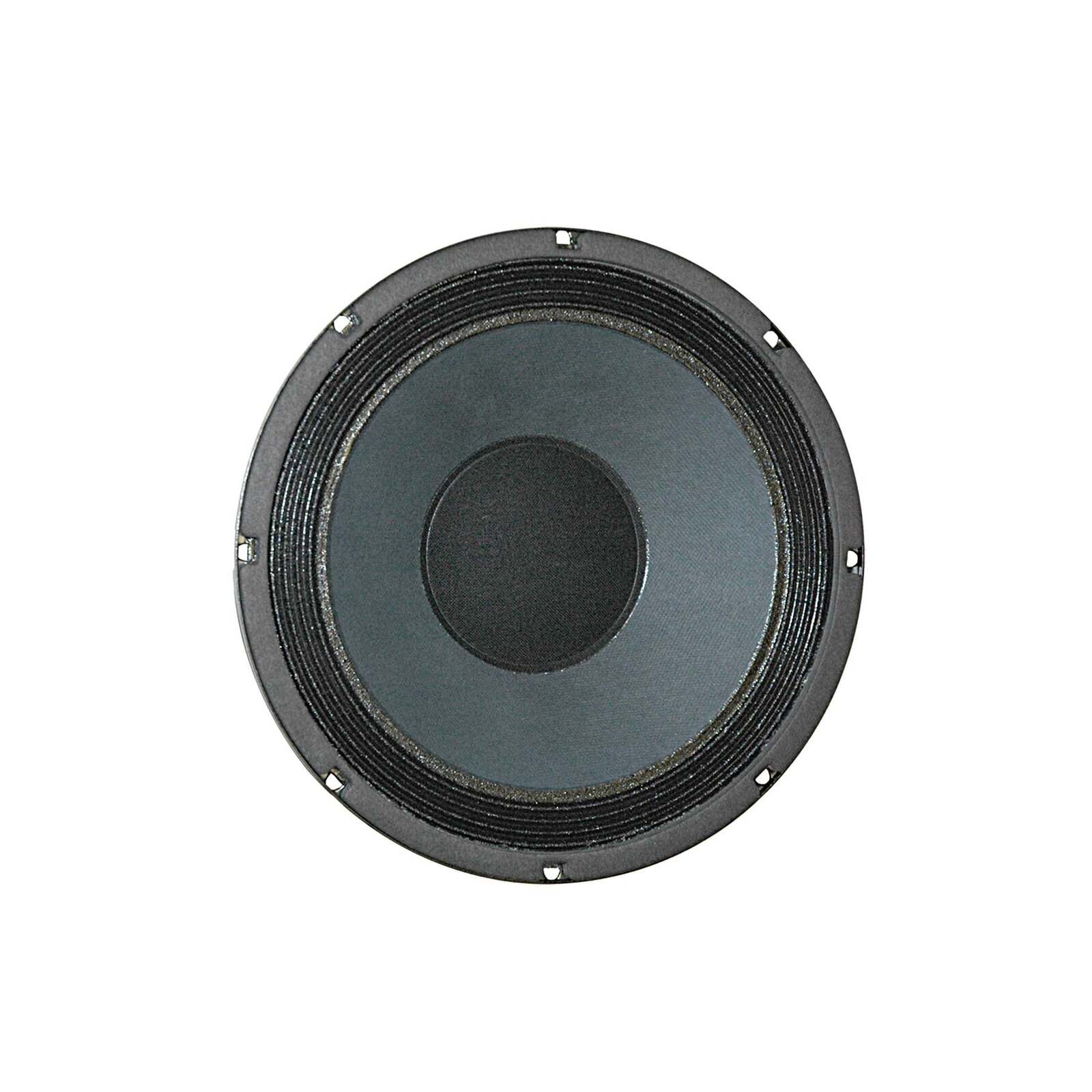

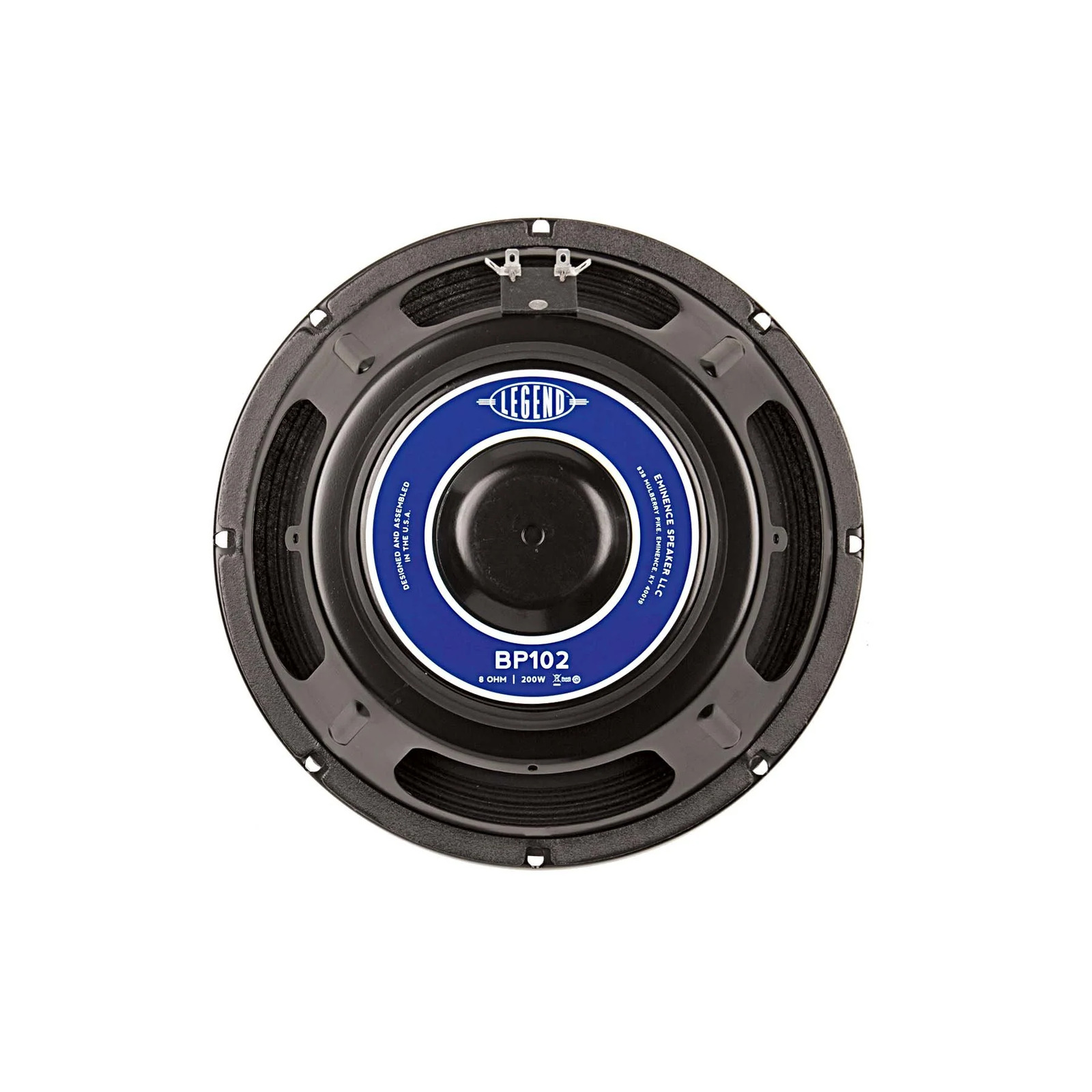

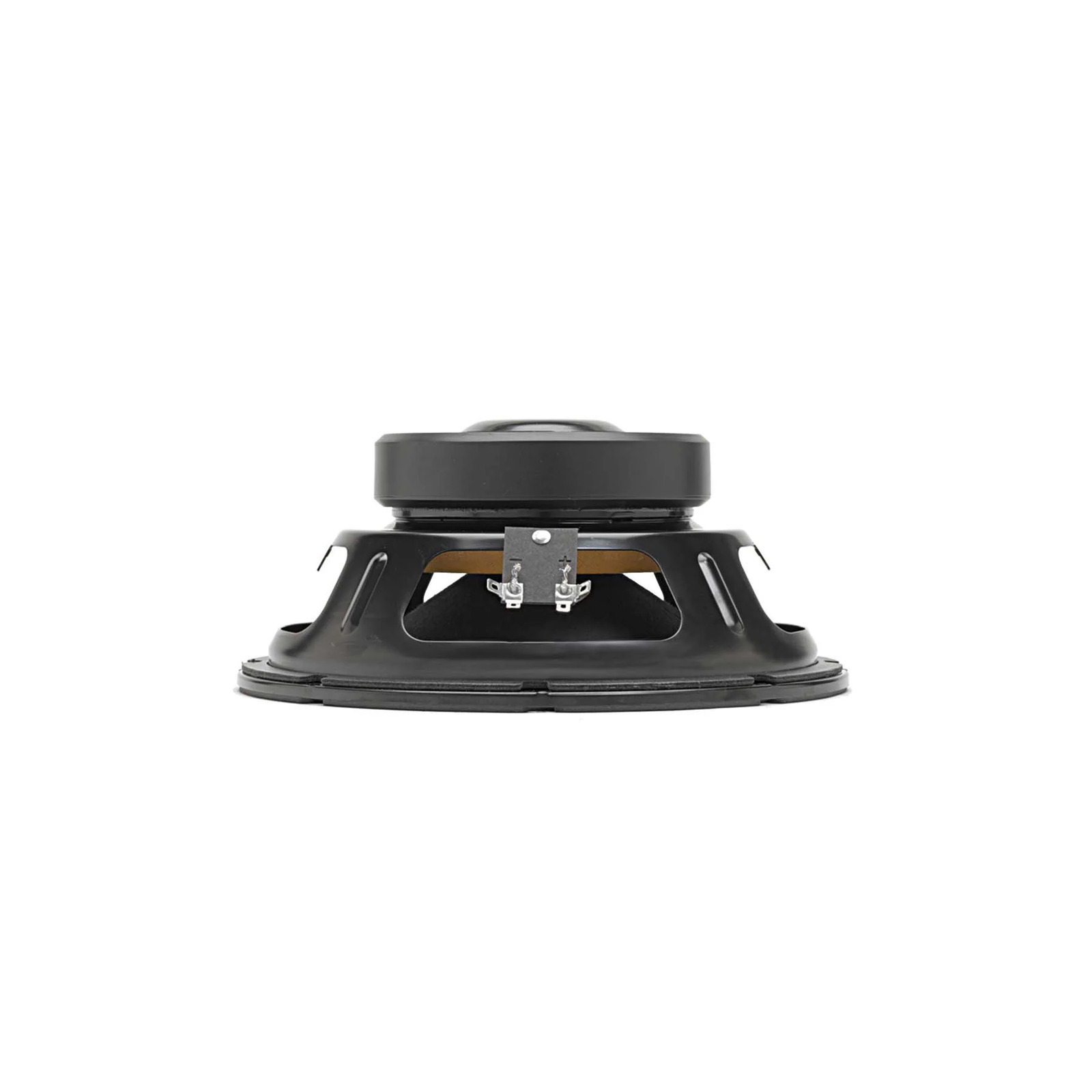

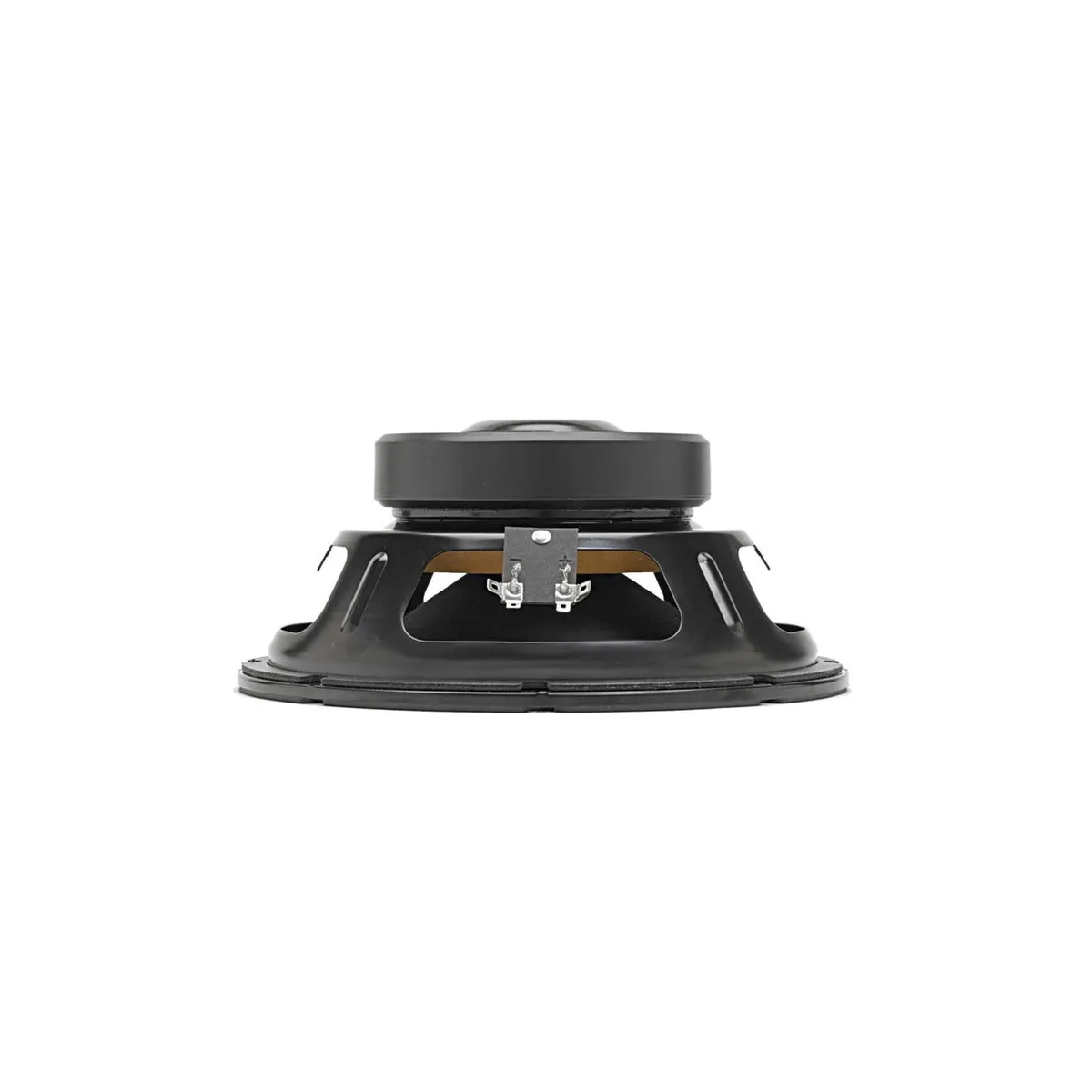

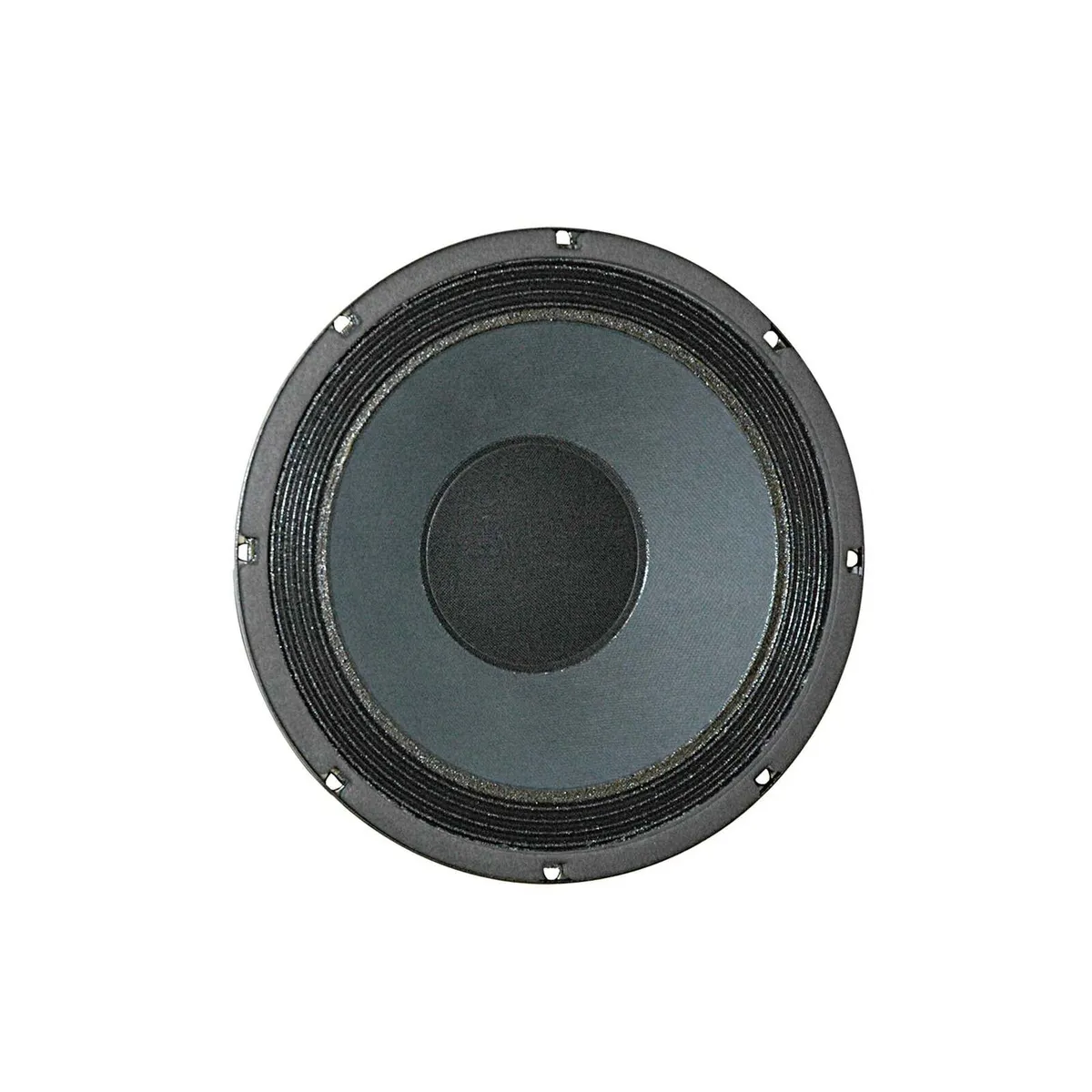

Eminence LEGEND BP 102 10″ Bass Guitar Speaker – 200W 8 ohm
Original price was: $290.00.$269.00Current price is: $269.00.
FAST
Delivery
EASY
Returns
IN HOUSE
Repairs
Out of stock
Pick-up from store - FREE
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.
Recommended for professional bass guitar applications in a sealed or vented enclosure. Works well in single or multi-driver designs. This driver is at home in small sealed enclosures and works well in Pro Audio and Home Hi-Fi applications.
| SPECIFICATION | |
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | 400 W |
| Watts | 200 W |
| Resonance | 35 Hz |
| Usable Frequency Range | 40 Hz - 2 kHz |
| Sensitivity* | 91.8 dB |
| Magnet Weight | 38 oz. |
| Gap Height | 0.312", 7.9 mm |
| Voice Coil Diameter | 2", 51 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 35 Hz |
| DC Resistance (Re) | 5.59 Ω |
| Coil Inductance (Le) | 0.83m H |
| Mechanical Q (Qms) | 5.36 |
| Electromagnetic Q (Qes) | 0.47 |
| Total Q (Qts) | 0.43 |
| Compliance Equivalent Volume (Vas) | 91.2 liters / 3.22 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 207.4 cc |
| Mechanical Compliance of Suspension (Cms) | 0.54 mm/N |
| BL Product (BL) | 10 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 38 grams |
| Efficiency Bandwidth Product (EBP) | 75 |
| Maximum Linear Excursion (Xmax) | 6.2 mm |
| Surface Area of Cone (Sd) | 334.5 cm2 |
| Maximum Mechanical Limit (Xlim) | 10 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 0.041 cu.ft. / 1.17 liters |
| Overall Diameter | 10.08", 256 mm |
| Baffle Hole Diameter | 9.18", 233.2 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 9.66", 245.4mm |
| Depth | 4.25", 108 mm |
| Net Weight | 8.9 lbs, 4.04 kg |
| Shipping Weight | 9.1 lbs, 4.13 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Non-vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Zurette dust cap |
Additional information
| Weight | 3.00 kg |
|---|---|
| Type | Electric Guitar Amplifier |
| Amplifier Type | Speaker |
