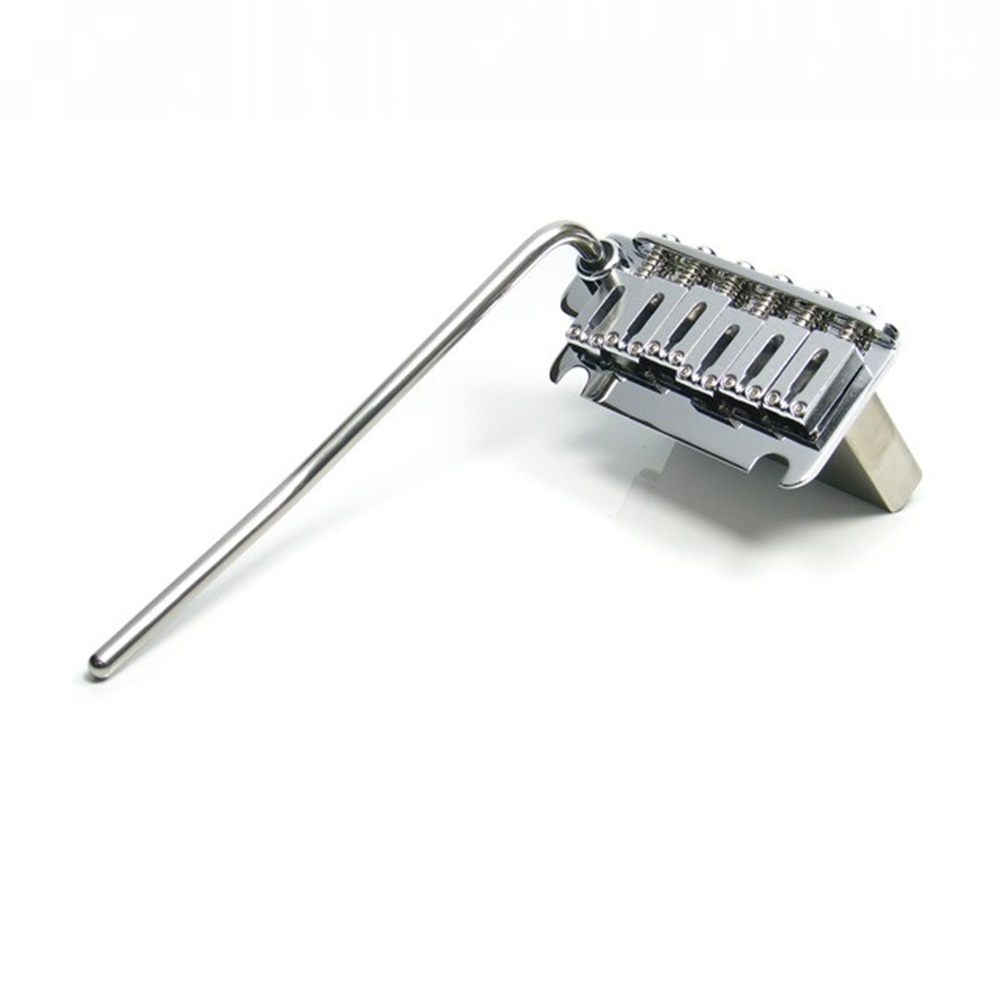

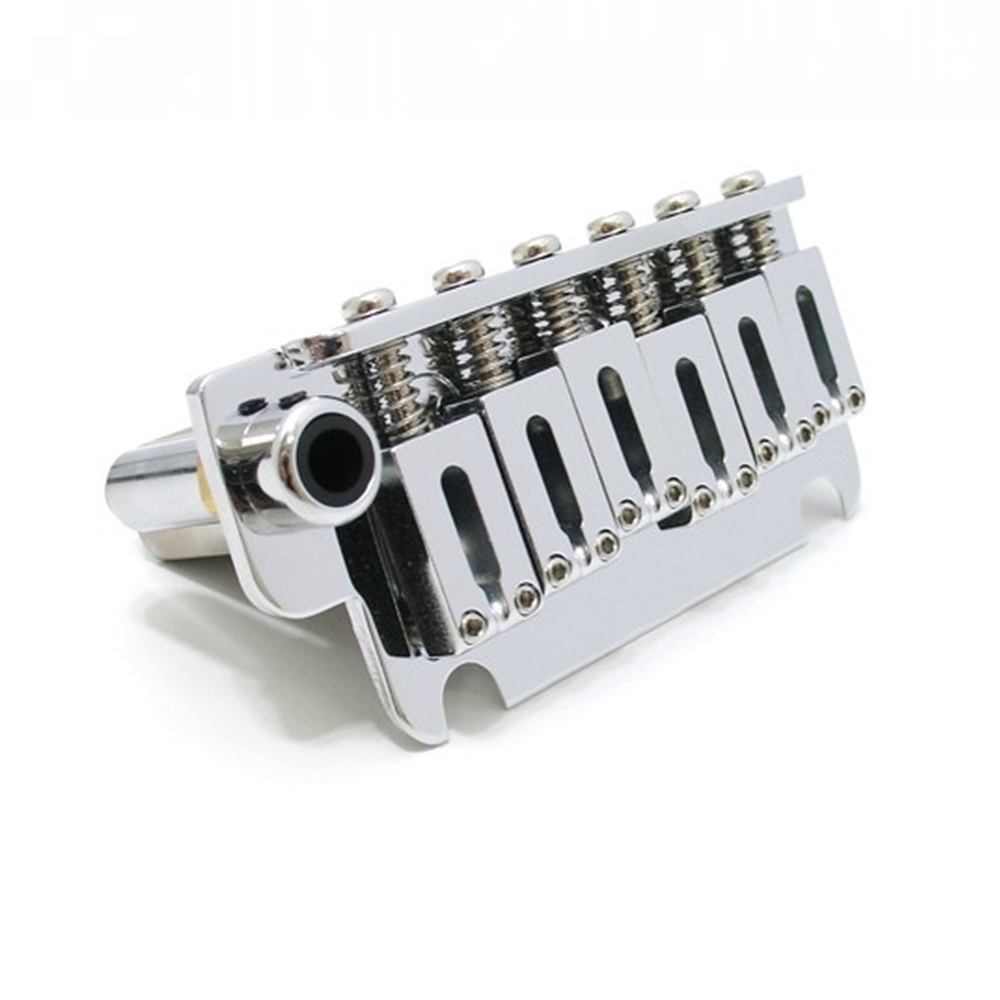

Gotoh 510TS-FE1 Modern Style Tremolo — USA Imperial Spacing

The Gotoh 510TS-FE1 is a premium modern style tremolo built to the exacting standards that have made Gotoh one of the most respected hardware manufacturers in the world. Featuring precision machined steel knife edges, a solid steel trem block, contemporary steel saddles and heat treated hardened construction throughout, this is a direct upgrade for any American Strat-style guitar running USA imperial 2-point stud spacing. Everything needed for installation is included in the box.

Why The Tremolo Matters — More Than Just A Whammy Bar

The tremolo bridge is one of the most tonally significant components on a Strat-style guitar. It is the point at which string vibration transfers into the body — and the mass, material and precision of the bridge directly affect sustain, resonance and tone. A heavy, precisely machined steel block sustains longer and transfers more energy into the body than a lightweight zinc or pot-metal block. Precision knife edges that return the bridge to exactly the same resting position every time are the foundation of tuning stability under tremolo use.

The Gotoh 510TS-FE1 addresses both of these factors — solid steel construction throughout and knife edges machined and hardened to tolerances that cheap production bridges cannot match. The result is a tremolo that performs better acoustically and mechanically than the stock tremolo on most production Strat-style guitars.

Precision Machined Steel Knife Edges

The knife edge is the pivot point of a 2-point tremolo — it is where the bridge rocks against the mounting studs. The quality of this contact determines how smoothly the tremolo moves and, critically, how reliably it returns to its resting position after use. A worn, rough or imprecisely machined knife edge produces tuning instability — the bridge does not return to exactly the same position after a tremolo dip or dive, and the guitar goes flat.

Gotoh machines the knife edges of the 510 series to tight tolerances and then heat treats and case hardens them. The hardening process significantly increases the wear resistance of the contact surface — the knife edges maintain their precision geometry over years of heavy tremolo use rather than developing the wear grooves that cause tuning instability on cheaper bridges.

Solid Steel Trem Block

The tremolo block is the mass that hangs behind the bridge plate through the body of the guitar. It is one of the most significant tonal components in a Strat-style guitar — its mass and material directly affect sustain and resonance. Larger, denser blocks sustain longer and produce a fuller, more resonant tone. Smaller zinc or pot-metal blocks are lighter and cheaper to produce but compromise sustain and tonal character.

The 510TS-FE1 uses a solid steel block — denser and heavier than the zinc alloy blocks used on most production Strat-style guitars. Players who upgrade from a stock tremolo consistently report improved sustain and a fuller, more resonant open tone, particularly on clean and lightly overdriven settings where the natural resonance of the guitar is most audible.

Contemporary Steel Saddles

The saddles are the contact point between the strings and the bridge — they determine the intonation point and string height, and their material and mass affect tone and sustain at the individual string level. The 510TS-FE1 uses contemporary style steel saddles — more precise and consistent in their intonation range than vintage bent steel saddles, and producing a brighter, more articulate tone than the synthetic or zinc saddles found on budget bridges.

Compatibility — USA Imperial Spacing

The 510TS-FE1 is designed for USA imperial 2-point stud spacing — the standard on American Fender Stratocasters and all Strat-style guitars built to USA imperial specifications. The stud spacing is 2-7/32 inches (56mm) centre to centre.

Complete Installation Package

The 510TS-FE1 ships as a complete installation package — everything required to install the bridge is included:

• Gotoh 510TS-FE1 bridge assembly with steel saddles and solid steel trem block
• Bridge mounting studs
• Springs
• Tremolo claw
• Tremolo arm

Professional Installation Available

Tremolo installation requires correct setup and adjustment of string height, intonation, spring tension and tremolo angle. Our workshop team at Angkor Music can install and set up this tremolo professionally.

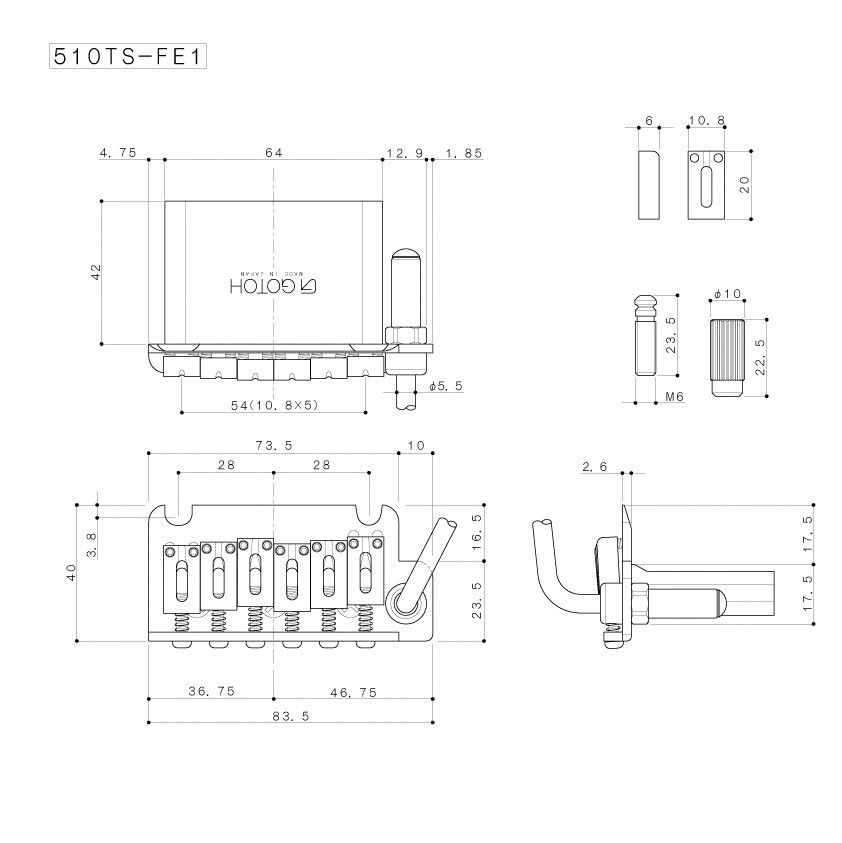

Specifications

Expert Advice at Angkor Music

At Angkor Music Melbourne we stock Gotoh hardware and can advise on tremolo compatibility for your specific guitar before you purchase. If you are unsure whether the 510TS-FE1 fits your guitar, contact us and our team will confirm.

★★★★★
