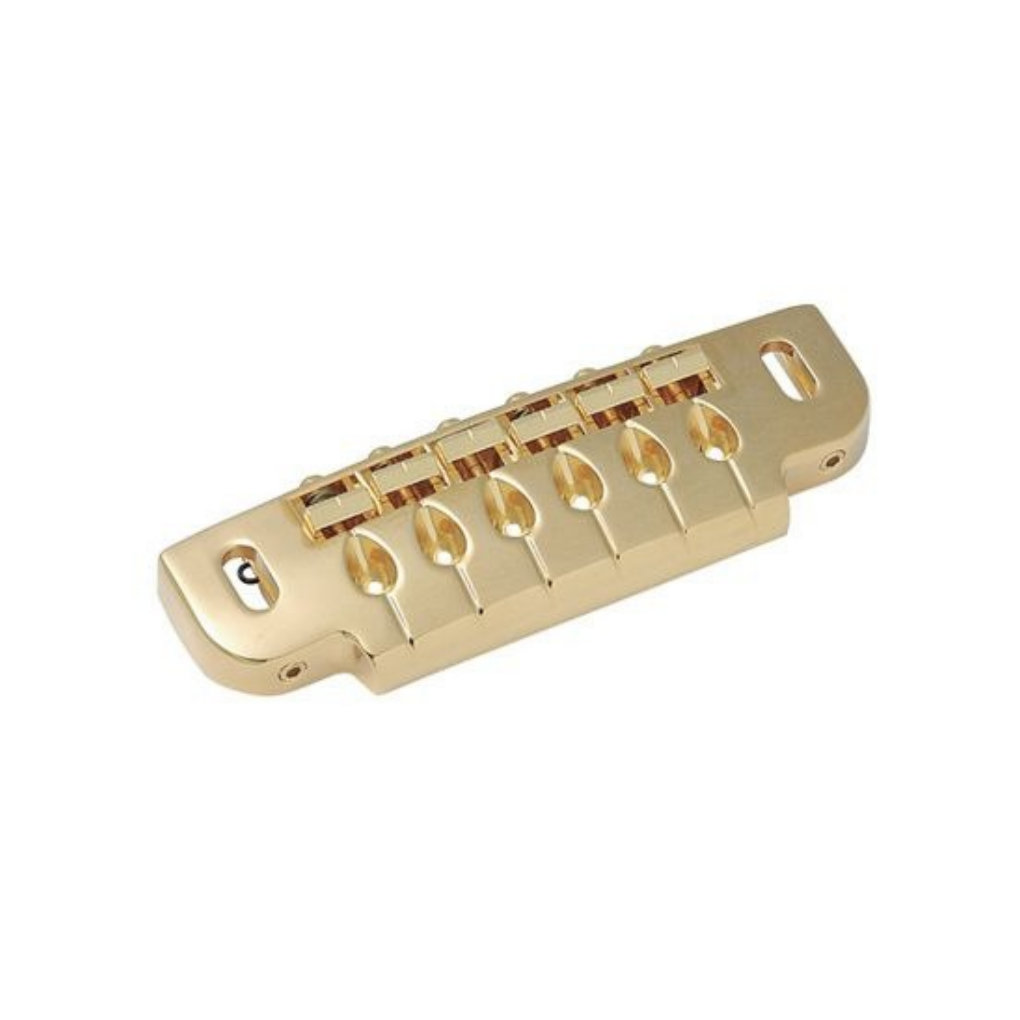

Gotoh GB510UB Wraparound Electric Guitar Tailpiece - Gold

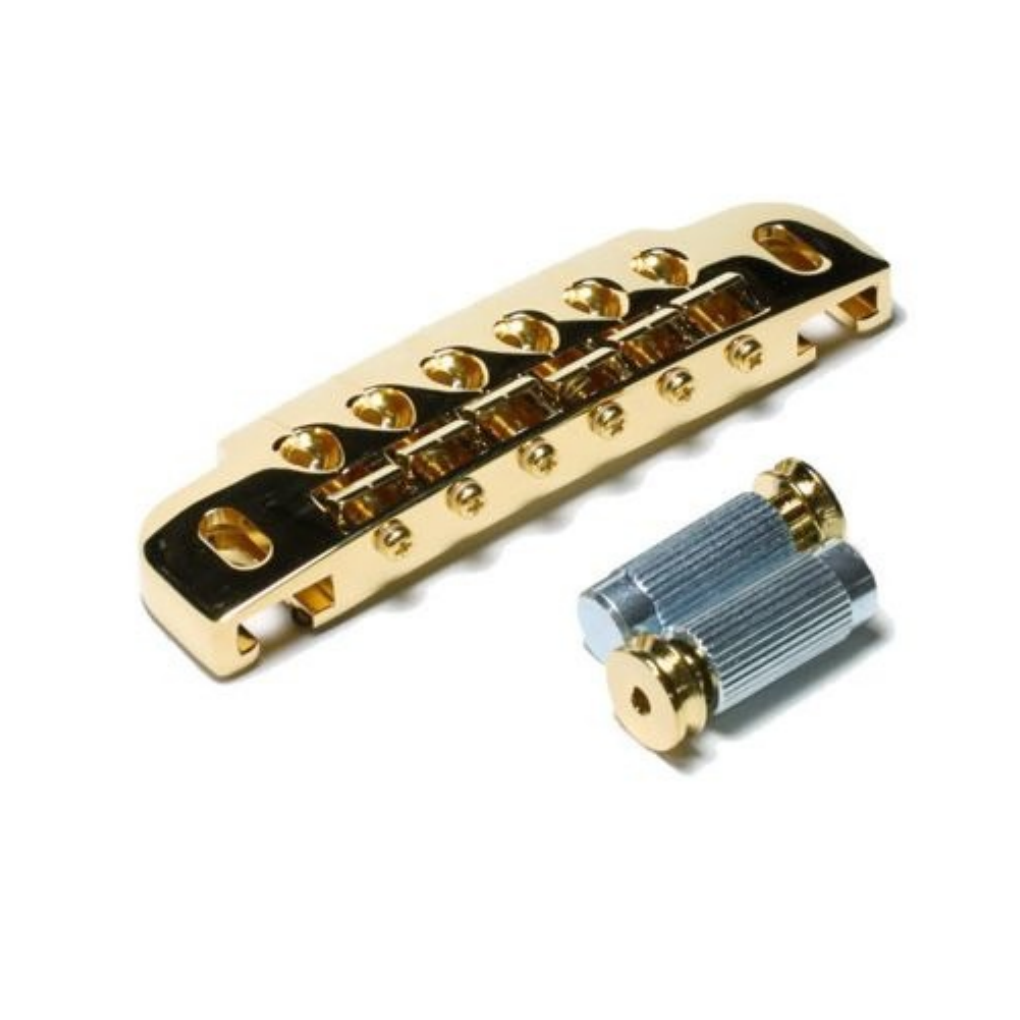

Gotoh GB510UB Wraparound Electric Guitar Tailpiece - Gold - Image 2
Gotoh GB510UB Wraparound Electric Guitar Tailpiece - Gold - Image 3

Gotoh GB510UB Wraparound Electric Guitar Tailpiece – Gold

★★★★★ 4.9 Stars — Over 1,500 Google Reviews

Original price was: $125.00.Current price is: $109.00.

FAST
Delivery

EASY
Returns

IN HOUSE
Repairs

Buy Now

1 in stock (can be backordered)

✨ This item qualifies for AU Free Shipping!

Pick-up from store - FREE
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.

International Shipping
Please proceed to checkout to see international rates and avalability.


Gotoh 510UB — Universal Bridge, Combined Bridge and Tailpiece, Gold (510UB-GOLD)

The Gotoh 510UB Gold (510UB-GOLD) consolidates the conventional two-piece bridge and stop tailpiece setup into a single locking unit — a universal bridge designed specifically for carved and arched-top electric guitars. Spring clips lock the bridge securely onto the mounting studs, and the specially designed studs lock positively into the body — eliminating the floating movement that standard two-piece hardware allows. 2-1/16" (52.39mm) string spacing, 82mm centre-to-centre stud spacing, hardened zinc saddles, gold finish. A simplified, locked and tonally effective hardware solution for Les Paul and similarly-spec'd arched-top guitars.

Angkor Music — Combined Bridge vs Two-Piece Setup, the Spring Clip Locking System, and Why Arched Top Suitability Matters

Three things define the 510UB. First, the combined bridge and tailpiece design. On a standard Les Paul-style guitar, the string path runs from the stop tailpiece — where the strings anchor — over the Tune-O-Matic bridge, which sets the string height and intonation. These are two separate components mounted on separate studs, and both are subject to the micro-movement that floating production hardware can produce under string tension. The 510UB replaces both with a single unit that handles both anchoring and string height in one piece — simplifying the hardware setup, reducing the number of contact points where energy can be lost, and providing a direct string path from anchor to neck without the break angle variables of a separate tailpiece. Second, the spring clip locking system. The 510UB uses spring clips to lock the bridge platform positively onto its mounting studs, and the studs themselves are designed to lock securely into the body bushings. This dual locking — bridge to stud, stud to body — produces a rigid connection between the strings and the guitar body that improves vibration transfer, sustain and overall resonance. The mechanism is different from threaded locking systems but achieves the same acoustic objective: eliminating floating hardware micro-movement. Third, arched top suitability. The note that the 510UB is best suited to carved and arched-top guitars is a critical fitment consideration. Arched or carved-top guitars — Les Paul style, PRS, and similar instruments — have a raised, curved body surface. Bridge and tailpiece hardware for these guitars is designed to sit on and conform to this curved surface. Flat-top guitars have different geometry and different hardware requirements. The 510UB is engineered for the arched top profile and should not be used as a replacement on flat-top instruments without confirming compatibility. Contact us at Angkor Music if you want to confirm suitability for your specific guitar.

One-Piece vs Two-Piece Hardware — What Changes

Feature Standard Two-Piece (Bridge + Tailpiece) Gotoh 510UB Combined
Components Two separate pieces on four studs One piece on two studs
Locking Production hardware typically unlocked — floats on studs Spring clips lock bridge to studs — studs lock to body
String path Tailpiece to bridge — variable break angle Direct through single unit
Installation Four studs — two components to set up Two studs — single component installation
Suitability Arched and flat top guitars depending on model Carved / arched top guitars

Spring Clip Locking — How It Works

The 510UB's spring clips are integrated into the bridge platform and engage the mounting stud heads when the bridge is pressed down into position. Once engaged, the clips hold the bridge against the stud heads under string tension, preventing the bridge from lifting or shifting. The mounting studs use a dedicated locking design that anchors them positively into the body bushings — eliminating movement at both the bridge-to-stud and stud-to-body contact points simultaneously. The result is a fully locked hardware assembly that transfers string vibration into the guitar body with maximum efficiency.

Arched Top Suitability — Important Fitment Note

The 510UB is specifically designed for carved and arched-top electric guitars — Les Paul style, PRS and similarly contoured instruments. The bridge geometry and stud angle are engineered for the arched top surface profile. Using the 510UB on a flat-top guitar may result in incorrect string break angle, saddle height issues or contact problems between the bridge base and the body. If you are replacing hardware on an arched-top guitar, the 510UB is the correct format. If your guitar has a flat top, confirm compatibility before ordering.

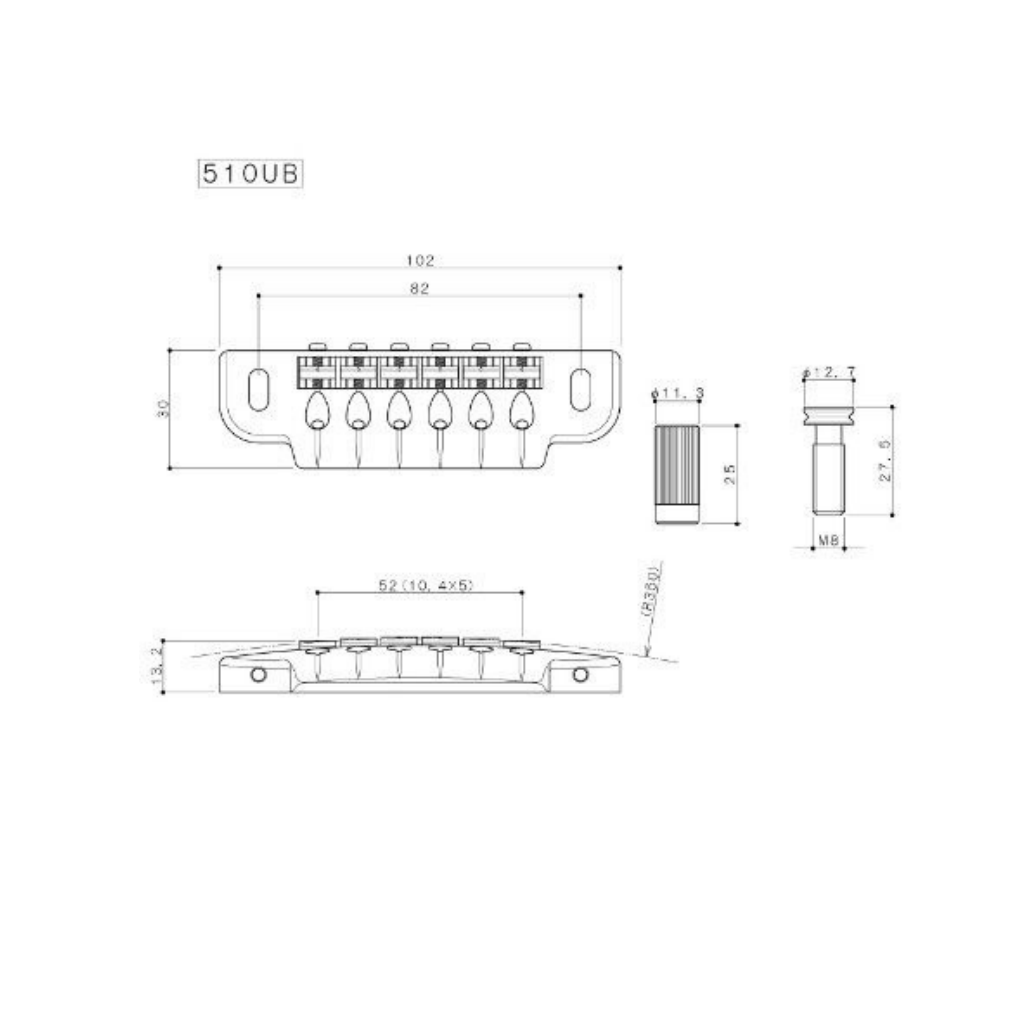

Fitment Specifications

The 82mm centre-to-centre stud spacing is the standard measurement for most Les Paul-style and similarly-spec'd arched-top guitars with stop tailpiece routing. Confirm your existing stud spacing matches 82mm before ordering. The 2-1/16" (52.39mm) string spacing is standard for 6-string electric guitar hardware at this stud spacing.

Hardened Zinc Saddles

The 510UB uses hardened zinc saddles — zinc provides a good balance of density and tonal characteristics for saddle applications, and the hardening process increases durability under string contact. Hardened zinc saddles resist wear from string friction more effectively than soft alloys, maintaining consistent contact points for string intonation and tone over extended use.

Who Is the Gotoh 510UB For?

  • Players with Les Paul-style, PRS or other carved arched-top guitars who want to replace a two-piece bridge and tailpiece with a single locked unit
  • Players who want a combined bridge/tailpiece upgrade with a positive locking mechanism for improved sustain and resonance
  • Players whose existing two-piece hardware shows micro-movement or instability that affects tuning stability or tone
  • Players who prefer the simplified single-unit setup over the two-component bridge and tailpiece arrangement
  • The 510UB is for arched-top guitars only — flat-top guitar players should confirm compatibility before ordering

Specifications

SKU 510UB-GOLD
Brand Gotoh
Model 510UB
Type Combined bridge and tailpiece — universal bridge
Finish Gold
String Spacing 2-1/16" (52.39mm)
Stud Spacing 82mm centre to centre
Saddles Hardened zinc
Locking Spring clips — bridge to stud and stud to body
Suitability Carved / arched top guitars
Made Japan

Expert Advice at Angkor Music

At Angkor Music Melbourne we stock Gotoh hardware across the guitar and bass range. Contact us to confirm whether the 510UB is compatible with your specific guitar before ordering — particularly if you are unsure whether your instrument has an arched or flat top.


★★★★★ 4.9 Stars — Read Our 1,600+ Google Reviews →

Frequently Asked Questions

What is the difference between a combined bridge/tailpiece and a standard two-piece setup?
On a standard Les Paul-style guitar, the strings anchor at a separate stop tailpiece and then run over a separate Tune-O-Matic bridge — two components on four studs. The 510UB combines both functions into one unit on two studs. The strings anchor and are intonated at the single 510UB unit. This reduces the number of hardware components, simplifies setup, and — with the 510UB's spring clip locking — eliminates the floating movement that can occur in both the bridge and tailpiece on standard two-piece hardware.

Will this fit my Les Paul?
The 510UB requires 82mm centre-to-centre stud spacing, which is the standard spacing on most Les Paul-style guitars. Confirm your existing stud spacing is 82mm before ordering. The 510UB is designed for arched/carved top guitars — which the Les Paul is. If you are replacing a standard two-piece bridge and tailpiece, be aware that the 510UB uses two studs where the original setup used four. The two rear tailpiece stud holes will remain in the body if you switch to the 510UB.

How does the spring clip locking work?
The 510UB's spring clips are part of the bridge platform and engage the stud heads when the bridge is pressed into position — the clips grip the stud heads and hold the bridge against movement under string tension. The studs themselves use a locking design that anchors them positively into the body bushings. Both the bridge-to-stud and stud-to-body connections are locked, producing a rigid assembly that transfers vibration efficiently from strings to guitar body.

Why is this only suitable for arched/carved tops?
Arched and carved-top guitars have a raised, curved body surface — the bridge sits on this curve and its geometry must match it. The 510UB is engineered for this profile. Flat-top guitars have different body geometry and different hardware requirements. Using arched-top hardware on a flat-top guitar will produce incorrect saddle angles, string break angles and contact issues. If you are unsure whether your guitar has an arched or flat top, contact us before ordering.

★★★★★ 4.9 Stars — Over 1,600 Google Reviews →

✓ Happy with your purchase? Leave us a review →

Additional information

Weight 0.69 kg
type

Bridge
