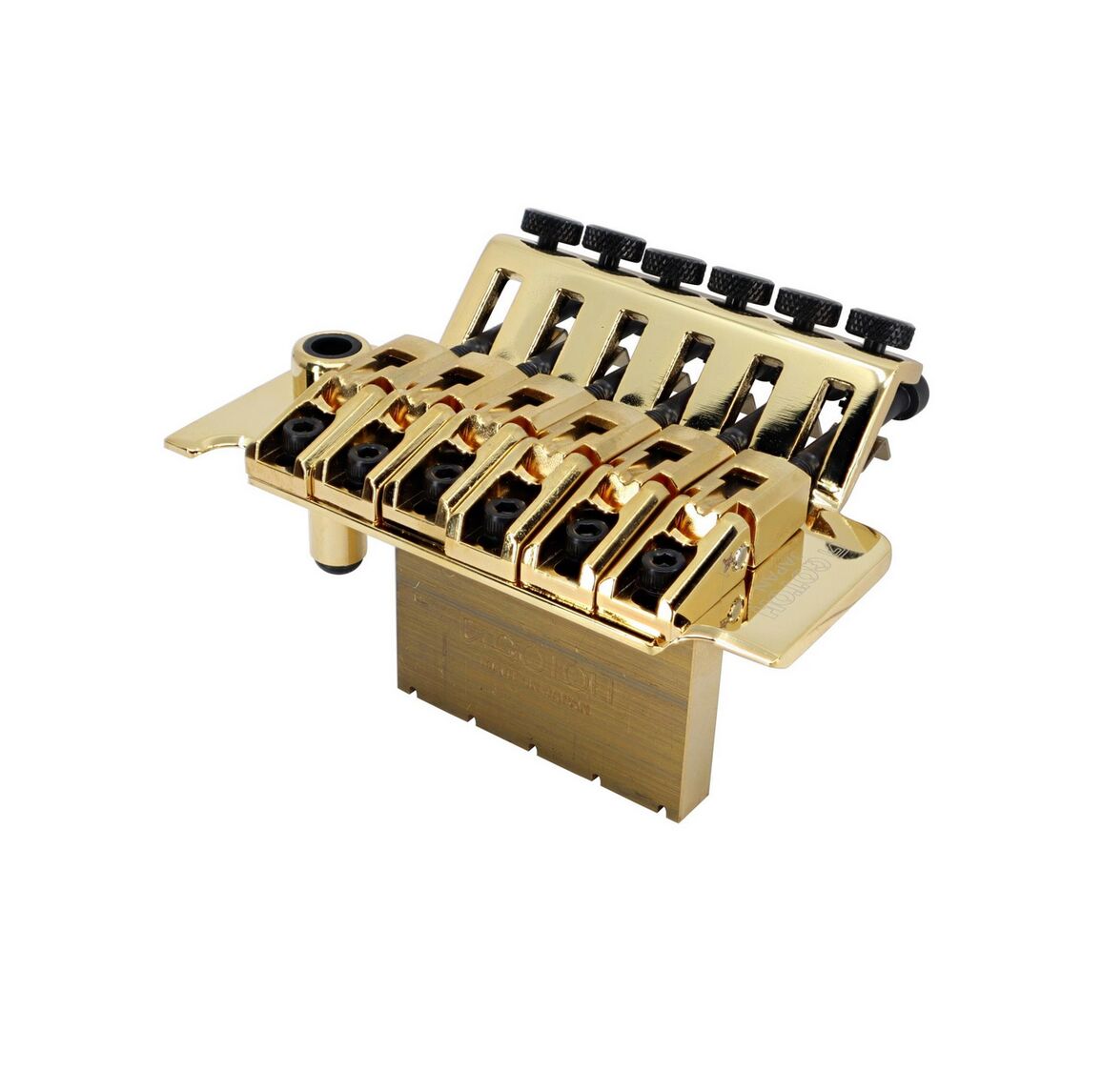

Gotoh GE1996T Floyd Rose Double Locking Tremolo - Gold
Gotoh GE1996T Floyd Rose Double Locking Tremolo - Gold - Image 2

Gotoh GE1996T Floyd Rose Double Locking Tremolo – Gold

★★★★★ 4.9 Stars — Over 1,500 Google Reviews

Original price was: $269.00.Current price is: $245.00.

FAST
Delivery

EASY
Returns

IN HOUSE
Repairs

Buy Now

1 in stock (can be backordered)

✨ This item qualifies for AU Free Shipping!

Pick-up from store - FREE
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.

International Shipping
Please proceed to checkout to see international rates and avalability.

Gotoh GE1996T Double Locking Tremolo Bridge Assembly - Gold / 36mm Brass Block

Achieve absolute tuning stability, legendary Japanese mechanical precision, and effortless pitch manipulation. The Gotoh GE1996T Double Locking Tremolo System is widely recognized by master luthiers and high-performance guitarists as one of the finest Floyd Rose®-style bridges ever produced. Finished in a premium, high-lustre gold finish, this elite bridge system combines hardened hardware components with thoughtful, patented structural innovations to deliver smooth tremolo action, deep dive-bombs, and massive harmonic sustain.

Angkor Music Technical Evaluation: Patented Stud Lock Integration & Premium Brass Resonance

The engineering superiority of the Gotoh GE1996T stems from its heavy-duty materials and innovative stabilization systems. While typical locking bridges suffer from loose threads and wobbling mounting posts, this model features Gotoh's patented Stud Lock mechanism. An internal tiny set-screw expands inside the post to completely lock the stud to the 11mm insert after setup, eliminating body thread play and ensuring optimal energy transfer from the strings to the guitar body. This stability is paired with ultra-durable hardened steel saddles that resist string gouging, and a premium 36mm solid brass sustain block. The high-density brass block introduces an organic warmth, filters out brittle treble frequencies, and dramatically increases overall sustain compared to standard zinc die-cast blocks.

E-E-A-T: Authentic Japanese Manufacturing & Direct Dimension Verification

At Angkor Music, we source genuine Gotoh hardware crafted directly in Japan to guarantee pristine machining tolerances. Crucial Fitting Advisory: The GE1996T utilizes a standard 74mm center-to-center stud spacing and a 10.8mm string spacing. Due to the high accuracy of the supplied 11mm outer-diameter inserts, the matching Gotoh studs must be installed together as a complete unit. We highly recommend reviewing your instrument's existing route dimensions to ensure proper alignment and clear space for the 36mm block depth before beginning your modification.

Shop All Guitar Bridges & Hardware →

Technical Specifications

  • Brand: Gotoh (Handcrafted in Japan)
  • Model: GE1996T Series
  • Bridge Type: Floyd Rose® Licensed Double Locking Tremolo System
  • Color Finish: High-Lustre Polished Gold
  • Sustain Block Material: Solid High-Density Musical Brass
  • Sustain Block Depth: 36mm Profile
  • Saddle Construction: Hardened Ultra-Wear Resistant Steel Saddles

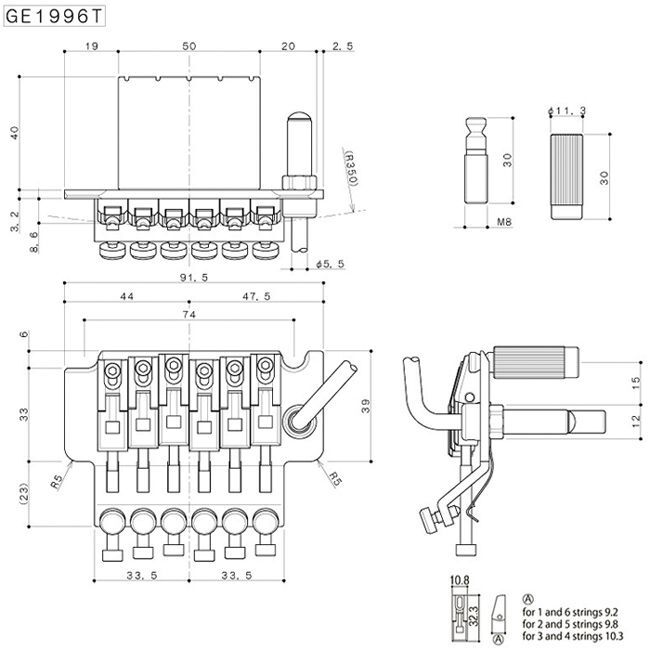

  • Stud Spacing: 74mm (2-29/32 Inches) Center-to-Center
  • String-to-String Spacing: 10.8mm
  • Mounting Stud Inserts: 11mm Outer Diameter Body Bushings
  • Stabilization Tech: Patented Stud-Lock Thread Expansion System
  • Tremolo Arm System: Internally Threaded with Adjustable Swing-Away Tension
  • Condition: Brand New in Original Factory Box

In the Box Comprehensive Installation Contents

  • Main Unit: 1 x Gotoh GE1996T Gold Tremolo Assembly
  • Tremolo Arm: 1 x Coordinated Gold Thread-In Tremolo Arm with Tension Adjustment
  • Chassis Hardware: 2 x Threaded Mounting Studs with 2 x 11mm Body Inserts
  • Tension Springs: 3 x High-Elasticity Tremolo Counter-Springs
  • Claw Assembly: 1 x Structural Rear Tremolo Spring Claw with Dual Mounting Screws
  • Adjustment Toolkit: Complete set of structural hex wrench tools for saddle and stud locking adjustments

Key Product Features

  • Patented Post Stabilization: Built-in stud locks completely anchor the bridge posts into the wood inserts, stopping alignment wobble and maintaining absolute zero pitch return.
  • Rich Solid Brass Voice: The factory-installed 36mm heavy brass block eliminates thin, hollow tones by filling your mid-range and extending ringing note sustain.
  • Hardened Steel Saddles: Heavy-duty saddle plates shrug off friction, preventing string binding and reducing string breakage during extreme performance use.
  • Fully Customizable Arm Swing: Thread-in arm housing features internal torque adjustments so you can set your arm to stay put or freely swing away instantly.
  • Flawless Precision Intonation: Features clean fine-tuner threads and secure saddle locks for fast, millimeter-accurate tuning tracking across live stages.

Frequently Asked Questions

Can I drop this Gotoh GE1996T bridge directly into a guitar routed for an original German Floyd Rose®?
Yes, in most instances. The 74mm stud spacing matches standard original Floyd Rose layout templates perfectly. However, the Gotoh locking saddle bolts extend slightly further out the back of the bridge assembly, and the baseplate contours are slightly different. While it fits standard routes cleanly, we always suggest verifying your guitar's rear routing cavity space to ensure there is plenty of room for wide pulling motions.

Does this complete system include a locking nut assembly inside the box?
No. The Gotoh GE1996T bridge kit includes the bridge, tremolo arm, springs, claw, and mounting posts. Locking nuts are sold separately because neck widths (such as 41mm, 42mm, or 43mm) and mounting styles (top-mount vs. rear bolt-through) vary across different guitar builds. This allows you to match the exact locking nut your specific guitar neck profile requires.

Why must I use the included 11mm Gotoh studs instead of keeping my factory bridge posts?
The internal threading, post tapering, and knife-edge alignment of the GE1996T are precision-matched to Gotoh's custom post dimensions. Additionally, the patented Stud Lock feature relies explicitly on the interaction between Gotoh's custom inner set-screw and its own outer 11mm insert. Reusing stock non-Gotoh posts can damage the bridge's hardened knife-edges and ruin tuning stability.



Additional information

Weight 0.69 kg
type

Bridge
