Gotoh SG301 MGT Locking Tuning Keys — 3 a Side, Grover Rotomatic Replacement, Pure Black (SG301MGT-003)

The Gotoh SG301 MGT (SG301MGT-003) is a set of six locking tuning keys in a 3-a-side configuration with pure black finish — and a direct drop-in replacement for Grover 102 Series Rotomatic tuners. Built in Japan to Gotoh's precision engineering standards, the SG301 MGT features an 18:1 gear ratio, traditional thumbwheel Magnum Lock mechanism, Gotoh 01 button, XL long posts accommodating headstock thickness up to 17mm, and a 10mm shaft hole requirement matching the Grover 102 Rotomatic footprint exactly. Includes screw-in bushings, washers and fixing screws. For Gibson Les Paul, SG, ES-335 and ES-339 players — and any guitarist with a 3-a-side headstock currently fitted with Grover 102 Rotomatics — the SG301 MGT installs without drilling or reaming, converting an existing non-locking headstock to locking tuner performance without modification. Before ordering, verify your headstock's existing bushing hole diameter (must be 10mm) and confirm the base plate dimensions against the technical diagram provided.

SG301MGT-003 vs Chrome vs Gold — Finish Selection

Grover 102 Rotomatic — Direct Drop-In Replacement

The Grover 102 Series Rotomatic is the benchmark 3-a-side guitar tuner — factory-fitted on Gibson instruments for decades and widely used across the guitar market. Its 10mm bushing hole and base plate screw spacing have become a de facto standard for 3-a-side headstocks.

The SG301 MGT was engineered to match this footprint exactly. In practical terms:

• Same 10mm bushing hole diameter — no drilling or reaming of the headstock required
• Matching base plate screw positions — existing screw holes align with the SG301 MGT base plate for a clean installation without additional drilling
• Same physical profile — the SG301 MGT sits on the headstock in the same position as the Grover 102, with no gaps or overhangs

For players replacing worn, damaged or cosmetically degraded Grover 102 Rotomatics, the SG301 MGT is the most direct upgrade path available — same installation, significantly better performance through the addition of locking capability and Gotoh's precision 18:1 mechanism.

MGT Thumbwheel Locking — How It Works

The MGT (Magnum Lock Traditional) mechanism is a specific type of locking tuner that operates differently from push-button locking designs. Understanding how it works prevents confusion during the first string change:

How to string with MGT thumbwheel locking:

1. Feed the string through the post hole as normal
2. Wind the string onto the post to your usual string count — one to three winds depending on your preference
3. Tune the string to pitch
4. Tighten the thumbwheel on the back of the tuner — this clamps the string inside the post and locks it in position
5. The string cannot slip, detune from the post or pull through under playing load

Key advantages of the thumbwheel design:

• Traditional appearance from the front — the locking mechanism is entirely on the back of the tuner. From the front, the SG301 MGT looks identical to a standard Rotomatic. No visible clamp, no push-button, no cosmetic change to the headstock appearance
• No need to cut strings short — unlike some locking designs that require inserting a pre-cut string end into the post, the thumbwheel design accepts a normally-wound string. Your existing stringing technique is unchanged
• Familiar transition for Grover players — players used to the Rotomatic form factor will find the MGT the most natural transition to locking performance, with no change to the headstock's visual character

Thumbwheel vs push-button locking:
Push-button locking tuners (Gotoh 510, Sperzel) lock the string before winding — the string is inserted, the button pressed to clamp, then wound to pitch with minimal winds. This is faster for string changes but changes the visual appearance and stringing technique. The thumbwheel MGT locks after winding — more familiar, traditional-looking, and suited to players who prefer the Rotomatic aesthetic. Both approaches achieve equivalent tuning stability. The choice is personal and instrument-specific.

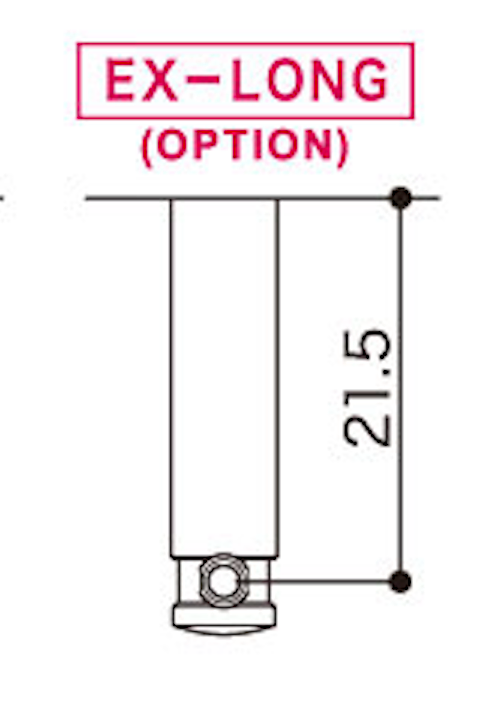

XL Long Posts — Why Headstock Thickness Matters

The SG301MGT-003 uses XL extended length posts accommodating headstock thicknesses up to 17mm maximum. This is a specific and important specification for certain instruments:

Why standard posts can fail on thick headstocks:
Gibson Les Paul headstocks — particularly on older instruments and heavily lacquered models — can reach and exceed the thickness that standard-length tuner posts accommodate. If a standard-length post does not protrude sufficiently through the headstock face, the bushing cannot seat correctly and the string cannot wrap properly onto the post. The result is a tuner that installs incorrectly and functions poorly.

Who specifically benefits from XL posts:

• Les Paul players on heavily lacquered instruments where finish buildup has increased headstock thickness beyond standard dimensions
• Players on bound headstocks where binding thickness adds to the overall headstock profile
• Players on vintage or aged instruments where headstock thickness may differ from current production standards
• Players who have previously found standard-length tuner posts insufficient for their headstock

For players on standard-thickness headstocks, the XL posts create no fitting problems — they simply provide additional clearance that standard posts do not.

18:1 Gear Ratio — Precision Tuning Performance

The SG301 MGT's 18:1 gear ratio — eighteen rotations of the tuning button per full rotation of the string post — provides significantly finer tuning control than the 14:1 and 15:1 ratios common on standard Grover 102 Rotomatics and budget replacement tuners.

The improvement is immediately noticeable when tuning by ear or to a reference pitch — finer increments per button turn allow more precise pitch placement, and the additional gear reduction provides better resistance to string tension moving the tuner out of position during playing. Combined with the MGT locking mechanism, the result is a tuner set that holds pitch more consistently across a full set than non-locking alternatives at any gear ratio.

Gotoh 01 Button — Classic Rotomatic Profile

The Gotoh 01 button maintains the oval Rotomatic-style button profile that Gibson players are familiar with. The SG301 MGT does not change the visual character of the headstock — the button shape, size and placement replicate the Rotomatic format that players and audiences recognise. For players who specifically want the Rotomatic aesthetic with locking performance added, the 01 button is the correct choice.

Who Is the Gotoh SG301 MGT (SG301MGT-003) For?

• Gibson Les Paul, SG, ES-335 and ES-339 players replacing worn or damaged Grover 102 Rotomatics with a direct drop-in locking alternative
• Players on any 3-a-side guitar with 10mm bushing holes wanting to upgrade to locking tuners without headstock modification
• Players who want locking tuner performance while maintaining the traditional Rotomatic visual appearance on the headstock
• Players on thick or heavily lacquered Les Paul headstocks where XL posts are required for correct post seating
• Guitarists who use a tremolo or play styles that cause frequent string slippage — locking tuners eliminate post-slip detuning
• Players who want the traditional thumbwheel locking approach rather than push-button locking
• Players with black hardware instruments — for chrome hardware the SG301-MGT-CHROME is the correct finish; for gold hardware the SG301-MGT-GOLD is correct

Specifications

Expert Advice and Installation at Angkor Music

At Angkor Music Melbourne we stock the Gotoh SG301 MGT range in pure black, chrome and gold. Confirming the correct finish for your instrument's hardware before ordering ensures a clean hardware match — particularly important on Les Paul and ES-series instruments where the bridge, tailpiece and control hardware finish sets the standard for the rest of the instrument's hardware. Contact us with your guitar's make, model and hardware finish for advice. Professional installation is available through our guitar technician.
