Serious equipment for serious musicians made simple.

A gigging musician playing any acoustic instrument will know the difficulties in reproducing the sonic qualities at a cafe or pub gig, that sounded so great at home.

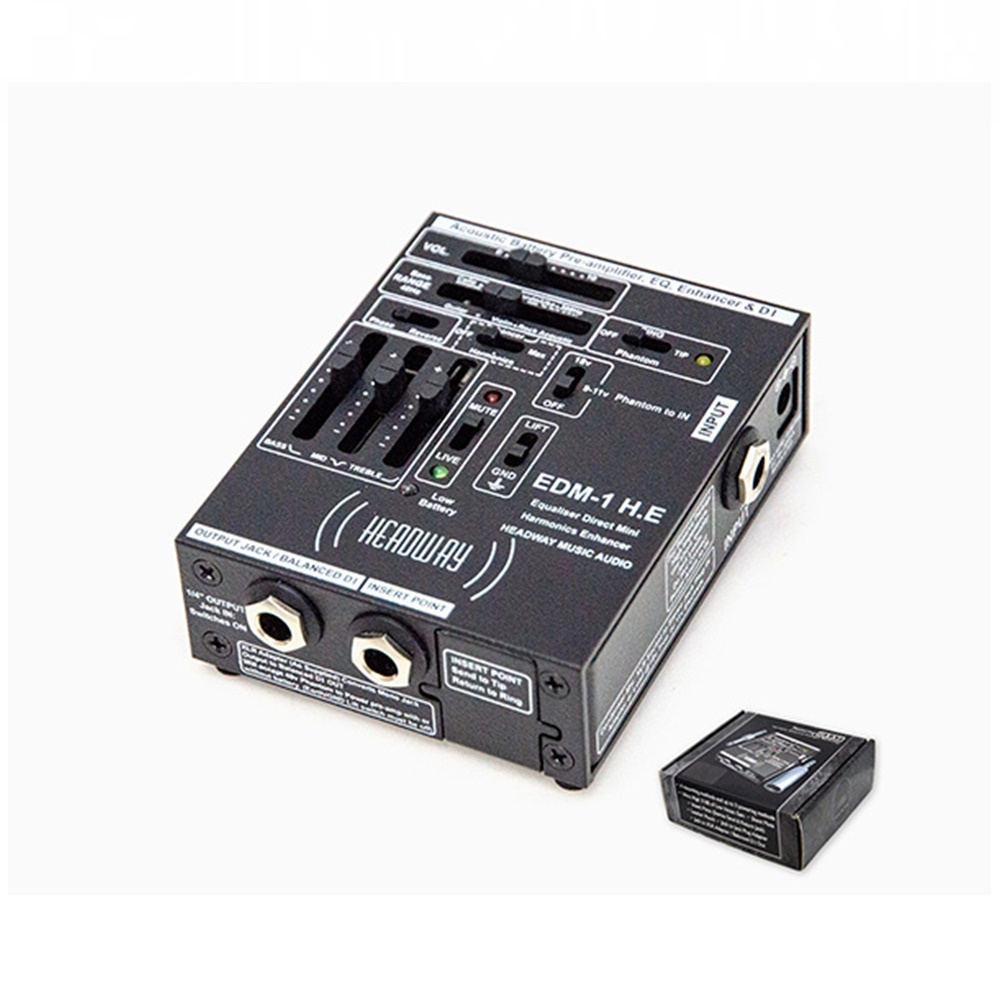

The EDM-1 H.E Acoustic Pre-Amp solves these problems by taking the signal from the intruments’ pickup and giving you complete control over the bass, mid and treble, helping to add richness while achieving a beautifully clean sound. The new 'Harmonic Enhancer' circuit generates a high end even harmonic sparkle & zing related tones lost from your guitar from magnetic and piezo pickups and many microphones, to define string separation and cut through the mix.

EDM-1 H.E offers a huge range of gain to Interface signals weak or strong with mixers and other devices, highly effective Interactive EQ and other versatile facilities to get the best possible sound from acoustic stringed instruments with low noise from an exceptionally compact unit.

A host of useful functions are included to suit any stage situation. Anti-feedback and ground lift ensure an unadulterated tone. Phase switch, bass range and 3 band EQ allow for tailoring the best tone from the stage. Can deliver phantom power in two voltage options, and FX loop adds further flexibilty to integrate effect pedals.

• Refined Class “A” inputs & Pro Audio IC components • Voiced for clarity, warmth & high gain at low noise

• Effective 3 Band EQ for problem solving & creativity

• volume slider via control offers 30 dB low noise Gain ~ silent “mute” switch with led indicators

• Newly developed “Harmonic Enhancer” via 3 Way Switch, generates a high end even harmonic sparkle & zing related tones lost from your guitar from magnetic & piezo pickups & many microphones, to define string separation & enable cut through in ensembles

• Versatile impedance optimisation of all pickups & audio microphones

• Tuneable “Range” control for extended range of attack on unwanted boom, body handling noise & feedback to amplify a clearer, more musical tone of instrument ( HPF)

• Leather (faux) bag with headway logo to enable ready “to go” safe storage in instrument case

• Phase Reverse Switch to match diverse dual sources or beat feedback

• Insert point jack offers fx loop / send & return ( tuner etc ) via tip & ring

• XLR Output Adapter included accepts 48v Phantom Power from Mixer to override & save battery & extend headroom

• Hum Loops busted via Earth Lift switch

• Jack to Jack Plug Adapter included, enables EDM-1 H.E to plug directly into Guitar End Pin Jack Socket, or link with other signal processors, FX or tuners

• quiet plug in/out via input socket jack

• Phantom Powering of all Pickups & Electret Condenser Mic’s so designed ~ 9v via Tip or Ring

• Powered via 9v PP3 battery included, 48v Phantom Power from Mixer or optional “plus V2” with Headway’s headroom extending 18v Power Supply ~ 4 Mains plug connector options

• Mounting via rubber feet, belt/Strap clip included, Mic Stand bracket or via “Jack to Jack” Plug adapter suspended via End Pin Jack Socket

• Sturdy, lightweight Aluminium alloy housing with quality low profile slider pots, switches & long life sockets

• Designed in the UK, made in the EU
