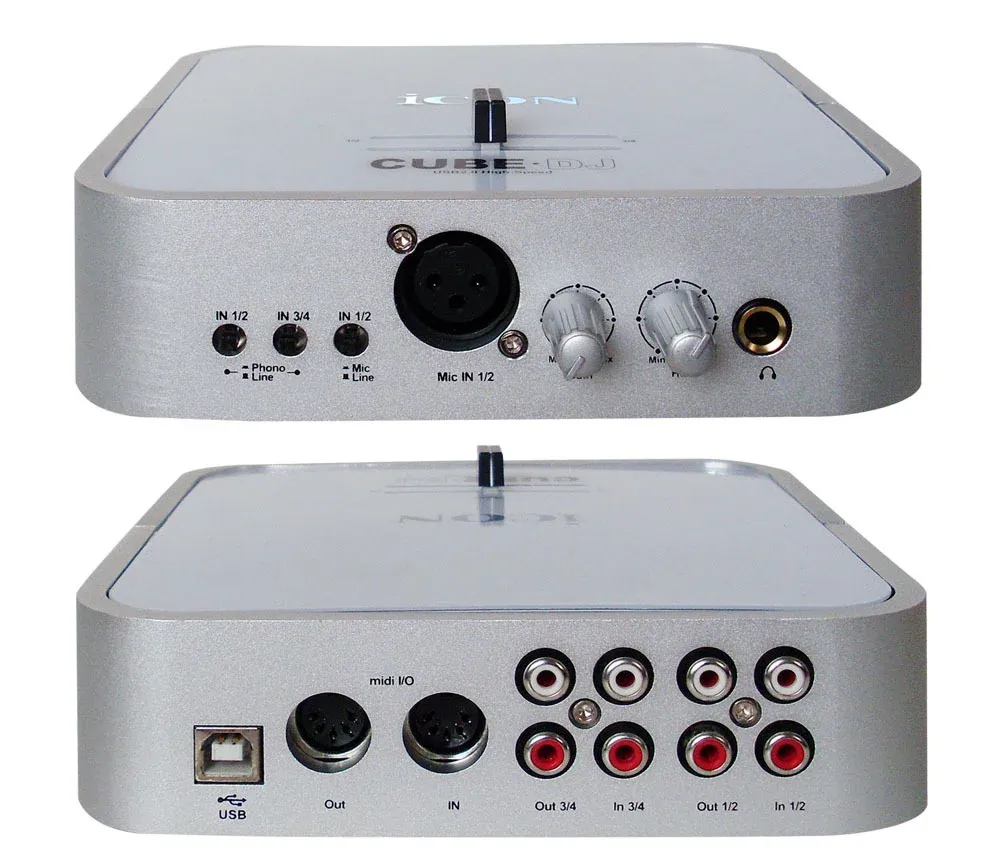

Icon Cube DJ Audio interface MIDI-Controller

Icon Cube DJ Audio interface MIDI-Controller

Original price was: $249.00.Current price is: $210.00.

FAST
Delivery

EASY
Returns

IN HOUSE
Repairs

2 in stock

Pick-up from store - FREE
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.

ICON Pro Audio Cube DJ 4-In/4-Out USB Recording Audio Interface

The ICON Cube DJ USB Recording Audio Interface is a highly portable, studio-grade 4-In/4-Out performance interface purpose-built for mobile DJs, digital track mixing, and live hybrid setups. Delivering pristine 24-bit 96/192KHz analog-to-digital conversion, this compact powerhouse features a specialized hardware control layout designed to bridge the gap between traditional turntables, media players, and modern software control architectures. Its full-duplex design supports simultaneous recording and playback, serving as a reliable structural backbone for both your live sets and home-studio tracking.

Angkor Music Technical Evaluation: Optimized Routing & Real-Time Monitoring

The Cube DJ stands out with its smart hardware switching matrices. Inputs 1 and 2 feature individual, dedicated Line / Phono mechanical switches, allowing you to connect vinyl turntables directly without requiring external preamps. It also includes an integrated XLR Microphone input equipped with an independent analog gain control knob. The core live-performance asset is the top-mounted horizontal hardware crossfader, which allows for immediate, tactical volume control or fast monitoring switches between master output channels 1/2 and cue output channels 3/4. Coupled with an assignable, high-current headphone output, it provides real-time monitoring precision when beatmatching in loud environments.

E-E-A-T: High-Turnover Compact Design & Driver Stability

At Angkor Music, we source high-performance, compact recording solutions designed to simplify your travel setup and cut down on freight weight. The ICON Cube DJ is completely USB bus-powered, drawing all necessary operational current straight from your laptop without requiring an external AC adapter. Equipped with ultra-low latency ASIO 2.0, WDM, and DirectSound drivers, this interface locks your audio timing in perfectly, eliminating latency issues during live performances on both Windows and macOS platforms.

Shop All Audio Interfaces →

Technical Specifications

  • Brand: ICON Pro Audio
  • Model: Cube DJ
  • Resolution: 24-bit / 96KHz & 192KHz High-Fidelity Sampling
  • Analog I/O Configuration: 4-Input / 4-Output (Full Duplex)
  • Input Connections: 4 x RCA Line/Phono, 1 x XLR Balanced Microphone
  • Output Connections: 4 x RCA Analog Line Outs, 1 x 1/4" TRS Headphone Out
  • Hardware Controls: Master Crossfader, Mic Gain Knob, Headphone Volume, Input Source Toggles
  • Host Connectivity: USB 2.0 High-Speed (Bus Powered)
  • Driver Support: ASIO 2.0, WDM, DirectSound
  • Compatibility: Mac OS X (Intel) and Windows XP, Vista, Win 7, Win 8, Win 10, Win 11 (32/64-bit)
  • Condition: Brand New

Key Product Features

  • High-Resolution Tracking: Elite 24-bit 192KHz conversion delivers transparent audio fidelity for clear track playback and vinyl ripping.
  • Integrated Phono Preamps: Switchable Phono/Line inputs make it easy to connect analog turntables or line-level media players instantly.
  • Tactile Performance Crossfader: Assignable horizontal fader provides direct, hands-on control for quick level-matching between channels 1/2 and 3/4.
  • Flexible Software Routing: The included software control panel gives you complete authority over internal channel signal paths and mix balances.

Frequently Asked Questions

Can I use the ICON Cube DJ to connect traditional vinyl turntables?
Yes. Inputs 1 and 2 are equipped with individual "Line – Phono" level switches. When set to Phono, the interface engages its internal preamps, allowing you to connect classic turntables directly to the RCA jacks for mixing or vinyl digital conversion without needing an external mixer.

What is the purpose of the horizontal crossfader on the unit?
The top-panel hardware crossfader acts as a tactical master volume control or source toggle. It allows performers to seamlessly adjust or instantly switch monitoring and output balances between line channels 1/2 and 3/4, making live track cueing fast and reliable.

Does this audio interface require an external power supply block?
No. The ICON Cube DJ is fully USB bus-powered. It draws its operational power directly through the high-speed USB 2.0 cable connected to your laptop or desktop computer, making it an excellent option for mobile gigging and compact travel setups.

Additional information

Weight 1.2100 kg
type

USB Audio Interface
Model

midi interface
Insturment

USB Audio Interface
