LD Systems MAUI5 Column PA System with Subwoofer 800W
Original price was: $1,199.00.$1,099.00Current price is: $1,099.00.
FAST
Delivery
EASY
Returns
IN HOUSE
Repairs
1 in stock



Pick-up from store - FREE
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.
Key Features:
- Dual use as Front of house and fold-back
- 200W RMS power output
- 8″ sub for increased bottom end
- Amazing sound clarity and separation
- 120° dispersion from column
- Bluetooth
- 4 Channel Mixer
- DSP-based signal processing
- Packs down for easy transport and storage
- Stylish minimalist design in a classy black colour scheme
- Designed and engineered in Germany

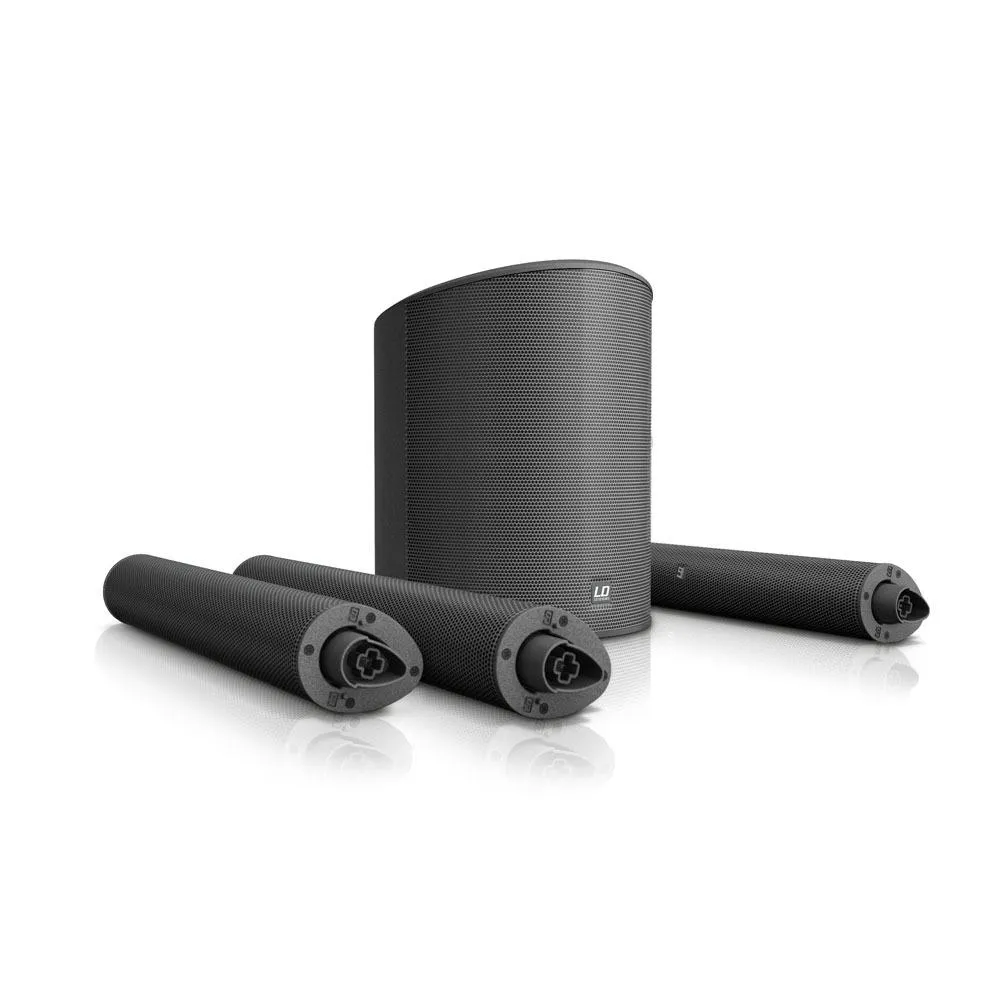

The ultra compact MAUI 5 weighs in at about 11 kg while delivering 800 watts of peak power and a maximum SPL of 120 dB. Providing both sound reinforcement with extended coverage and feedback resistant monitoring the subwoofer base and 3-piece column system assembles in seconds with custom multipin connectors. The junior member of the MAUI family is most easily portable and fits onto any car seat.

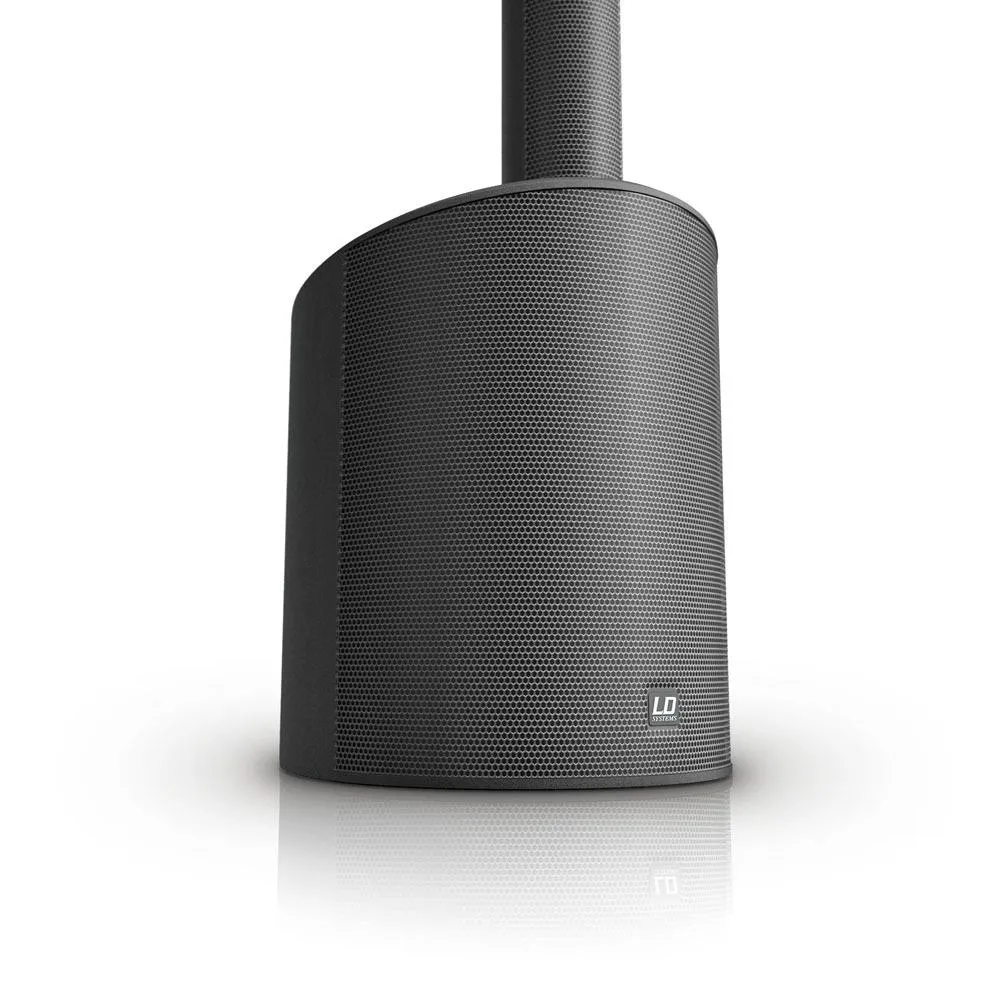

The vented 8″ subwoofer also houses the system’s Class D amplification with over current, short circuit and thermal protection, LD Systems’ proprietary LECC digital processing and a 4-channel mixer. Featuring Bluetooth technology for wireless streaming and microphone, line level and hi-Z inputs which can be used simultaneously the MAUI 5 lets you connect a wide variety of sources including music players and instruments such as keyboards or guitars. Individual level controls, subwoofer and master volumes plus high shelf filtering for room correction enable a perfectly balanced performance. The MAUI 5 is also available in white (LDMAUI5W).
Technical Data
| Type: | Active |
|---|---|
| Colour: | Black |
| Max. SPL (peak): | 114dB |
| Frequency response: | 50Hz – 20kHz |
| Dispersion (H x V): | 120° x 20° |
| Low/mid driver dimensions: | 8″ |
| Woofer voice coil: | 2″ |
| Midrange size: | 4 x 3″ |
| Midrange voice coil: | 1″ |
| Amplifier: | Class D |
| Amplifier Output System (RMS): | 200W |
| Amplifier Output System (Peak): | 800W |
| Protection circuits: | Over-current, DSP-based multiband limiter, thermal overload, short circuit |

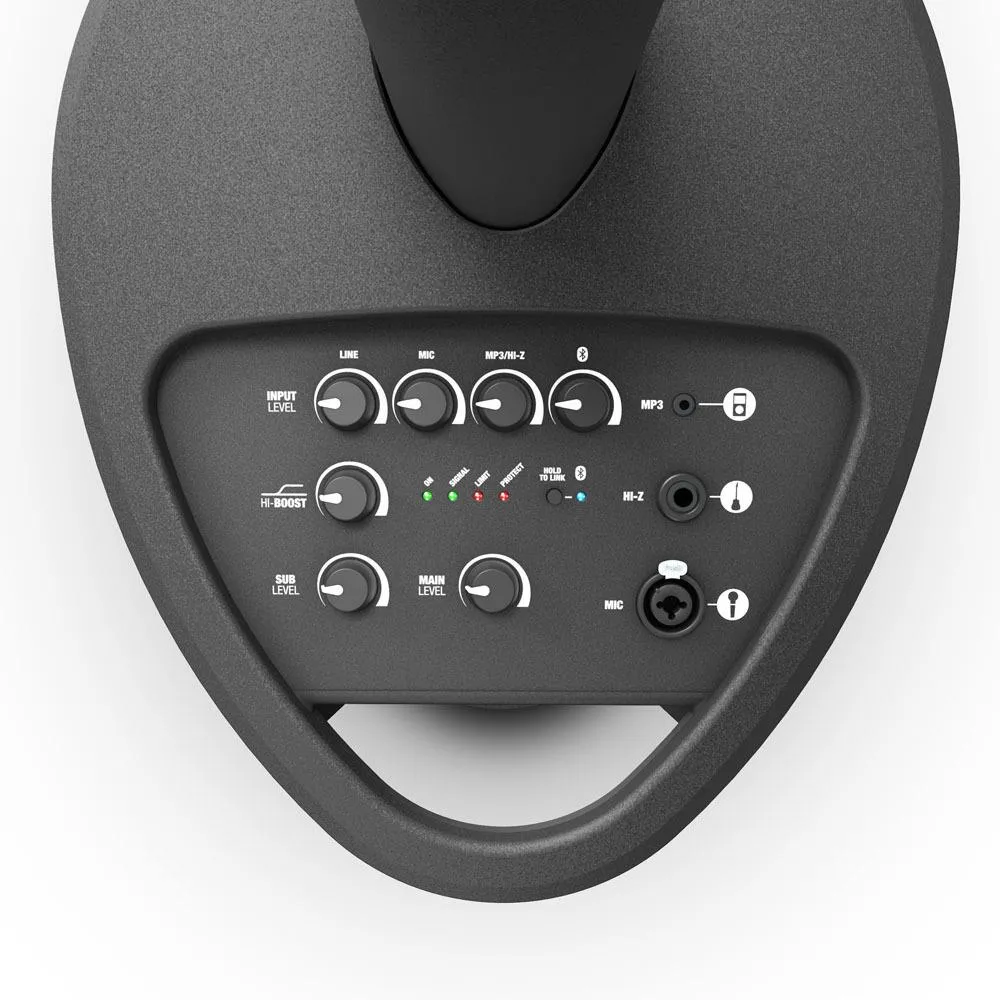

| Controls: | Sub level, Mic Level, signal, on, Main Level, protect (protection circuit engaged), MP3 / Hi-Z Level, BT level, limiter, BT Pairing, Line Level |
| Indicators: | On, protect (protection circuit engaged), signal, limit |

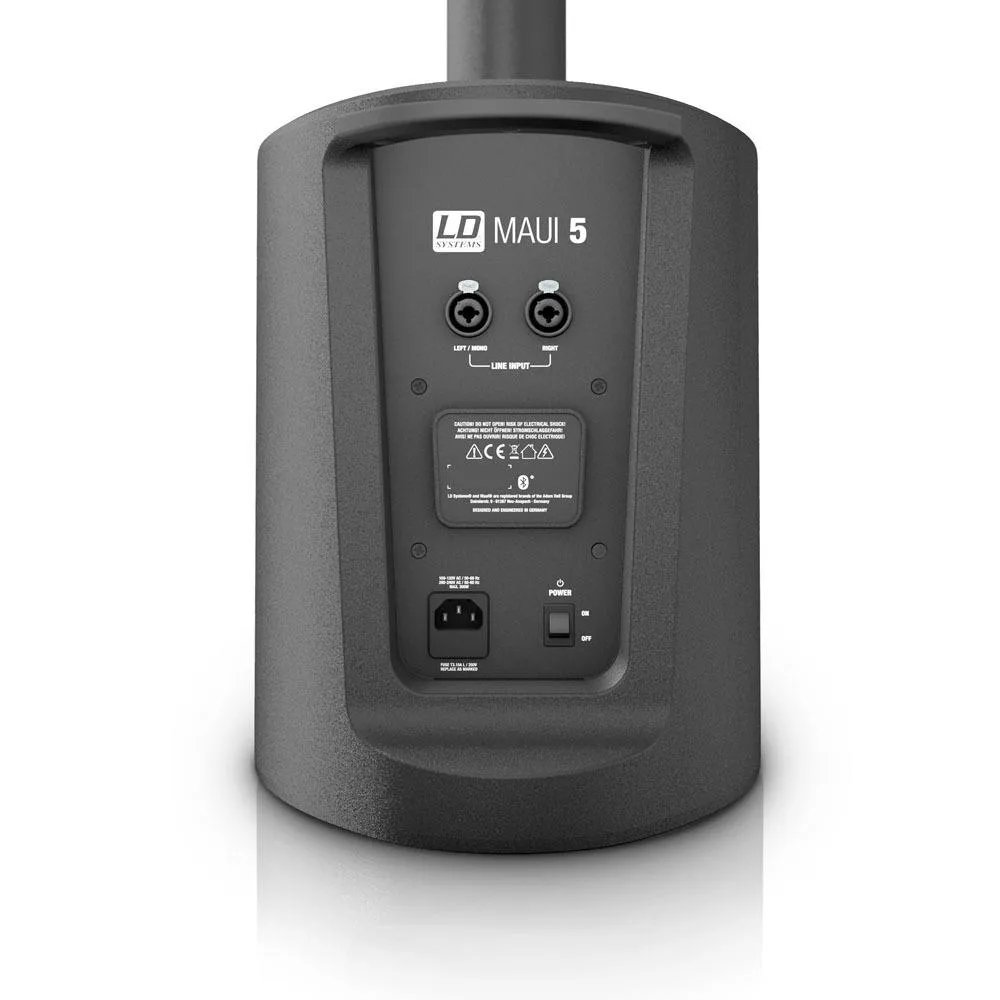

| Power connector: | IEC (power cable included) |
| Operating voltage: | 100 – 120V / 50 – 60Hz oder 200 – 240 V / 50 – 60Hz (automatic conversion) |
| Power consumption Off / On / Max.: | 0/11/600W |
| Inputs: | 4 inputs (1 x Stereo Line, 1x MIC, 1x Hi-Z/MP3, 1x Bluetooth) |
| Outputs: | None |
| Dimensions: | (Sub): 305 x 409 x 395 mm (Column): 32 x 535 x 395 mm |
| Weight: | (System): 11.3 kg |
Additional information
| Weight | 0.0000 kg |
|---|---|
| type | Colume Array |
| connectivity | Bluetooth |
| Insturment | Studio Monitor |
