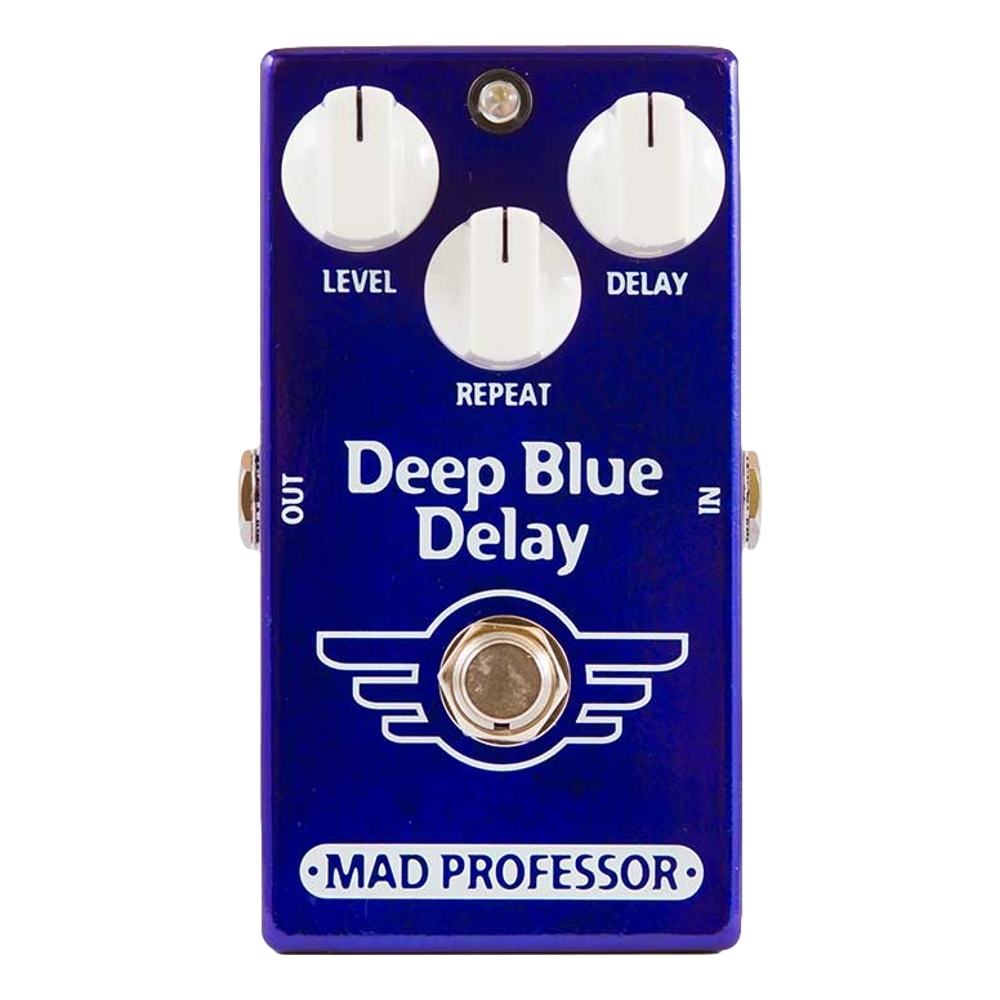

MP Deep Blue Delay

Features

• A natural sounding digital/analog delay, with the analog direct signal path. The Deep Blue Delay has about the same bandwidth as the classic tape echo units, and it can be used in front of an amplifier or in amplifier effects loops.
• There are no noise reduction circuits, which keeps decay of echo as natural as possible.
• The direct signal path is short and made with analog amplifiers with no filtering.
• There should be no distortion or tone coloration as long as input level is in the range below maximum allowed.
• The echo signal has a tuned filtering to allow extreme settings without interference.

Controls

• Level: Sets the level of delayed signal mixed with straight guitar tone, fully CCW there is only straight (un-effected) guitar signal heard and fully CW gives the loudest delay.
• Delay: Controls the delay time from 25ms (fully CCW) to 450ms (fully CW).
• Repeat: Controls the repeats of the delay signal, fully CCW gives one repeat and at fully CW you get infinite feedback.

Electrical Specs

• Current consumption: 32mA at 9VDC
• Voltage range: 8V to 15V (below 7.5V delay signal will be muted)
• Input impedance: IZ 180K ohms
• Output drive capability: 10K ohms
• Maximum input voltage: 2V peak 650 mV rms
• Signal to noise ratio: 80 dB
• Delay time approximately 25 ms to 450 ms
• Power requirement supplied via 2.1 mm DC socket
• Input and output connections via 1/4” phone jack
• Complete bypass and input of circuit grounded when in bypass
