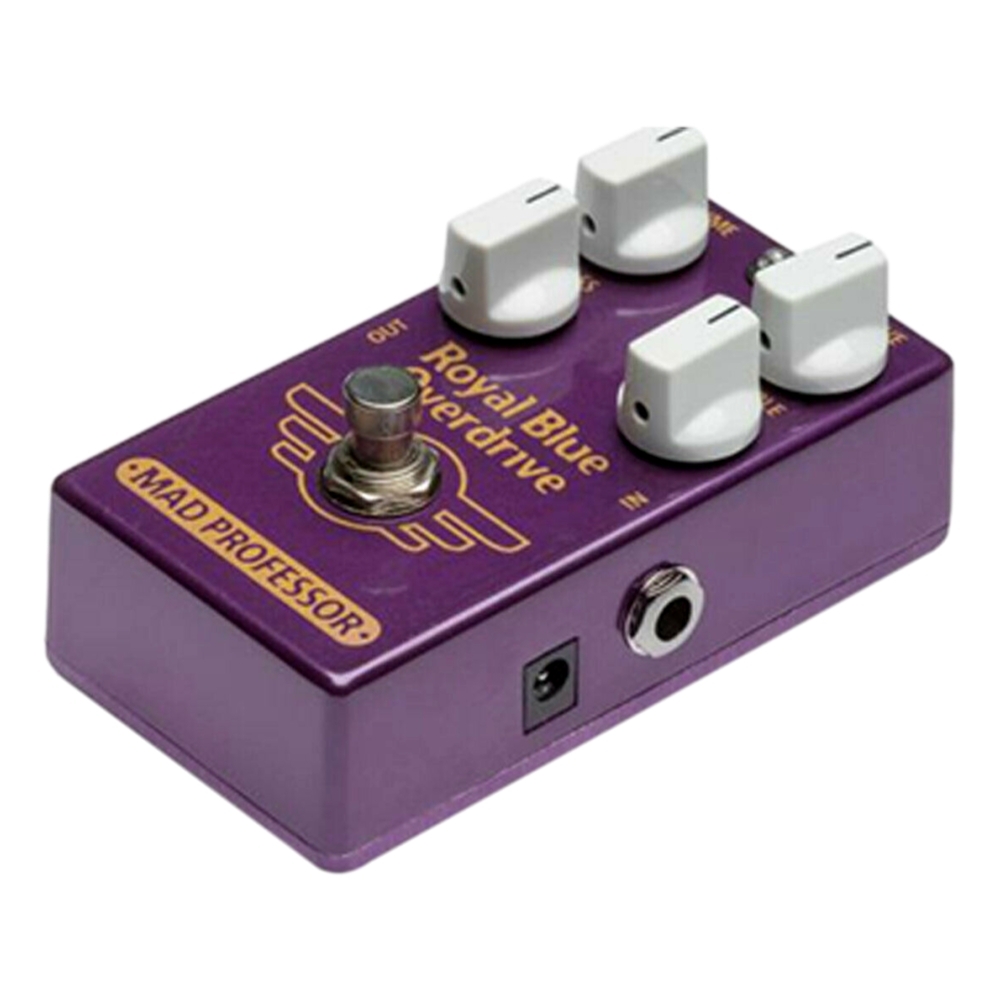

MP Royal Blue Overdrive

• Offers wide range of tones from light overdrive into distortion and at lowest Distortion knob setting works as an EQ.
• Can also be used to create tube amp-like crunchy ‘strike hard for distortion’ effect.
• There is not much filtering on the overdrive, to provide a transparent tone that you can tailor with both the Treble and Bass controls.

Specs

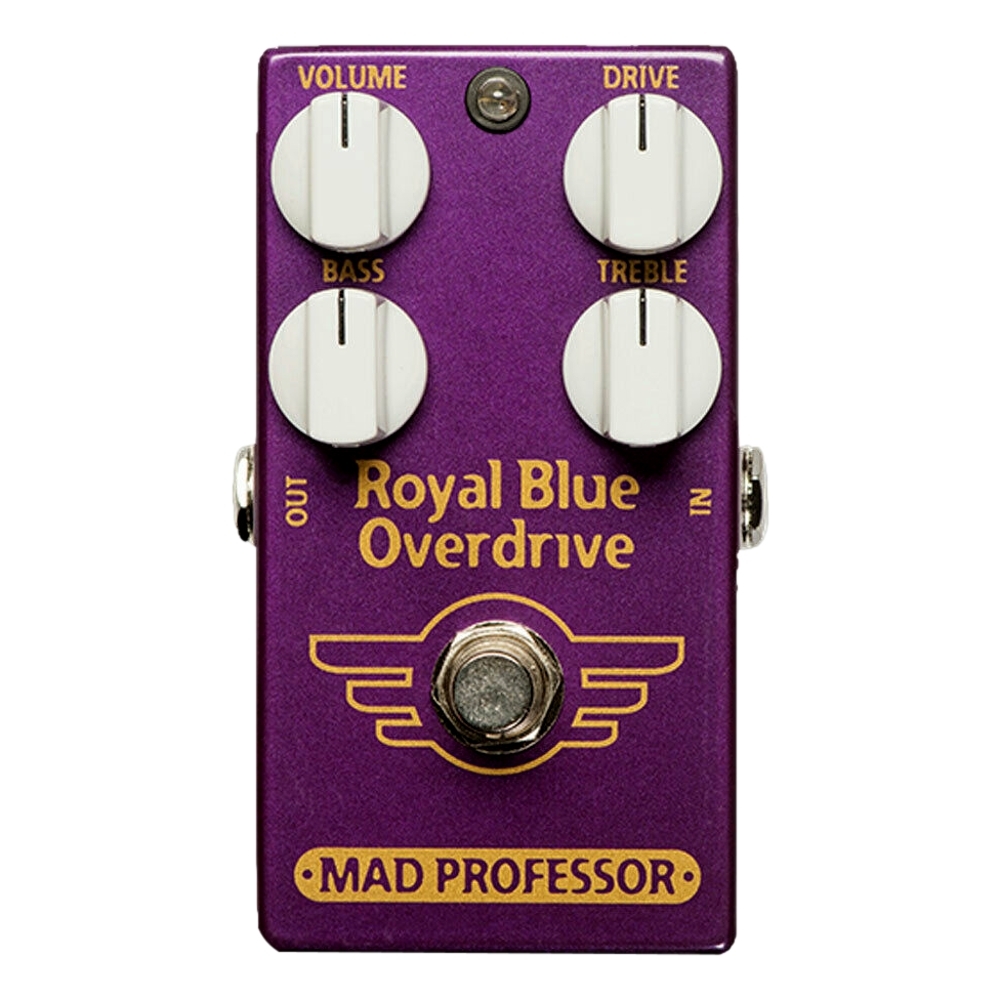

Controls
• Volume : Sets the overall output level of the pedal.
• Distortion : controls distortion, for most dynamic response set where the amount of distortion is controllable with picking force.
• Treble : A boost/cut “shelving” type equalizer that controls the amount of high-end, operating where the Presence control is on most amplifiers. Treble can be used to add shimmer to even bright amplifiers without interfering with a typical treble boost of most amplifiers.
• Bass : A boost/cut shelving type equalizer that controls the low end, just above resonance of a standard 4×12 cabinet. With both Bass and Treble turned up, you can get a scooped heavy tone; turn the knobs down for soft mid-boost tone.

Settings
• For Midboost : set Treble and Bass fully CCW.
• For Midcut : set Treble and Bass fully CW.

Electrical
• Current draw : 3.5mA at 9V DC
• Input impedance : 140K
• Output impedance : 25K
• Voltage range : 7.5-12V’s

Power Requirements
• 6F22 9V battery or DC eliminator 2.1 mm plug center negative and positive sleeve
