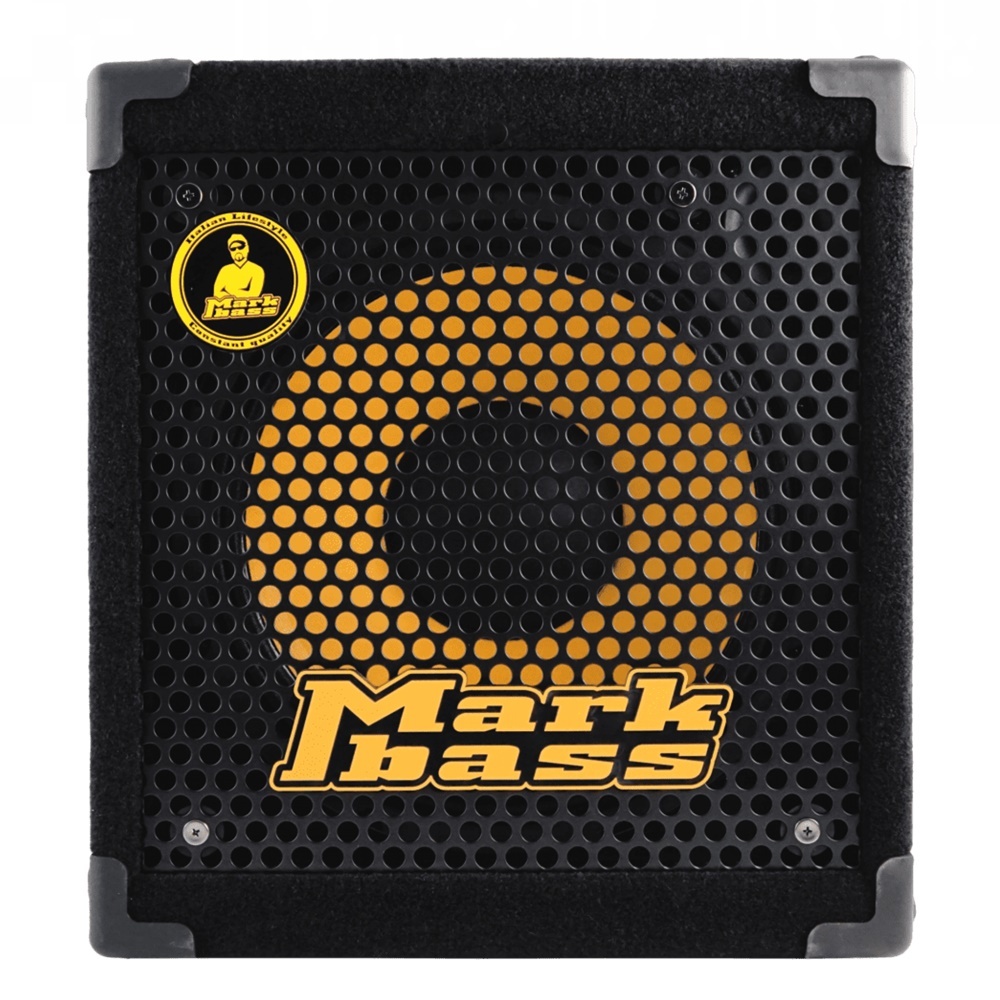

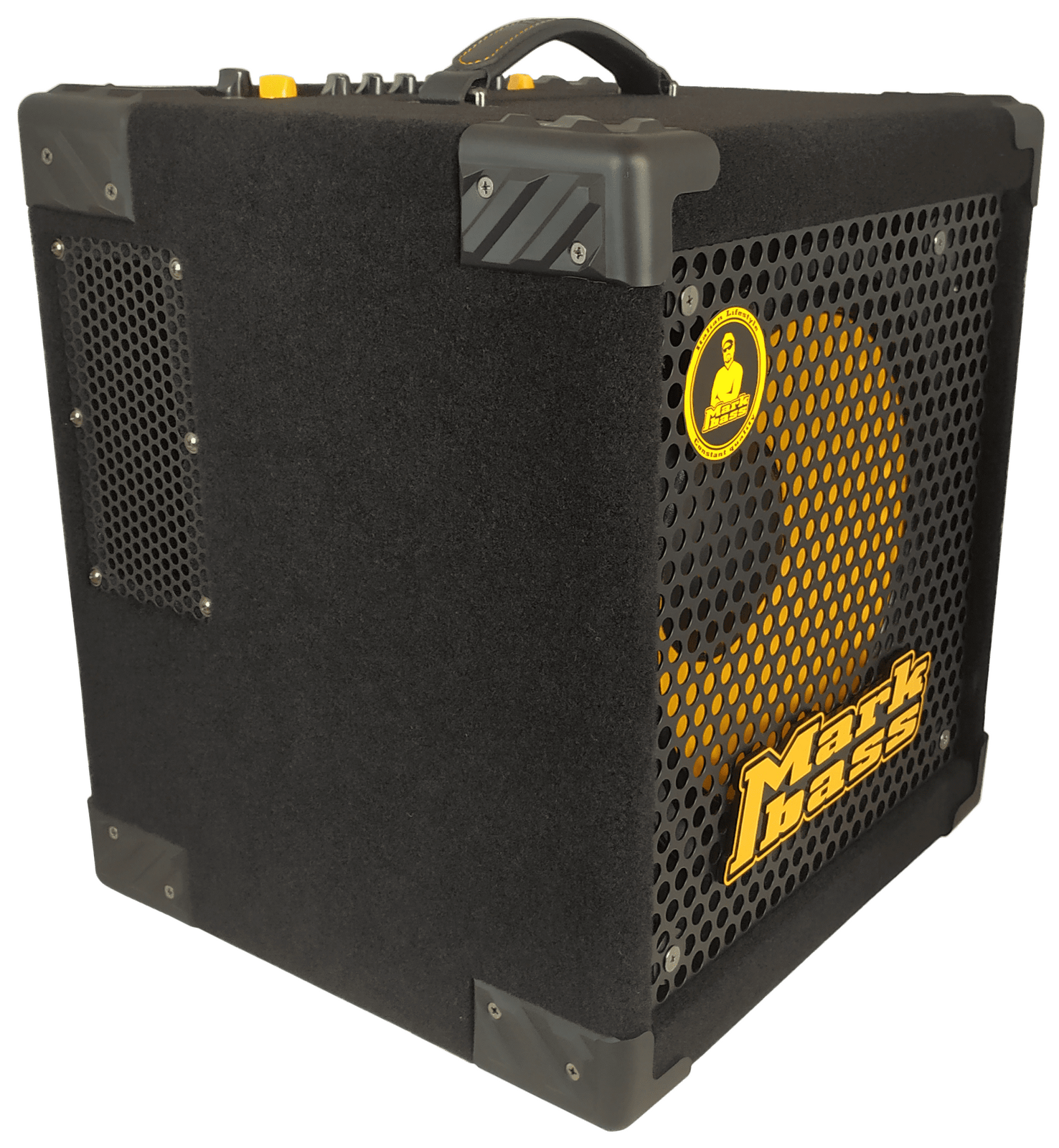

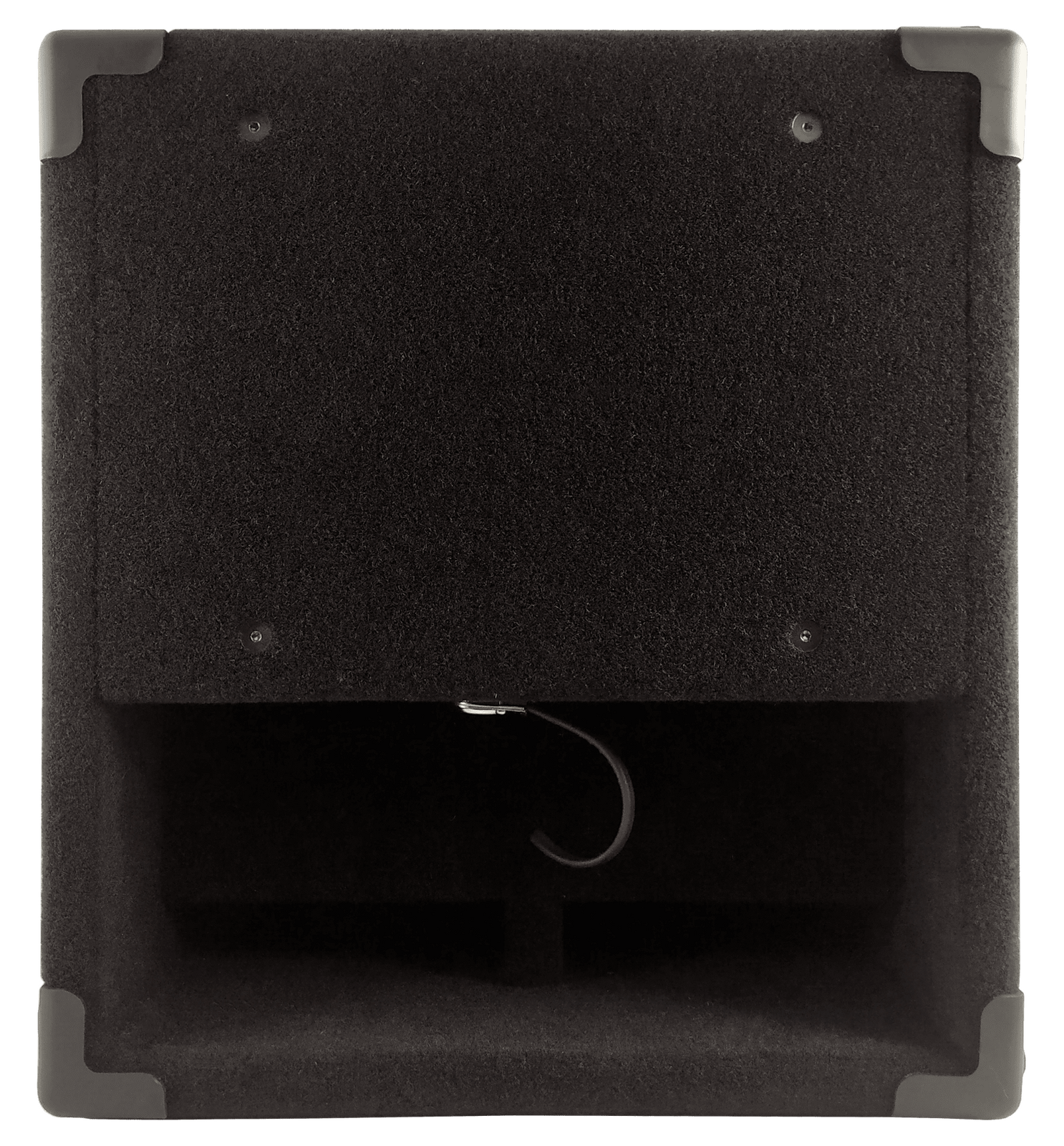

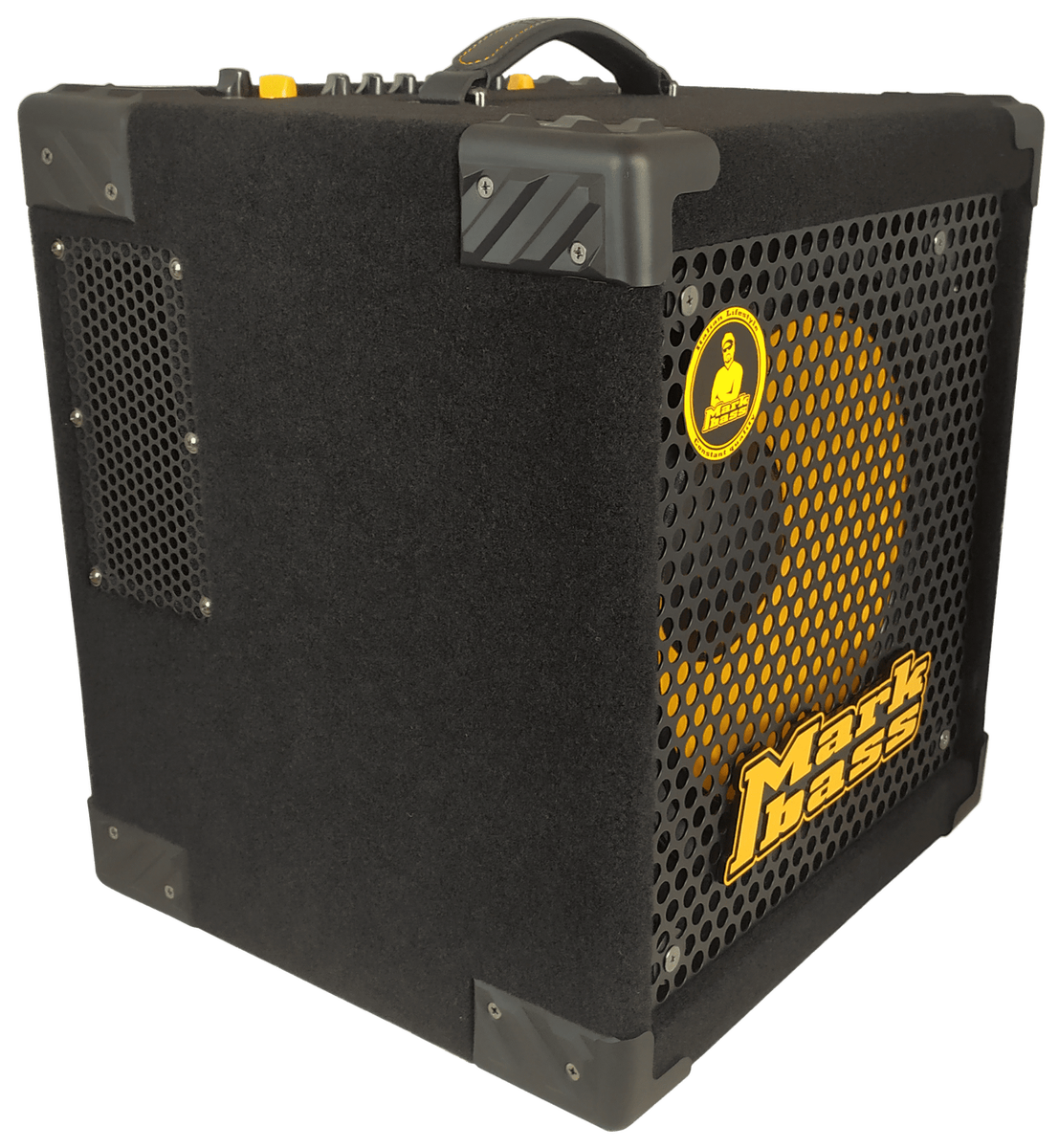

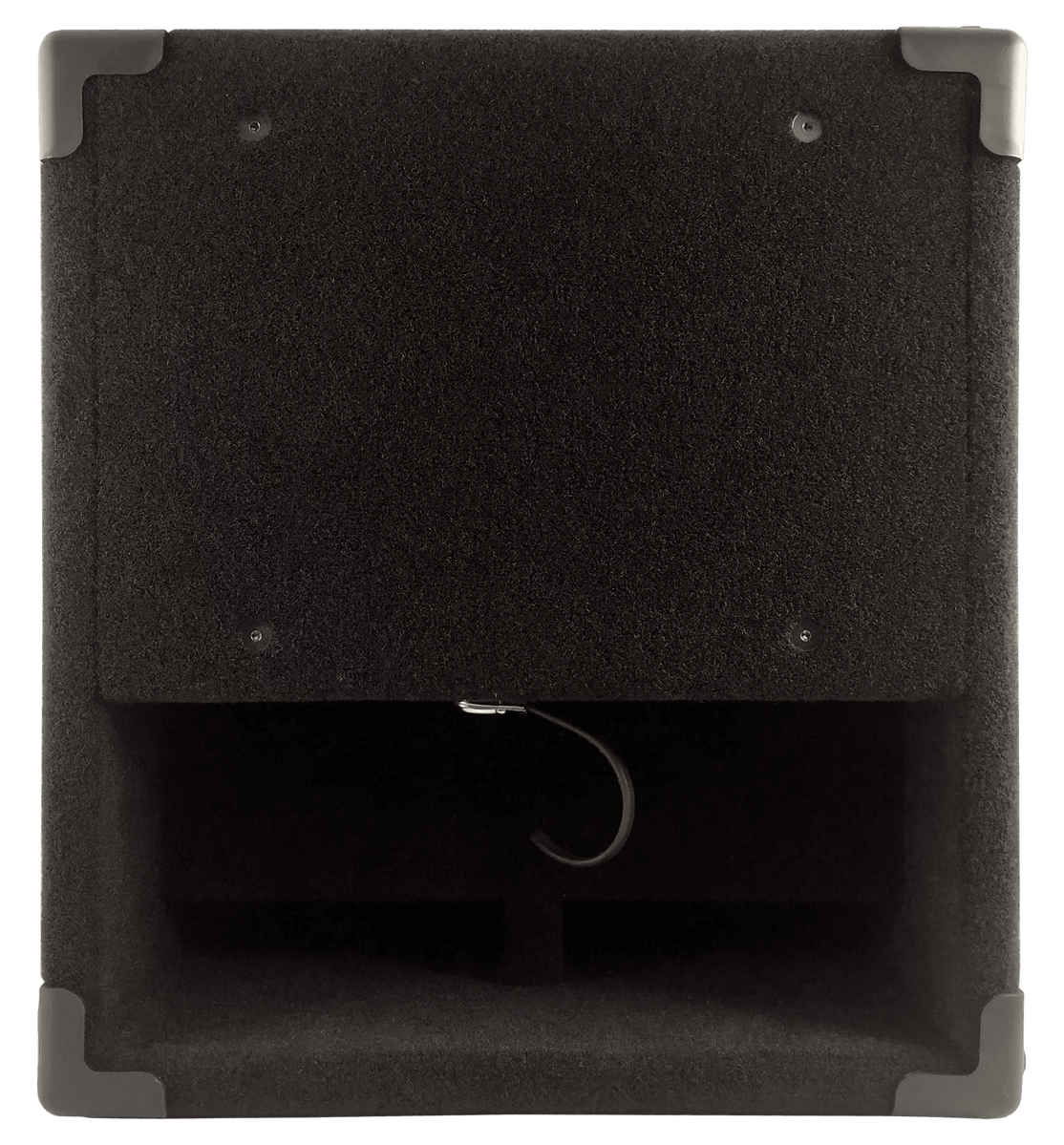

Markbass MINI CMD 121P IV Bass Combo Amp

Our flagship combo Mini CMD 121P has changed the bass amp market forever. Never have bassists been able to get such great tone and volume from such a light and portable amp. This new version with Little Mark IV Combo head features the new bi-band limiter, a MUTE switch and the 3-way switch that includes the options of Flat, Scooped or FSW. As for previous version it can be easily upgraded to a powerful 2x12" 500W rig with the addition of a New York 121 cabinet.

KEY POINTS

> UNPARALLED POWER/WEIGHT RATIO
After years from its initial release in the 2005, this combo continues to lead the pack when it comes to big sound from a small package. The sound that comes from this amp simply does not match what you see when you look at such a small cube.

> UPDATED 4 BAND EQ, OLD SCHOOL FILTER, 3 WAY SWITCH
Our updated 4 band EQ section features very effective controls allowing you to easily find the sound you want, boosting or cutting up to 16dB for each of the 4 bands to cover all the tonal nuances needed in any genre of music. Additionally the Old School filter cuts your high frequencies and gives a round and smooth tone. The 3 way rotary-switch allows you to choose between a super-balanced flat tone, a scooped preset that drops the mids while boosting the lows and highs - giving a superb slap sound, or lastly the 'FSW' option to control both mute and the Scooped EQ on demand by connecting an optional dual footswitch.

> BI-BAND LIMITER
Our new bi-band limiter responds faster and more dynamically to your playing than traditional limiters do and lets your high end "breathe" for a more natural sound. It makes our amp heads the best choice for anyone who enjoys a quick, punchy attack at high volumes.

> POWERFUL STACK WITH NEW YORK 121 EXTENSION CABINET
If you add the New York 121 to the Mini CMD 121P combo, you’ll have a 500W 2x12” stack able to fill a large venue with headroom to spare.

> TAKES UP VERY LITTLE ROOM ON STAGE
Even when stacked on a New York 121 cabinet (which has the same dimensions), this combo creates a footprint on stage of only 15” x 14”. You'll never have a problem fitting this rig on even the smallest of stages!

Technical Features

INPUTS

INPUT impedance: 1 Mohm, max. voltage: 9 Vpp
RETURN impedance: 22 Kohm, max. voltage: 10 Vpp

CONTROLS

GAIN –46 dB to +23 dB range
LINE OUT level control on front panel
PRE/POST EQ (for line out) switch on rear panel
GROUND LIFT switch on rear panel
MUTE SWITCH
MASTER VOLUME

EQUALIZATION
LOW: center frequency 68 Hz; level: ±16 dB
MID LOW: center frequency 360 Hz; level: ±16 dB
MID HIGH: center frequency 800 Hz; level: ±16 dB
HIGH: center frequency 10 kHz; level: ±16 dB
OLD SCHOOL: max cut range: 250 Hz – 20 kHz
3 WAY SWITCH: flat/scooped-mid/FSW

OUTPUTS

SEND EFFECTS: unbalanced, max. voltage 20 Vpp
TUNER OUT: unbalanced, max. voltage 2 Vpp
LINE OUT balanced XLR, max. voltage 20 Vpp
SPEAKER OUT: speakon/1/4” combo, 1/4”*

OTHERS

BI-BAND LIMITER
FOOTSWITCH (OPTIONAL): FLAT/SCOOPED-MID

OUTPUT POWER:

500W RMS @ 4 ohm, 300W RMS @ 8 ohm
POWER REQUIREMENT:
100V; 120V; 230V; 240V 50/60Hz (Voltage is factory preset according to region of sale)

SPEAKER

1×12″

TWEETER

piego

BASS REFLEX

rear

IMPEDANCE

8 ohms

SPEAKER POWER HANDLING

400W RMS (AES Standard)

FREQUENCY RESPONSE

45 Hz to 18 kHz

CROSSOVER FREQUENCY

3.5 kHz

SENSITIVITY

99 dB SPL

WEIGHT: 25.79 lbs / 11.7 Kg
WIDTH: 14.96 in. / 38 cm
HEIGHT: 16.73 in. / 42.5 cm
DEPTH: 14.17 in. / 36 cm
