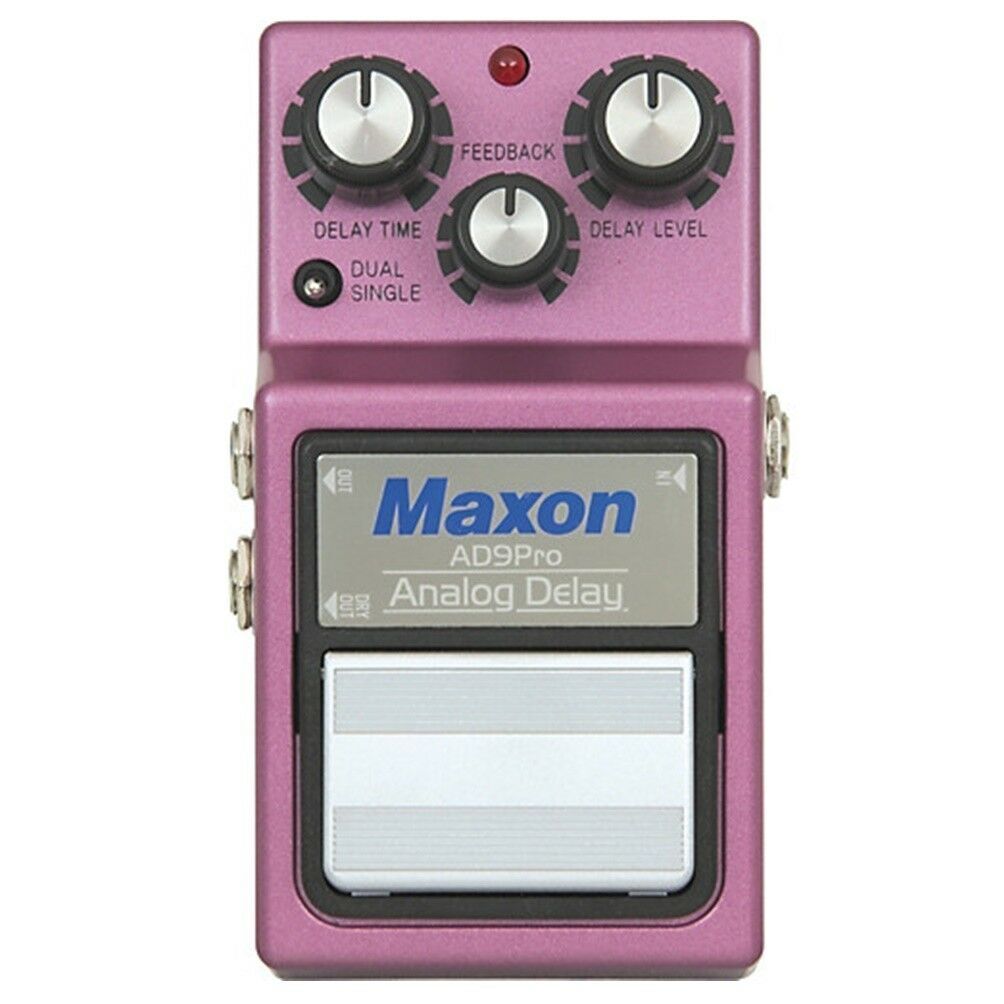

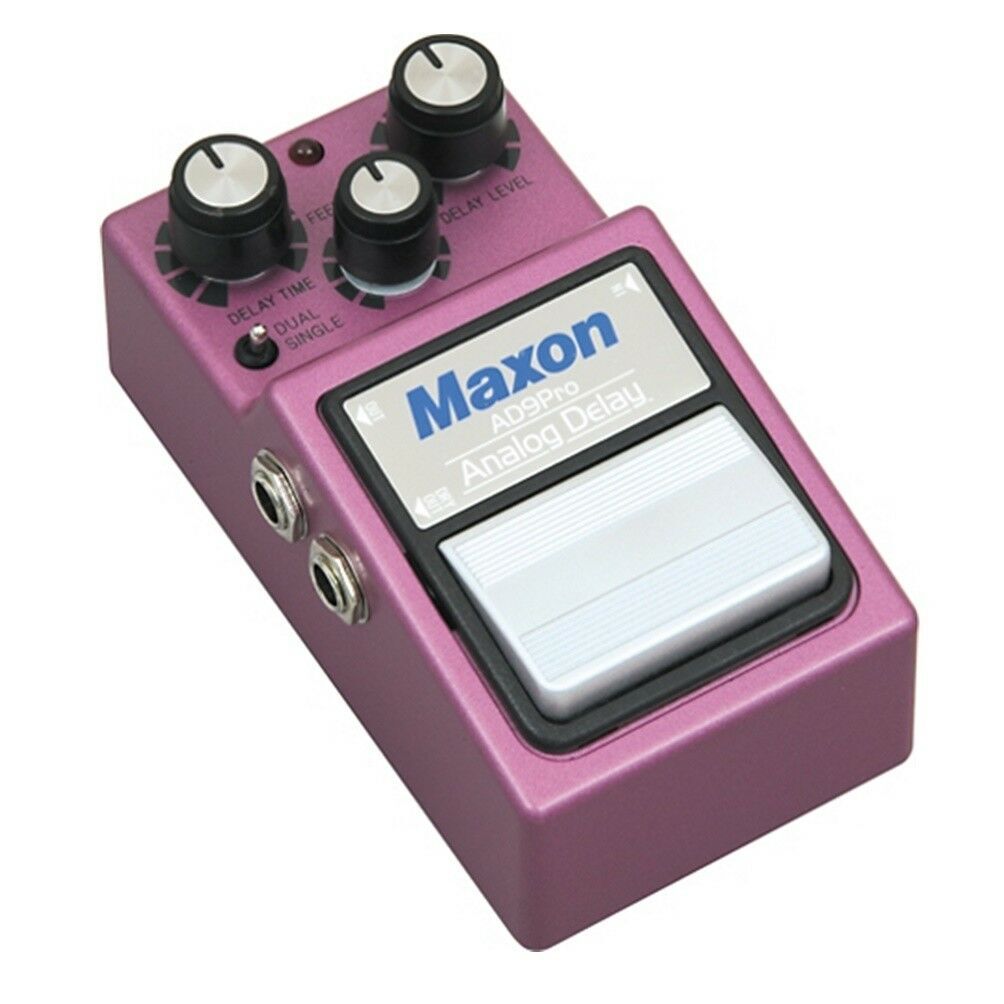

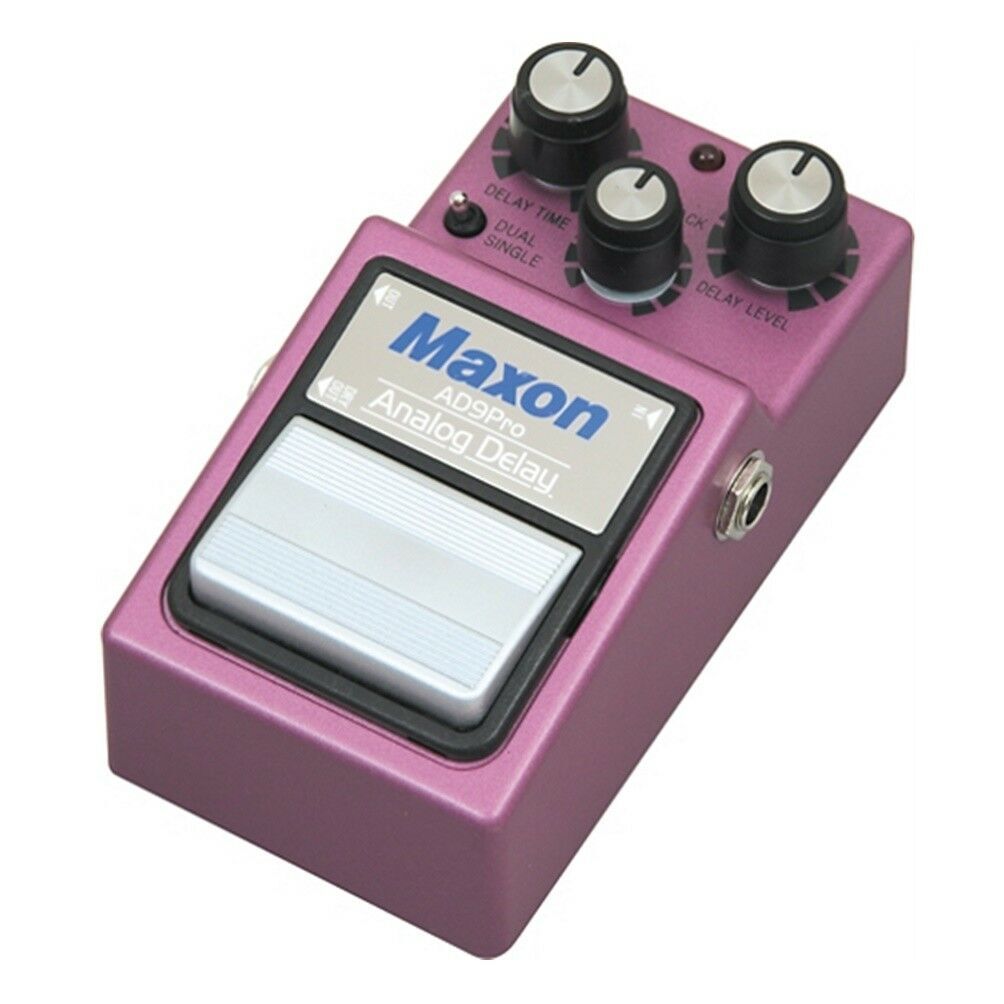

AD9PRO Maxon 9-Series AD-9 Pro Analog Delay Guitar Effects Pedal



Features



• True bypass

• Crystal clear delay

• Adjustable repeats

• Zero clock noise

• Dry/effect mix

• Stereo outputs

• Through-hole, glass reinforced epoxy PCB's

• Snap-in PCB connectors

• Combination of one Panasonic MN3205 BBD IC and one Signetics NE570 compander



Tech Specs



• Input Impedance: 500kOhms

• Output Impedance: 10kOhms or less

• Residual Noise: -100dB or less (IHF-A)

• Delay Time: 20mSec - 450mSec

• Equivalent Input Noise: -116dB or less (IHF-A)

• Control: Delay Time, Feedback, Delay Level

• Switch: Single/Dual Mode, Effect

• Operating Voltage: 9V

• Power Consumption: Delay Time Min. 39mA/DC.9V, 38mA/DC.10V

• Dimensions (WxHxD): 74" x 54" x 124"

• Weight: 580g (including battery)

• Battery: 9V battery (6LR61 or 6F22) x 1 or Maxon AC adaptor

• Battery Life: mangenese dry battery more than 2 hours, 25deg C/ 77 deg F (Panasonic 6F22NB), alkaline dry battery more than 8 hours 25deg C/ 77deg F (Panasonic 6LR61G)

• Options: Maxon AC Adapter
