Moog Minifooger MF Boost Guitar Effects Pedal Mini Fooger MFSBOOST01

Name: Moog Minifooger MF Boost Guitar Effects Pedal Mini Fooger MFSBOOST01
Brand: MOOG
SKU: N14306
Availability: OutOfStock

Moog Minifooger MF Boost Guitar Effects Pedal Mini Fooger MFSBOOST01 - Image 2

Moog Minifooger MF Boost Guitar Effects Pedal Mini Fooger MFSBOOST01 - Image 3

$248.06



FAST
Delivery



EASY
Returns



IN HOUSE
Repairs

Out of stock

Pick-up from store - FREE
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.

Description
Additional information

Moog Minifooger Boost Pedal
There's more to a boost pedal than just goosing the gain a bit. TheMoog MF Boost features a tone-enhancing VCA boost/buffer pedal with twoselectable signal paths, tone-shaping circuit, natural compression, andexpression pedal control of Gain.
A great way for a guitarist in a band with only one guitar to switchbetween lead and vocal accompaniment rhythm is with a boost pedal. Thetone doesn't shift radically, but it does give you some extra body andpresence for when you abandon chords for individual strings. The MFBoost is perfect for the trio rock guitarist, or any other guitaristwho finds him or herself in need of a little extra sock now and then.
The MF Boost is an Expression enhanced, twin topology boost pedal thatallows you to select between an articulate VCA signal path and acolored OTA signal path. This completely unique boost design works withyour guitar and amplifier to conjure boutique sound and responsivenessfrom any guitar/amplifier combination. Its natural compression andsound enhancement also bring out the best tone and performance in othereffects pedals. When paired with an expression pedal, the MF Boost canbe used as a tone enhancing volume pedal or sweepable-gain boost pedal.The expression pedal input also provides access to higher gain valuesnot available on the panel.

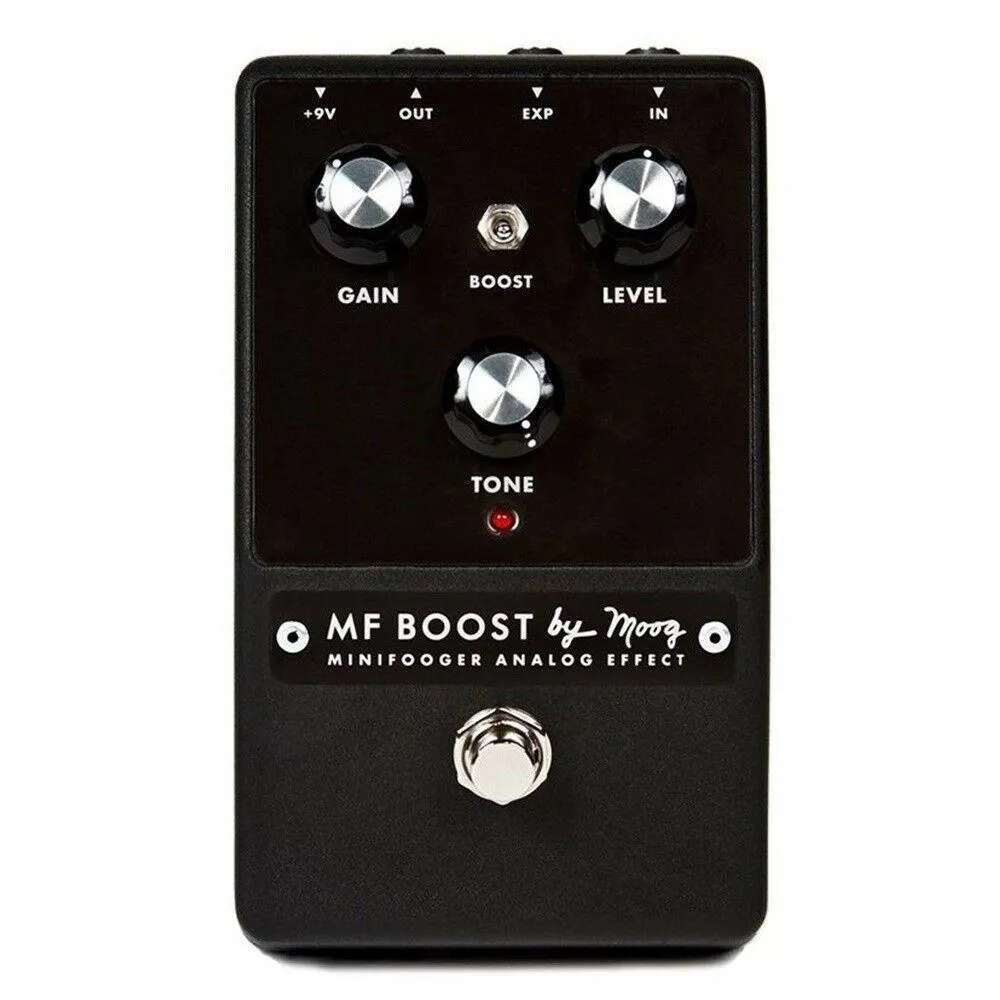

CONTROLS
GAIN- Sets the input gain from off to maximum. With the Boost switch inthe down position (VCA mode), this knob should be set to maximum. Inthis setting you will notice tighter bottom, focused midrange, and amore open top end. With Boost in the up position (clipped OTA mode),the sound is creamy and lightly compressed with a slightly more forwardmidrange.
BOOST - In the down position, signal is sent through the VCA signalpath providing clean, articulate tonal enhancement with a subtle 6dBboost (12dB+ w/ expression). This setting feels and sounds like aboutique amp in a pedal. With the switch in the up position, signal issent through the clipped OTA path providing 12dB of boost (18dB+ w/expression). This path has a creamy, classic tone that bonds guitar andamplifier for everything from subtle bite and drive to singing leads.Both settings have a naturally occurring musical compression.
TONE- At higher settings this control adds openness, note articulationand picking detail. In this setting the top-end in your amplifier issweetened while remaining smooth, the mids become focused, and thebottom end appears more robust and tight. At lower settings the Tonecontrol can be used to fatten up an amp or tame harsh top-end.
LEVEL- Level allows you to trim the output of the Boost whilemaintaining input gain coloration. This control does not go completelyoff.
Features
True analog signal path
True bypass
Broad gain boost (adjustable)
Tone control
Specifications
SIGNAL PATH:100% Analog
BYPASS TYPE: True bypass
POWER: +9VDC
WEIGHT:18oz (0.5kg)
ENCLOSURE: Cast aluminum
DIMENSIONS: D=5.75” (14.4 cm) W=3.25” (8.3 cm)H=2.25” (5.8 cm)
GAIN: -65dB - +18dB
TONE CONTROL: 165 Hz - 20KHz Lowpass Filter6dB/Octave (wet signal only)
EXPRESSION: Controls Gain (Max Input level +5VDC)
INPUT IMPEDANCE:1 MegaOhm
OUTPUT IMPEDANCE: 100 Ohm minimum
CURRENT:8mA
