Based Upon a Trio of Classic Designs

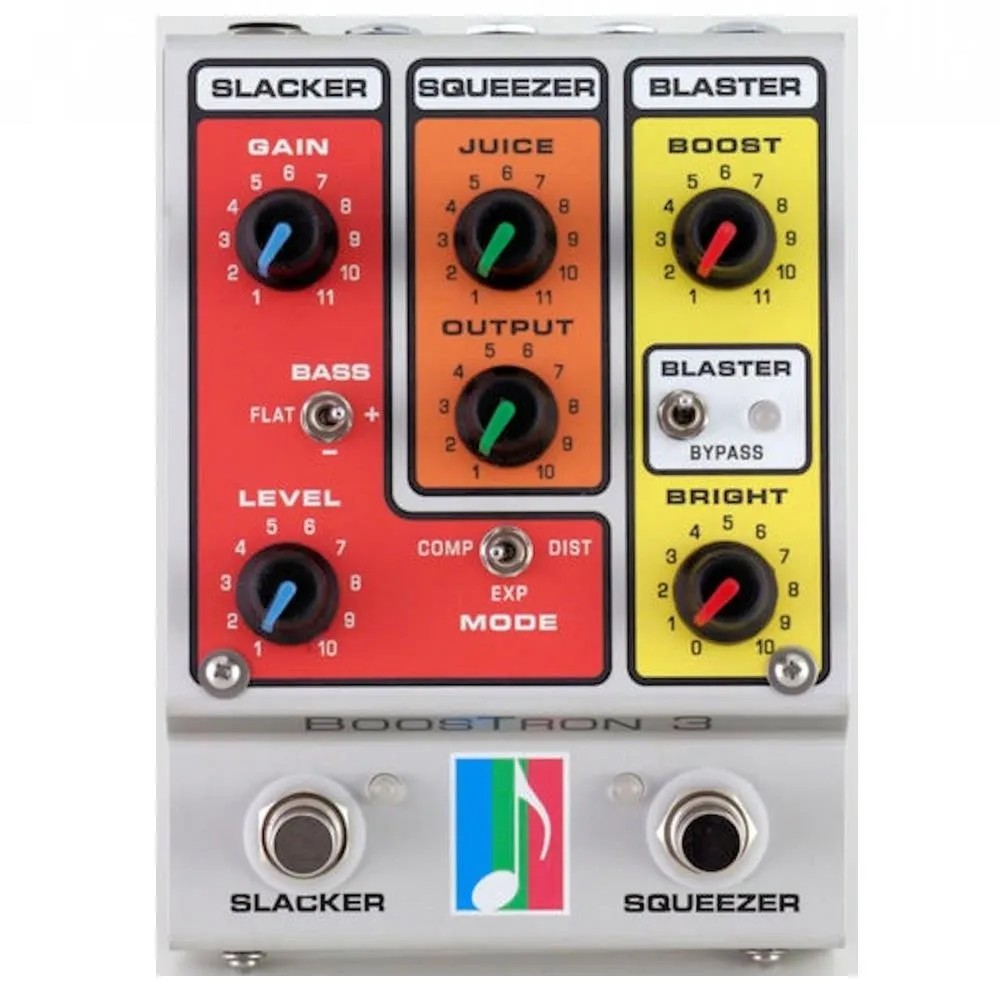

The NEW Mu-FX Boostron 3 is three pedals in one… and three you might never want to turn off!

Stage 1: Based upon an Alembic Stratoblaster clean boost
Stage 2: Based upon a Musitronics/Dan Armstrong Orange Squeezer compressor
Stage 3: Based upon a Pro Co RAT distortion
Check out sound clips at the bottom of this page!

The Alembic Stratoblaster is a FET preamp that provides a clean boost. The original product was a retrofit guitar input jack with the (battery powered) effect built in – controlled by an on/off switch and a small adjustable trim pot for the desired amount of gain. The Musitronics/Dan Armstrong Orange Squeezer is a very simple and distinctive sounding compressor. The original product was a small cube that plugged directly into your guitar (…unless you had a Strat!), powered by a 9V battery and was controlled by an on/off switch as well as an internal trim pot for setting the desired output level. The Pro Co RAT is an LM308 op-amp distortion that ranges from bluesy overdrive to full-out fuzzy distortion. The original product was a moderately sized effects pedal powered by a 9V battery.

The Mu-FX Boostron 3 provides added functionality to these classic effects all bundled in our “mini-mu” housing. Made in the USA, this new Mu-FX product combines visual and sonic cues from the past with a thoroughly modern, pedal board oriented approach.

Controls:

• BLASTER
  • Boost controls the output level of the effect
  • Blaster On/True-Bypass switch determines whether the effect is on or off (true-bypassed)
  • LED indicates volume by brightness
  • Bright controls the amount of treble boost
• SQUEEZER
  • Juice controls the input level to compressor (the amount of “squash” to the signal)
  • Output controls the output level of the compressed signal
• SLACKER
  • Gain controls the amount of gain in the distortion circuit
  • Bass Flat/-/+ Switch
    • Flat position is the normal tonality of distortion circuit
    • – position cuts bass frequencies from the distortion circuit
    • + position boosts bass frequencies to the distortion circuit
  • Level controls the output level of the distorted signal
  • Comp/Exp/Dist Mode Switch
    • Comp – 2 diode symmetrical distortion (a “limiting” distortion)
    • Exp – Single diode asymmetrical distortion (provides more headroom for dynamics)
    • Dist – LED + Single diode distortion
• SQUEEZER footswitch determines whether the effect is on or off (true-bypassed)
  • LED
    • Red – Off
    • Blue – On
• SLACKER footswitch determines whether the effect is on or off (true-bypassed)
  • LED
    • Red – Off
    • Dark Blue – Comp
    • Light Blue – Exp
    • Green – Dist

Specifications:

• 1/4″ True Bypass Switching Input Jack
• FX Loop
  • 1/4″ FX Send Jack – After BLASTER
  • 1/4″ Return Jack – Before SQUEEZER
• 1/4″ Output Jack
• 9 – 9.6V DC
• Weight: 2 lbs
• Dimensions: 6″ x 4.5″ x 2.25″
• 1 Year Limited Warranty
• Made in the USA
