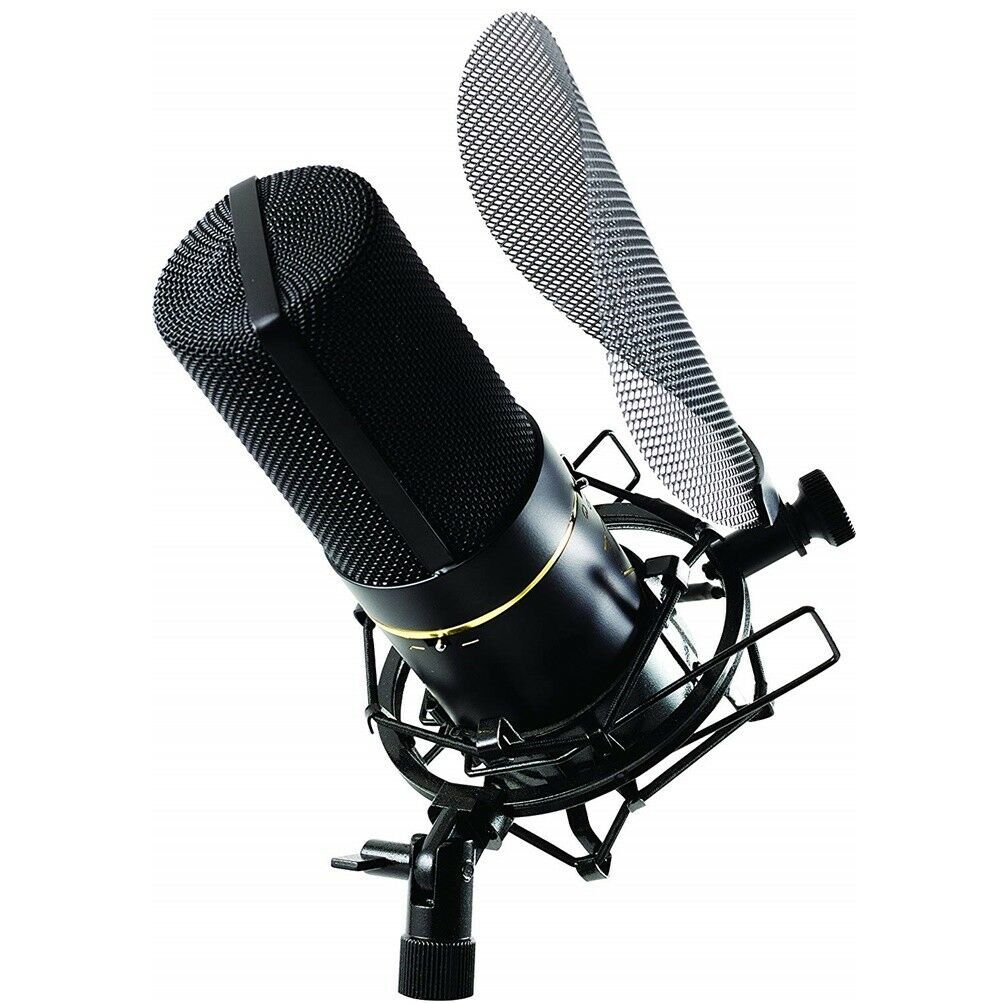

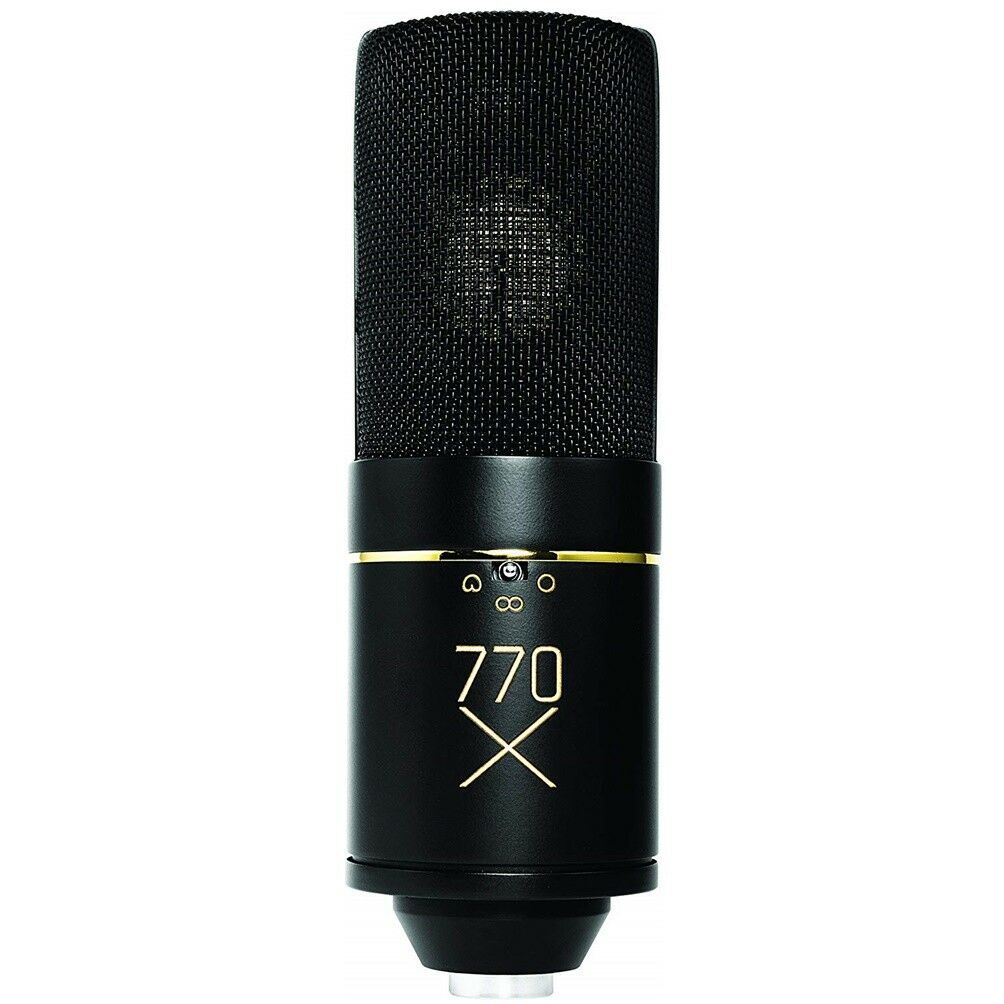

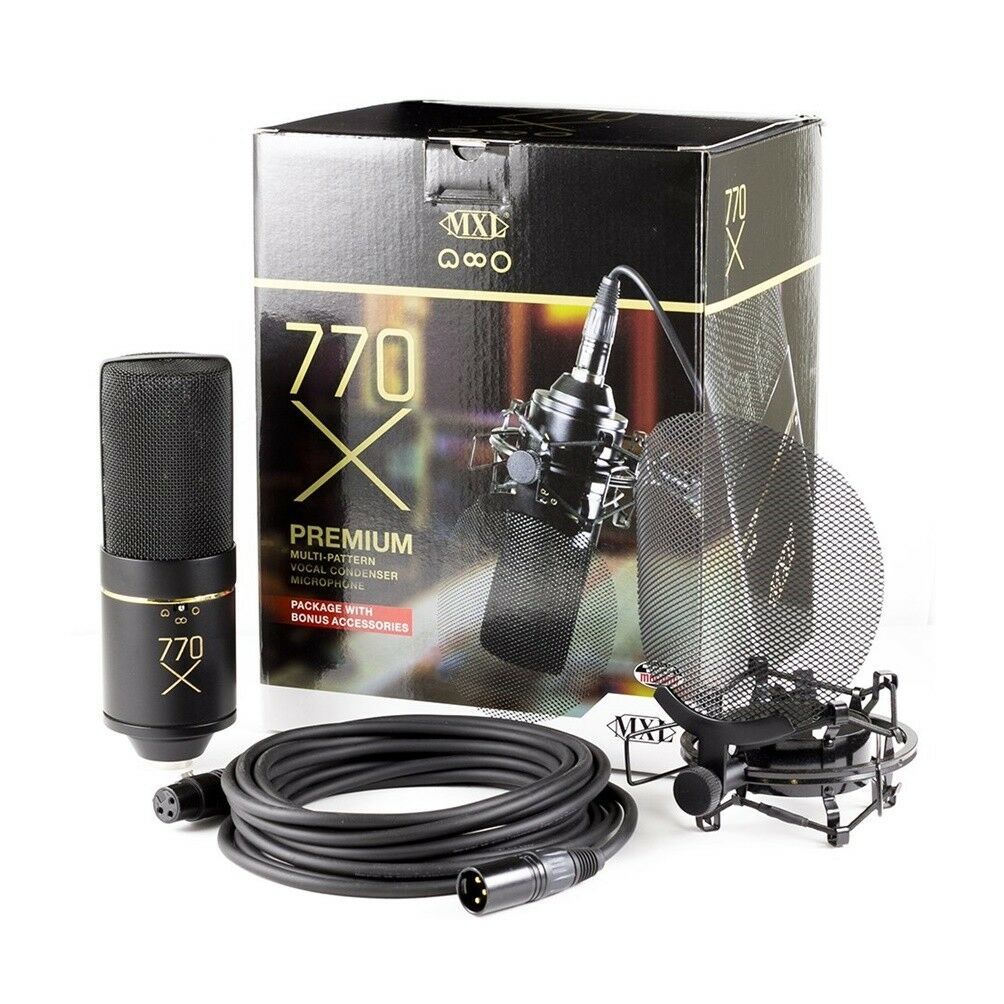

The 770X Multi-Pattern Vocal Condenser Microphone Package from MXL includes a 770X large-diaphragm condenser microphone, a shockmount with integrated pop filter, a 20' XLR mic cable, and a microfiber cleaning cloth.

The 770X microphone features a dual-diaphragm capsule with three selectable patterns—cardioid, figure-8, omnidirectional—which let you adjust what the mic picks up and rejects. The mic's 1.26" gold-sputtered diaphragm is capable of handling SPL up to 140 dB to accurately capture loud signals without distorting, and it delivers a clear, detailed sound with warm low end, ideal for recording vocal and instruments in home studios or professional facilities.

Pressure-gradient, multi-pattern condenser microphone for vocals, instruments, and room soundThree selectable polar patterns: cardioid, figure-8, omnidirectional1.26" gold-sputtered diaphragm for enhanced dynamic rangeClear and detailed high frequencies, balanced with warm low end140 dB maximum SPL allows microphone to accurately capture loud signals without distortingAttenuation switch: 0 & -10 dBBlack metal finish with black grilleIncludes shockmount with integrated pop-filterIncludes XLR microphone cable (20')Includes microfiber cleaning cloth

Specifications:

• Type: Pressure Gradient Multi-Pattern Condenser Mic
• Diaphragm: 6 Micron Gold-Sputtered
• Capsule Size: 32mm/1.26 in.
• Frequency Response: 20 Hz - 20 kHz
• Polar Pattern: Cardioid/Figure-8/Omni
• Sensitivity: -35 dB re 1 V/Pa
• Output Impedance: 200 ohms
• Attenuation Switch: 0 dB, -10 dB
• High Pass Filter: 6 dB/Octave @ 135 Hz
• Equivalent Noise: 16 dB (A-weighted IEC 651)
• S/N Ratio: 78 dB (Ref. 1 Pa A-Weighted)
• Max SPL for .5% THD: 130 dB/140 dB (0 dB, -10 dB pad)
• Power Requirements: 48V phantom power (+/- 4V)
• Size: 60mm x 185mm/2.36 in. x 7.28 in.
• Weight: 1.1 lbs/500 g
• Metal Finish: Black with Black Grill

MXL 770X

Multi-Pattern Condenser Microphone Package

The MXL 770X Multipattern Vocal Condenser Microphone Package offers flexibility and performance for the studio in an all-in-one recording bundle. The 770X builds on the success and versatility of the popular MXL 770 with an upgraded large diaphragm gold-sputtered capsule in three switch-selectable polar patterns: cardioid, figure eight, and omni-directional. This multipattern design allows the user to optimize the 770X for recording vocals, instruments, and all your recording needs. The 770X package includes the 770X Multipattern Condenser Microphone, shock mount with integrated pop-filter, balanced XLR cable, and a microfiber cleaning cloth.

MXL is one of the leading manufacturer of high performance audio products for professionals and recording enthusiasts around the world. MXL’s award-winning solutions continue to astound today’s top artists, engineers, professional producers, and businesses that require sonic perfection on stage, in the studio, and in the conference room.

• Versatile switch-selectable polar patterns: cardioid, figure-of-eight, and omnidirectional allows for a variety of recording applications
• Large diaphragm gold-sputtered capsule captures stunning clarity and detail
