Key Features:

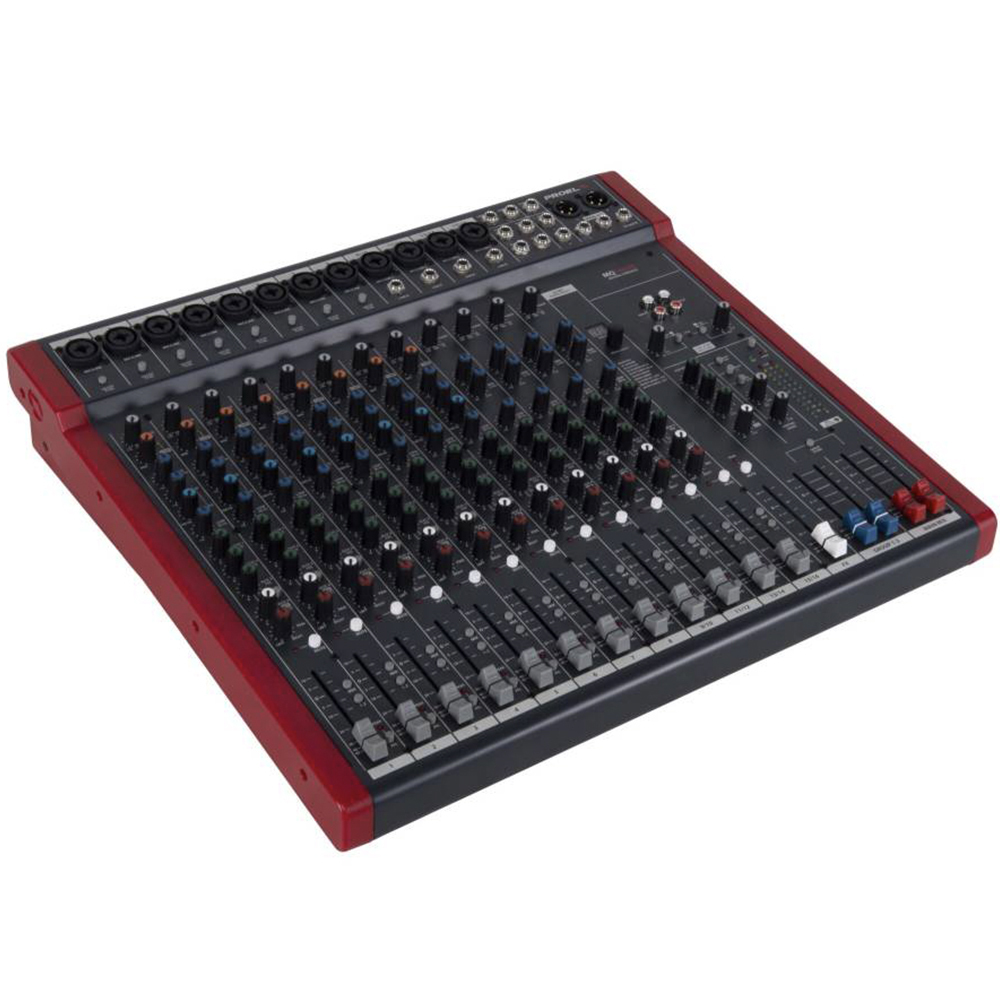

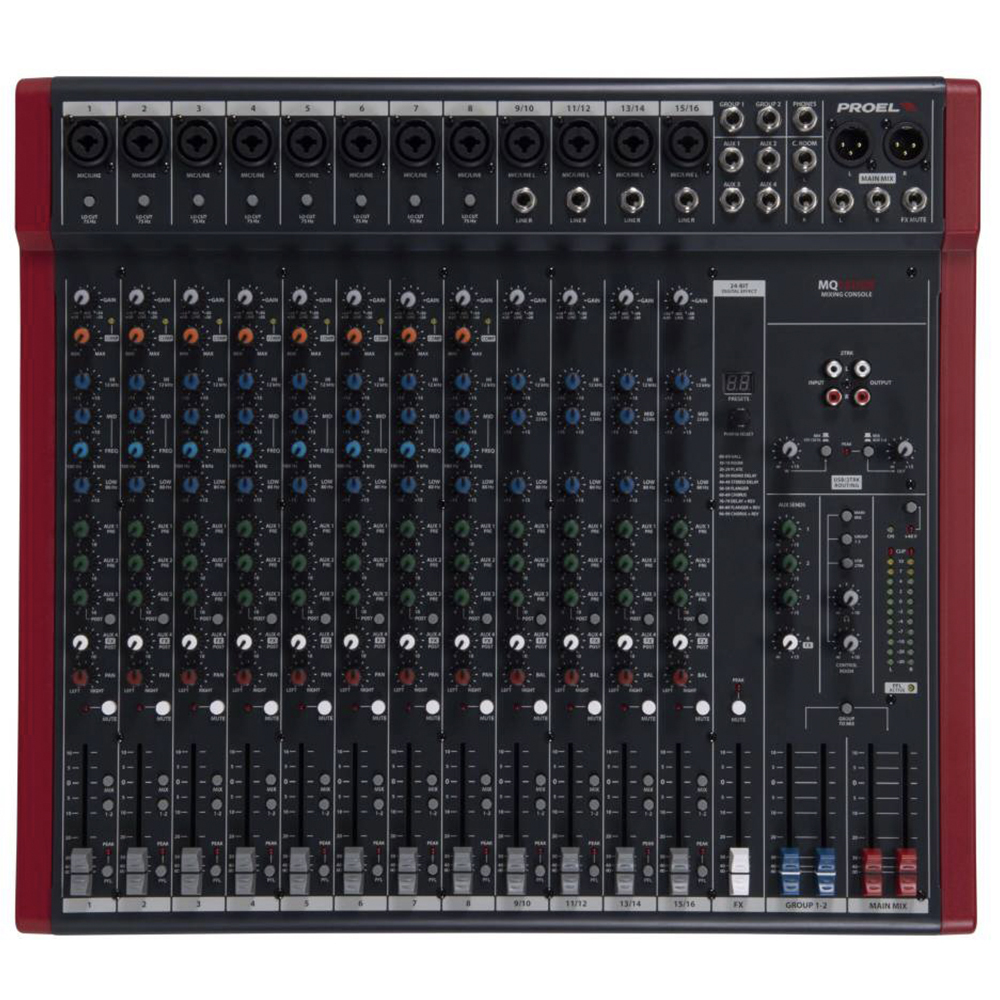

  • Compact 16-input 4-bus mixer with effect and USB I/F
  • 8 MONO MIC/LINE inputs and 4 STEREO MIC/LINE inputs
  • 12 low-noise, very high-headroom microphone preamplifiers
  • PHANTOM power
  • ‘One-knob’ COMPRESSOR with LED indicator on MONO channels
  • 3-band EQ with sweep mids and LO-CUT filter
  • 3 AUX sends pre-fader e 1 AUX send post-fader
  • 24bit studio-grade digital effect with 100 presets, 2-digit display and footswitch MUTE
  • Built-in USB interface with routing options for PC recording and playback
  • GROUS 1&2 with MIX routing and output
  • 2-TRACK, HEADPHONES and CONTROL ROOM outputs
  • Electronically balanced MAIN MIX outputs with XLR-M and ¼” JACK connectors
  • Two 12-LED VU-METERS
  • Universal switching power supply 100-250V

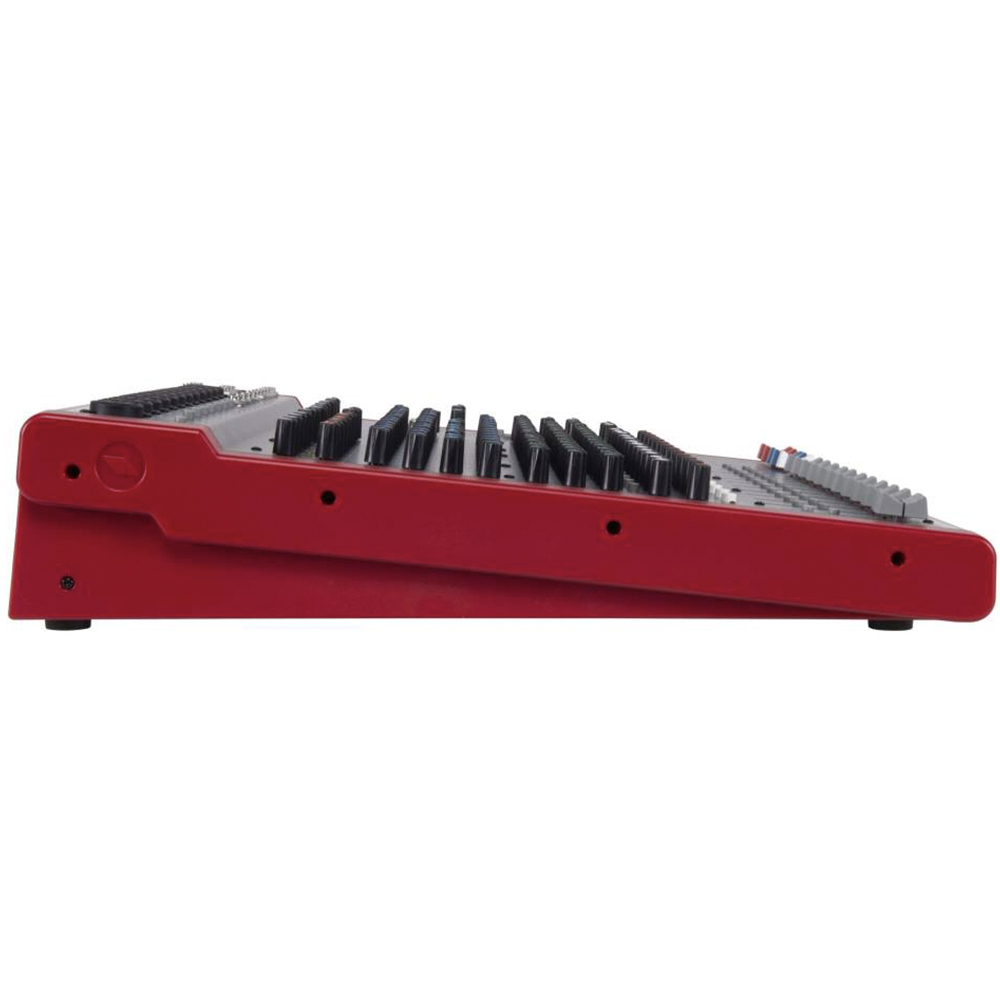

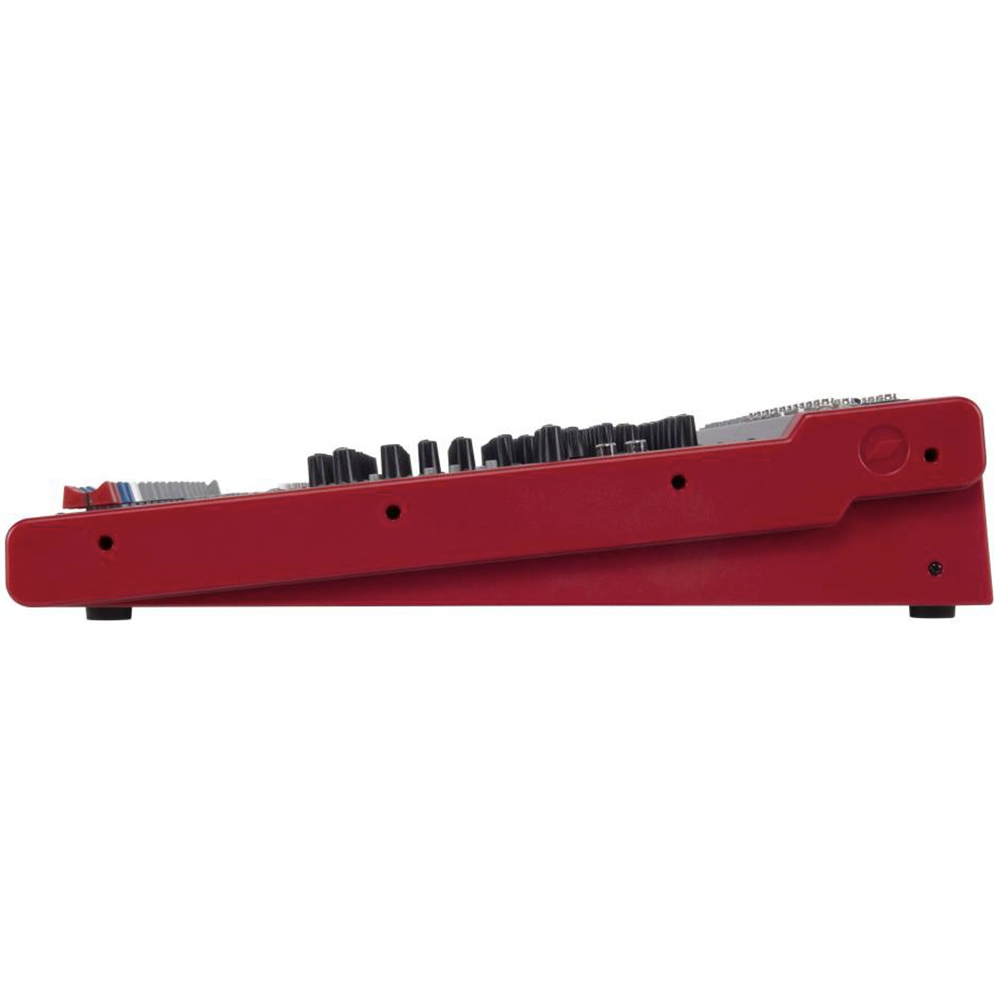

  • Stage-proof construction and ultra-rugged metal chassis
  • Designed and engineered in Italy by PROEL

MQ is a series of mixers created by PROEL to offer in a very compact and stylish package a high input density, a full set of features and a superior audio quality, at a very convenient price point. The MQ series includes 5 models with 6, 10, 12 and 16 inputs, able to satisfy most of the sound reinforcement applications. Carefully designed and engineered in Italy by PROEL R&D, MQ mixers are hosted in ultra-rugged cases, providing extended durability for a stage-proof use.

The smallest models of the series, MQ6 and MQ6FX, offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound. The MQ6FX, despite its small size, includes a high-quality 24-bit DSP able to provide musicians and performers with studio-grade effects.

MQ10FX, together with 3-band EQ and one-knob intelligent COMPRESSORS, offers also 100 DSP presets with a convenient LED display for the selection.

MQ12USB additional features include an USB audio I/O interface and extended mixing capability with MONITOR send, STEREO GROUP bus and 45mm control faders.

The top-of-the-line MQ16USB feature 16 inputs and 12 microphone channels together with sweep mids and one-knob intelligent COMPRESSORS on mono channels, 4 AUX sends, STEREO GROUP bus and 60mm control faders.

Optional padded carrying bags and metal brackets for 19” rack mounting are available for selected models.

Technical Data



INPUTS: -8x Mono MIC/Line
-4x Mono Stereo XLR/Line
MONO Mic Input: -Sensitivity from -10 to -50 dB via Balanced XLR/TRS Combo
-Impedance = 2 Kohm
 MONO Line Input: -Sensitivity from from +20 to -20 dB Balanced JACK
-Impedance = 10 Kohm
STEREO Mic Input:  – Sensitivity from -10 to -50 dB Balanced XLR/TRS Combo
-Impedance = 2 Kohm
STEREO Line Input:  -Sensitivity from from +20 to -20 dB Balanced JACK
-Impedance = 10 Kohm—
-Sensitivity -10 dB via Balanced JACK, RCA
-Impedance = 10 Kohm
LOW CUT:  75Hz, 18dB/oct.
EQ:  -HIGH (shelving) ±15 dB @ 12K Hz
-MID (peaking) ±15 dB @ 2.5 KHz
-LOW (shelving) ±15 dB @ 80 Hz
COMPRESSOR:  Fet Style on CH 1-4, 1-knob
MAIN MIX: nom. out level +4 dBu Balanced JACK and XLR-M (Left and Right)
C. ROOM output: nom. out level +4 dBu Unbalanced JACK (Left and Right)
FX/AUX output:  nom. out level 0 dBu Unbalanced JACK
HEADPHONES: -min. impedance 32 ohm
-max. out level (2x) 193 mW Stereo JACK
USB  Stereo IN/OUT, 16-bit converter, 48 KHz sample rate Type B
Effects: 100 presets
A/D and D/A converters: 24 bit
DSP resolution:  24 bit
Controls: 2-DIGIT display, DIAL, PEAK LED, MUTE switch, MUTE footswitch
Maximum level: all outputs +22 dBu
Crosstalk: meas. at 1 KHz > 82 dBu
HUM & Noise: unweighted < -93 dB
THD + Noise: at +4dB, 1kHz < 0.008 %
Dimensions (WxHxD): 481 x 432 x 104 mm
Weight: 6.50 kg
Mains Supply Voltage: 100-240 VAC (±10%) 50/60 Hz
Consumption: 35 W
SKU MQ16USB
Barcode # 8032496169437
Brand PROEL
Shipping Weight 2.5600kg
Shipping Width 0.270m
Shipping Height 0.085m
Shipping Length 0.420m
Shipping Cubic 0.009639000m3
