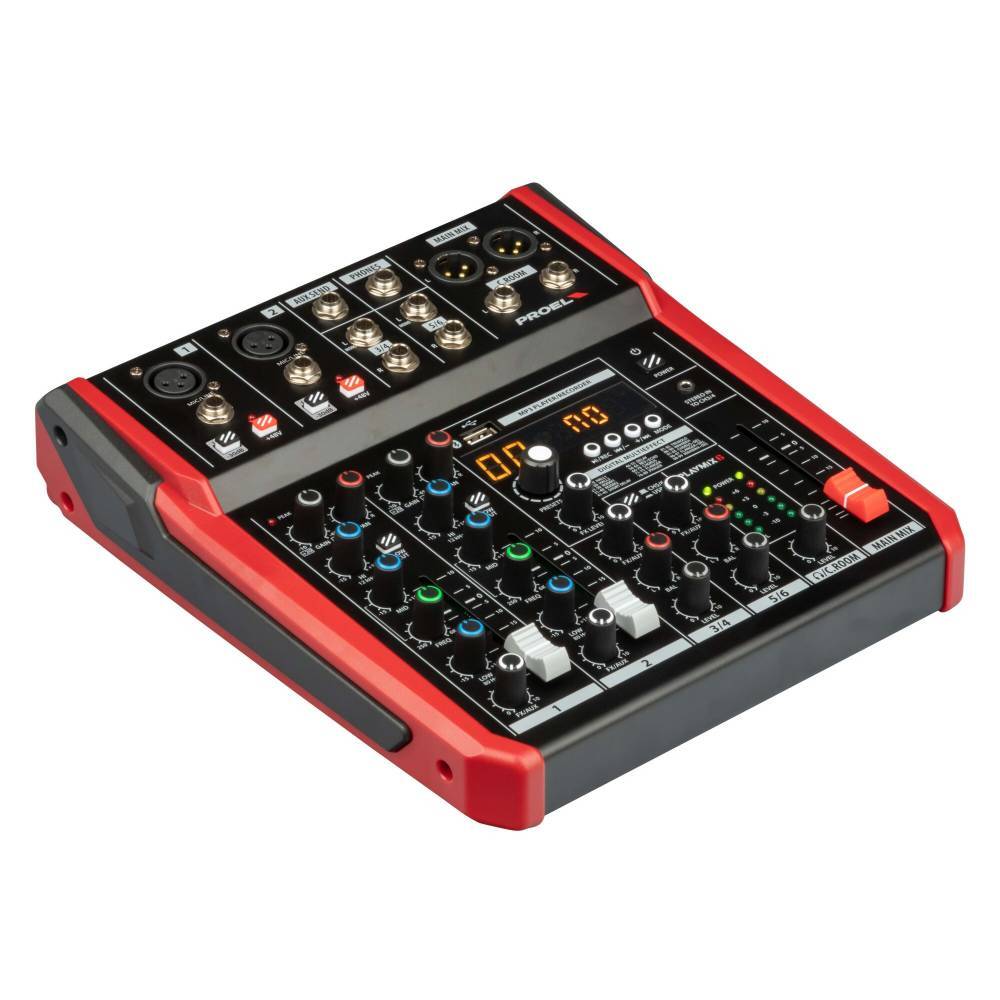

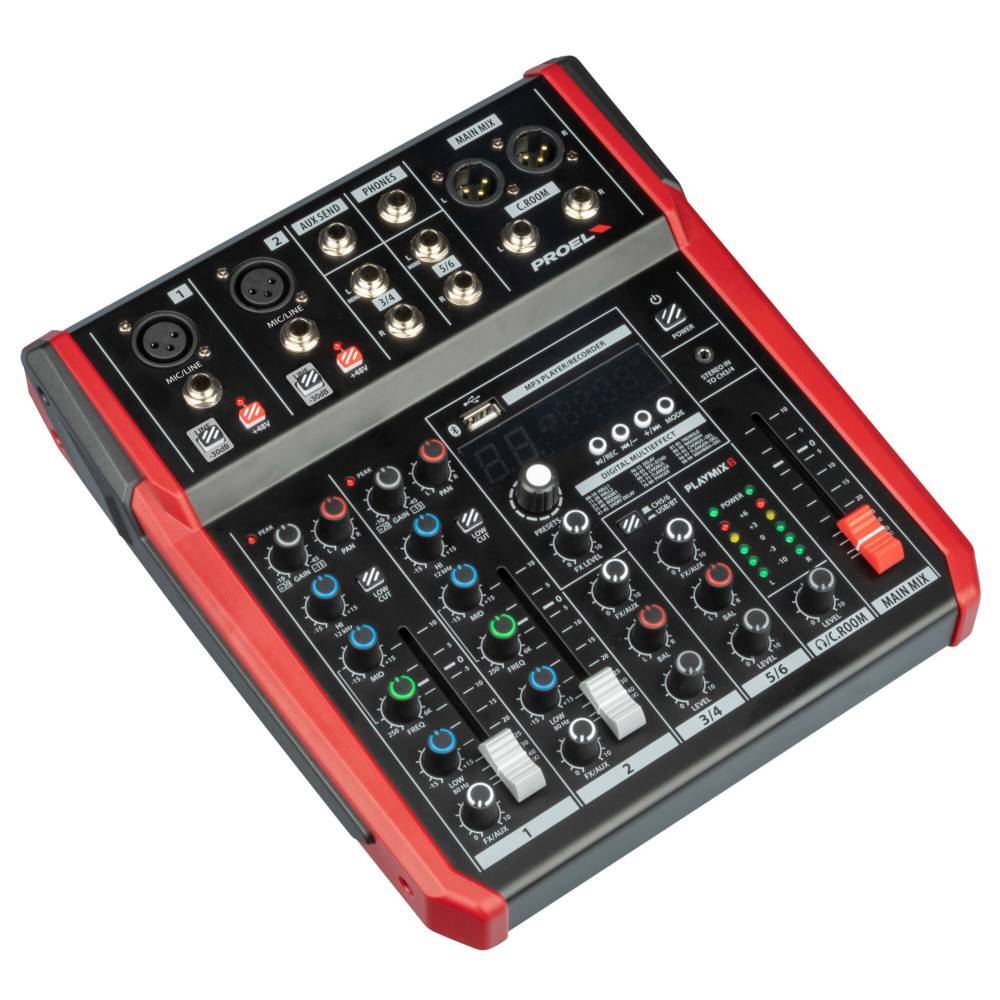

Proel PLAYMIX6 Compact 8-channel mixer with DSP and USB/BT interface
Calculate Shipping :
Free pickup from our Melbourne Store at 4 Drake Boulevard, Altona VIC 3018. Your order will typically be ready by the next business day. We recommend calling us on (03) 8360 7799 beforehand to check it's ready for collection.
Share This Item :
Key Features:
- A high-quality 24-bit built-in DSP with 100 studio-grade presets of single and combined effect (REVERBS, DELAYS, MODULATIONS)
- A 48KHz stereo USB audio interface for playing/recording thru PC connection
- A built-in MP3 player from USB memory key or BLUETOOTH interface
- On-the-go stereo recording on USB memory key
PLAYMIX is a series of mixers created by PROEL to offer in a very compact and stylish package a high inputs density, a full set of features and a superior audio quality, at a very convenient price point.
PLAYMIX mixers are available in 3 models, with the same channel and master functions, but offering 6, 8 or 10 inputs respectively. The mono MIC/LINE channels feature low-noise, high-headroom microphone preamps, 3-band EQ with sweep MIDs and HPF, and 60mm control faders, for a full control of your sound.
Carefully designed and engineered in Italy by PROEL, PLAYMIX mixers are hosted in rugged cases, providing extended durability for a stage-proof use and they offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound for a wide range of applications.
Technical Data
| INPUTS: | 2x Mono MIC/Line 2x Mono Stereo TS/TRS |
|---|---|
| MONO Mic Input: | -Sensitivity from -10 to -45 dB via Balanced XLR-F -Impedance = 1 Kohm |
| MONO Line Input: | -Sensitivity from from +20 to -15 dB Balanced JACK -Impedance = 20 Kohm |
| STEREO Line Input: | -Sensitivity from from +12 to -15 dB Balanced JACK -Impedance = 20 Kohm |
| LOW CUT: | 80Hz, 6dB/oct. |
| EQ: | -HIGH (shelving) ±15 dB @ 12K Hz -MID (peaking) ±12 dB @ 250-6K Hz -LOW (shelving) ±15 dB @ 80 Hz |
| MAIN MIX: | nom. out level +4 dBu Unbalanced XLR-M (Left and Right) |
| C. ROOM output: | nom. out level +4 dBu Unbalanced JACK (Left and Right) |
| SEND output: | nom. out level +4 dBu Unbalanced JACK |
| HEADPHONES: | min. impedance 64 ohm Stereo JACK |
| BLUETOOTH: | Version 5.0, Audio Streaming |
| USB Audio Interface: | Stereo IN/OUT, 16-bit converter, 44.1 KHz sample rate Type A |
| Effects: | 100 presets |
| A/D and D/A converters: | 24 bit |
| DSP resolution: | 24 bit |
| Controls: | 2-DIGIT display, DIAL, LEVEL |
| Maximum level: | all outputs +15 dBu |
| Crosstalk: | meas. at 1 KHz > 75 dB |
| HUM & Noise: | unweighted < 90 dB |
| THD + Noise: | at +4dB, 1kHz < 0.009 % |
| Dimensions (WxHxD): | 247 x 274 x 61 mm |
| Weight: | 1.80 kg |
| Power Supply: | use only supplied AC/DC ADAPTER 5VDC 1A |
| Mains Supply Voltage: | 100-240 VAC (±10%) 50/60 Hz |
| SKU | PLAYMIX6 |
| Barcode # | 8032496914570 |
| Brand | PROEL |
| Shipping Weight | 2.5600kg |
| Shipping Width | 0.270m |
| Shipping Height | 0.085m |
| Shipping Length | 0.420m |
| Shipping Cubic | 0.009639000m3 |
